MARKETING INFORMATION

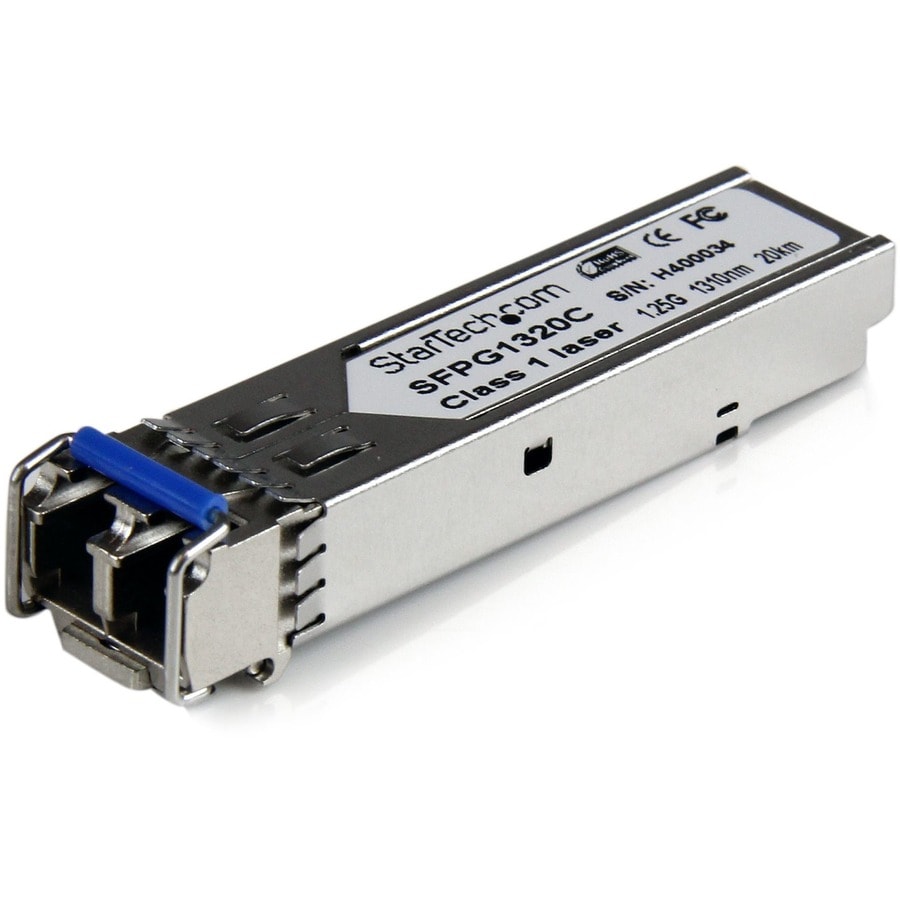

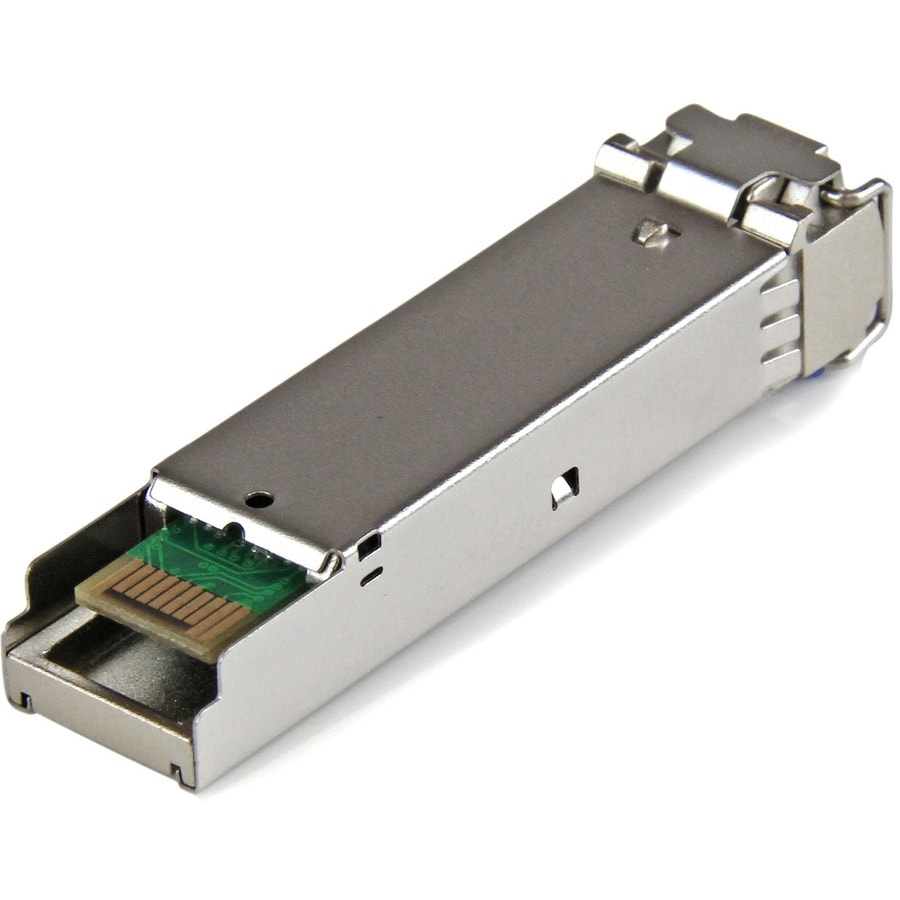

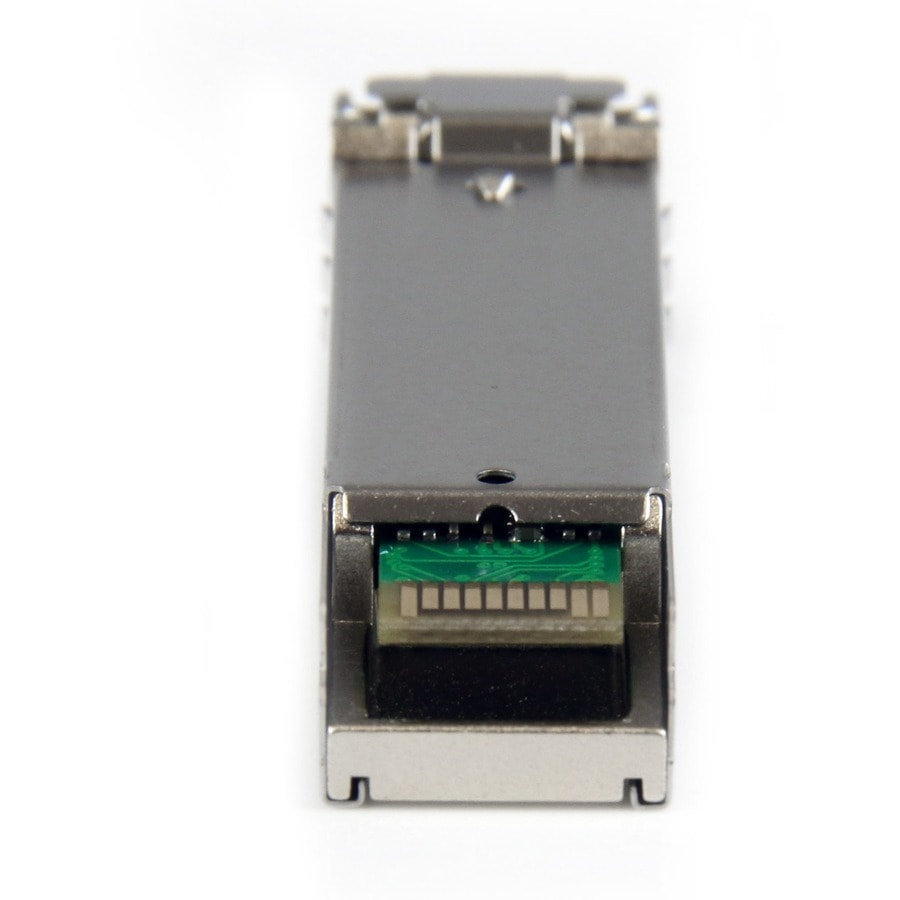

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber

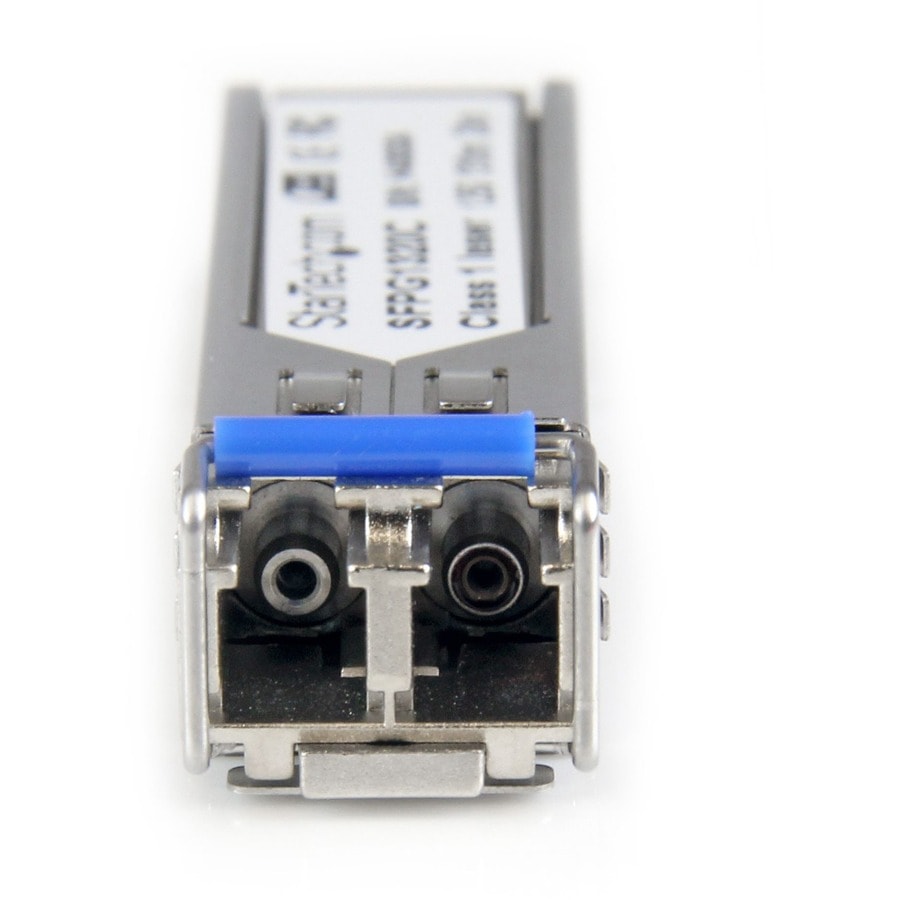

• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 2,722,277 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

DETAILS

• Application/Usage : Data Networking,Optical Network
• Total Number of Ports : 1
• Connector Type : LC
• Interfaces/Ports Details : 1 x LC Duplex 1000Base-LH Network
• Media Type Supported : Optical Fiber
• Fiber Mode Supported : Single-mode
• Ethernet Technology : 1.25 Gigabit Ethernet
• Network Technology : 1000Base-LH
• Form Factor : Hot-pluggable,Hot-swappable
• Height : 0.40" (10.16 mm)
• Width : 0.50" (12.70 mm)
• Depth : 2.40" (60.96 mm)
• Weight (Approximate) : 0.70 oz (19.84 g)
• Compatibility :
  • MSA Compliant

  Cisco Firepower Switches:


  • IE2000
  • IE4000
  • C9300
  • IE3000
• Country of Origin : China
• Environmentally Friendly : Yes
• Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : Lifetime

• 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, IE2000, IE4000, C9300, IE3000 and others
• TECHNICAL SPECS: 1000BASE-LH | 1 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 20km (12.4mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
