MARKETING INFORMATION

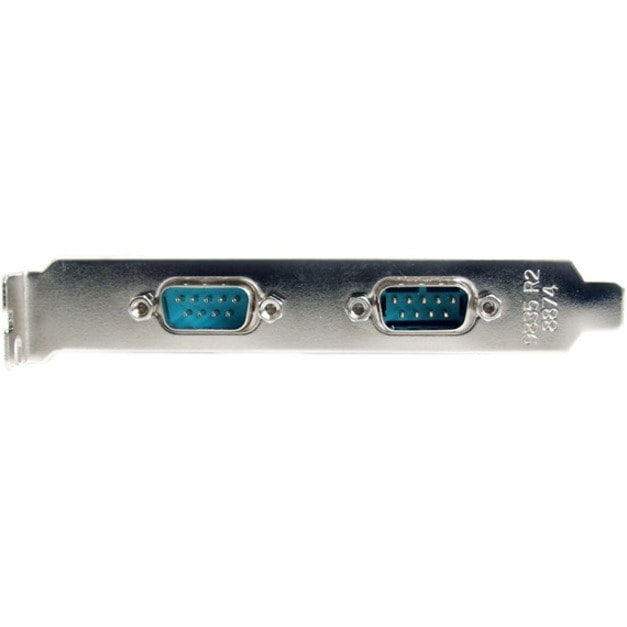

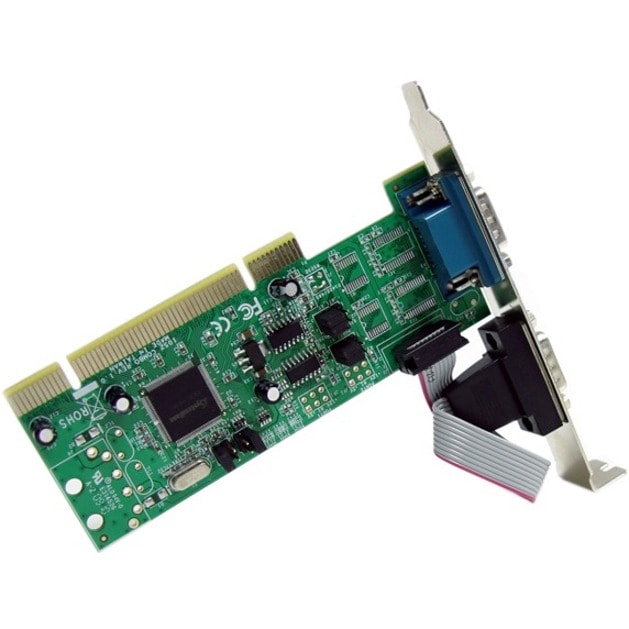

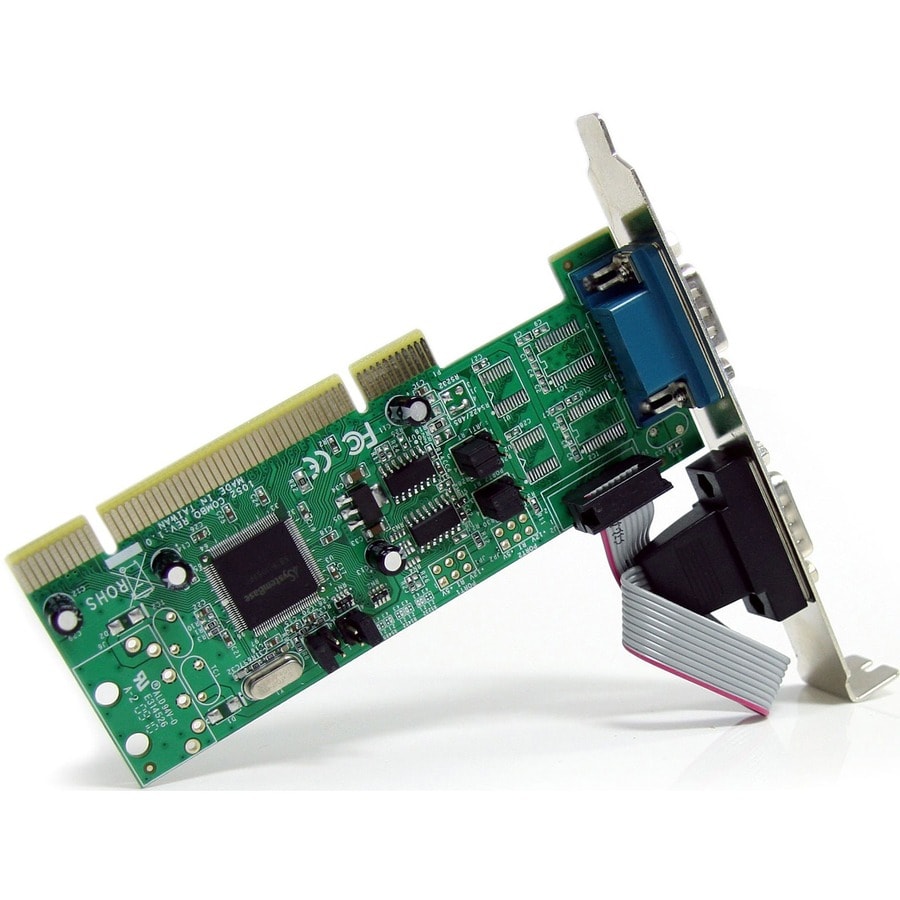

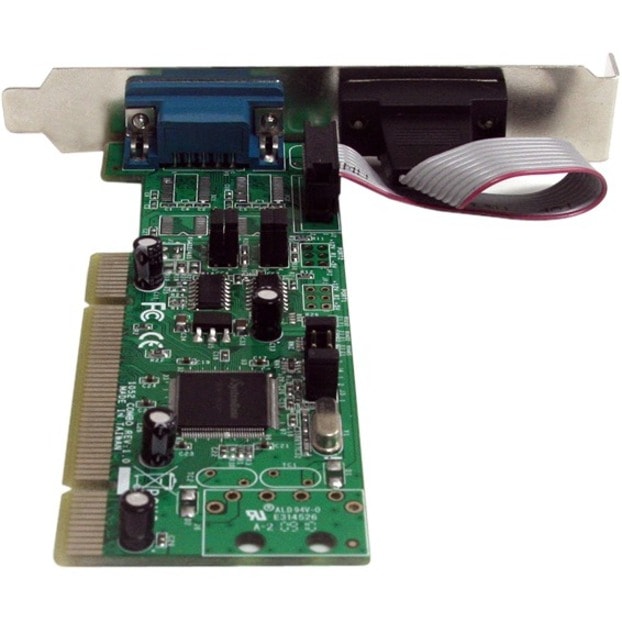

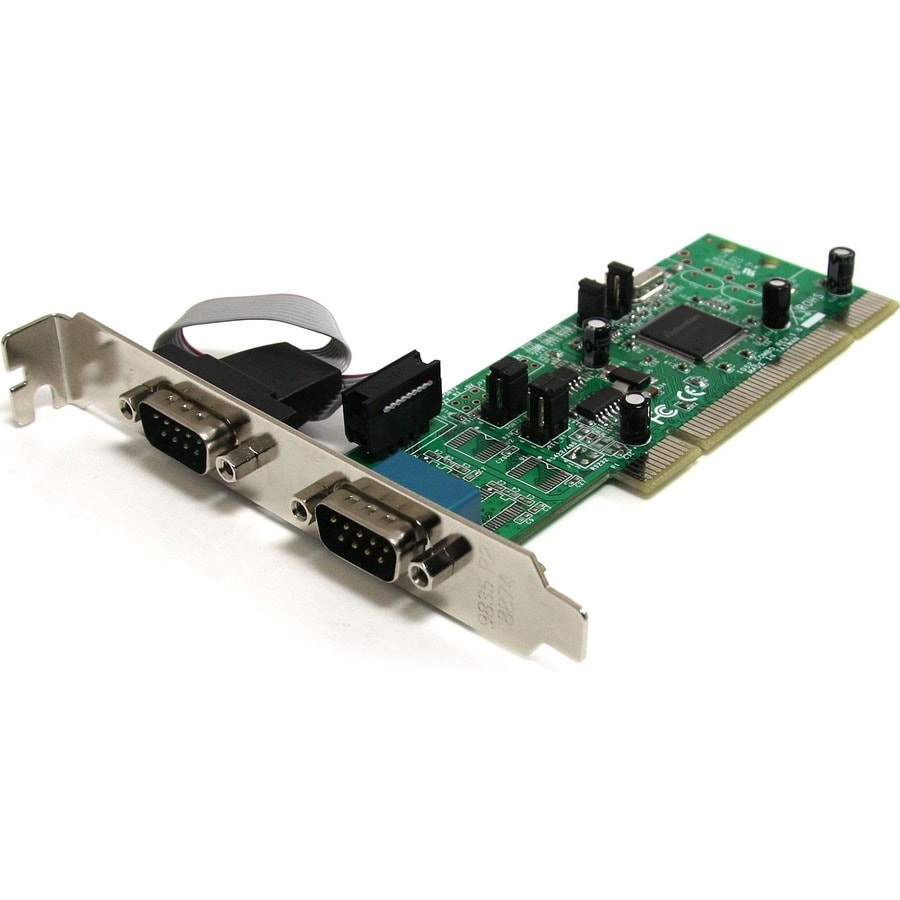

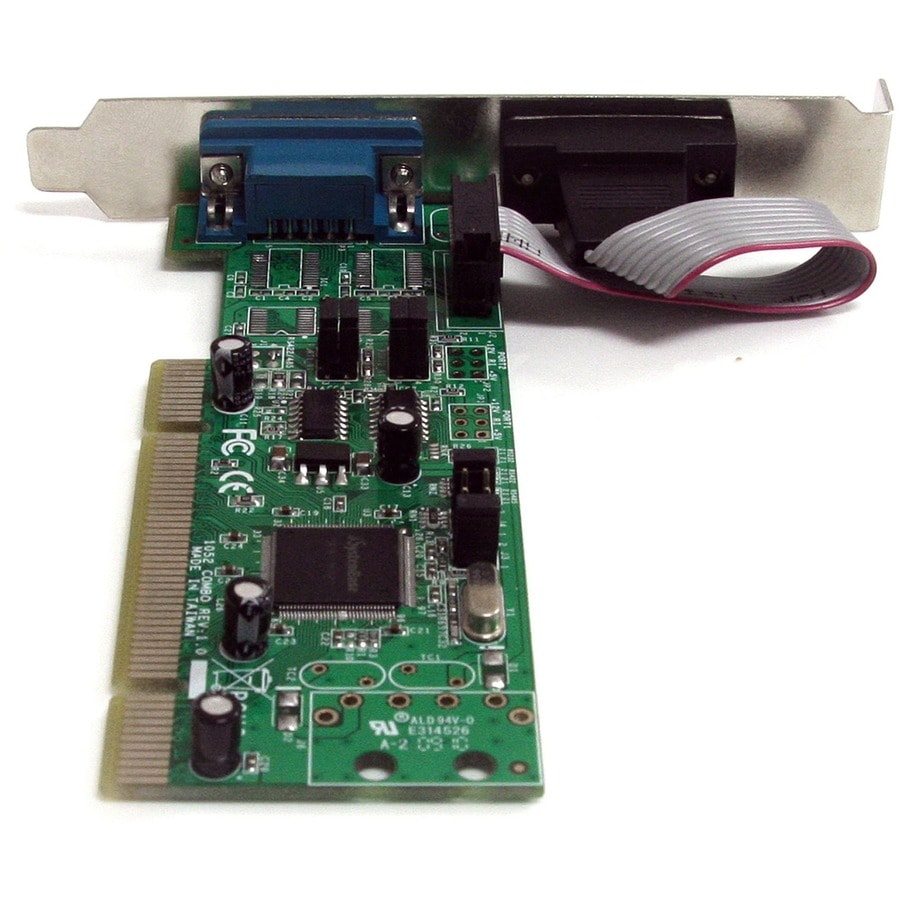

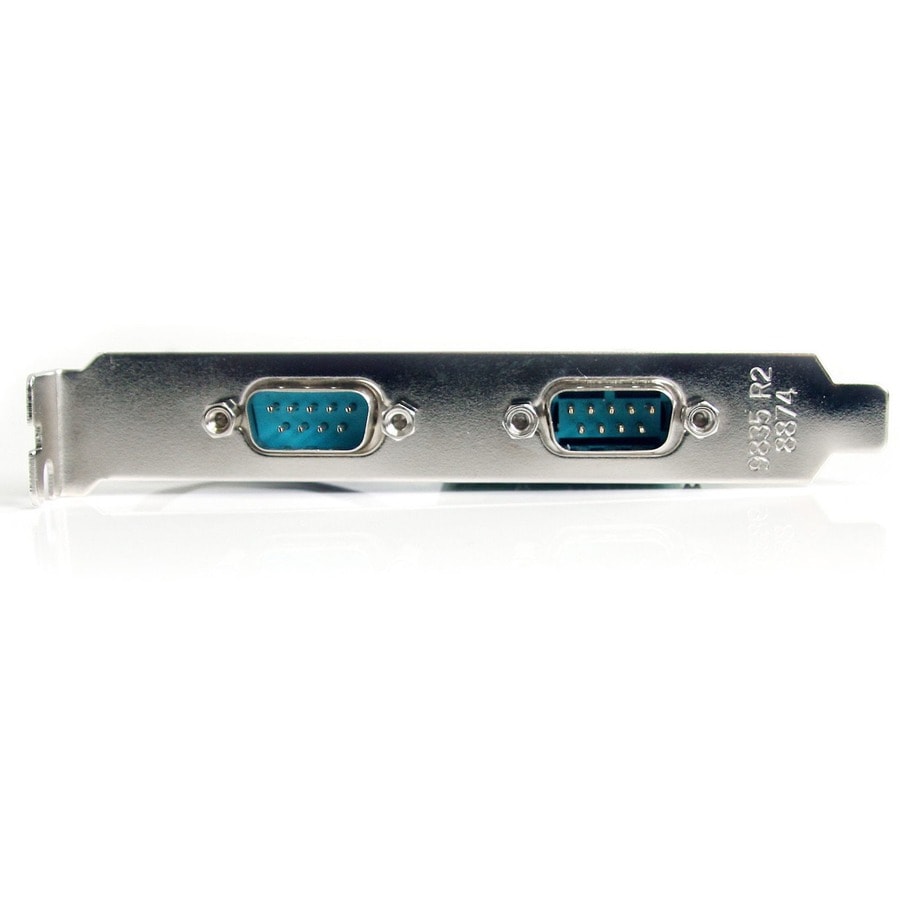

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

• Host Interface : Universal PCI
• Platform Supported : PC
• UART Type : 161050
• Number of Serial Ports (External) : 2
• Form Factor : Plug-in Card
• Card Height : Dual-profile
• Height : 1.80" (45.72 mm)
• Width : 0.60" (15.24 mm)
• Weight (Approximate) : 2 oz (56.70 g)
• Package Contents :
  • 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
  • Standard and Low Profile/half-height Brackets
  • Driver CD
• Environmentally Friendly : Yes
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Limited Warranty : Lifetime

• Supports maximum data transmission rate of 128Kbps
• 16C1050 UART with 256-byte Deep FIFO
• Supports 2-wire and 4-wire RS485 modes
• Jumper pins for RS422/485 toggling
• Supports Hardware and Software flow control
• Supports PCI Power Management 1.1
• Compliant with PCI Local Bus Specification 2.3
