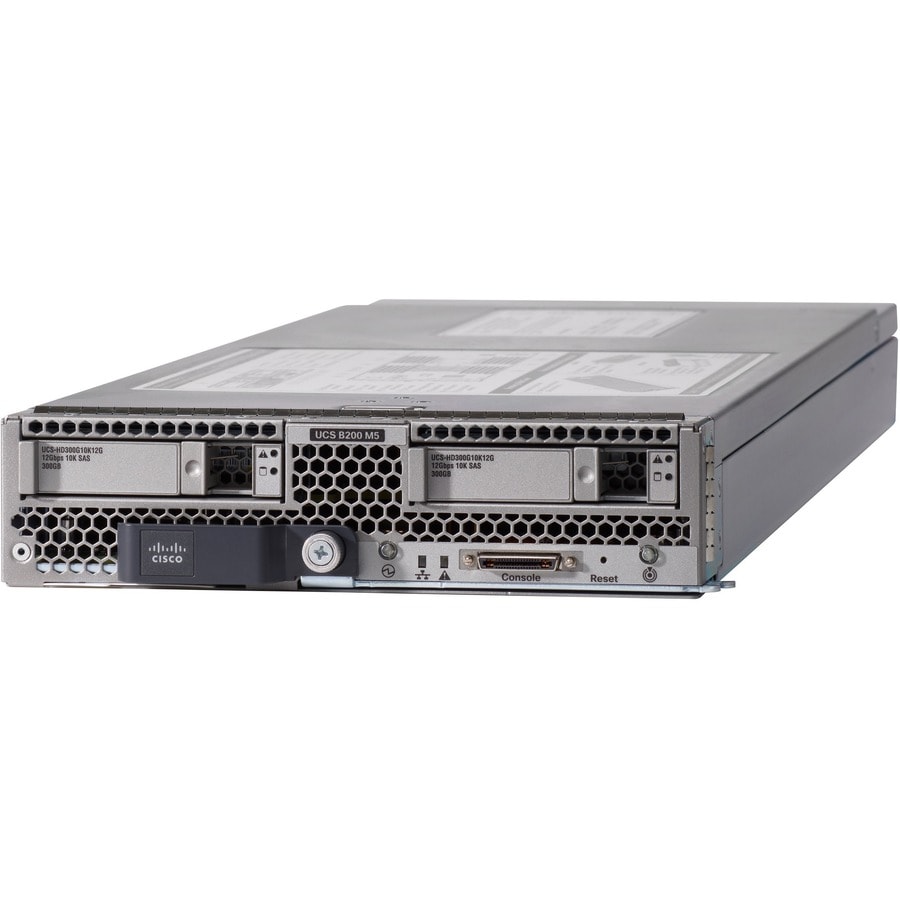

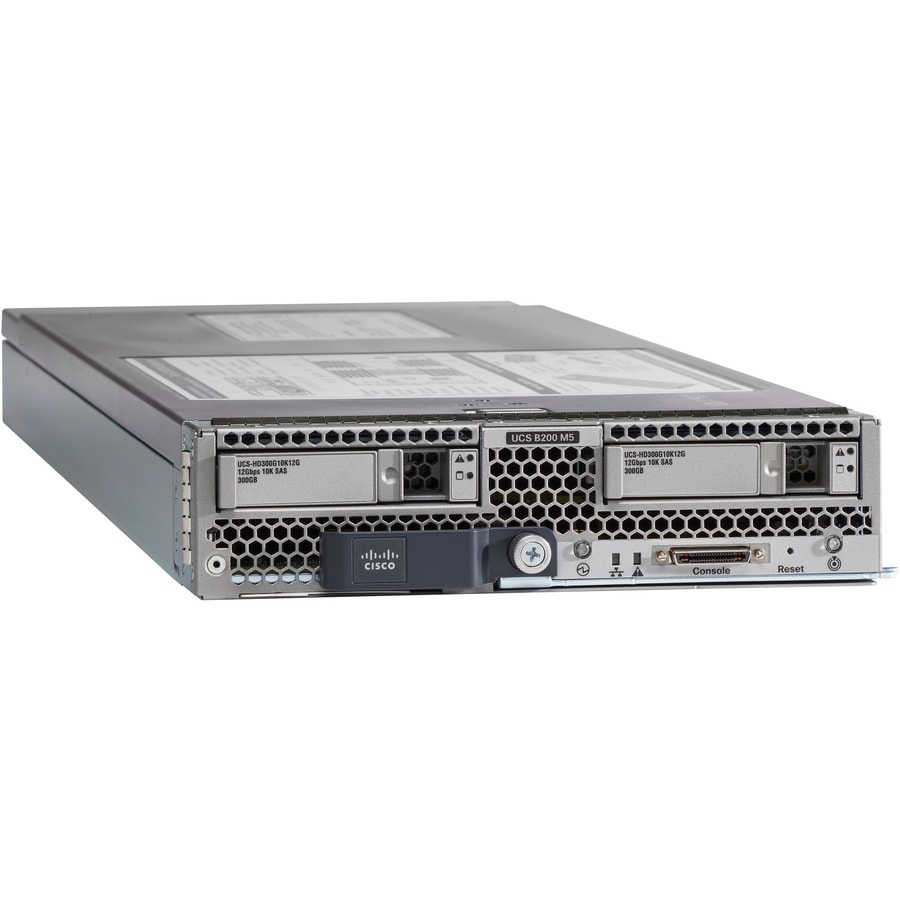

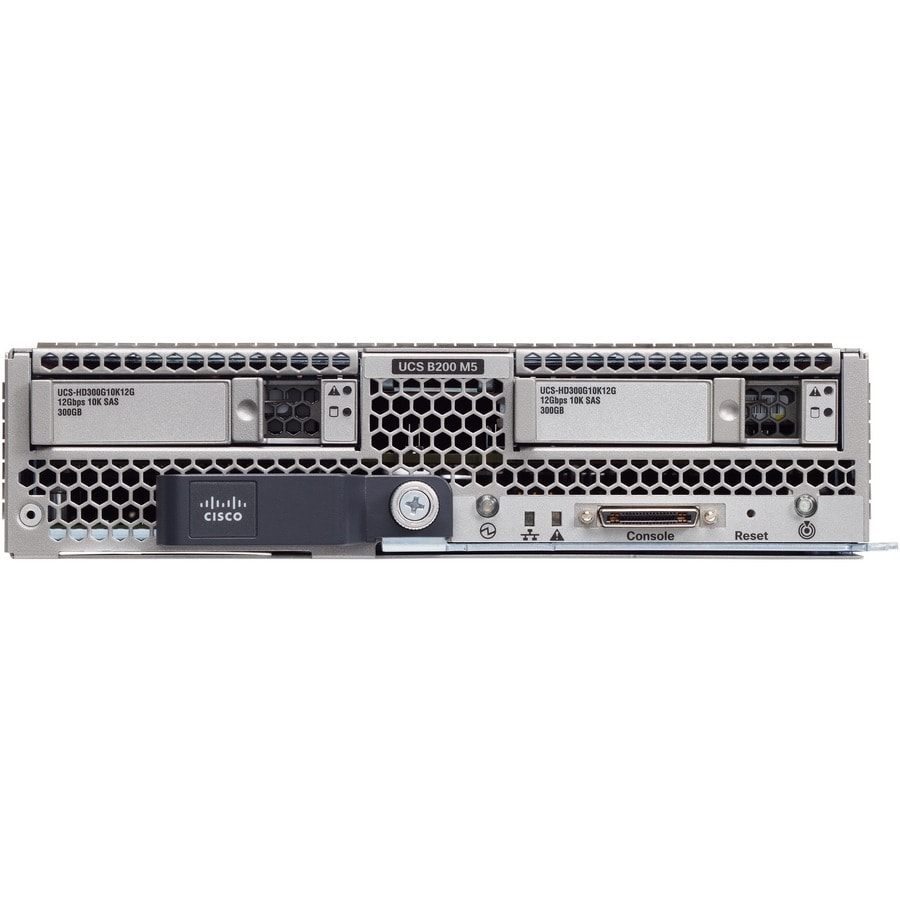

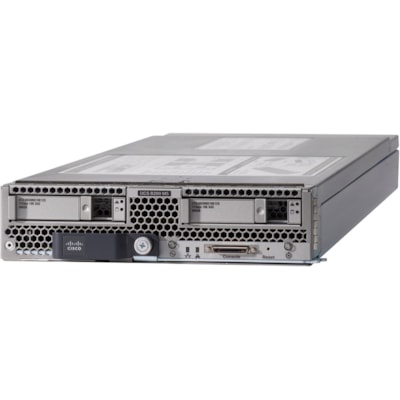

Cisco B200 M5 Blade Server - 2 x Intel Xeon Gold 5118 Dodeca-core (12 Core) 2.30 GHz - 96 GB Installed DDR4 SDRAM - Serial ATA, 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - 10 Gigabit Ethernet - Matrox G200e 8 MB Graphic Card 6X16GB VIC1340 - 2 Processor Support - 3 TB RAM Suppor
UCS-SP-B200M5-A1
Also known as IM823PPE
MARKETING INFORMATION
Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
DETAILS
- Number of Processors Supported : 2
- Number of Processors Installed : 2
- Processor Type : Xeon Gold
- Processor Model : 5118
- Processor Core : Dodeca-core (12 Core)
- Processor Speed : 2.30 GHz
- Standard Memory : 96 GB
- Maximum Memory Supported : 3 TB
- Memory Technology : DDR4 SDRAM
- Total Number of Memory Slots : 24
- Number of Occupied Memory Slots : 6
- Controller Type : Serial ATA,12Gb/s SAS
- RAID Supported : Yes
- Number of Total Expansion Bays : 2
- Number of Internal 2.5" Bays : 2
- Hot Swappable Bays : Yes
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 8 MB
- Ethernet Technology : 10 Gigabit Ethernet
- Form Factor : Blade
- Height : 1.95" (49.53 mm)
- Width : 8" (203.20 mm)
- Depth : 24.40" (619.76 mm)
- Weight (Approximate) : 9.50 lb (4310 g)
- 96 GB powerful memory for any computational task
- RAID provides data reliability, fault tolerance and improves overall performance
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCS-SP-B200M5-A1 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | B200 M5 |
| Product Name | UCS B200 M5 Server |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Model | 5118 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.30 GHz |
| Standard Memory | 96 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 6 |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| Hot Swappable Bays | Yes |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 8" (203.20 mm) |
| Depth | 24.40" (619.76 mm) |
| Weight (Approximate) | 9.50 lb (4310 g) |
