MARKETING INFORMATION

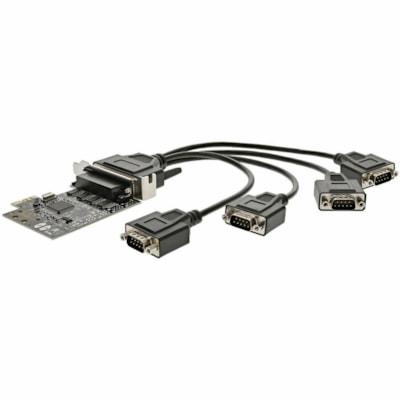

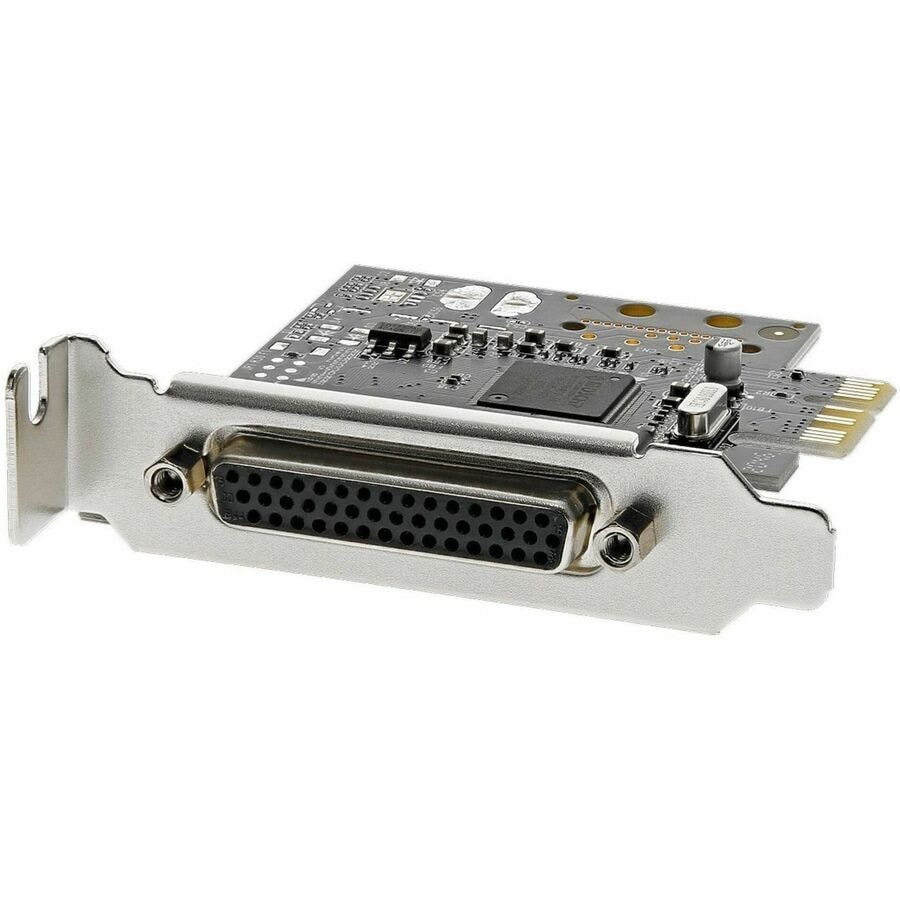

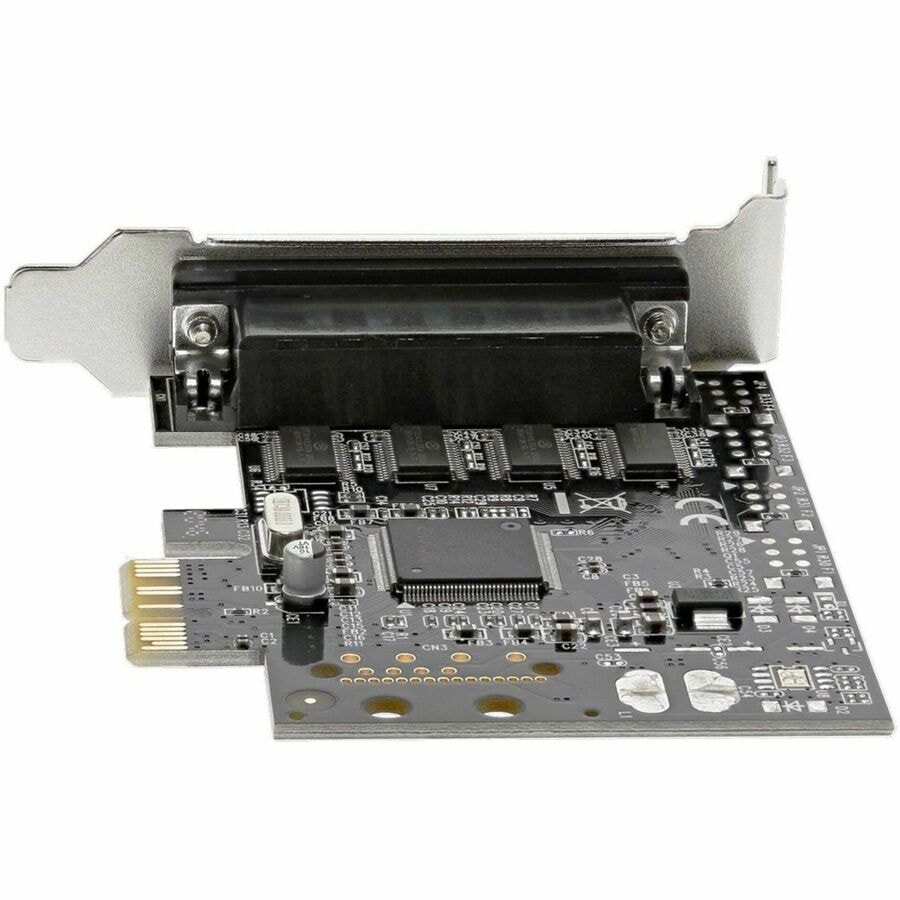

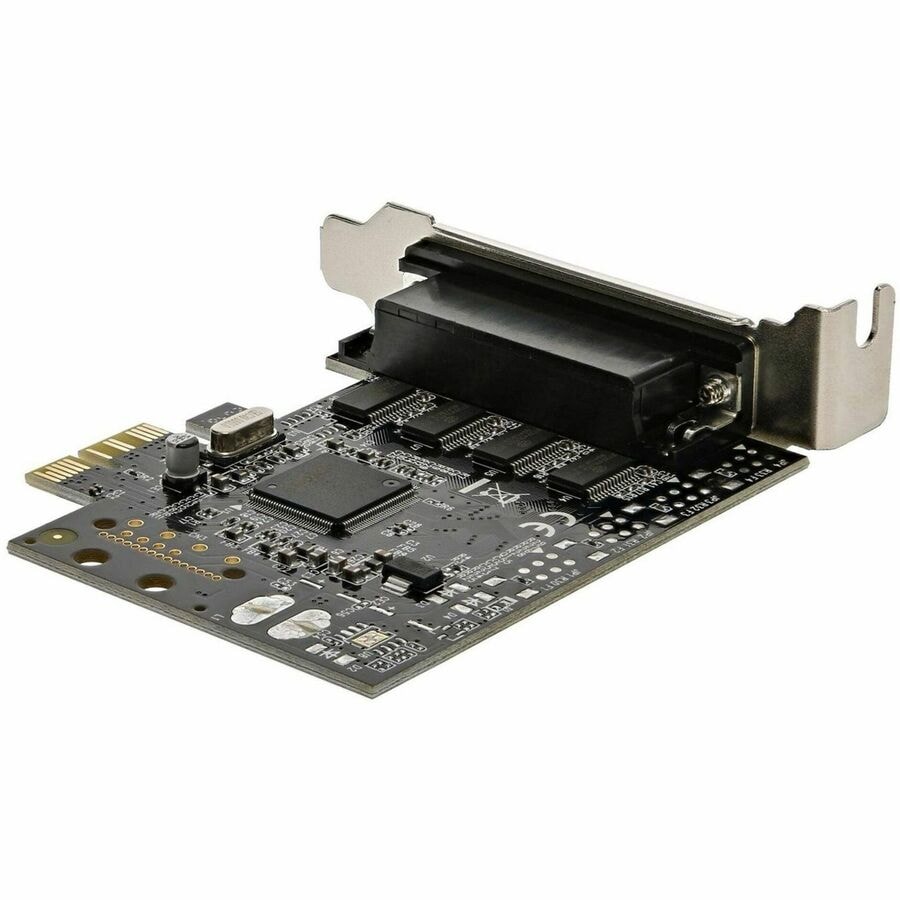

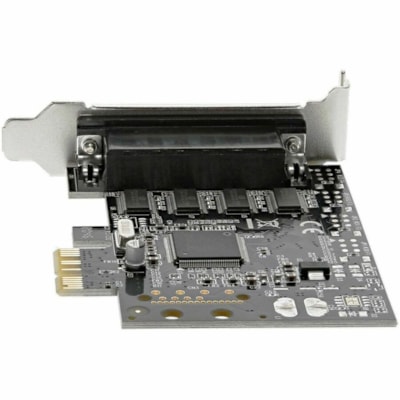

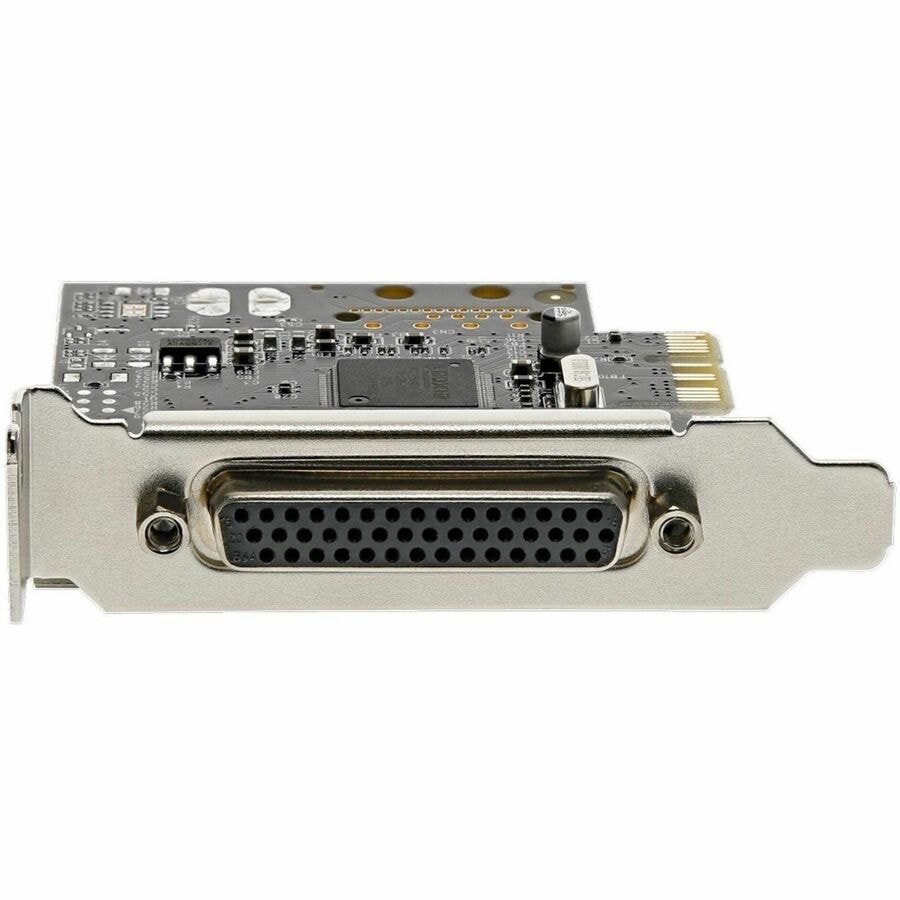

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.

This product is a replacement for our PEX4S552B card.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

• Host Interface : PCI Express x1
• Maximum Data Transfer Rate : 1.95 Mbit/s
• Ports Expandability : 4 x DB-9 RS-232 - Serial, Via Cable
• Form Factor : Plug-in Card
• Height : 2.70" (68.58 mm)
• Width : 0.50" (12.70 mm)
• Weight (Approximate) : 8.40 oz (238.14 g)
• Package Contents :
  • 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
  • 1 x DB9 Breakout Cable
  • 1 x Full Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
• TAA Compliant : Yes
• Country of Origin : China
• Environmentally Friendly : Yes
• Limited Warranty : Lifetime

• Native single chip design
• Includes a full profile and low profile/half-height bracket
• On chip 256-byte depth FIFO in transmit/receive path of each port
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Supports hardware and software flow control
• Supports data transfer rates up to 250Kbps on each port
• Compliant with PCI Express base specifications revision 1.0a
• Automated out-of-band flow control using CTS/RTS and DSR/DTR
