MARKETING INFORMATION

Professional Surveillance in QHD Resolution

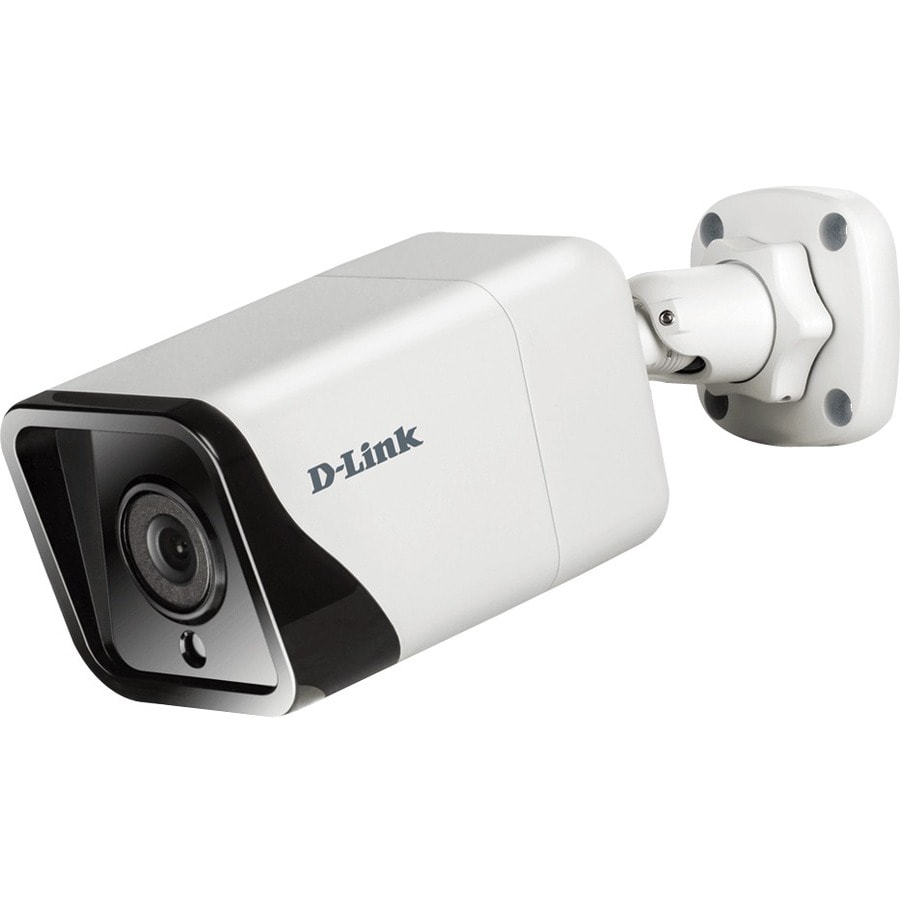

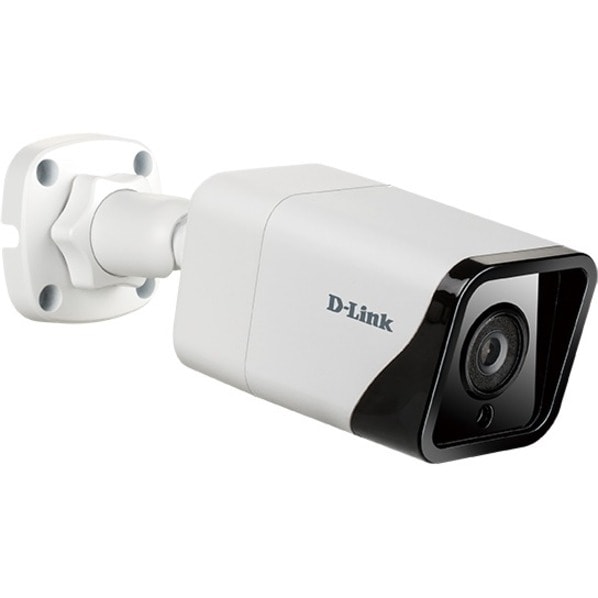

The D-Link DCS-4714E Vigilance 4-Megapixel H.265 Vandal-Proof Outdoor Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. This camera includes an 4 Megapixel image sensor and state-of-the-art image enhancement features packed into a compact form factor ready to face almost any indoor or outdoor application.

High quality videos, whatever the conditions

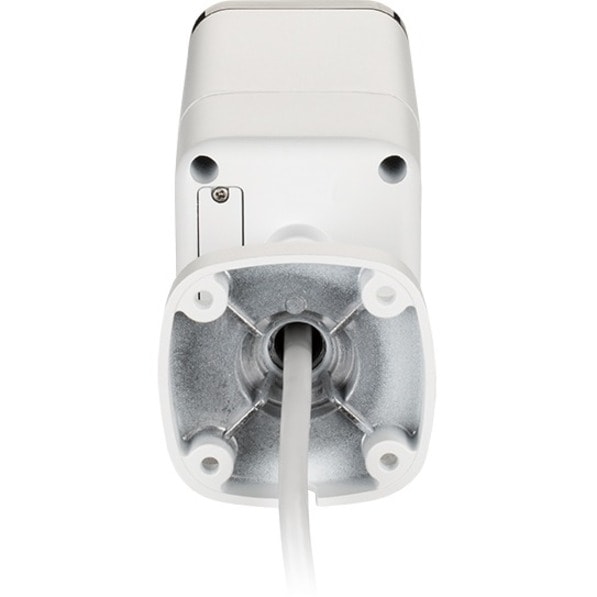

Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The included mounting bracket on the DCS-4714E offers unbelievable flexibility to provide surveillance where you need it the most.

Viewing Angles

(H) 100°
(V) 58°
(D) 126°

High Quality Lens

Fixed Focal Length 2.8mm with an F2.0 aperture

Optimizing Bandwidth and Storage

To maximize bandwidth efficiency and improve image quality, the DCS-4714E supports H.265 encoding in addition to H.264 and MJPEG to optimize network bandwidth for better visual quality and recording performance. H.265 can provide up to 50% lower bandwidth and storage requirements vs H.264.

Always on, Rain or Shine

Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and -30⁰-50⁰C operating temperature, the DCS-4714E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

Capture everything that matters

The DCS-4714E can record video 24/7 or based on Motion detection. Motion detection not only saves bandwidth and storage space on your network, but it also makes reviewing footage much less burdensome

PoE = Convenience

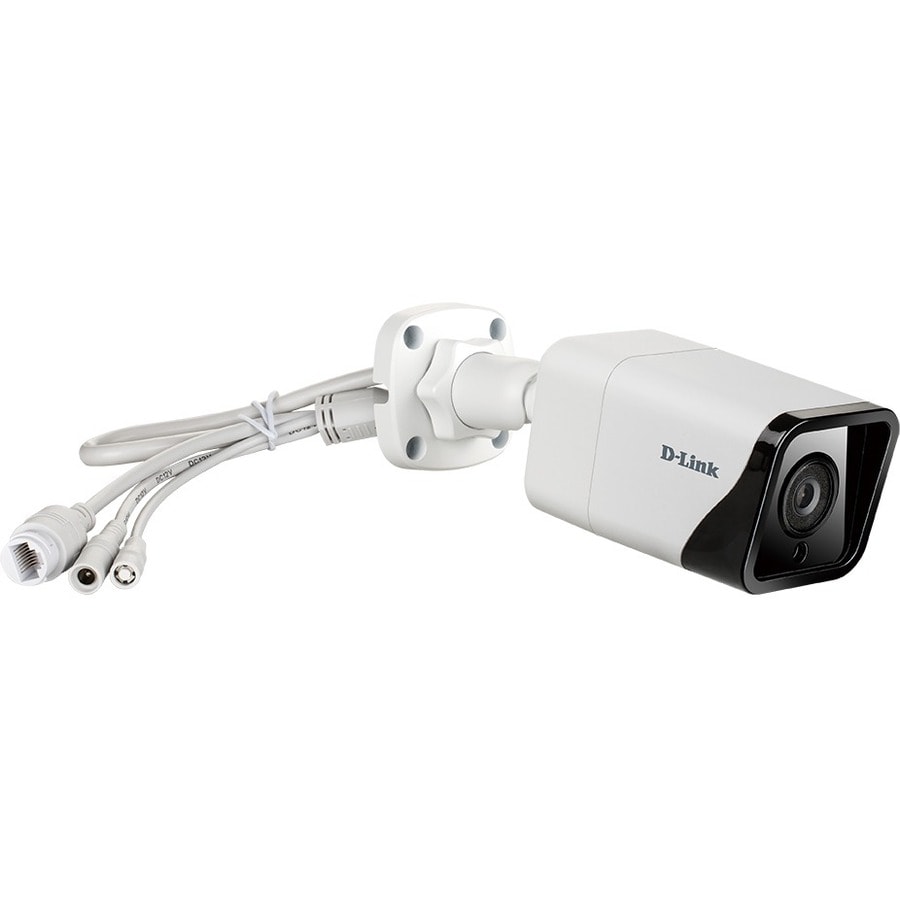

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The camera has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.

Video Management Software (VMS)

Manage your cameras with our free VMS solution, D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 64 cameras on a single computer. In addition, the DCS-4714E is Onvif-compliant and can be supported by several VMS solutions which allows it to seamlessly integrate with other vendor IP cameras and NVRs.

DETAILS

• HD Recording : Yes
• Recording Formats : HD
• Night Vision Distance : 98.43 ft (30 m)
• Image Sensor Type : CMOS
• Color Supported : Color
• Field of View : (H) 100° (V) 58° (D) 126°
• Effective Camera Resolution : 4 Megapixel
• Video Formats : H.265,H.264,MJPEG
• Maximum Video Resolution : 2592 x 1520
• Maximum Frame Rate : 30 fps
• Lens Type : Fixed
• Maximum Focal Length : 2.8 mm (0.11")
• Lens Included : Yes
• Maximum Aperture : f/2
• Connectivity Technology : Wired
• Remote Management : Yes
• Network (RJ-45) : Yes
• Input Voltage : 240 V AC
• Minimum Operating Temperature : -22°F (-30°C)
• Maximum Operating Temperature : 122°F (50°C)
• Features : Wide Dynamic Range,Motion Detection,Privacy Masking,Video Management System,SD Card Local Storage,ePTZ
• Indoor/Outdoor : Outdoor
• Ingress Protection Rating : IP66
• Country of Origin : China
• Limited Warranty : 5 Year

• Up to 2592 x 1520 video resolution
• CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
• Up to 98.43 ft (30 m) of night vision
