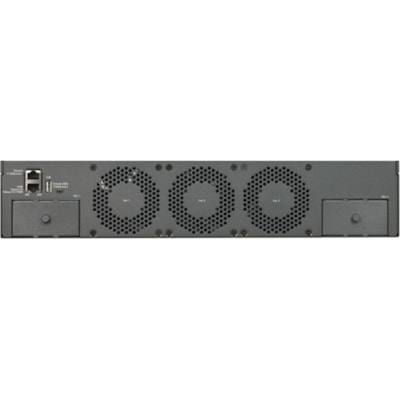

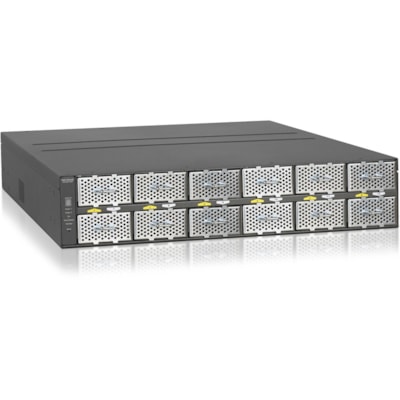

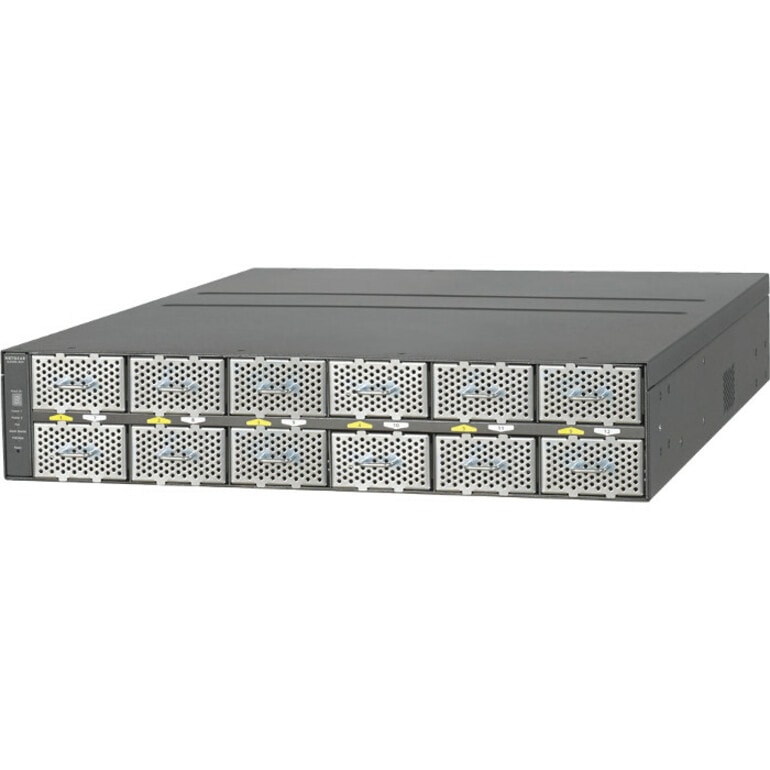

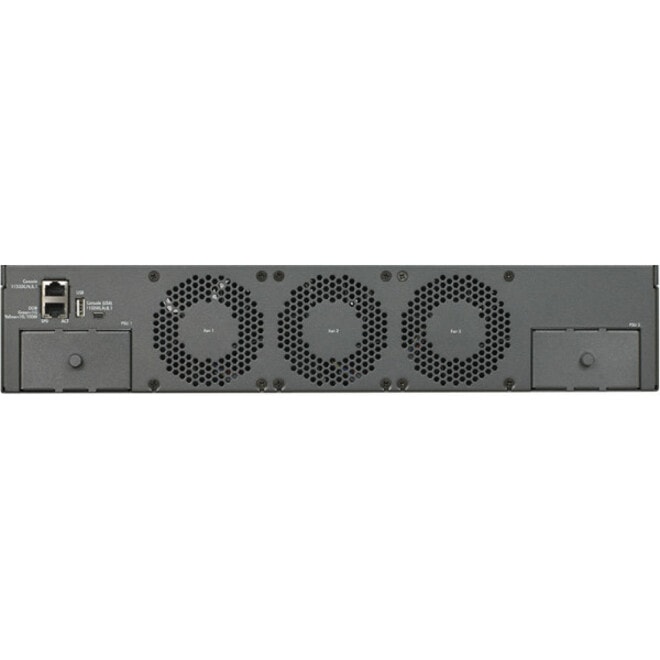

Netgear M4300 96G Managed Switch -Empty; No Modules or PSU - Manageable - 3 Layer Supported - Modular - 2U - Rack-mountable - Lifetime Limited Warranty
XSM4396K0-10000S
Also known as IM7723FC
MARKETING INFORMATION

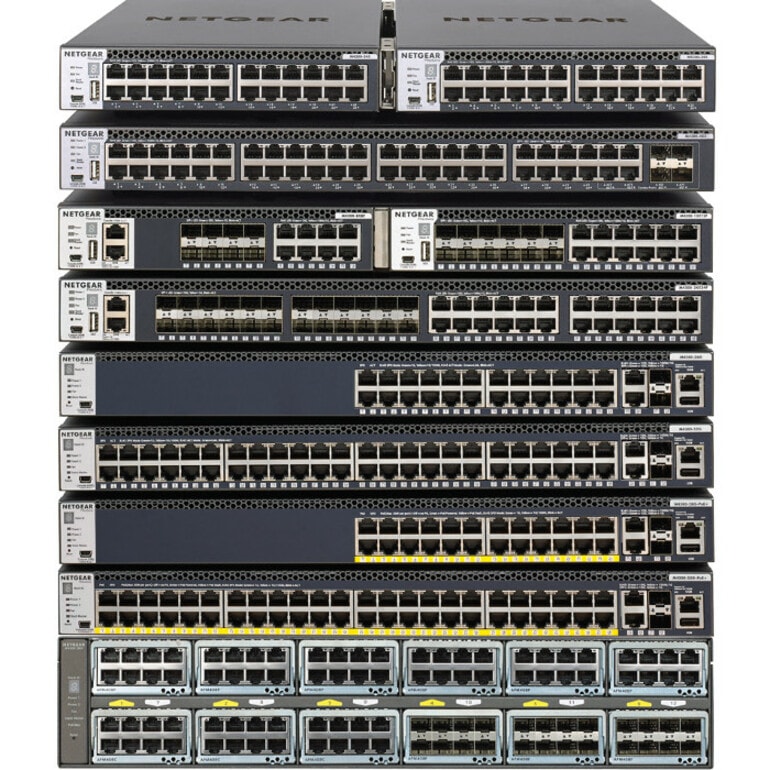

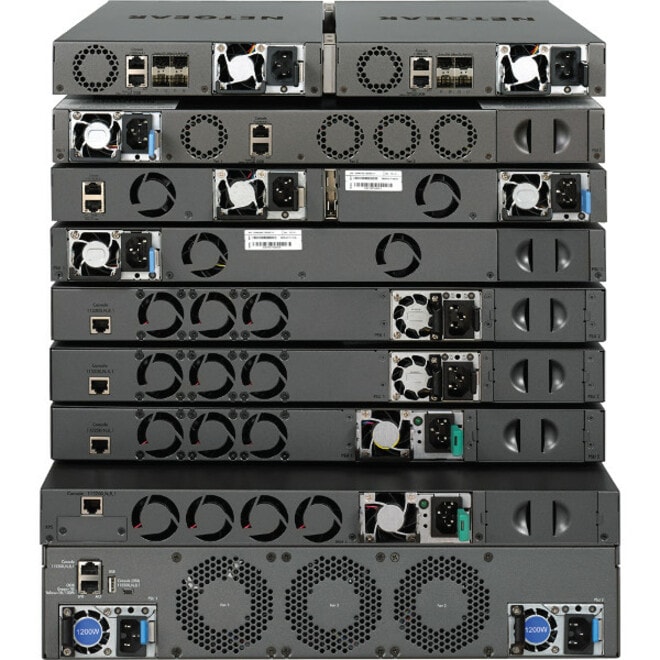

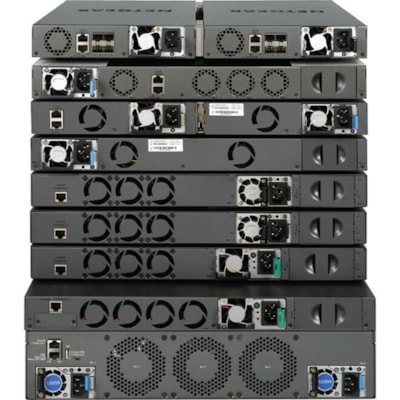

The NETGEAR M4300-96X is a modular switch supporting up to 96-port 10G, 24-port 40G, or a combination. The M4300 family provides world-class Layer 3 services for server and storage interconnect, mid-enterprise edge and SMB core. SDVoE-Ready, M4300 switches streamline AV-over-IP deployments with Zero Touch multicast.DETAILS
- Modular : Yes
- Ethernet Technology : 10 Gigabit Ethernet
- Network Technology : 10GBase-X
- Layer Supported : 3
- Manageable : Yes
- Power Source : Power Supply
- Redundant Power Supply Supported : Yes
- Compatible Rack Unit : 2U
- Form Factor : Rack-mountable
- Height : 3.46" (88 mm)
- Width : 21.06" (535 mm)
- Depth : 17.32" (440 mm)
- Weight (Approximate) : 35.27 lb (16000 g)
- Country of Origin : China
- Limited Warranty : Lifetime
- 12 empty slots in 2RU for 8x10G or 2x40G port expansion cards (no PSU)
- 1.92Tbps non-blocking fabric for 96x10G or 24x40G or a combination
- Innovative ""Spine and Leaf"" 1G/10G/40G mixed stacking with NSF
- Zero Touch AV-over-IP with pre-configured L2 Multicast (SDVoE-ready)
- Advanced Layer 2/Layer 3/and Layer 4/feature set-no license required
- ProSAFE LIFETIME Limited Warranty/NBD Replacement/Online support
SPECIFICATIONS
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | XSM4396K0-10000S |
| Manufacturer Website Address | http://www.netgear.com |
| Brand Name | Netgear |
| Product Series | M4300 |
| Product Model | M4300-96X |
| Product Name | M4300-96X Switch Chassis |
| Product Type | Switch Chassis |
| Modular | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Layer Supported | 3 |
| Manageable | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable |
| Height | 3.46" (88 mm) |
| Width | 21.06" (535 mm) |
| Depth | 17.32" (440 mm) |
| Weight (Approximate) | 35.27 lb (16000 g) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
