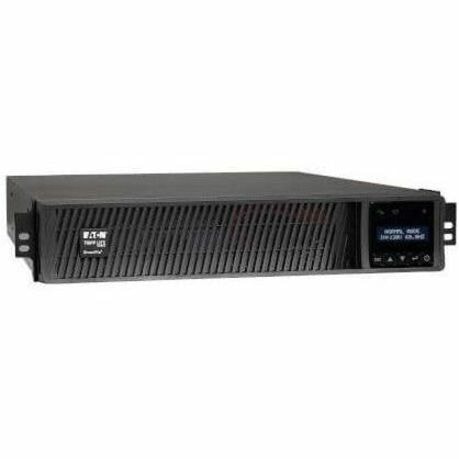

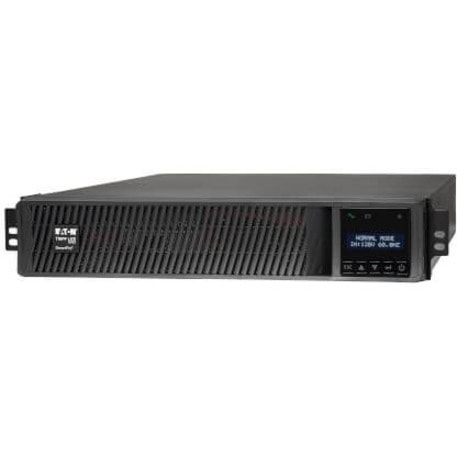

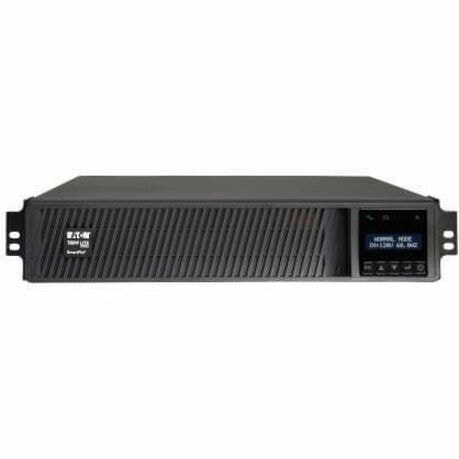

Tripp Lite series SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS - 2U Rack/Tower - AVR - 4.50 Hour Recharge - 6 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R Receptacle(s)

SMART1000RMX2UN
Also known as IM760QQS,SY6574159

New! Log in or create an account to see price and availability


MARKETING INFORMATION


1kVA/1kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments


This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1000RMX2UN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.


Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages


The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).


Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7


The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

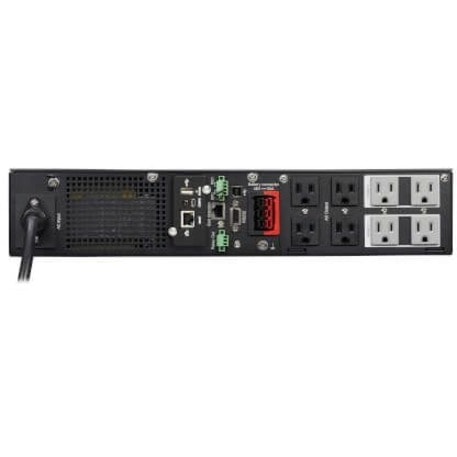

NEMA 5-15R Outlets Protect Your Connected Components


Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.


Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions


AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1000RMX2UN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.


Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better


This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

DETAILS

  • AVR : Yes
  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 8 x NEMA 5-15R
  • Overload Protection : Yes
  • Transfer Time : 4 ms
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Green Energy-Saving
  • Application/Usage : Data Storage,Server,Switch,IT Equipment,VoIP
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 1 kW
  • Input Voltage : 120 V AC
  • Output Voltage : 110 V AC,115 V AC,120 V AC
  • Input Frequency : 60 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 380 J
  • Output Power Factor : 1
  • Display : LCD
  • Network Management : SNMP/Web
  • Alarm : Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
  • Serial Port : Yes
  • USB : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • DC System Voltage : 48 V DC
  • Battery Characteristics : Valve-regulated
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 6 Minute
  • Backup/Run Time (Half Load) : 17 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.50 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Elevation : 9842.52 ft (3000000 mm)
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Minimum Operating Temperature : 32°F (0°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 45 dB(A)
  • Thermal Dissipation : 542 BTU/h
  • Height : 3.46" (88 mm)
  • Width : 17.28" (439 mm)
  • Depth : 17.60" (447 mm)
  • Rack Height : 2U

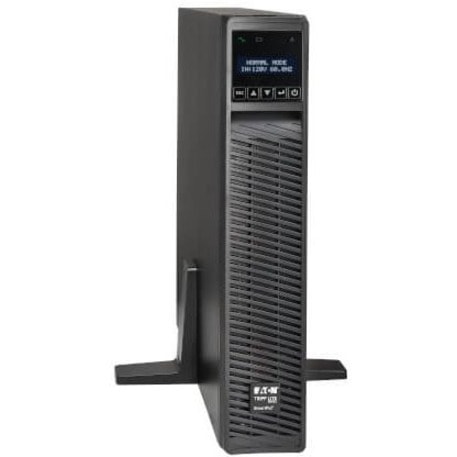

  • Form Factor : Rack/Tower
  • Weight (Approximate) : 44.53 lb (20198.47 g)
  • Energy Star : Yes
  • Country of Origin : Philippines
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Unity power factor ensures maximum power possible at each power rating
  • ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
  • 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
  • Included WEBCARDLXE network interface allows 24/7 remote monitor and control

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART1000RMX2UN
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART1000RMX2UN
Product Name SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Overload Protection Yes
Transfer Time 4 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Green Energy-Saving
Application/Usage VoIP
Application/Usage IT Equipment
Application/Usage Switch
Application/Usage Data Storage
Application/Usage Server
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 1 kW
Input Voltage 120 V AC
Output Voltage 115 V AC
Output Voltage 110 V AC
Output Voltage 120 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 380 J
Output Power Factor 1
Display LCD
Network Management SNMP/Web
Alarm Overload
Alarm UPS Fault
Alarm Remote Shutdown
Alarm Power Failure
Alarm UPS StartUp
Alarm Low Battery
Status Indicators

Front Panel LCD Information And Configuration Screen:

  • UPS and Site Power Status
  • Operating Data
  • Plus Configuration Of Voltage
  • Frequency
  • Operating Mode
  • Alarm Function and A Variety Of Additional Options
Serial Port Yes
USB Yes
EPO Port Yes
USB (HID Compliant) Port Yes
DC System Voltage 48 V DC
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 6 Minute
Backup/Run Time (Half Load) 17 Minute
Typical Battery Recharge Time 4.50 Hour
Hot Swappable Yes
Replaceable Battery Yes
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation 9842.52 ft (3000000 mm)
Sound Emission (A-Weighted) 45 dB(A)
Thermal Dissipation 542 BTU/h
Height 3.46" (88 mm)
Width 17.28" (439 mm)
Depth 17.60" (447 mm)
Rack Height 2U
Form Factor Rack/Tower
Weight (Approximate) 44.53 lb (20198.47 g)
Package Contents
  • SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS
  • WEBCARDLX Network Management Card
  • USB cable
  • DB9 cable
  • Rack-mounting hardware
  • Tower support stands
  • Safety instructions
  • Advanced User Guide
  • Energy Star Yes
    Country of Origin Philippines
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
