StarTech.com 2S1P PCI Express Serial Parallel Combo Card - Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot - PCI Express Serial Parallel Card - PCIe Serial Parallel Combo Card Adapter - 2 Port Serial and 1 Port Parallel - Comes with Breakout Cable - Du
PEX2S1P553B
Also known as IM75022R,SY4840575
MARKETING INFORMATION

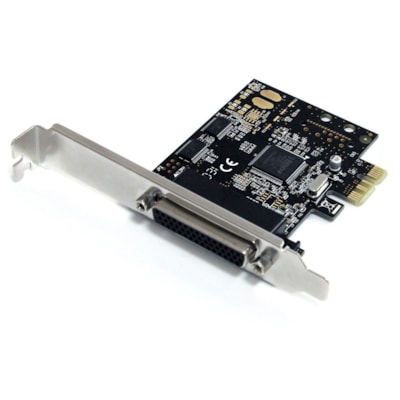

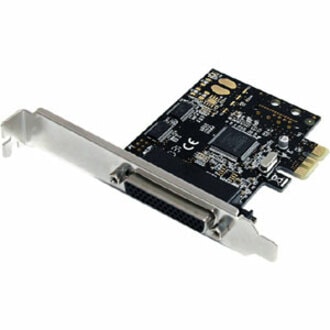

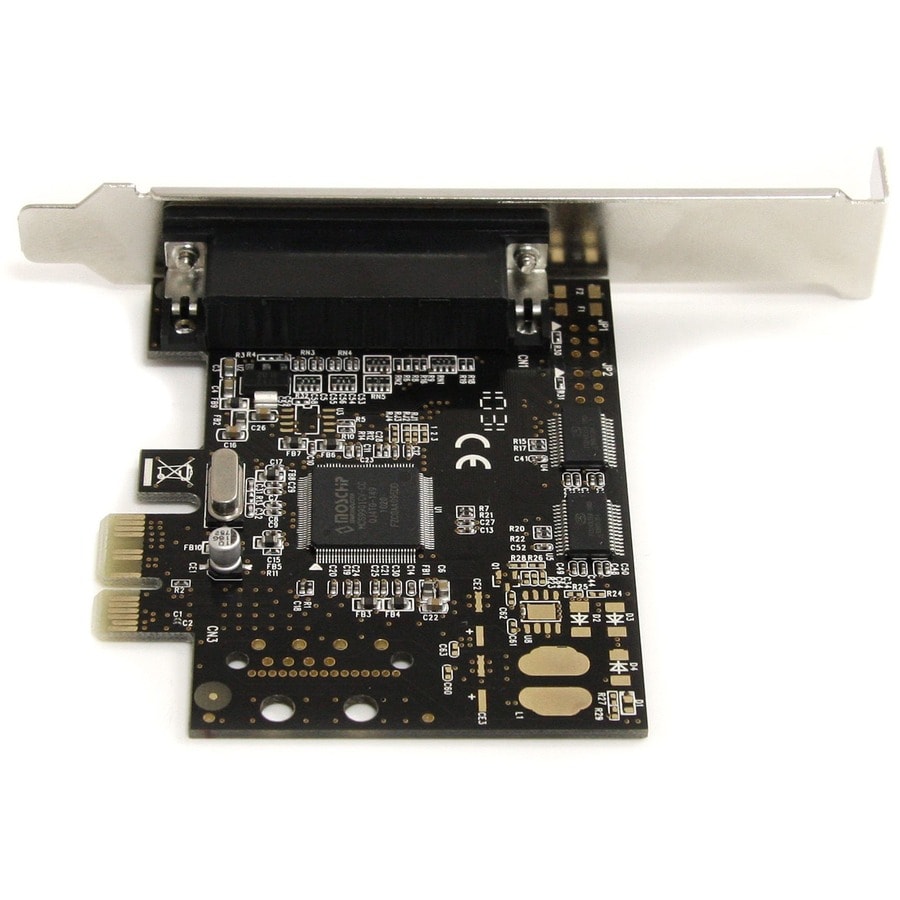

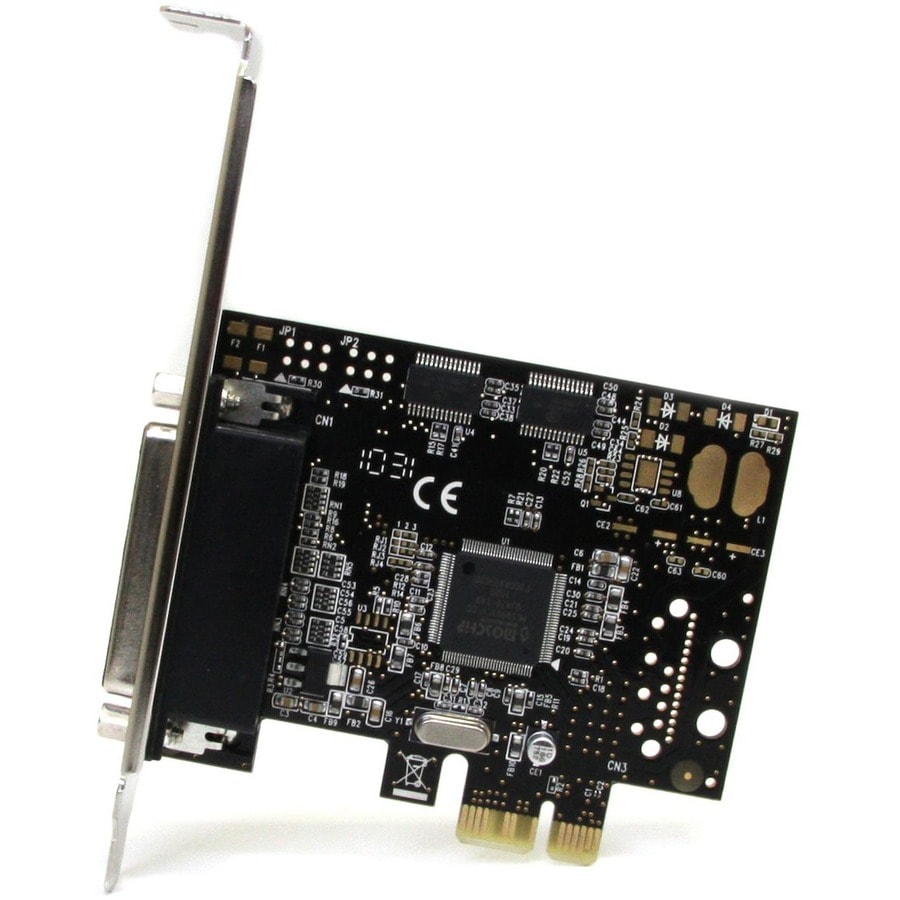

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

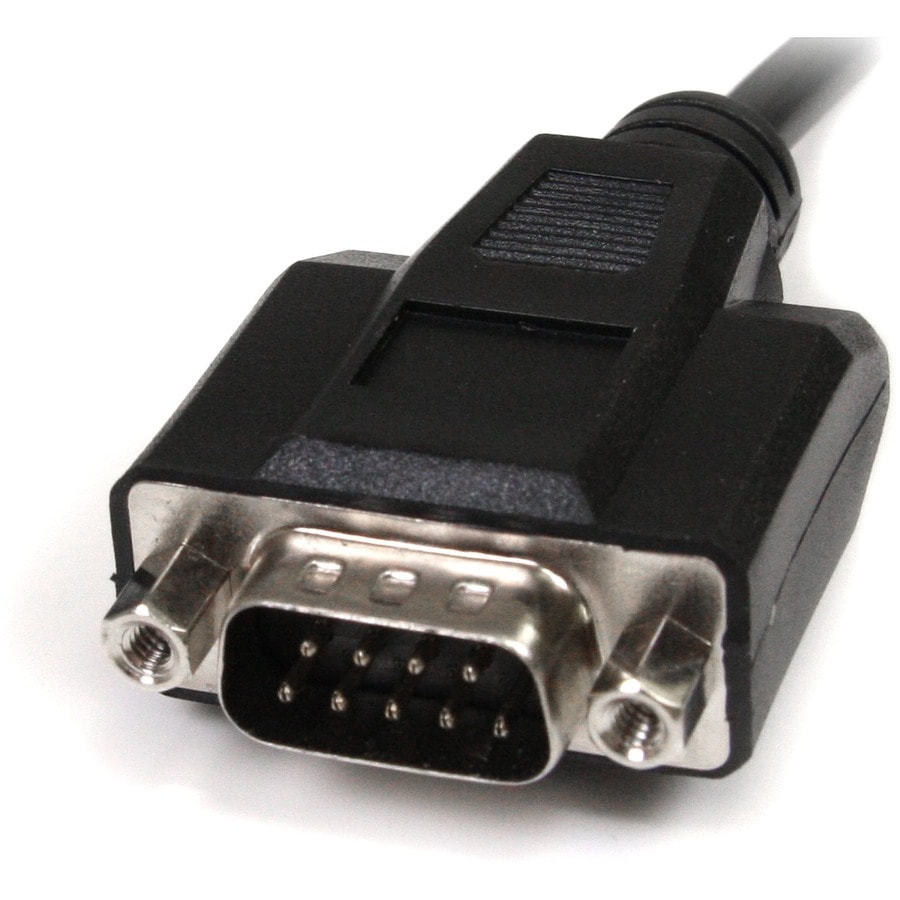

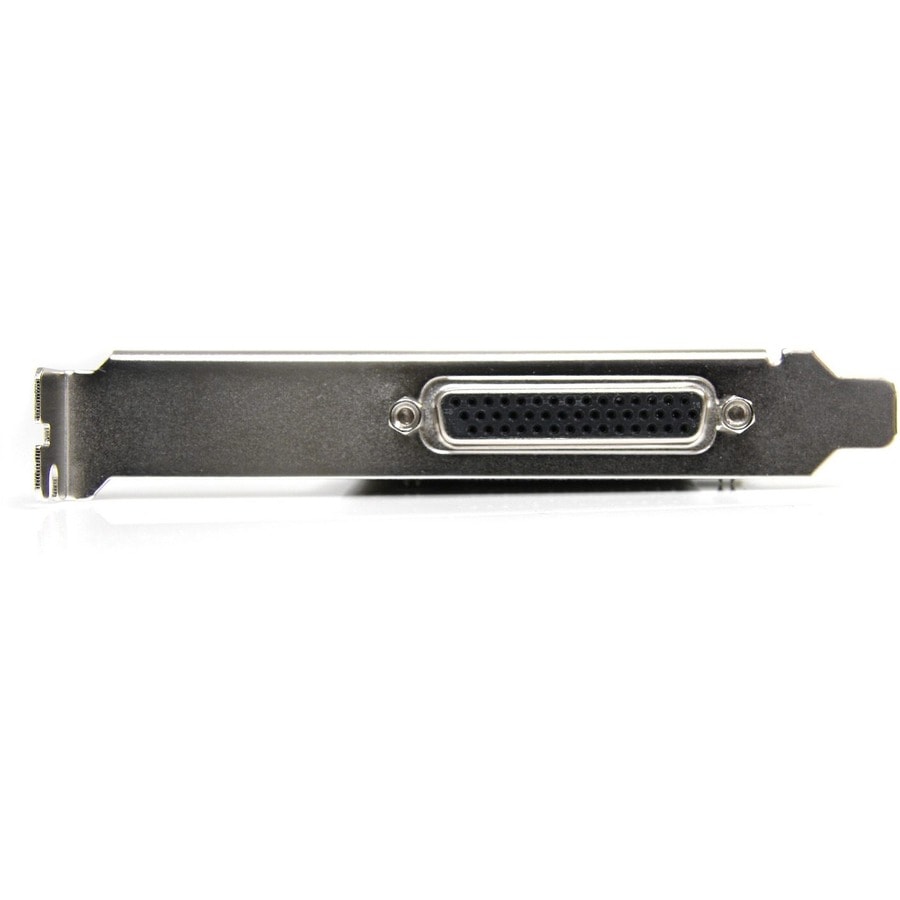

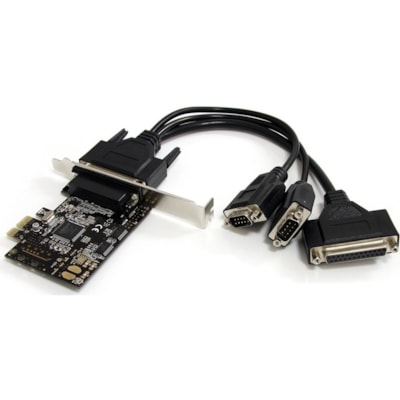

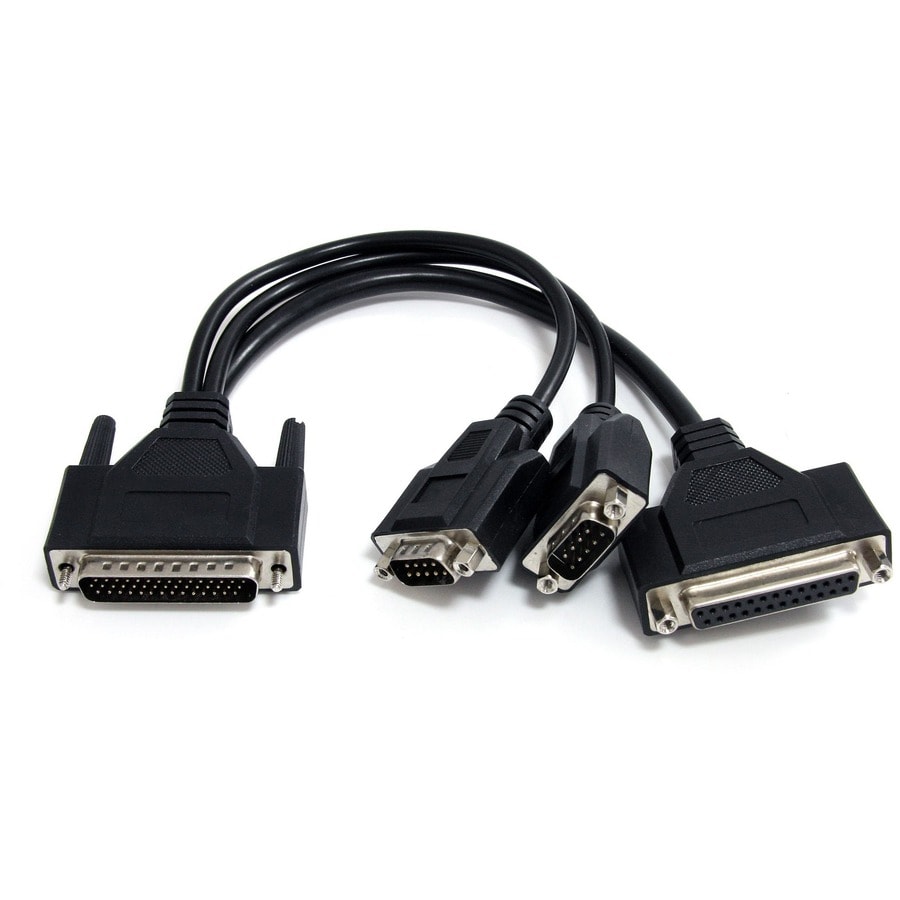

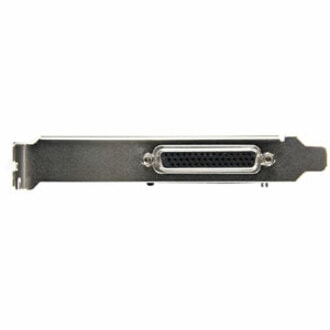

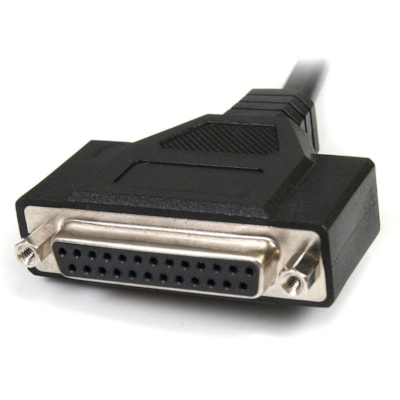

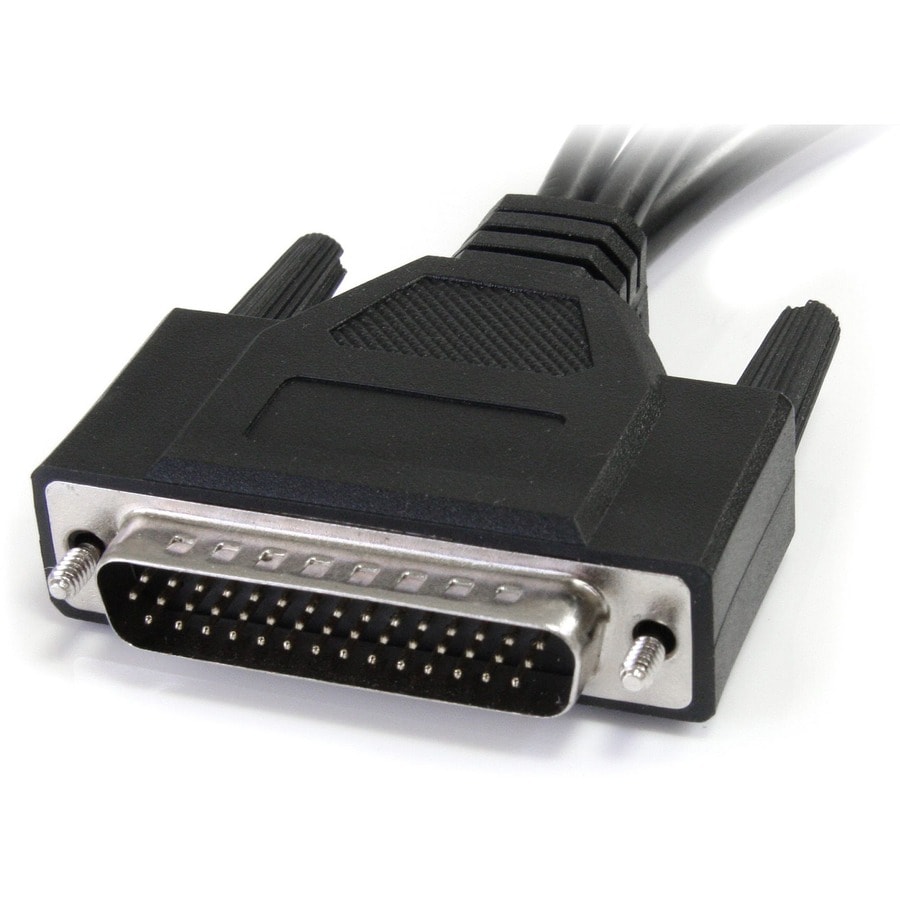

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

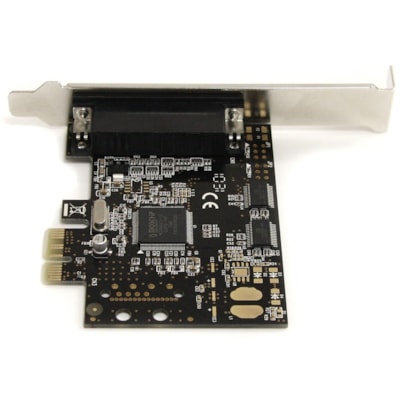

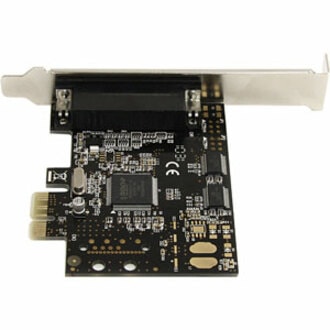

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.
This product is a replacement for our PEX2S1P552B card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Host Interface : PCI Express x1
- Platform Supported : PC,Mac
- UART Type : 16C450,16C550
- Parallel Port Modes : SPP,EPP,ECP
- Number of Parallel Ports (External) : 1
- Number of Serial Ports (External) : 2
- Form Factor : Plug-in Card
- Card Height : Low-profile
- Height : 3.10" (78.74 mm)
- Width : 0.90" (22.86 mm)
- Weight (Approximate) : 7.90 oz (223.96 g)
- Package Contents :

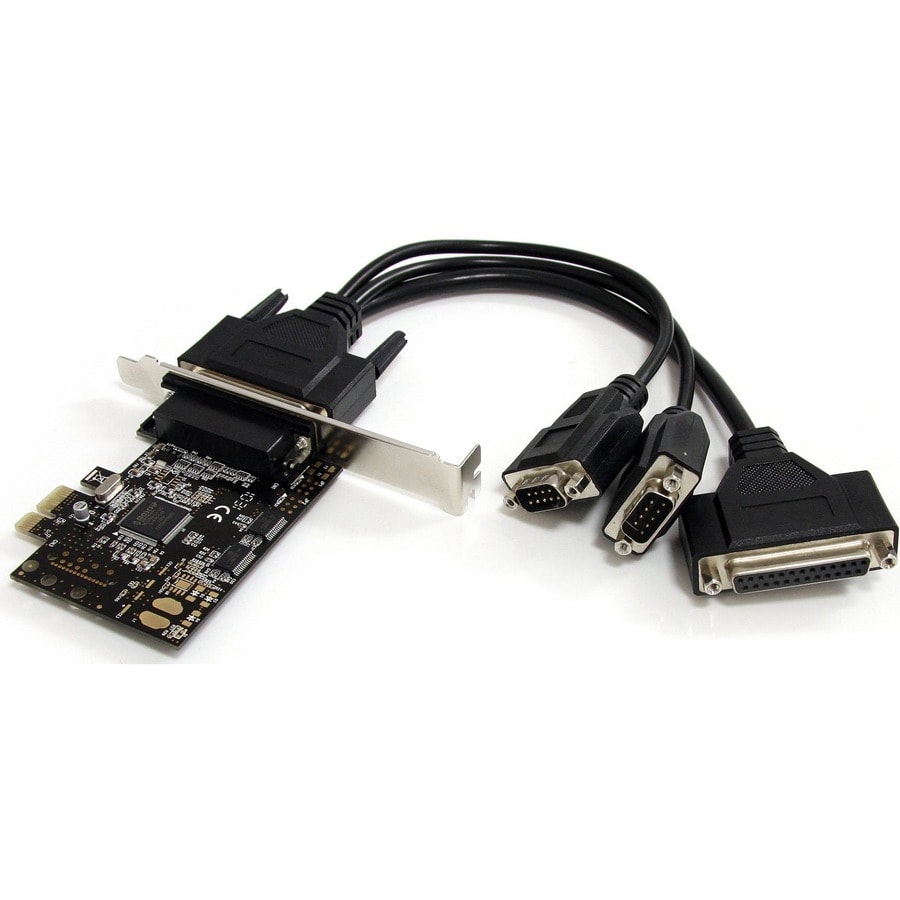

- 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin : China
- TAA Compliant : Yes
- Limited Warranty : Lifetime
- Low profile/half-height design with optional full profile bracket
- Single-chip architecture, no bridge chip
- Supports parallel data transfer rates up to 1.5 Mbps
- Supports serial data transfer rate up to 250 Kbps (per port)
- Compatible with industrial standard 16C450/16C550 UART
- Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)
- PCI Express Base Specification 1.0a compliant
- On-chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express host connection
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX2S1P553B |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable |
| Packaged Quantity | 1 |
| Product Type | Serial/Parallel Combo Adapter |
| Host Interface | PCI Express x1 |
| Data Transfer Rate | 250kB/s Serial Port |
| Data Transfer Rate | 1.5MB/s Parallel Port |
| UART Type | 16C550 |
| UART Type | 16C450 |
| Parallel Port Modes | EPP |
| Parallel Port Modes | SPP |
| Parallel Port Modes | ECP |
| Platform Supported | Mac |
| Platform Supported | PC |
| Number of Parallel Ports (External) | 1 |
| Number of Serial Ports (External) | 2 |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 3.10" (78.74 mm) |
| Width | 0.90" (22.86 mm) |
| Length | 3.70" (93.98 mm) |
| Weight (Approximate) | 7.90 oz (223.96 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| TAA Compliant | Yes |
| Limited Warranty | Lifetime |
