Tripp Lite series Basic PDUH32HV 10-Outlets PDU - Basic - IEC 60309 32A Blue (2P+E) - 10 x IEC 60320 C13 - 230 V AC - 7.40 kW - Overload Protection - 12 ft (3.66 m) Cord Length - 1U - Horizontal - Wall-mountable, Rack-mountable

PDUH32HV
Also known as IM74907Y,DHPDUH32HVCA,SY5429527

Tripp Lite series Basic PDUH32HV 10-Outlets PDU - Basic - IEC 60309 32A Blue (2P+E) - 10 x IEC 60320 C13 - 230 V AC - 7.40 kW - Overload Protection - 12 ft (3.66 m) Cord Length - 1U - Horizontal - Wall-mountable, Rack-mountable PERP

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

DETAILS

  • PDU Type : Basic
  • Plug/Connector Type : IEC 60309 32A Blue (2P+E)
  • Receptacle Type : IEC 60320 C13
  • Receptacle Detail : 10 x IEC 60320 C13
  • Protection Type : Overload Protection
  • Input Voltage : 230 V AC
  • Output Voltage : 230 V AC
  • Power Rating (Watt) : 7.40 kW
  • Input Current : 32 A
  • Mounting Orientation : Horizontal
  • Mount Type : Wall-mountable,Rack-mountable
  • Placement : Under-counter
  • Rack Height : 1U
  • Cord Length : 12 ft (3.66 m)
  • Height : 1.75" (44.45 mm)
  • Width : 17.50" (444.50 mm)
  • Depth : 5.20" (132.08 mm)
  • Weight (Approximate) : 6.32 lb (2866.70 g)
  • Package Contents :
    • Basic PDUH32HV 10-Outlets PDU
    • Mounting Accessories
    • Instruction Manual
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Basic single phase 32A 230V PDU
  • 1U horizontal rackmount installation

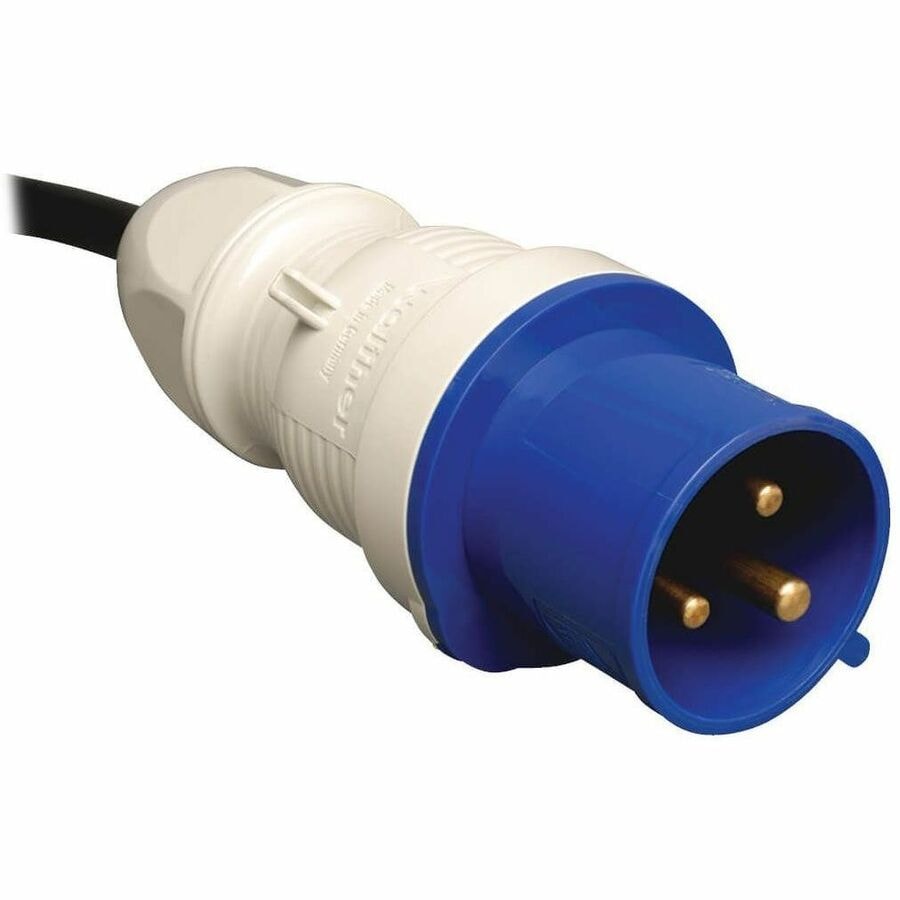

  • Blue IEC309 32A (2P+E) input; 12 ft. / 3.6m line cord

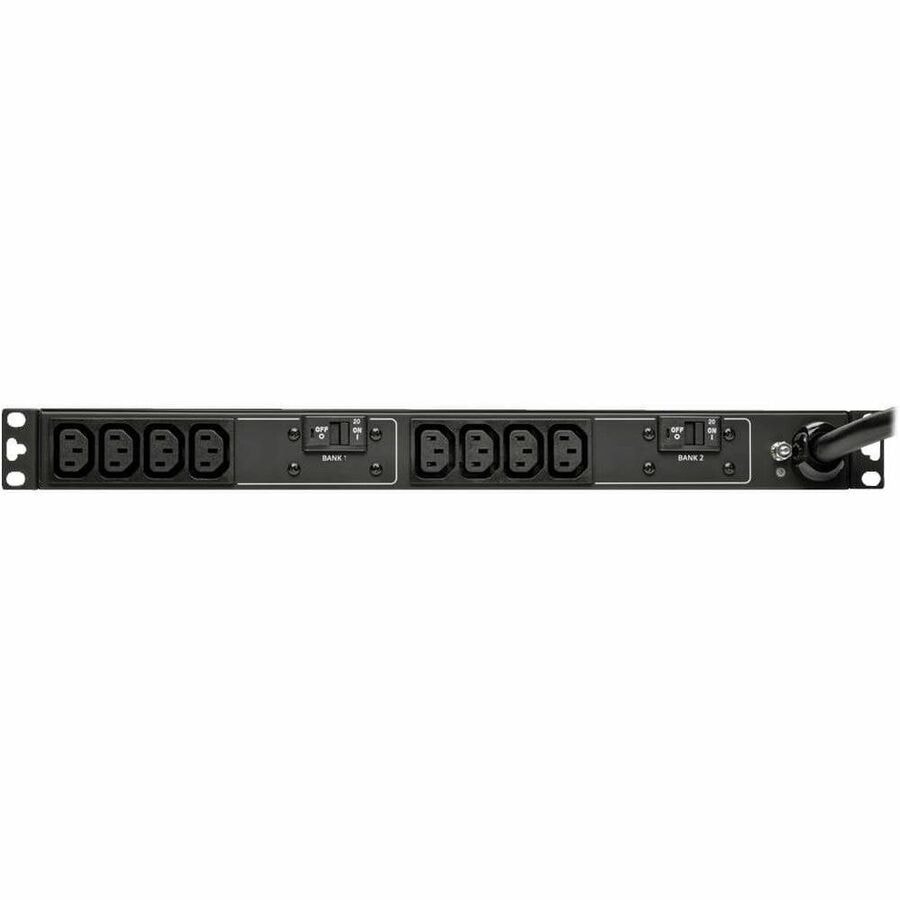

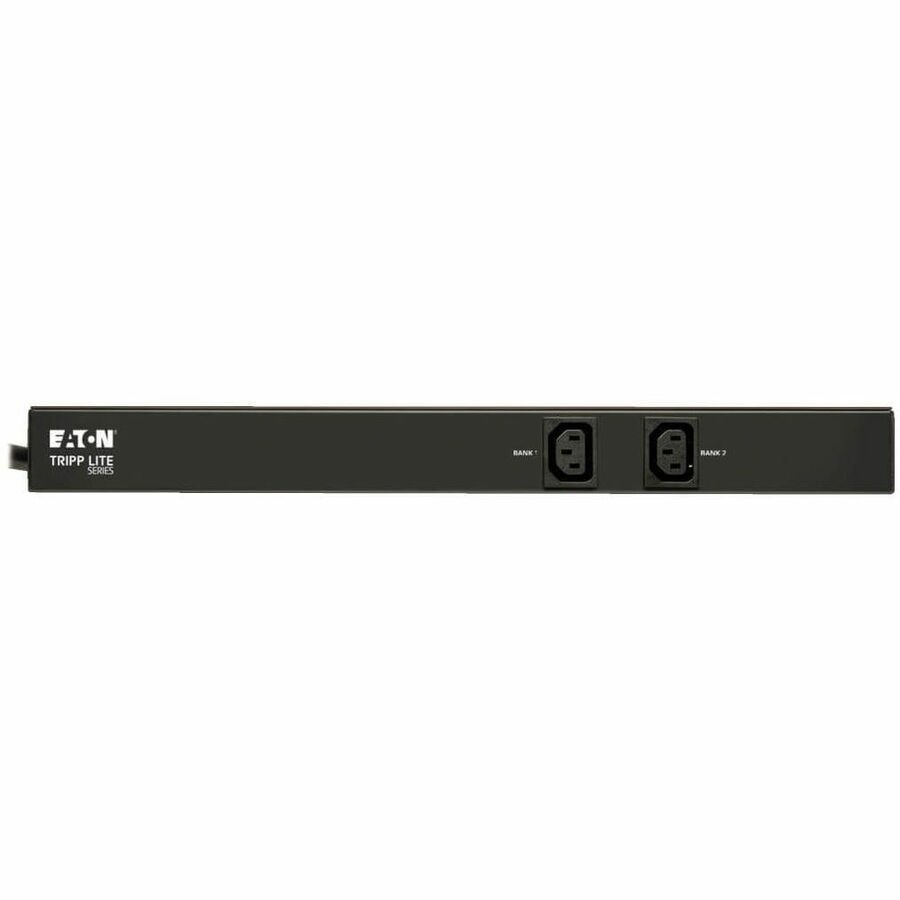

  • 10 C13 outlets (8 front / 2 rear)

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number PDUH32HV
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line Basic
Product Model PDUH32HV
Product Name Basic PDUH32HV 10-Outlets PDU
Product Type PDU
PDU Type Basic
Plug/Connector Type IEC 60309 32A Blue (2P+E)
Receptacle Type IEC 60320 C13
Receptacle Detail 10 x IEC 60320 C13
Protection Type Overload Protection
Input Voltage 230 V AC
Output Voltage 230 V AC
Power Rating (Watt) 7.40 kW
Input Current 32 A
Circuit Breaker Yes
Mounting Orientation Horizontal
Mount Type Rack-mountable
Mount Type Wall-mountable
Placement Under-counter
Rack Height 1U
Cord Length 12 ft (3.66 m)
Height 1.75" (44.45 mm)
Width 17.50" (444.50 mm)
Depth 5.20" (132.08 mm)
Weight (Approximate) 6.32 lb (2866.70 g)
Package Contents
  • Basic PDUH32HV 10-Outlets PDU
  • Mounting Accessories
  • Instruction Manual
Certifications & Standards
  • CE (EN 60950-1)
  • CE Class A
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
