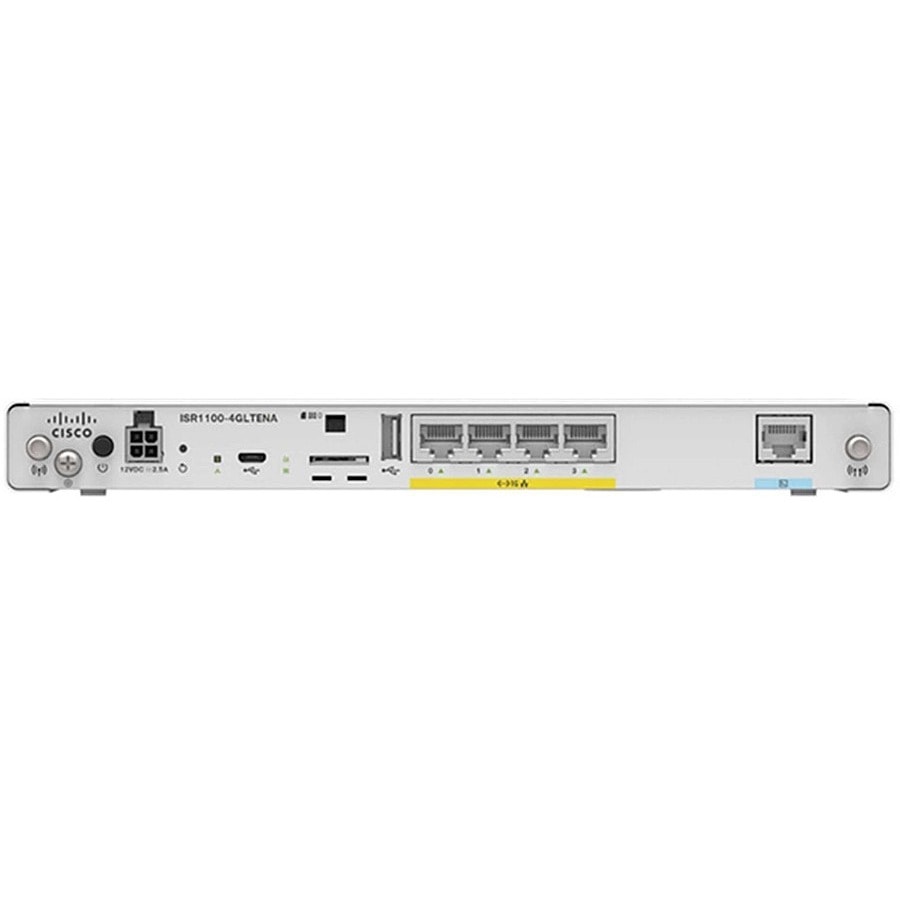

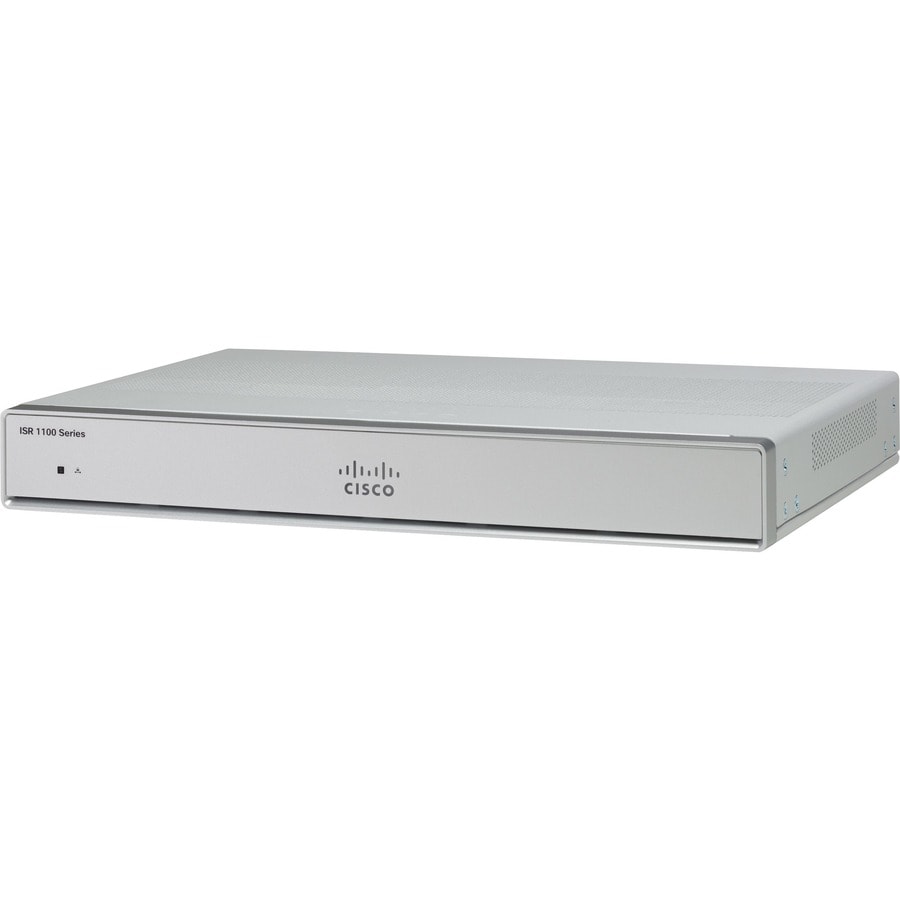

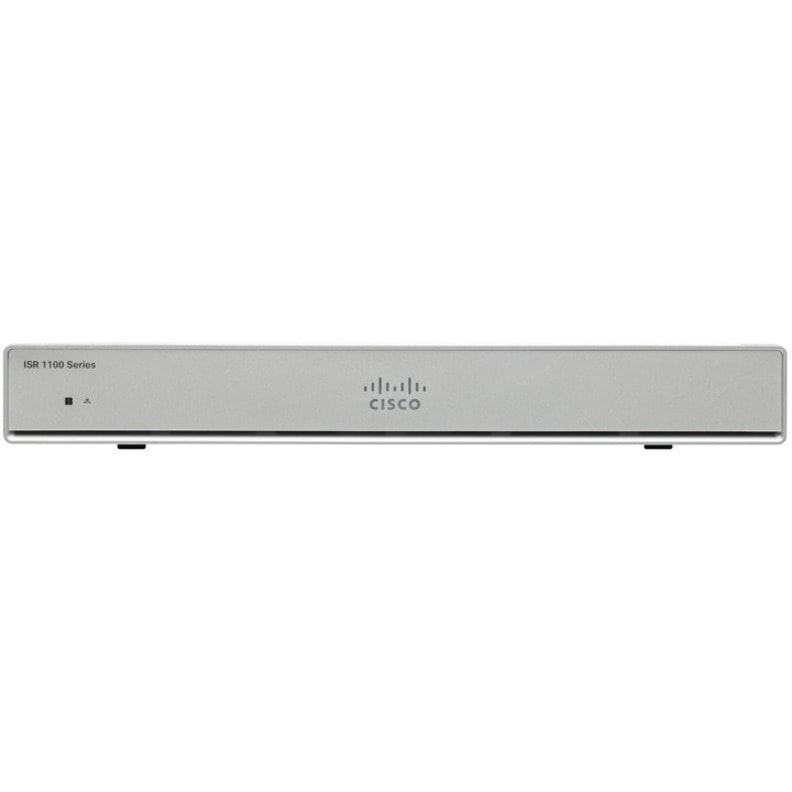

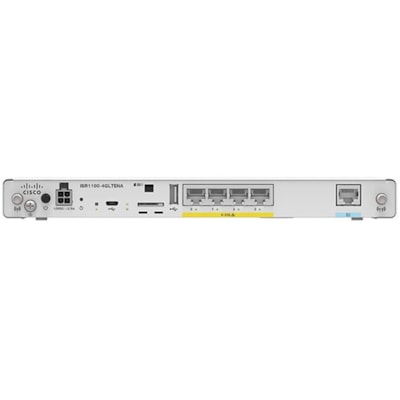

Cisco ISR1100-4GLTENA 1 SIM Cellular, Ethernet Modem/Wireless Router - 4G - LTE 1900, LTE 1700, LTE 700, LTE 850 - LTE, UMTS, HSPA+ - 2 x Antenna(2 x External) - 4 x Network Port - 4 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - Desktop
ISR1100-4GLTENA
Also known as IM737XXX
MARKETING INFORMATION
Cisco Software-Defined WAN (SD-WAN) is a cloud-first architecture that provides unparalleled visibility across your WAN, optimal connectivity for end users, and the most comprehensive security platform to protect your network. Cisco SD-WAN provides transport independence, rich network, and security services as well as endpoint flexibility.
The ISR 1100-4G, 1100-6G and 1100-4GLTE routers are delivered as platforms that sit at the perimeter of a site, such as a remote office, branch office, campus, or data center. They participate in establishing a secure virtual overlay network over a mix of any WAN transports.
DETAILS
- Broadband Transmission Technology : Cellular,Ethernet
- Cellular Generation : 4G
- Cellular Network Supported : LTE 1900,LTE 1700,LTE 700,LTE 850
- Cellular Data Connectivity Technology : LTE,UMTS,HSPA+
- Total Number of Antennas : 2
- Number of External Antennas : 2
- Number of Network (RJ-45) Ports : 4
- USB : Yes
- Number of Broadband (RJ-45) Ports : 4
- Ethernet Technology : Gigabit Ethernet
- VPN Supported : Yes
- Multi-SIM Supported : No
- Number of SIM Card Supported : 1
- SIM Size Supported : Micro
- Form Factor : Desktop
- Height : 1.10" (28 mm)
- Width : 10.20" (259 mm)
- Depth : 7.01" (178 mm)
- Weight (Approximate) : 2.38 lb (1080 g)
- Environmentally Friendly : Yes
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin : China
- Limited Warranty : 1 Year
- Savor simultaneous downloading and seamless streaming
- Gigabit Ethernet port for ultra-fast wired network speeds
- Access USB-compatible peripherals accross the wireless network via built-in USB port
- Desktop installation - Ideal for deployments outside the wiring closet
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | ISR1100-4GLTENA |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | 1100 |
| Product Model | ISR1100-4GLTENA |
| Product Name | 1100 Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Broadband Transmission Technology | Ethernet |
| Broadband Transmission Technology | Cellular |
| Cellular Generation | 4G |
| Cellular Network Supported | LTE 1700 |
| Cellular Network Supported | LTE 850 |
| Cellular Network Supported | LTE 700 |
| Cellular Network Supported | LTE 1900 |
| Cellular Data Connectivity Technology | HSPA+ |
| Cellular Data Connectivity Technology | LTE |
| Cellular Data Connectivity Technology | UMTS |
| Total Number of Antennas | 2 |
| Number of External Antennas | 2 |
| Number of Network (RJ-45) Ports | 4 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 4 |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | No |
| Number of SIM Card Supported | 1 |
| SIM Size Supported | Micro |
| Form Factor | Desktop |
| Height | 1.10" (28 mm) |
| Width | 10.20" (259 mm) |
| Depth | 7.01" (178 mm) |
| Weight (Approximate) | 2.38 lb (1080 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Limited Warranty | 1 Year |
