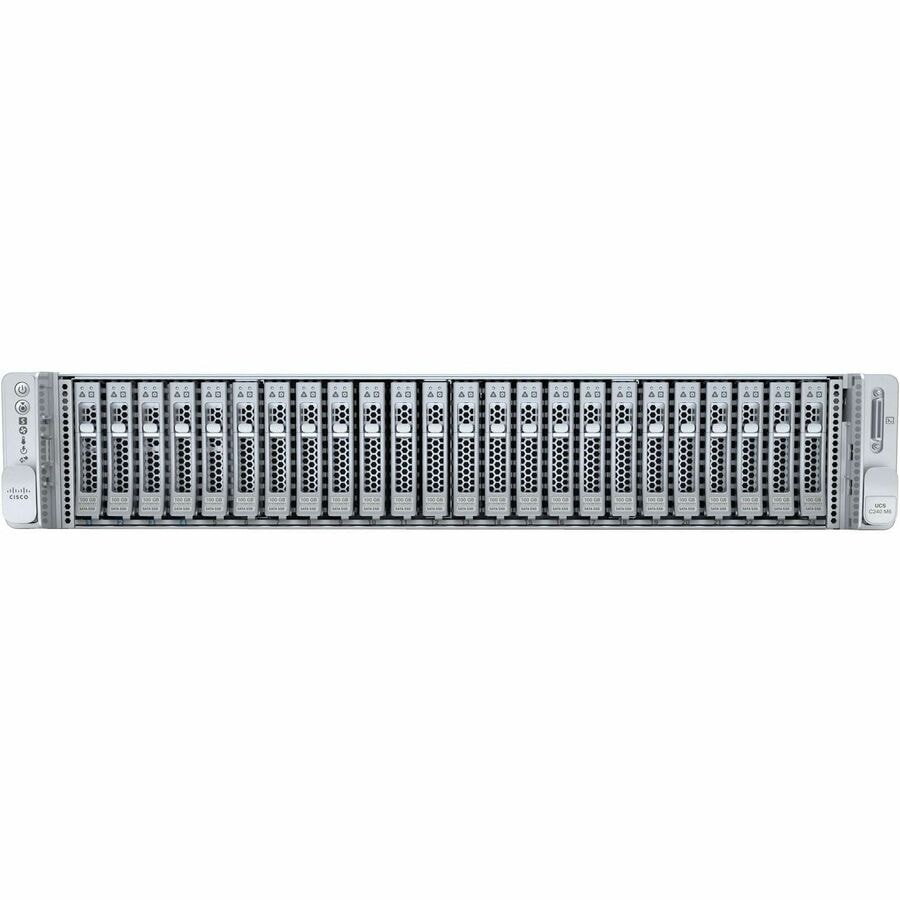

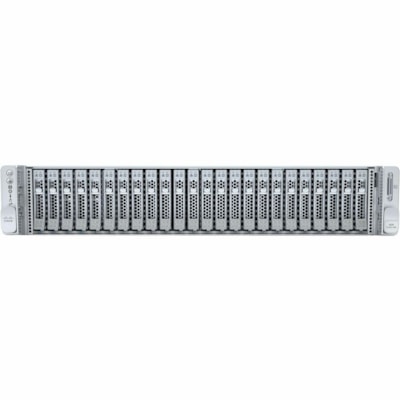

Cisco HyperFlex Server Barebone System - 2U Rack-mountable - 2 x Processor Support - Intel C621A Chip - 8 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - NVMe Controller - G200e 512 MB Graphic(s) - Network (RJ-45) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Si
HXAF240C-M6SN
Also known as IM728B8W
MARKETING INFORMATION
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with' the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The Cisco HyperFlex HX240C M6 All NVMe/All Flash/Hybrid Server Nodes extends the capabilities of Cisco's HyperFlex portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 256 GB. The maximum memory capacity for 2 CPUs is listed here:
- 8 TB (32 x 256 GB DDR4 DIMMs), or
- 12 TB (16 x 256 GB DDR4 DIMMs and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMem)).
DETAILS
- Number of Processors Supported : 2
- Processor Supported : Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
- 64-bit Processing : Yes
- Chipset Manufacturer : Intel
- Chipset Model : C621A
- Maximum Memory Supported : 8 TB
- Memory Technology : DDR4 SDRAM
- Memory Standard : DDR4-3200/PC4-25600
- Total Number of Memory Slots : 32
- Intel Optane Memory Ready : Yes
- Controller Type : NVMe
- RAID Supported : No
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 512 MB
- Ethernet Technology : 10 Gigabit Ethernet,Gigabit Ethernet
- Number of Total Expansion Bays : 24
- Total Number of USB Ports : 2
- Number of USB 3.0 Ports : 2
- Network (RJ-45) : Yes
- Number of VGA Ports : 1
- Operating System Supported : Windows Server 2019 Datacenter,Windows Server 2019 Standard
- Input Voltage : 120 V AC,230 V AC
- Form Factor : Rack-mountable
- Rack Height : 2U
- Height : 3.42" (86.87 mm)
- Width : 18.90" (480.06 mm)
- Depth : 30" (762 mm)
- Compatible Xeon Platinum processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Can connect up to 2 USB peripherals
- NVMe interface provides quick data transfer and greater throughput
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF240CM6SN |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Name | HyperFlex HX240C M6 Barebone System |
| Product Type | Server Barebone System |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Supported Storage Drive Interfaces | PCI Express |
| Supported Storage Drive Types | SSD |
| Controller Type | NVMe |
| RAID Supported | No |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 512 MB |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Operating System Supported | Windows Server 2019 Datacenter |
| Operating System Supported | Windows Server 2019 Standard |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 30" (762 mm) |
