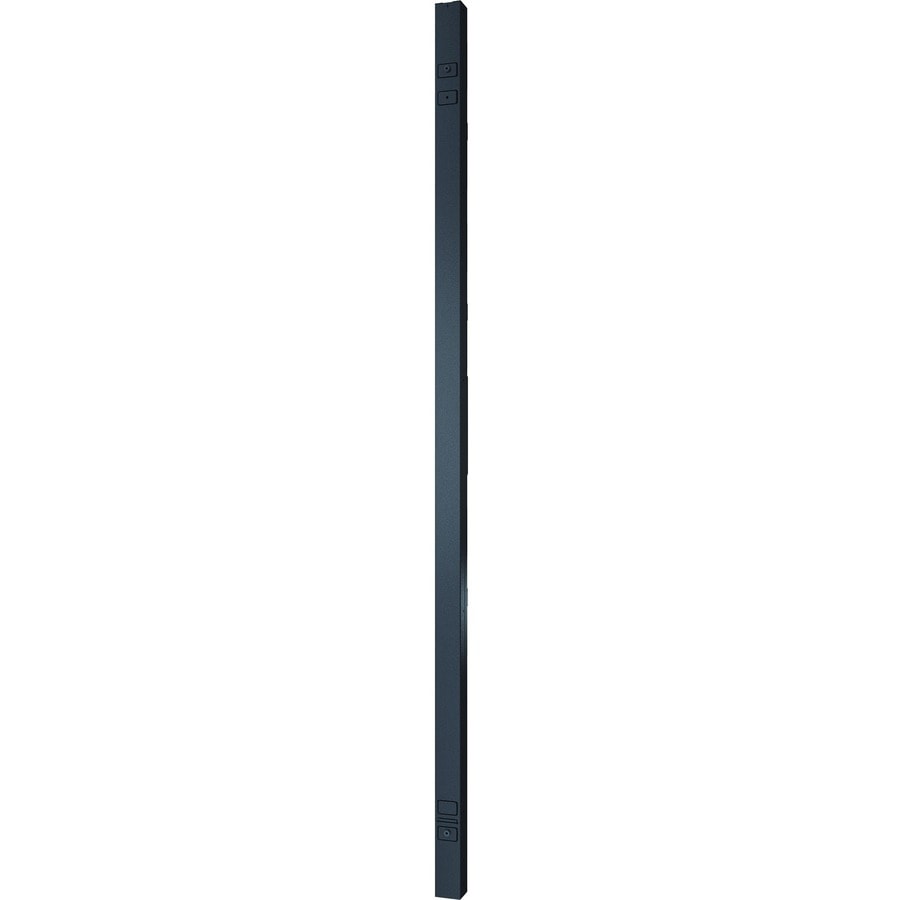

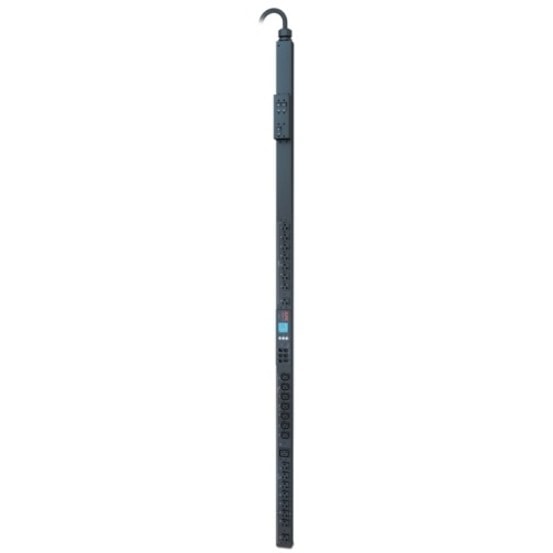

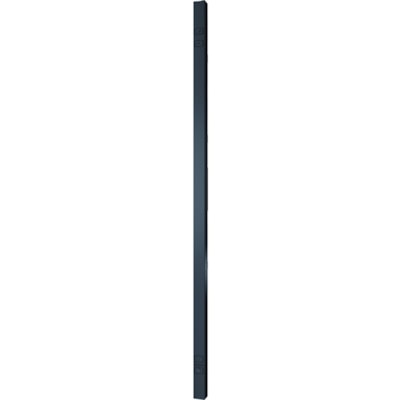

APC by Schneider Electric Switched Rack PDU - Switched - NEMA L14-30P - 7 x IEC 60320 C13, 1 x IEC 60320 C19, 16 x NEMA 5-20R - 120 V AC, 230 V AC - 5.76 kW - 10 ft (3.05 m) Cord Length - 0U - Horizontal/Vertical - Rack-mountable - Tower
AP8970
Also known as IM71302X
MARKETING INFORMATION
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
DETAILS
- PDU Type : Switched
- Plug/Connector Type : NEMA L14-30P
- Receptacle Type : IEC 60320 C13,IEC 60320 C19,NEMA 5-20R
- Receptacle Detail : 7 x IEC 60320 C13,1 x IEC 60320 C19,16 x NEMA 5-20R
- Protection Type : Overload Protection
- Input Voltage : 120 V AC,230 V AC
- Input Voltage Range : 120 V AC - 230 V AC
- Output Voltage : 120 V AC,208 V AC
- Power Rating (VA) : 5.76 kVA
- Input Current : 30 A
- Management :
- Web
- SNMP
- Telnet
- Color Family : Black
- Product Color : Black
- Mounting Orientation : Horizontal/Vertical
- Mount Type : Rack-mountable
- Form Factor : Tower
- Rack Height : 0U
- Cord Length : 10 ft (3.05 m)
- Height : 72" (1828.80 mm)
- Width : 2.18" (55.37 mm)
- Depth : 1.82" (46.23 mm)
- Weight (Approximate) : 17.91 lb (8123.84 g)
- Package Contents :
- Switched Rack PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 2 Year
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8970 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Switched Rack PDU |
| Product Type | PDU |
| PDU Type | Switched |
| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 7 x IEC 60320 C13 |
| Receptacle Detail | 1 x IEC 60320 C19 |
| Receptacle Detail | 16 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 230 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5.76 kVA |
| Input Current | 30 A |
| Circuit Breaker | Yes |
| Management |
|
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Rack Height | 0U |
| Number of Cord/Cable | 1 |
| Cord Length | 10 ft (3.05 m) |
| Height | 72" (1828.80 mm) |
| Width | 2.18" (55.37 mm) |
| Depth | 1.82" (46.23 mm) |
| Weight (Approximate) | 17.91 lb (8123.84 g) |
| Package Contents | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
