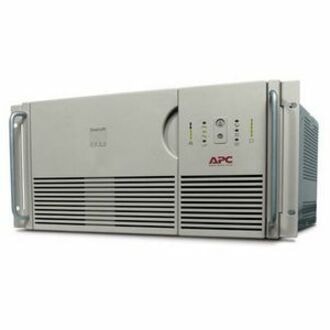

APC Smart-UPS 3000VA RM - 3000VA/2250W - 5.7 Minute Full Load - 6 x NEMA 5-15R

SU3000RMX93
Also known as IM71124X

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Smart-UPS protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.

DETAILS

  • Plug/Connector Type : NEMA L5-30P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Cord Length : 6 ft (1.83 m)
  • Transfer Time : 4 ms
  • Load Capacity (VA) : 3 kVA
  • Load Capacity (Watt) : 2.25 kW
  • Input Voltage : 110 V AC
  • Output Voltage : 120 V AC
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 480 J
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Low Battery
  • Status Indicators :
    • On Battery
    • Replace Battery
    • Overload
  • Serial Port : Yes
  • Battery Characteristics : Spill-proof, Maintenance-free
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 5.70 Minute
  • Backup/Run Time (Half Load) : 19.20 Minute
  • Battery Life : 6 Year
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Maximum Operating Temperature : 113°F (45°C)
  • Sound Emission (A-Weighted) : 53 dB(A)
  • Thermal Dissipation : 375 BTU/h
  • Product Color : Beige
  • Height : 8.75" (222.25 mm)
  • Width : 19" (482.60 mm)
  • Depth : 17.75" (450.85 mm)
  • Rack Height : 5U
  • Weight (Approximate) : 129 lb (58513.42 g)
  • Package Contents :
    • Smart-UPS
    • User Manual
    • Smart UPS signalling RS-232 cable
    • Rack Mounting support rails
    • Software CD
  • Country of Origin : Philippines
  • Limited Warranty : 2 Year
  • Experience higher efficiency with lower energy cost
  • Prevent critical data loss by staying powered during a blackout with up to 2.25 kW load capacity
  • Up to 5.70 minute runtime on full load to preserve critical data from power shortage interruptions
  • 3 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SU3000RMX93
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Name Smart-UPS 3000VA RM
Product Type Line-interactive UPS
Plug/Connector Type NEMA L5-30P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Emergency Power OFF Optional
Cord Length 6 ft (1.83 m)
Transfer Time 4 ms
Load Capacity (VA) 3 kVA
Load Capacity (Watt) 2.25 kW
Input Voltage 110 V AC
Output Voltage 120 V AC
Waveform Type Sine Wave
Surge Energy Rating 480 J
Network Management SNMP Manageable
Alarm On Battery
Alarm Low Battery
Battery Management Intelligent Battery Management
Status Indicators
  • On Battery
  • Replace Battery
  • Overload
Serial Port Yes
Total Number of Expansion Slots 1
Battery Characteristics Spill-proof, Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 5.70 Minute
Backup/Run Time (Half Load) 19.20 Minute
Battery Life 6 Year
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Maximum Operating Temperature 113°F (45°C)
Sound Emission (A-Weighted) 53 dB(A)
Thermal Dissipation 375 BTU/h
Color Family Beige
Product Color Beige
Height 8.75" (222.25 mm)
Width 19" (482.60 mm)
Depth 17.75" (450.85 mm)
Rack Height 5U
Weight (Approximate) 129 lb (58513.42 g)
Package Contents
  • Smart-UPS
  • User Manual
  • Smart UPS signalling RS-232 cable
  • Rack Mounting support rails
  • Software CD
Certifications & Standards
  • CSA
  • FCC A
  • UL 1778
Country of Origin Philippines
Limited Warranty 2 Year
