StarTech.com 7 Port PCI USB Card Adapter - Add 7 USB 2.0 Ports to your PC through a PCI slot - pci to usb - pci usb controller - usb 2.0 card - pci to usb adapter - pci usb card

PCIUSB7
Also known as IM69825L,SY4499774

New! Log in or create an account to see price and availability


MARKETING INFORMATION

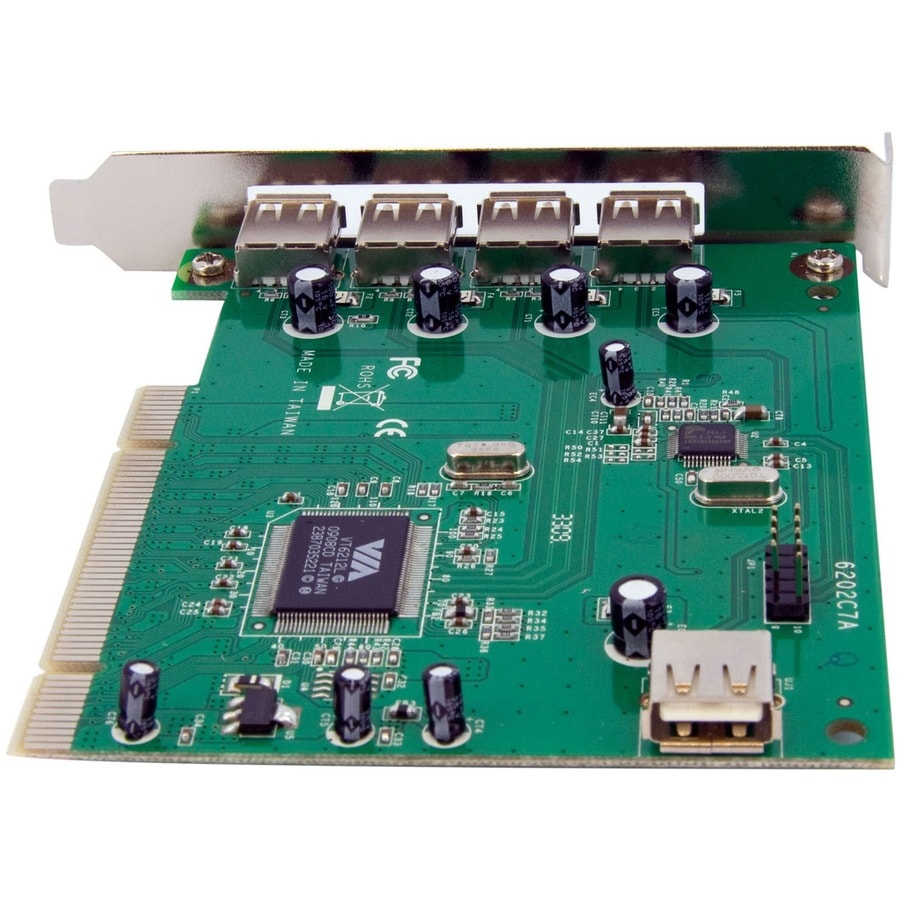

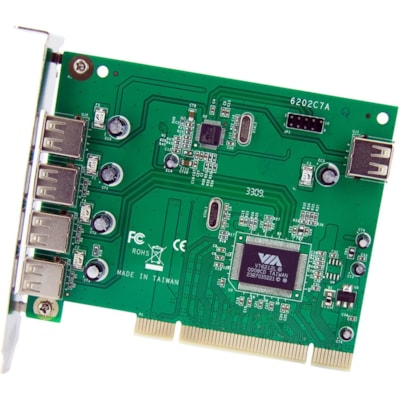

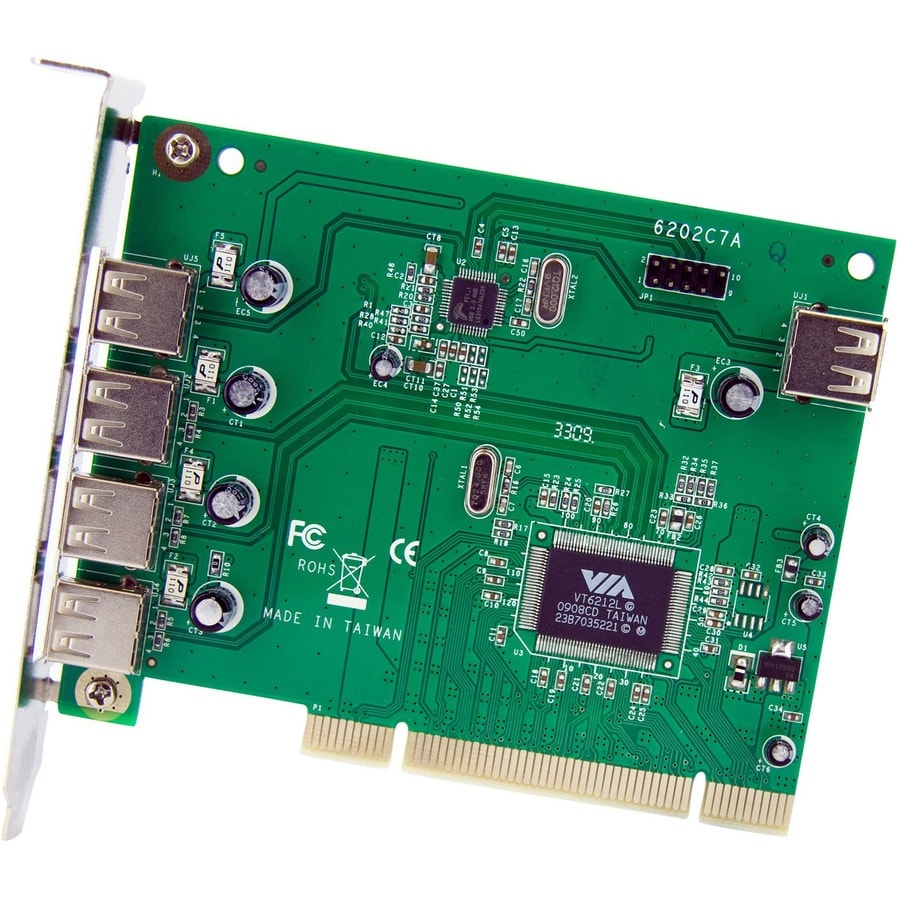

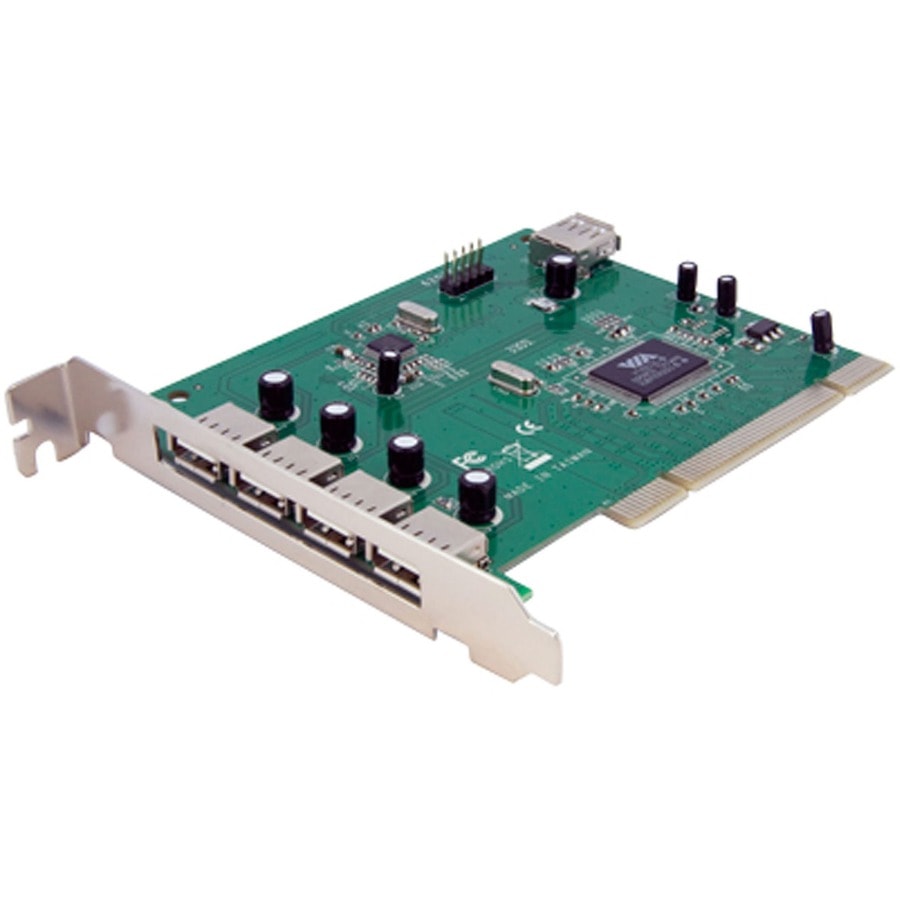

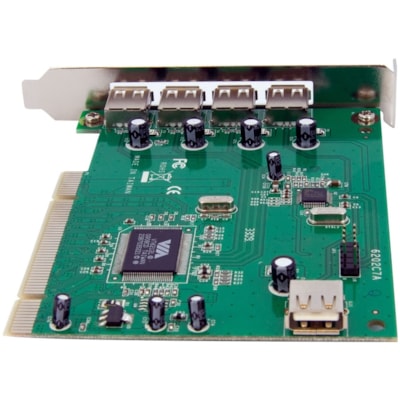

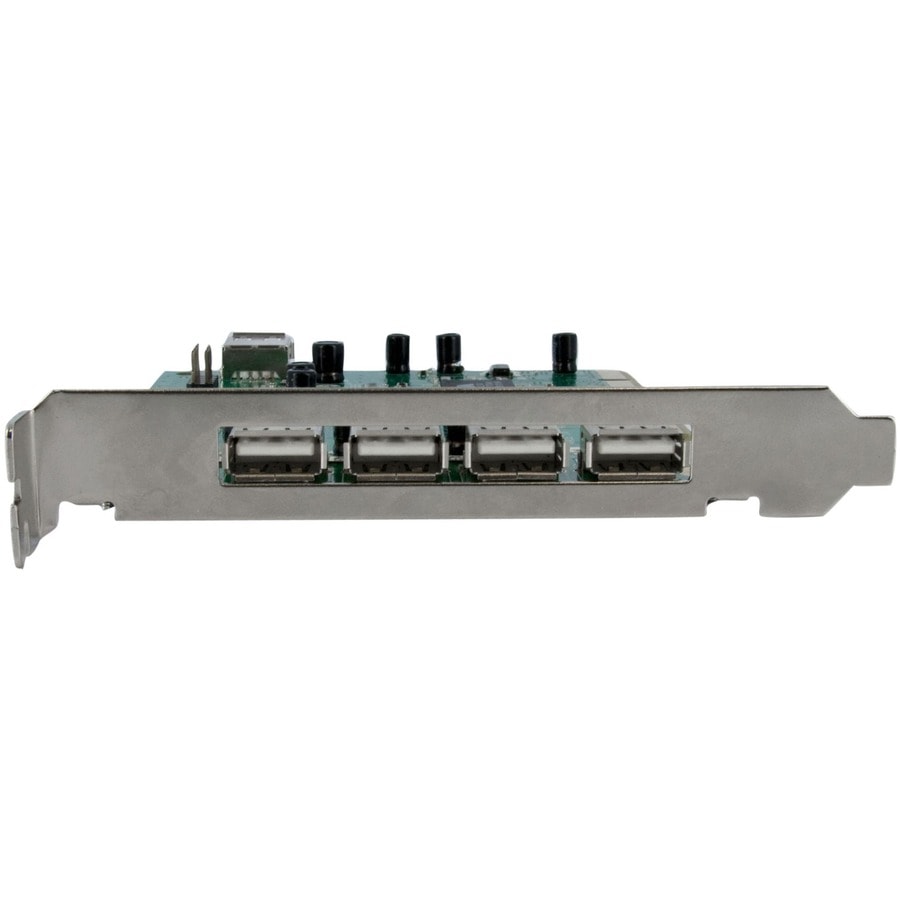

This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC.
The PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard.
An all-in-one solution, the PCI USB card supports USB 2.0 device connections for full data transfer speeds of up to 480Mbps, and is backward compatible with USB 1.1 devices (max. transfer rate 12Mbps), allowing you to connect any USB device to the computer without having to worry about compatibility issues.
Designed and constructed to provide long-lasting USB capability, the adapter card is backed by StarTech.com's free lifetime technical support.

More from the Manufacturer

DETAILS

  • Host Interface : PCI
  • Data Transfer Rate : 480 MB/s
  • Total Number of USB Ports : 7
  • Number of USB 2.0 Ports : 7
  • Form Factor : Plug-in Card
  • Height : 0.80" (20.32 mm)
  • Width : 4.72" (119.89 mm)
  • Length : 4.80" (121.92 mm)
  • Weight (Approximate) : 2.60 oz (73.71 g)
  • Package Contents :
    • 1 x PCI USB 2.0 Card
    • 1 x Driver CD
    • 1 x Instruction Manual
  • Platform Supported : PC,Linux,Mac
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Limited Warranty : 2 Year
  • 4 external USB 2.0 ports and 3 internal USB 2.0 port/headers
  • High Speed USB 2.0 compliant, with support for data transfer rates up to 480Mbps
  • Backwards compatible with USB1.1/1.0 devices
  • Up to 500mA of power per port
  • Compliant with USB EHCI revision 0.95 and UHCI 1.1 specifications
  • Compliant with PCI revision 2.2 specification
  • Supports up to 127 USB devices (requires addition USB hubs)
  • Plug-and-Play and Hot-Swap compatible

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PCIUSB7
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 7 Port PCI USB Card Adapter
Packaged Quantity 1 Each
Product Type USB Adapter
Host Interface PCI
Data Transfer Rate 480 MB/s
Total Number of USB Ports 7
Number of USB 2.0 Ports 7
Form Factor Plug-in Card
Height 0.80" (20.32 mm)
Width 4.72" (119.89 mm)
Length 4.80" (121.92 mm)
Weight (Approximate) 2.60 oz (73.71 g)
Package Contents
  • 1 x PCI USB 2.0 Card
  • 1 x Driver CD
  • 1 x Instruction Manual
Additional Information
  • Maximize the availability of USB 2.0 ports for both external and internal USB 2.0/1.1/1.0 peripherals.
  • Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Platform Supported Linux
Platform Supported Mac
Platform Supported PC
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Limited Warranty 2 Year
