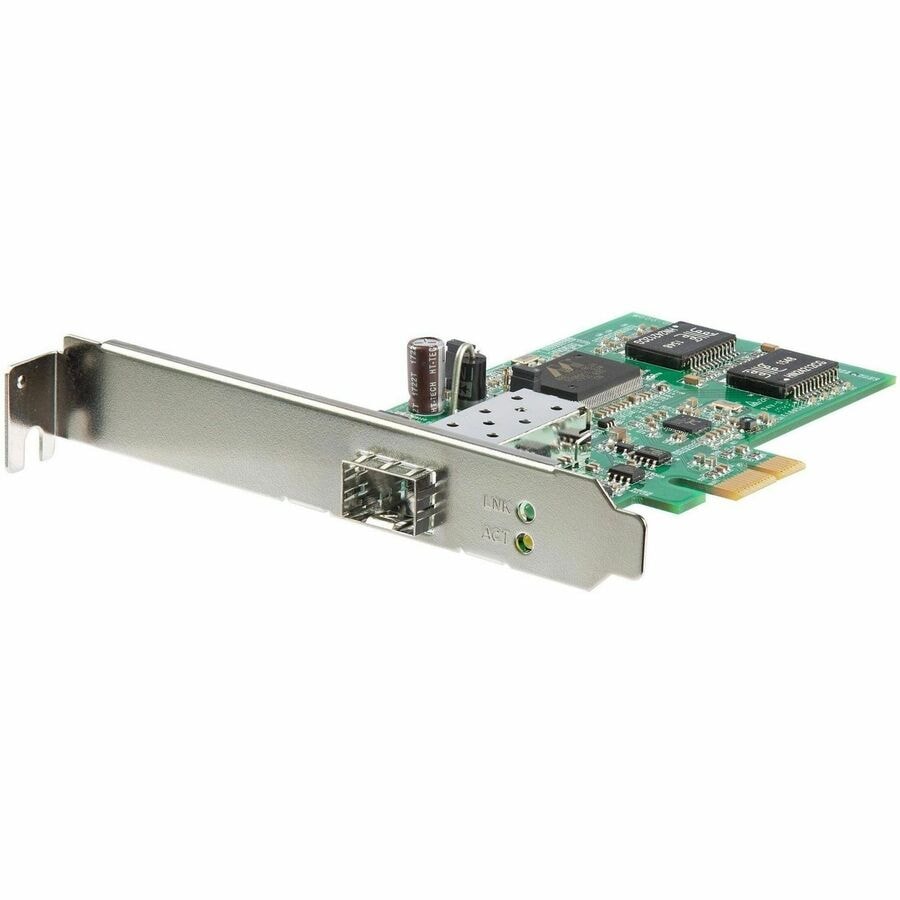

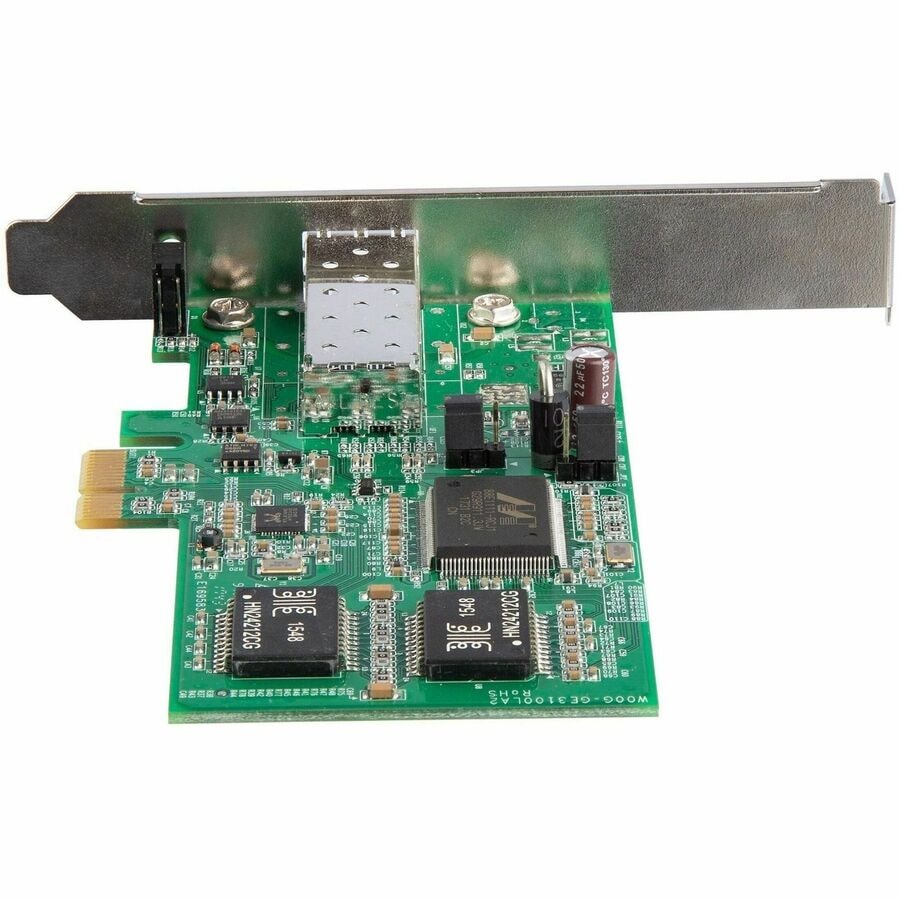

StarTech.com PCI Express Gigabit Ethernet Fiber Network Card w/ Open SFP - PCIe SFP Network Card Adapter NIC - Connect a PCI Express-based desktop or rackmount PC directly to a fiber optic network using the Gigabit SFP of your choice - PCI Express Gigabit Ethernet Fiber Network Card w/ Open SFP - PC

PEX1000SFP2
Also known as IM69574W,SY5310530

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.

This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.

With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.

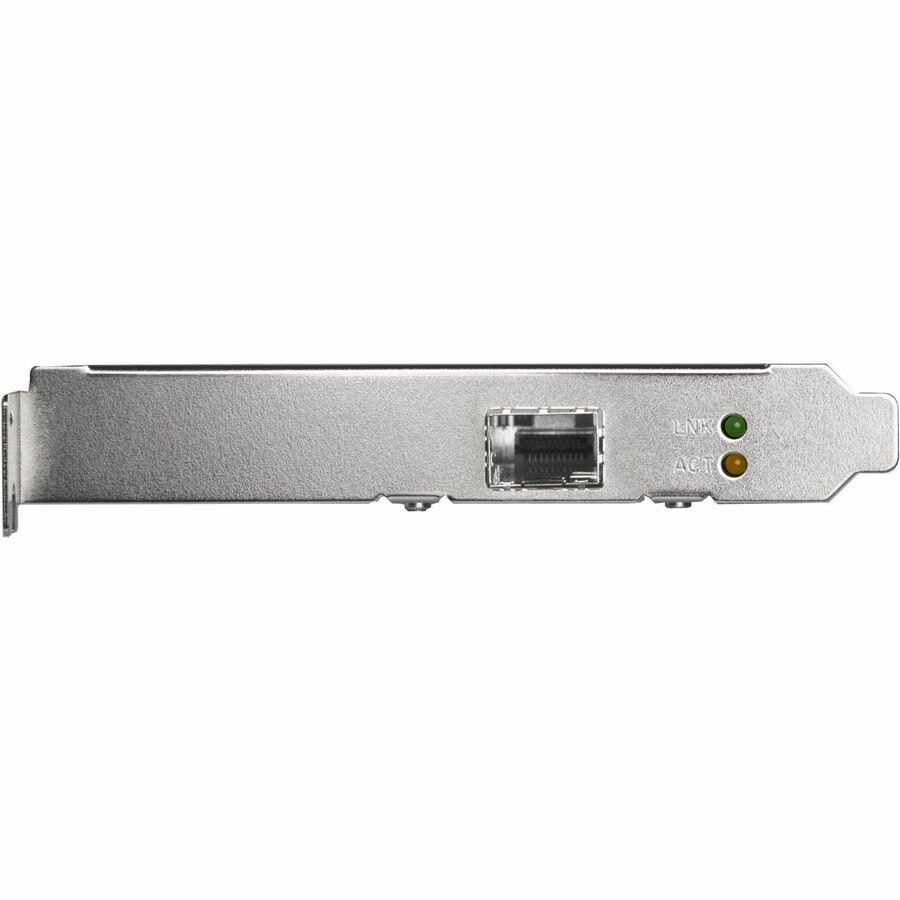

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x1
  • Total Number of Ports : 1
  • Total Number of Expansion Slots : 1
  • Expansion Slot Type : SFP (mini-GBIC)
  • Maximum Data Transfer Rate : 2 Gbit/s
  • Network Technology : 1000Base-X
  • Form Factor : Plug-in Card
  • Height : 4.60" (116.84 mm)
  • Width : 0.70" (17.78 mm)
  • Weight (Approximate) : 2 oz (56.70 g)
  • Package Contents :
    • 1 Port PCI Express Gigabit SFP Network Card
    • 1 x Low Profile Bracket
    • 1 x Driver CD
    • 1 x Instruction Manual
  • Device Supported : Computer
  • Environmentally Friendly : Yes
  • Country of Origin : Taiwan
  • Limited Warranty : 2 Year
  • Compatible with most Gigabit SFP modules
  • Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX
  • Includes low-profile/half-height installation bracket
  • Compliant with IEEE802.3z 1000Base-SX/LX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
  • Jumbo Frame Support
  • Supports PCI Message Signaled Interrupt (MSI)
  • Preboot Execution Environment (PXE) 2.1

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX1000SFP2
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 1 Port PCI Express Gigabit SFP Network Card
Packaged Quantity 1 Each
Product Type Gigabit Ethernet Card
Host Interface PCI Express x1
Total Number of Ports 1
Network (RJ-45) No
USB No
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
Total Number of Expansion Slots 1
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 1
Maximum Data Transfer Rate 2 Gbit/s
Network Technology 1000Base-X
Card Height Low-profile
Form Factor Plug-in Card
Height 4.60" (116.84 mm)
Width 0.70" (17.78 mm)
Length 5" (127 mm)
Weight (Approximate) 2 oz (56.70 g)
Package Contents
  • 1 Port PCI Express Gigabit SFP Network Card
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Device Supported Computer
Operating System Compatibility Mac OS X 10.9 Mavericks
Operating System Compatibility Linux
Operating System Compatibility Windows Server 2008 R2 Foundation
Operating System Compatibility Windows 8
Operating System Compatibility Windows 8.1
Operating System Compatibility Windows Vista Ultimate
Operating System Compatibility Mac OS X 10.5 Leopard
Operating System Compatibility Windows Server 2003
Operating System Compatibility Windows Server 2012
Operating System Compatibility Windows XP Professional
System Requirements
  • Windows® XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
  • Mac OS X® 10.5 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions only
  • Microsoft Hyper-V®
Environmentally Friendly Yes
Country of Origin Taiwan
Limited Warranty 2 Year
