AddOn 9m SC to LC Aqua OM3 Duplex OFNR (Riser-Rated) Fiber Patch Cable - 29.5 ft (9 m) Fiber Optic Network Cable for Network Device, Transceiver/Media Converter - First End: 2 x LC Network - Male - Second End: 2 x SC Network - Male - Patch Cable - LSZH, OFNR, Riser, Plenum - 50/125 µm - Aqua -
ADD-SC-LC-9M5OM3
Also known as IM6924CR
MARKETING INFORMATION

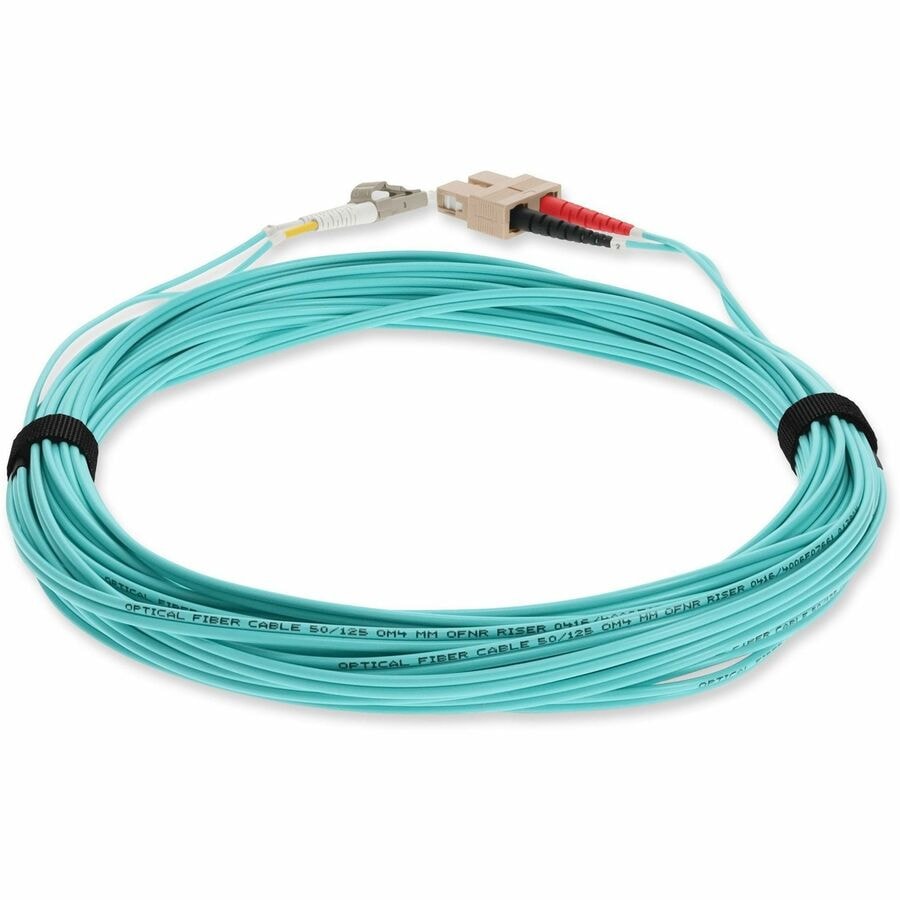

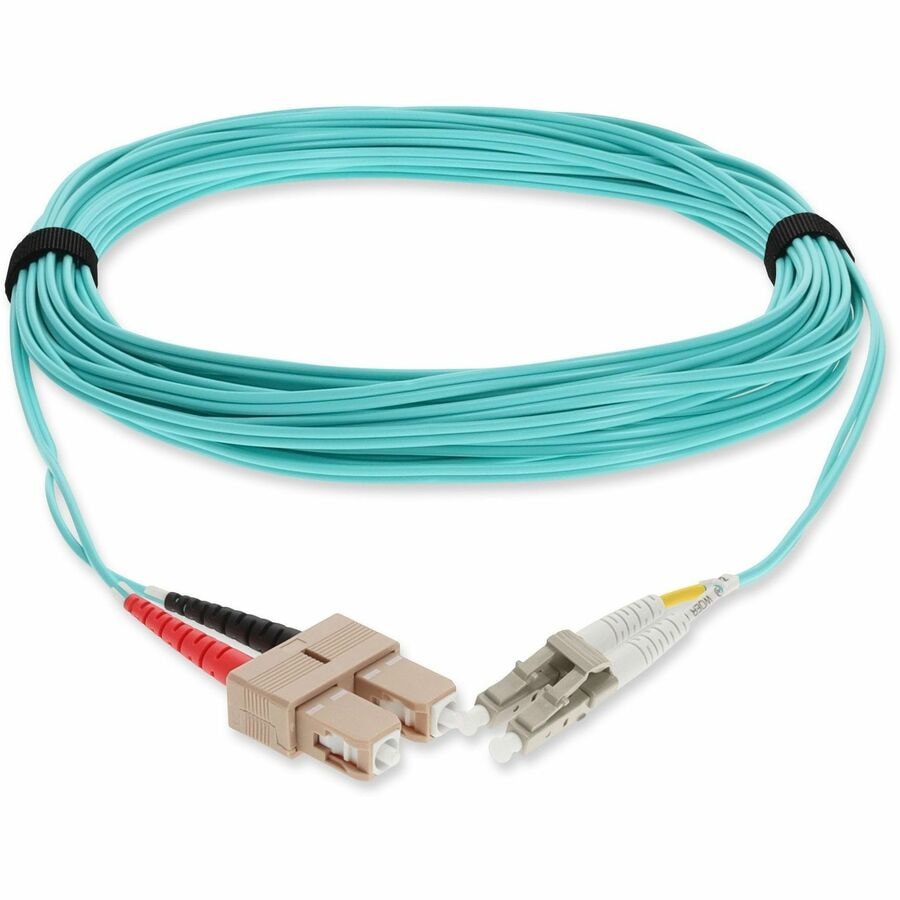

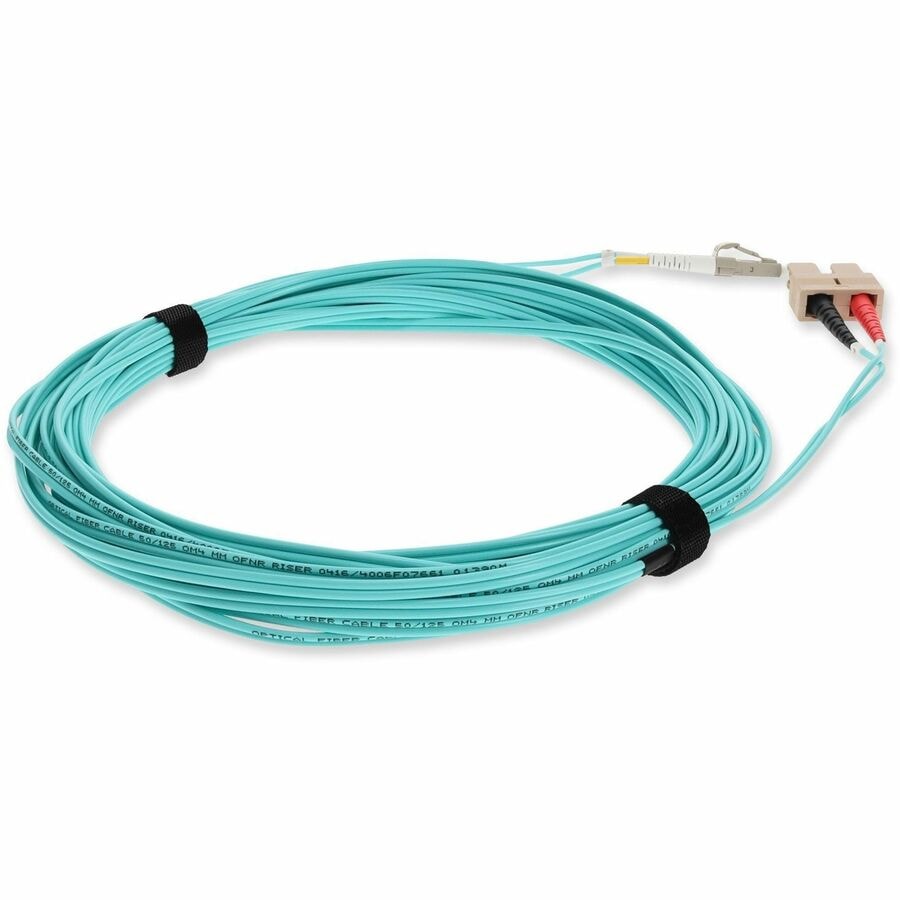

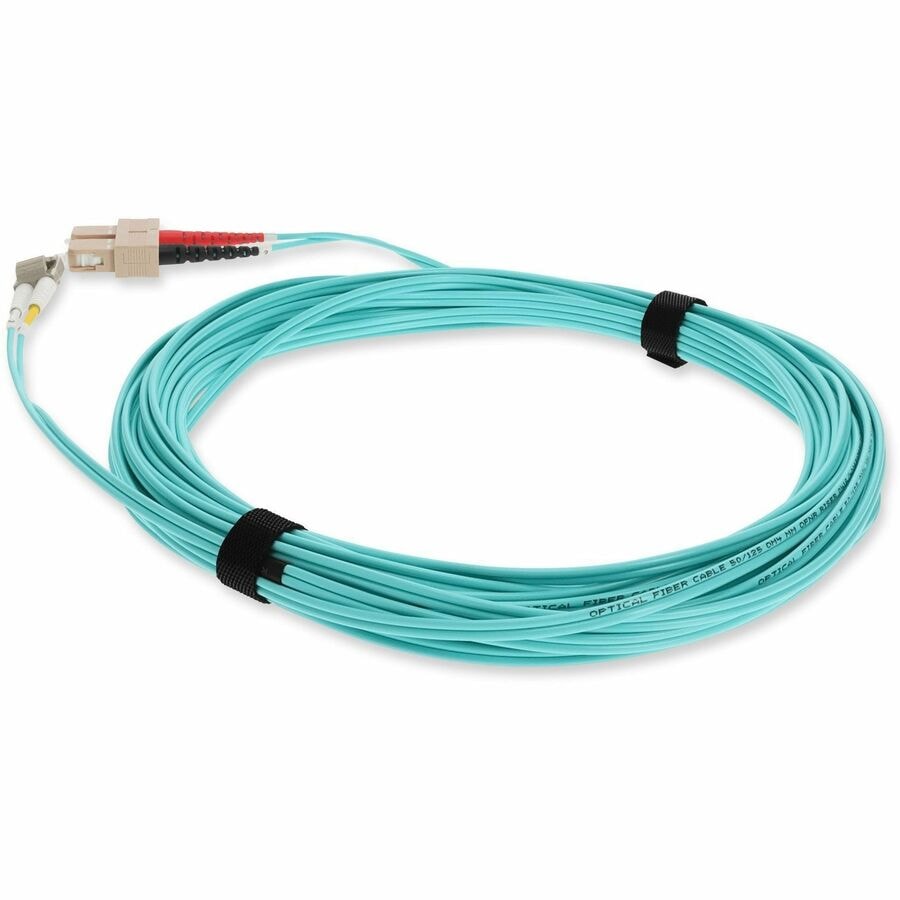

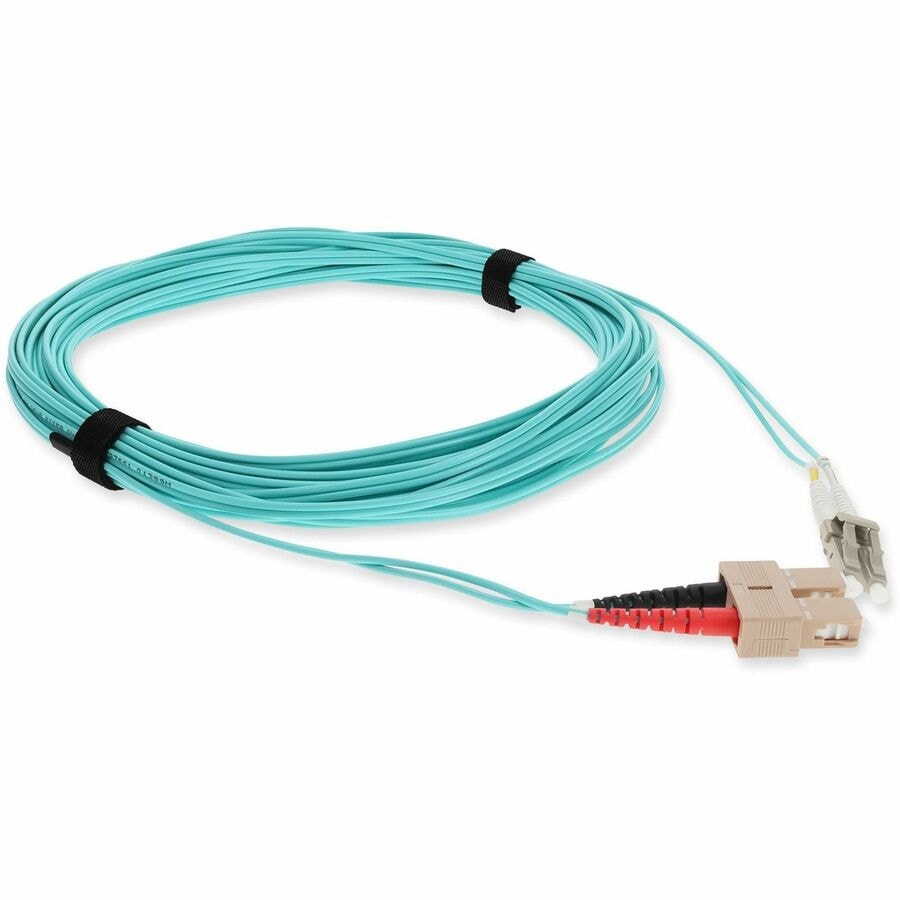

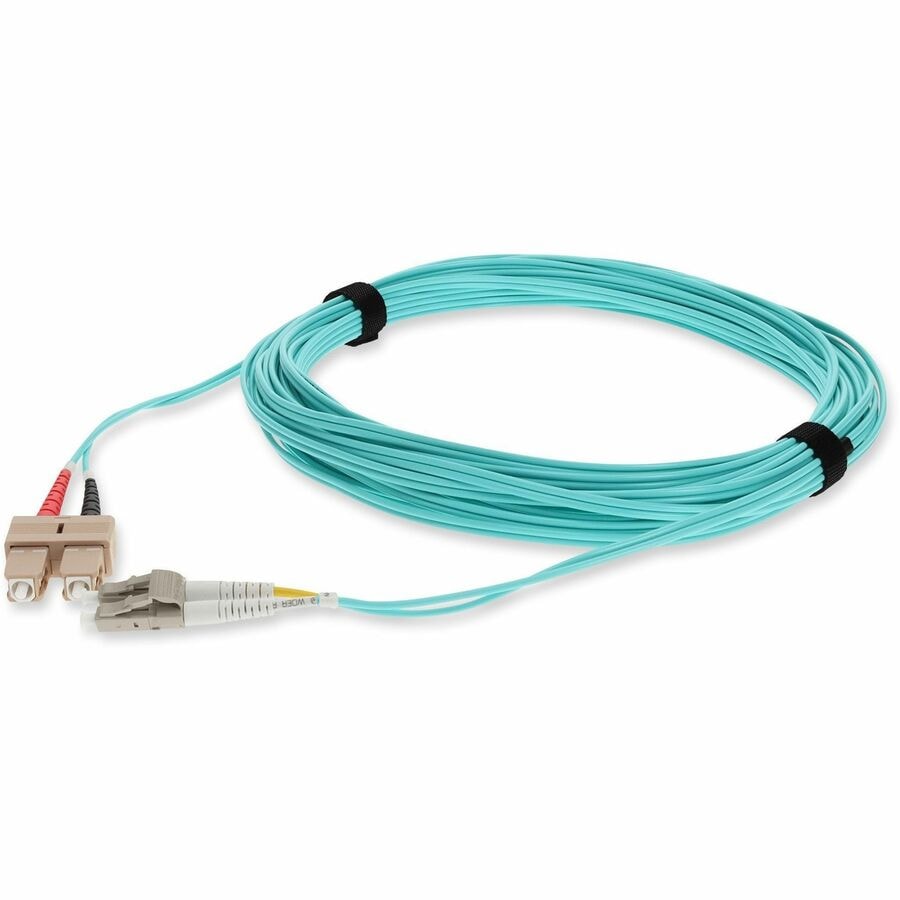

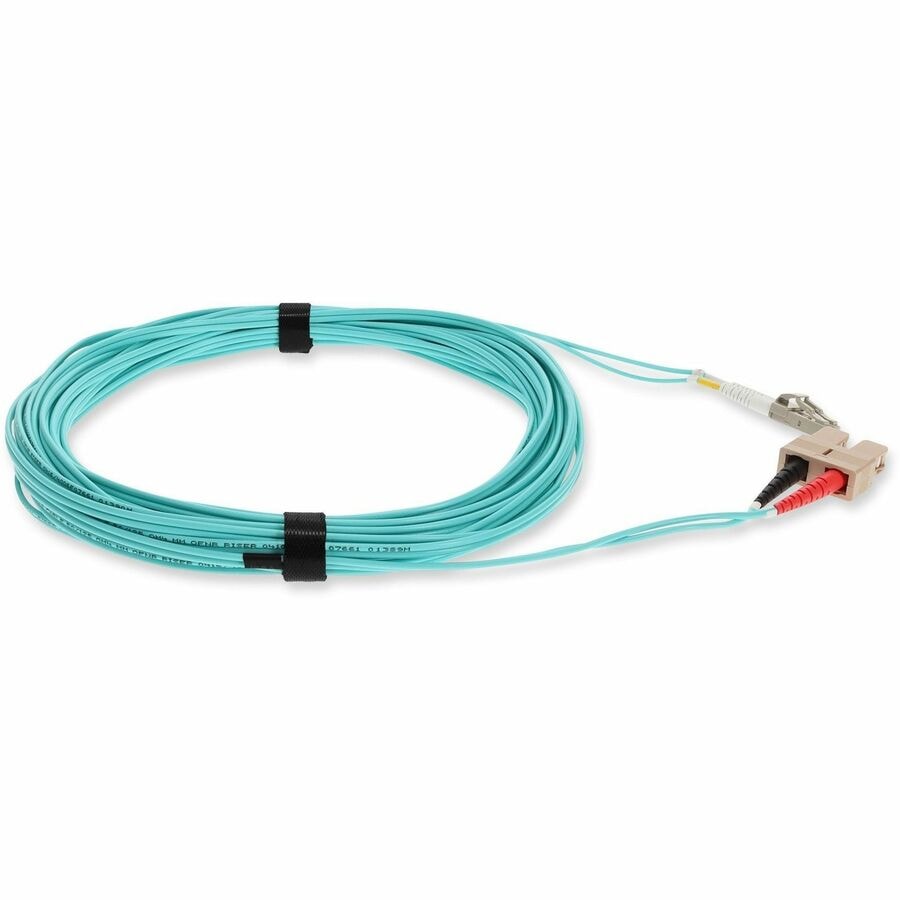

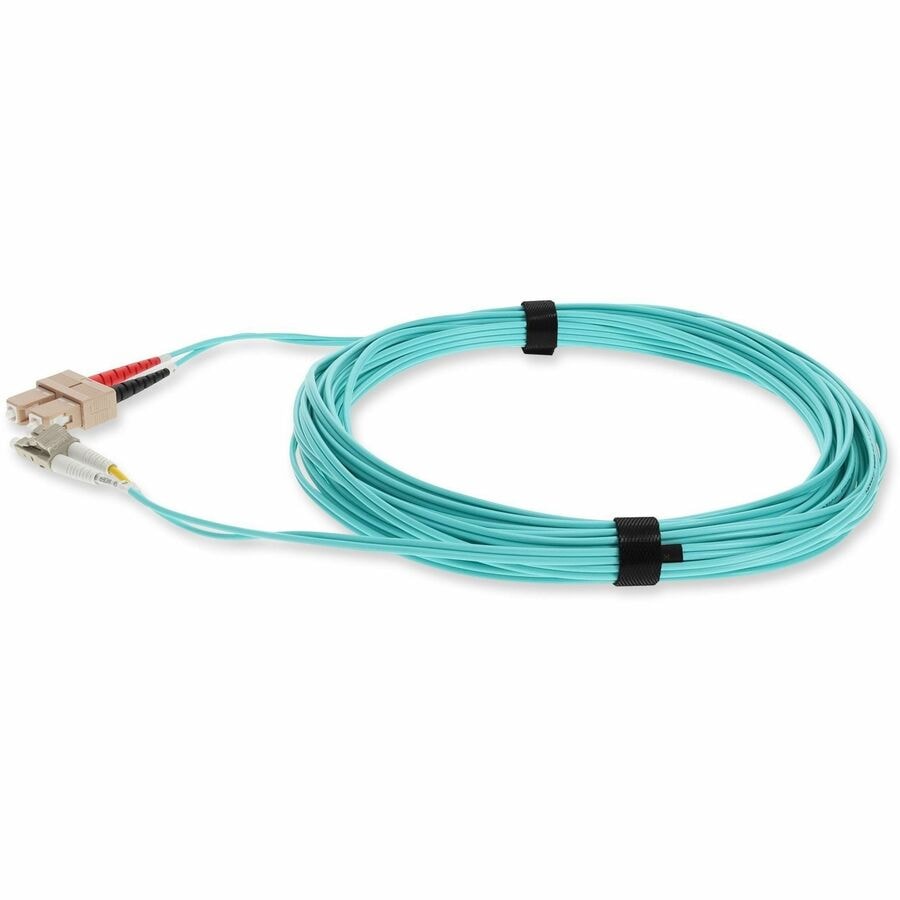

This is a 9m LC (male) to SC (male) aqua duplex riser-rated fiber patch cable. An OM3 cable has a core size of 50 microns that supports 10 Gigabit Ethernet at lengths measuring up to 300 meters, and 40 Gigabit or 100 Gigabit Ethernet measuring up to 100 meters. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.DETAILS
- Cable Type : Fiber Optic
- Cable Characteristic : Patch Cable
- Fiber Optic Mode : Multi-mode
- Fiber Type : Duplex
- Fiber Optic Cable Core/Cladding Specification : 50/125 µm
- Fiber Category : OM3
- Cable Length : 29.5 ft (9 m)
- Connector Type on First End : LC Network - Male
- Connector Gender on First End : Male
- Connector on First End Details : 2 x LC Network - Male
- Connector Type on Second End : SC Network - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 2 x SC Network - Male
- Shielding : No
- Jacket Type : LSZH,OFNR,Riser,Plenum
- Device Supported : Network Device,Transceiver/Media Converter
- Features : Physical Contact (PC),Laser-optimized,Stranded
- Color Family : Green
- Product Color : Aqua
- Weight (Approximate) : 6.40 oz (181.44 g)
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- TAA Compliant : No
- Limited Warranty : 3 Year Lifetime
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Features Physical Contact (PC)
- Fully compatible with transceiver/media converters
SPECIFICATIONS
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-SC-LC-9M5OM3 |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Brand Name | AddOn |
| Product Name | 9m Laser-Optimized Multi-Mode fiber (LOMM) Duplex SC/LC OM3 Aqua Patch Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Cable Configuration | Straight-through |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Category | OM3 |
| Cable Length | 29.5 ft (9 m) |
| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Shielding | No |
| Jacket Type | Riser |
| Jacket Type | LSZH |
| Jacket Type | Plenum |
| Jacket Type | OFNR |
| Device Supported | Network Device |
| Device Supported | Transceiver/Media Converter |
| Features | Physical Contact (PC) |
| Features | Stranded |
| Features | Laser-optimized |
| Color Family | Green |
| Product Color | Aqua |
| Height | 13" (330.20 mm) |
| Width | 11" (279.40 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Limited Warranty | 3 Year Lifetime |
