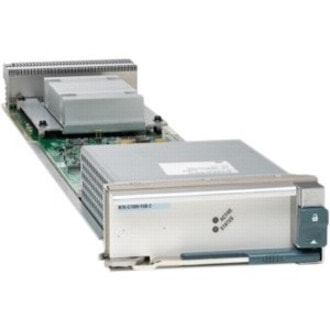

Cisco Nexus 7000 10-Slot Chassis 110Gbps/Slot Fabric Module - For Data Networking
N7K-C7010-FAB-2-RF
Also known as IM691A2Q
MARKETING INFORMATION
Switch fabric scalability is made possible through the support of from one to five concurrently active fabric modules for increased performance as your needs grow. All fabric modules are connected to all module slots. The addition of each fabric module increases the bandwidth to all module slots up to the system limit of five modules. The architecture supports lossless fabric failover, with the remaining fabric modules load balancing the bandwidth to all the I/O module slots, helping ensure graceful degradation.
DETAILS
- Application/Usage : Data Networking
- Form Factor : Hot-swappable
- Height : 1.73" (44.02 mm)
- Width : 14.93" (379.22 mm)
- Depth : 7.33" (186.18 mm)
- Weight (Approximate) : 4 lb (1814.37 g)
- Compatibility :
Cisco Nexus 7010 Switch Chassis
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | N7K-C7010-FAB-2-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Name | Nexus 7000 10-Slot Chassis 110Gbps/Slot Fabric Module |
| Product Condition | Refurbished |
| Product Type | Switch Fabric Module |
| Application/Usage | Data Networking |
| Form Factor | Hot-swappable |
| Height | 1.73" (44.02 mm) |
| Width | 14.93" (379.22 mm) |
| Depth | 7.33" (186.18 mm) |
| Weight (Approximate) | 4 lb (1814.37 g) |
| Compatibility | Cisco Nexus 7010 Switch Chassis |
