MARKETING INFORMATION

High Performance 802.11ax Wireless

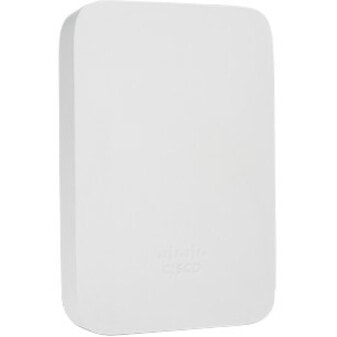

The Cisco Meraki MR36H is a Dual-band, 802.11ax 2x2:2 Wall Switch Access Point with dedicated security, wired access ports and RF management radio as well as an integrated Bluetooth Low Energy beacon and scanning radio.

The MR36H provides a maximum of 1.7 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing as well as IoT solutions

With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36H makes an outstanding platform for the most demanding of uses-including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.

MR36H and Meraki Cloud Management

Management of the MR36H is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without timeconsuming training or costly certifications. Because the MR36H is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.

24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.

The MR36H's firmware is automatically kept up to date via the cloud. New features, security fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

DETAILS

• Wireless LAN Standard : 802.11ax
• Network Band : Dual Band
• Frequency Band : 2.40 GHz,5 GHz
• Wireless Transmission Speed : 1.70 Gbit/s
• MIMO Technology : Yes
• Beamforming Technology : Yes
• Data Encryption : Yes
• Encryption Standard : WEP,WPA,WPA2-PSK,WPA2-ENT,WPA3-Personal,WPA3-ENT,WPA3
• Ethernet Technology : Gigabit Ethernet
• Number of Network (RJ-45) Ports : 4
• PoE (RJ-45) Port : Yes
• Power Consumption : 30 W
• Form Factor : Desktop,Ceiling Mountable,Wall Mountable,Rail-mountable,Plate Mountable
• Antenna Form Factor : Internal
• Height : 1.42" (36.07 mm)
• Width : 9.84" (249.94 mm)
• Depth : 4.72" (119.89 mm)
• Weight (Approximate) : 1.08 lb (492 g)
• Package Contents :
  • MR36H Wireless Access Point
  • 2 x Security Screw Options
  • All Standard Mounting Hardware
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : Lifetime

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
• Gigabit Ethernet port for ultra-fast wired network speeds
• Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
