MARKETING INFORMATION

Create pixel perfect imagery with the high-end panel quality of the new fully professional large sized NEC M series large format displays. By implementing premium features and focusing on creating impressionable presentation and digital signage experiences, the M series gives customers and elite display option. With the proprietary SpectraView Engine capabilities, these displays offer more color capabilities than ever before. On top of that, these products allow customers the modular capabilities to customize their product based on their needs and applications. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of high end presentaion applications in corporate, command and control, higher education and healthcare environments when high-end and feature rich displays are necessary to convey important messaging.

• Industrial-strength, premium-grade panelwith additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
• 4K UHD native resolutionallows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

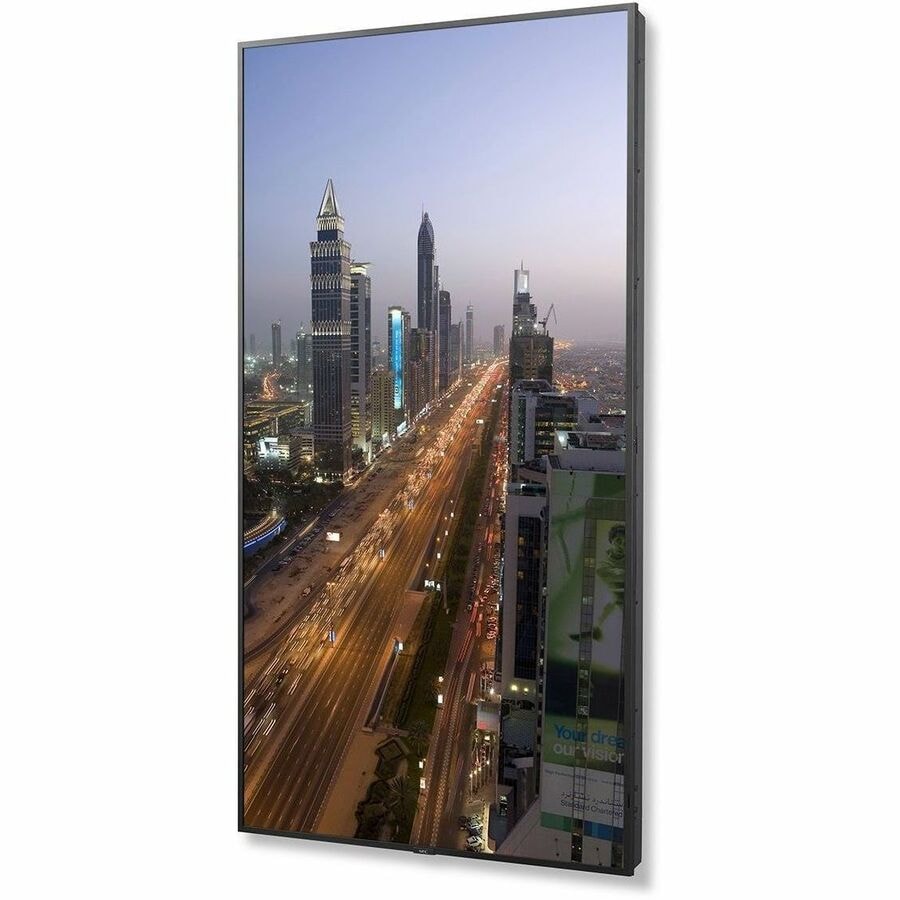

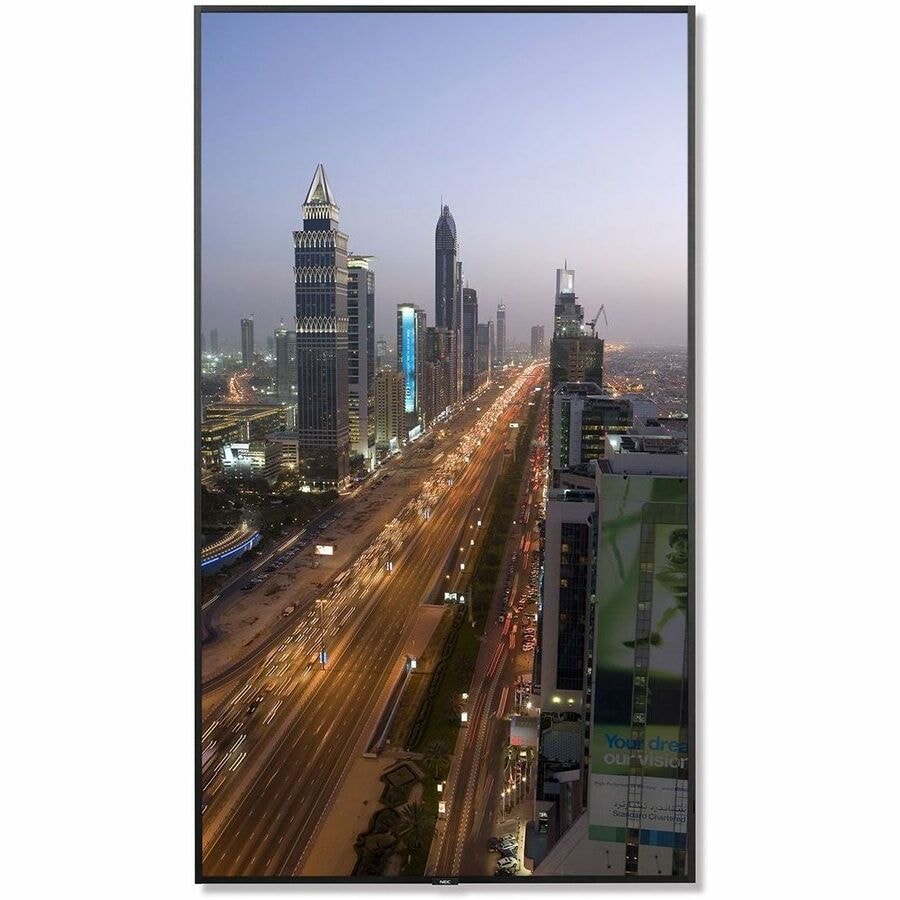

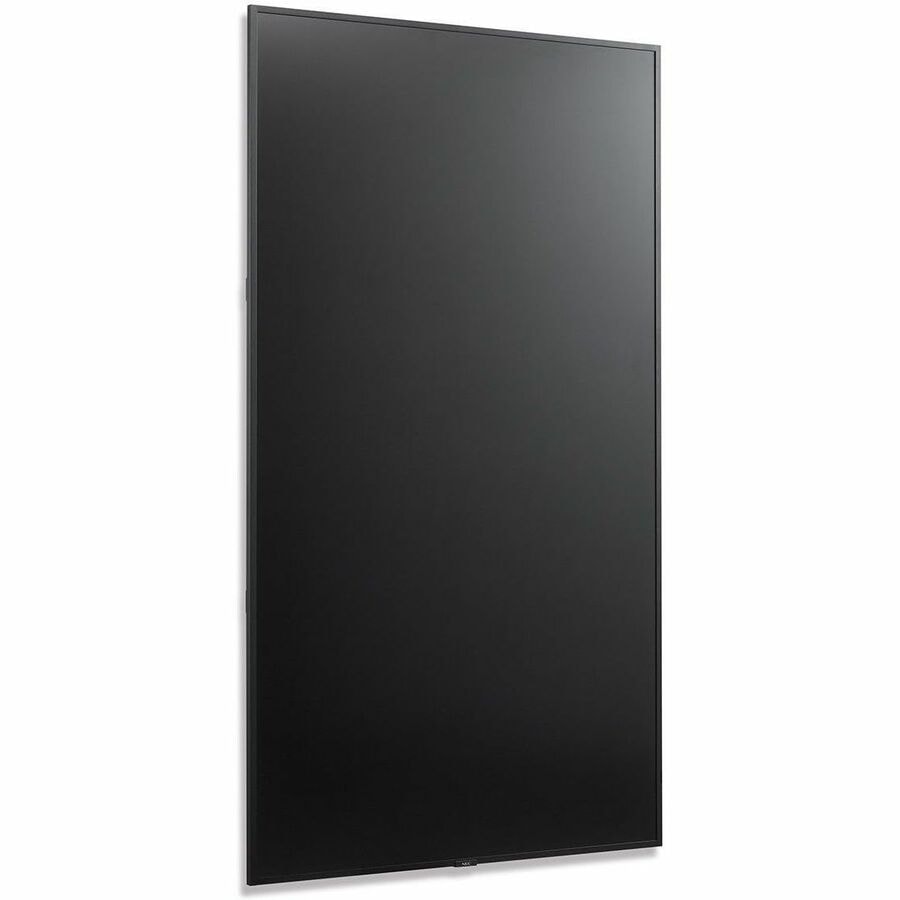

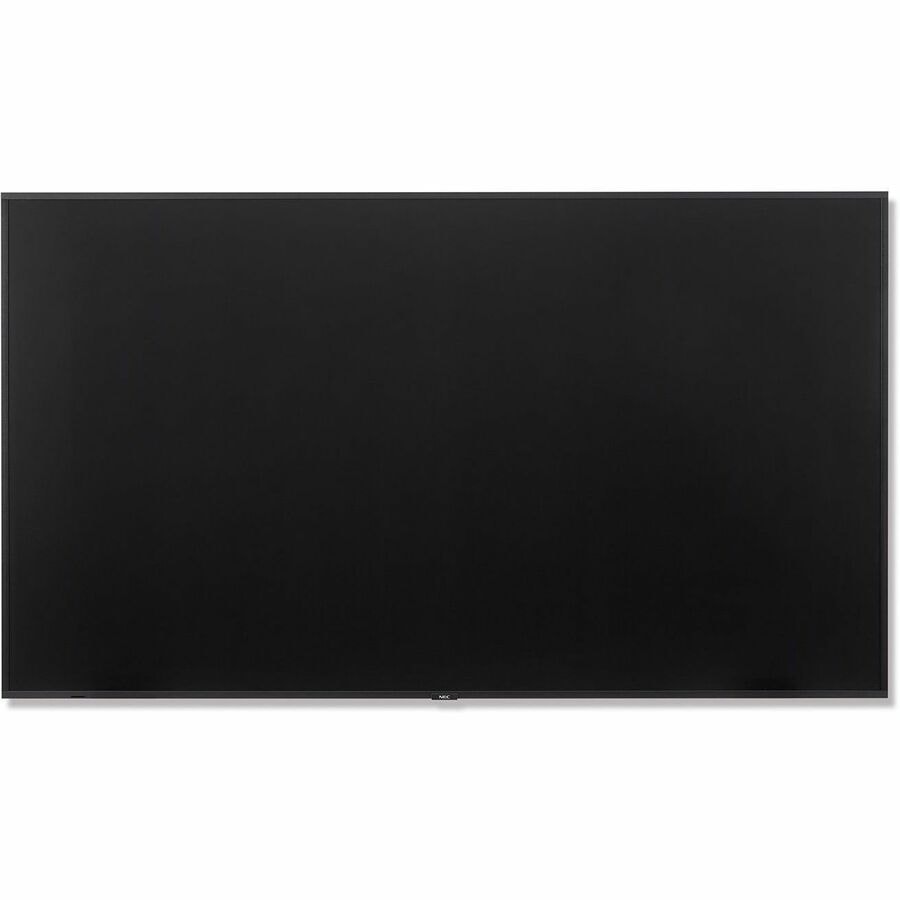

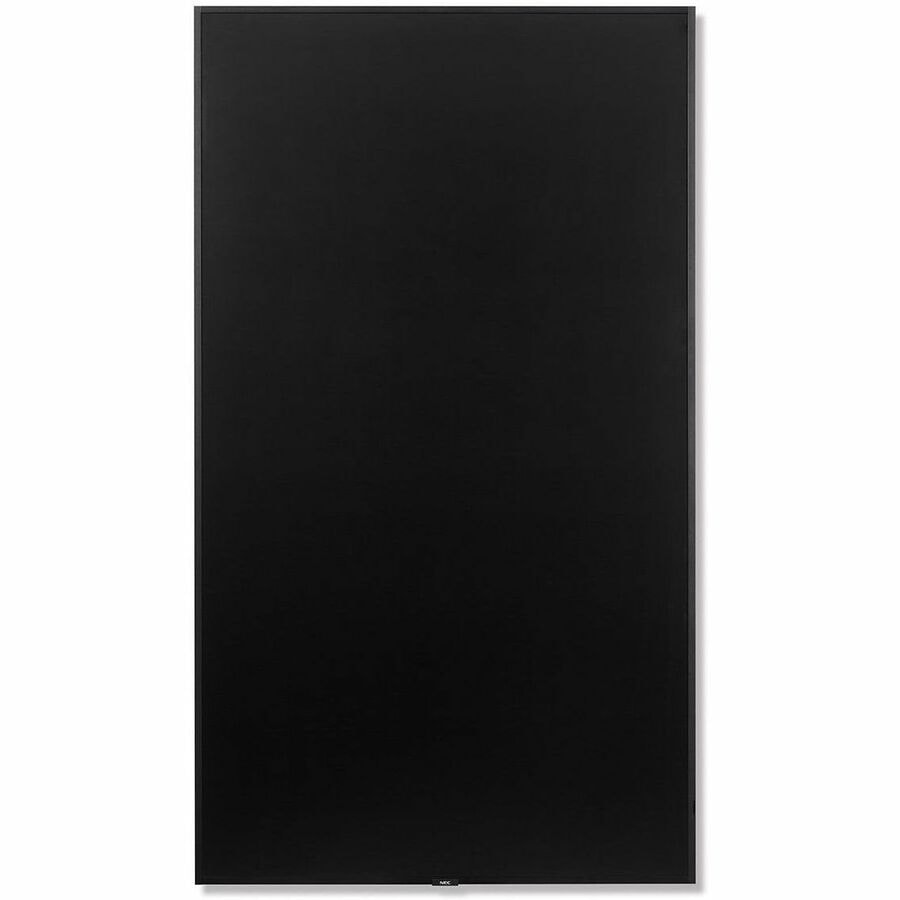

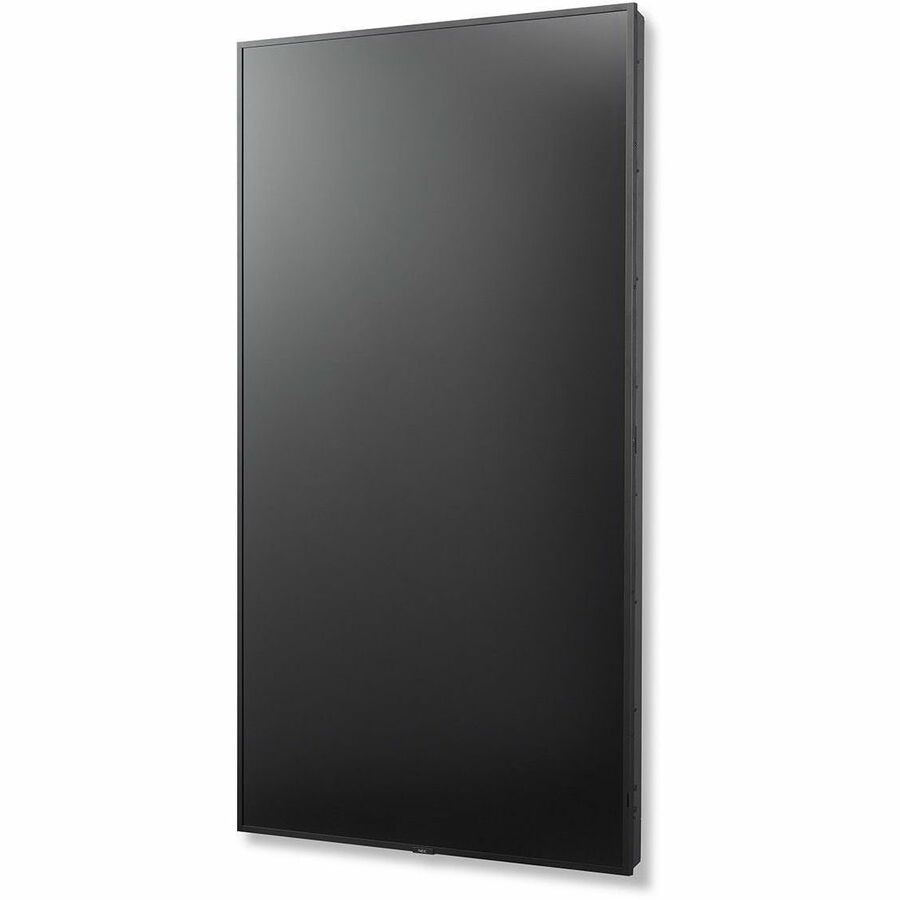

• Landscape and Portrait orientationallows for flexibility of installation dependent on your needs
• Accepts Intel® Smart Display Module Small or Largeallowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
• Raspberry Pi Compute Module 4allows for future proof expansion and NEC Mediaplayer support through proprieatry slot
• Bidirectional and Full External Controlallows for easy integration into control systems via LAN or RS232C
• 500 cd/m2 brightnessand HDR compatibilty will capture the attention of audience in almost any situation
• Enhanced Daisy Chain Capabilitiesthrough both HDMI and DisplayPort Out Connections
• Multi Picture Modeallows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
• Failover Capabilitieswith full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
• Energy Star 8.0 Certified Product
• Full 3 year commercial warrantyto allow for peace of mind and protection of your investment
• NaViSet Administrator 2Free software solution that greatly eases administration and management of larger display device installations

DETAILS

• Bezel Width (Top) : 0.63" (16 mm)
• Bezel Width (Bottom) : 0.63" (16 mm)
• Bezel Width (Left) : 0.63" (16 mm)
• Bezel Width (Right) : 0.63" (16 mm)
• Ingress Protection (IP) Rating : IP5X,IP2X
• Panel Technology : In-plane Switching (IPS) Technology
• Operation Hours : 24 Hours/7 Days
• Number of Screens : 1
• Viewable Screen Size : 86" (2184.40 mm)
• Display Screen Type : LCD
• High Dynamic Range (HDR) : Yes
• High Dynamic Range (HDR) Type : HLG,HDR10,PQ
• Response Time : 8 ms
• Curved Screen : No
• Display Resolution : 3840 x 2160
• Backlight Technology : Direct LED
• Aspect Ratio : 16:9
• Speakers : Yes
• Scan Format : 2160p
• Dynamic Contrast Ratio : 8,000:1
• Brightness : 500 cd/m²
• Ethernet : Yes
• Wireless LAN : No
• USB : Yes
• HDMI : Yes
• DisplayPort : Yes
• Serial : Yes
• Number of USB 2.0 Ports : 2
• Number of HDMI Inputs : 2
• Number of HDMI Outputs : 1
• Number of DisplayPorts : 3
• Operating System : Raspberry Pi
• Input Voltage : 120 V AC,230 V AC

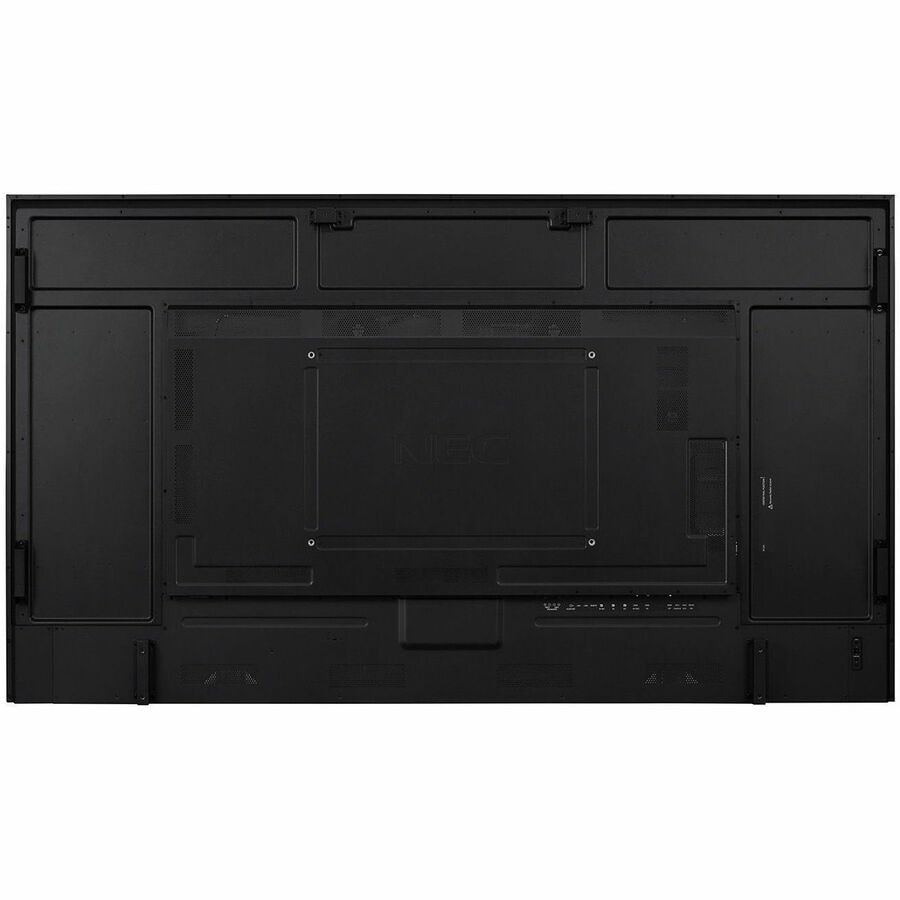

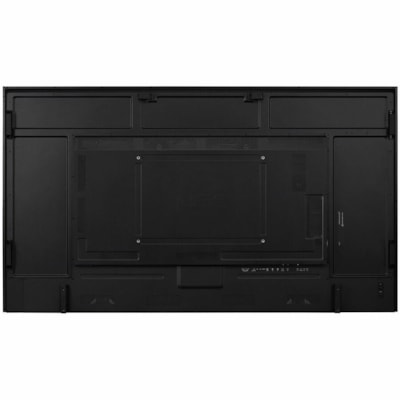

• VESA Mount Standard : 600 x 400
• Mount Type : Wall Mountable
• Height : 43.30" (1099.82 mm)
• Width : 75.90" (1927.86 mm)

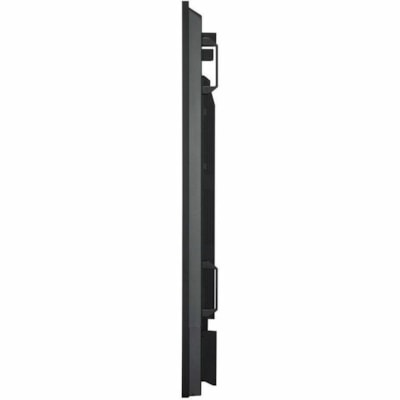

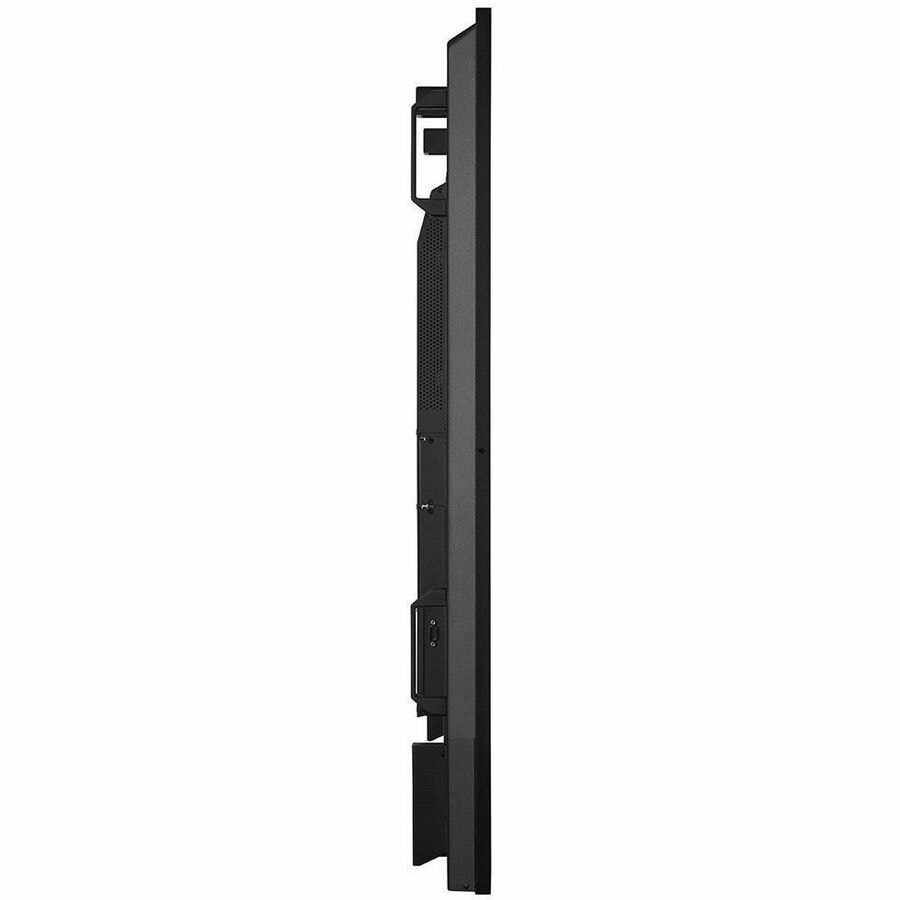

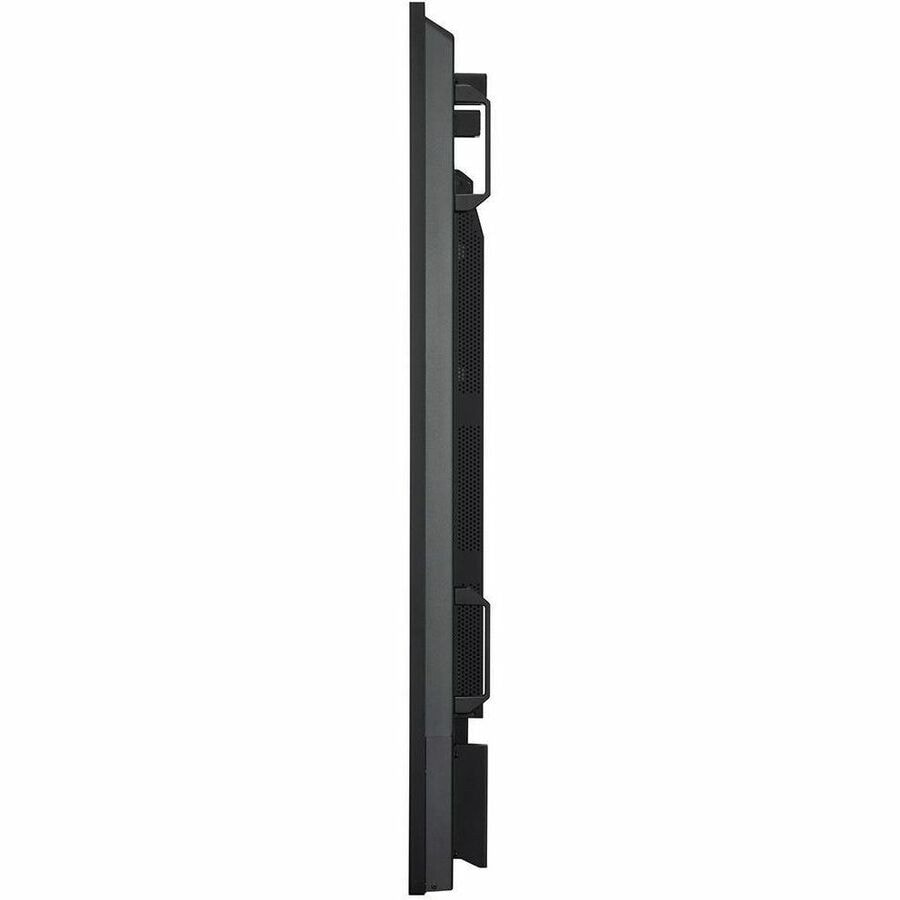

• Depth : 3.30" (83.82 mm)
• Weight (Approximate) : 105.60 lb (47899.35 g)
• Application/Usage : Corporate,Education,Healthcare,Industrial
• Energy Star : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Energy Efficiency Certification : ENERGY STAR 8.0
• Limited Warranty : 3 Year

• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
• Experience luminescent visual images with LCD display
• Features a 4k Ultra HD 3840 x 2160 resolution
• Engages your customers and makes their viewing experience breathtaking with its 2160p content
• Direct LED backlighting technology enabled for a bright and sharp display
