StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550 - Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter

PEX2S553LP
Also known as IM66843N

New! Log in or create an account to see price and availability


MARKETING INFORMATION

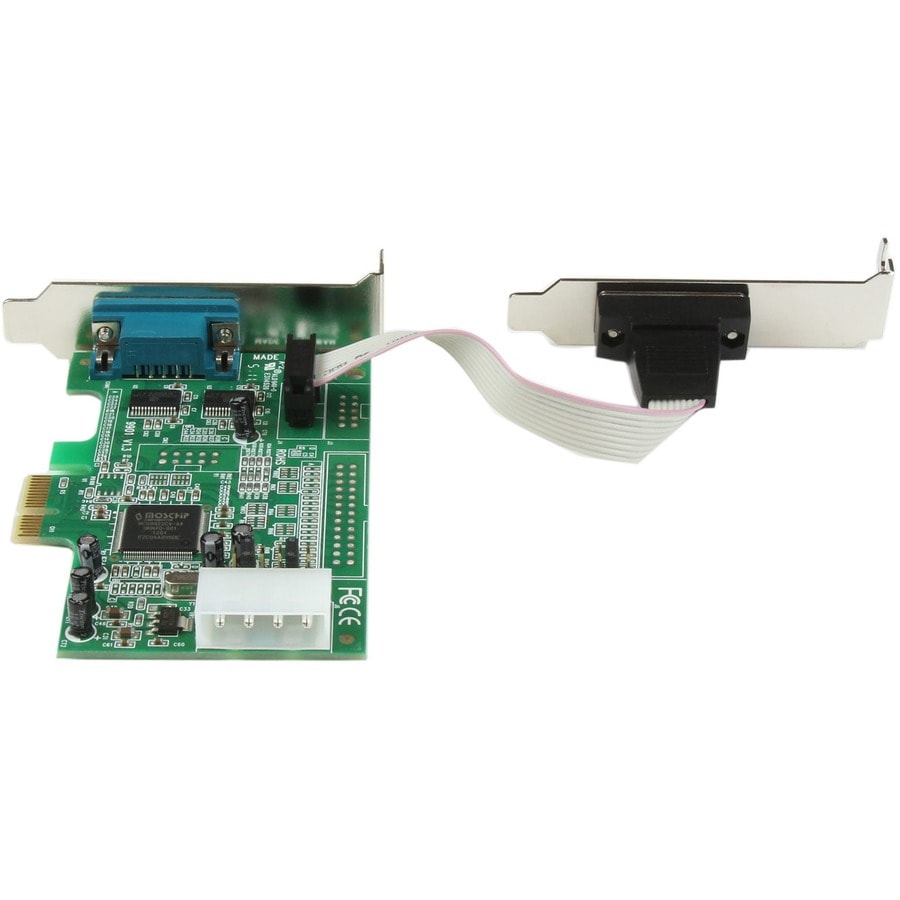

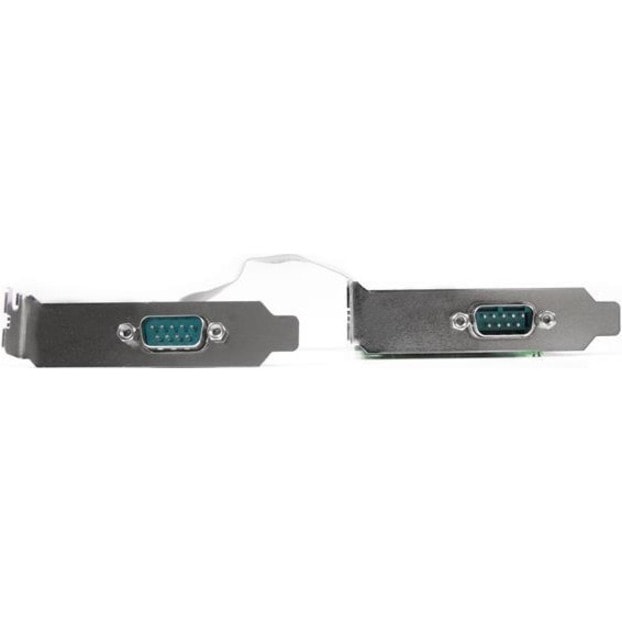

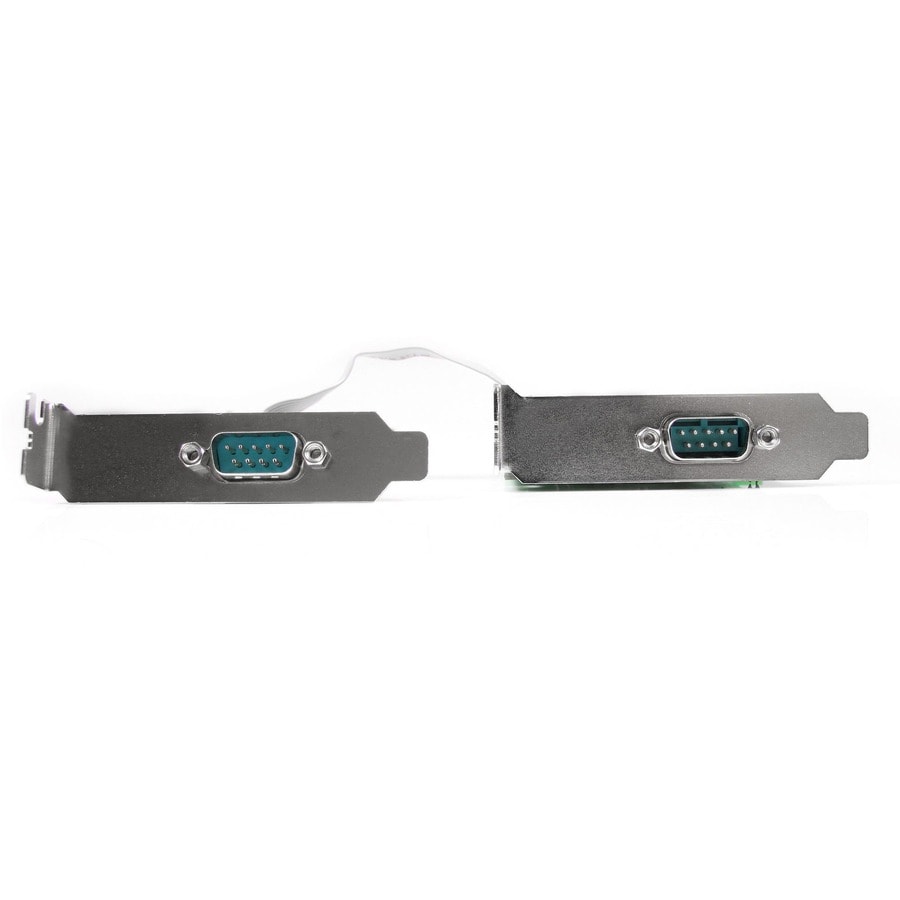

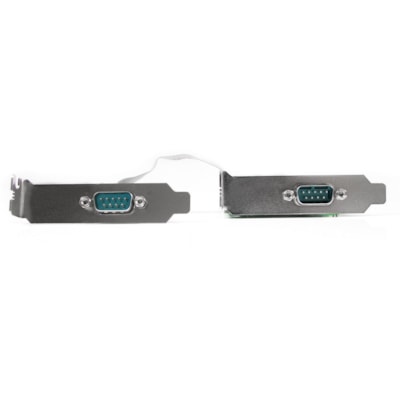

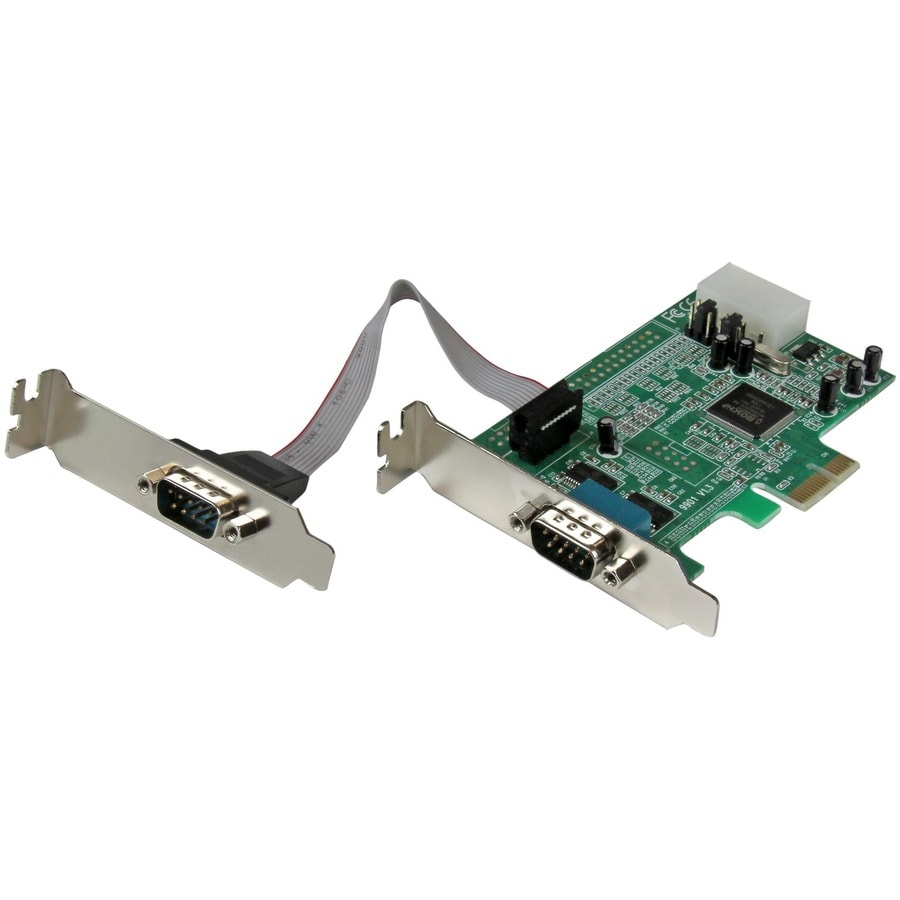

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x1
  • Platform Supported : PC,Mac,Linux
  • UART Type : 16550
  • Number of Serial Ports (External) : 2
  • Form Factor : Plug-in Card
  • Card Height : Dual-profile
  • Height : 0.80" (20.32 mm)
  • Width : 3.10" (78.74 mm)
  • Weight (Approximate) : 2.20 oz (62.37 g)
  • Environmentally Friendly : Yes
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Limited Warranty : 2 Year
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
  • Single chip design optimizes speed and reliability
  • Native single-chip, single lane PCI Express
  • Selectable power output on pin 9 for the serial port
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 128-byte deep FIFO per transmitter and receiver

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX2S553LP
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
Packaged Quantity 1
Product Type Serial Adapter
Host Interface PCI Express x1
Data Transfer Rate 460kB/s
UART Type 16550
Platform Supported Linux
Platform Supported Mac
Platform Supported PC
Number of Serial Ports (External) 2
Form Factor Plug-in Card
Card Height Dual-profile
Height 0.80" (20.32 mm)
Width 3.10" (78.74 mm)
Length 4.10" (104.14 mm)
Weight (Approximate) 2.20 oz (62.37 g)
Package Contents
  • 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • DB9 Ribbon Cable
  • Full Profile Bracket
  • Low profile Bracket
  • Driver CD
  • Instruction Manual
Additional Information
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saves time and hassle.
Environmentally Friendly Yes
Country of Origin Taiwan
TAA Compliant Yes
Limited Warranty 2 Year
