StarTech.com 2S1P PCIe Parallel Serial Combo Card - Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot - pci express serial parallel card - pci express serial card - pci express parallel card - pcie serial parallel - pci expres

PEX2S5531P
Also known as IM66842N,SY4620844

New! Log in or create an account to see price and availability


MARKETING INFORMATION

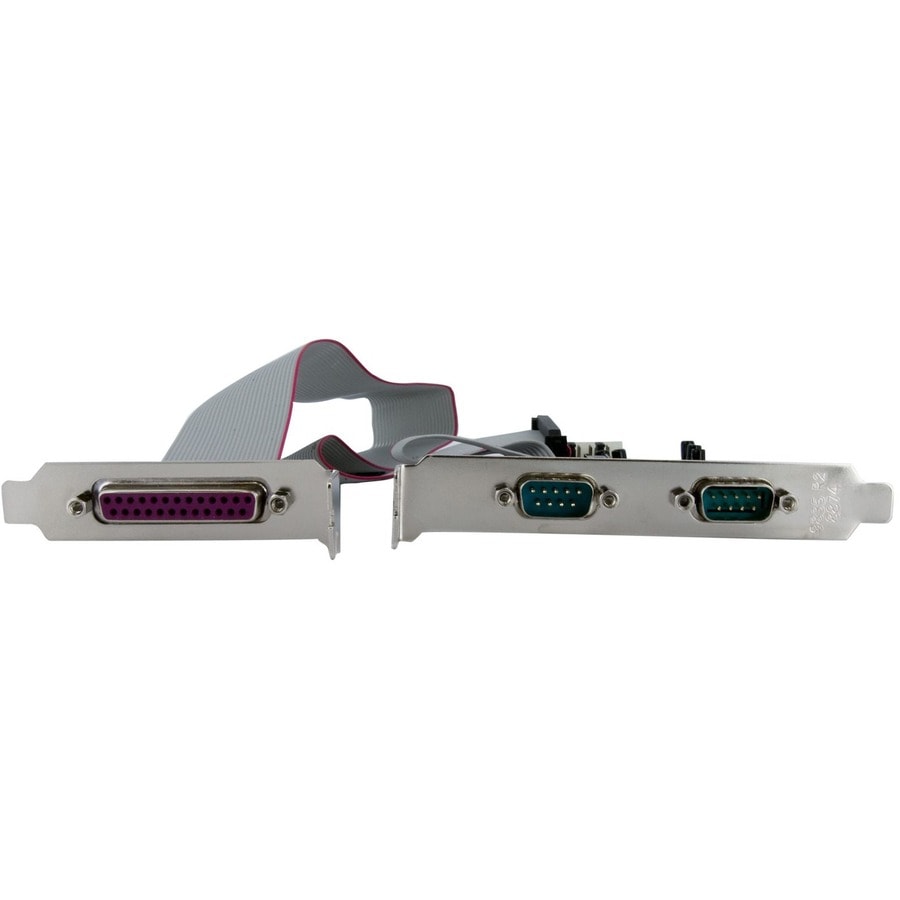

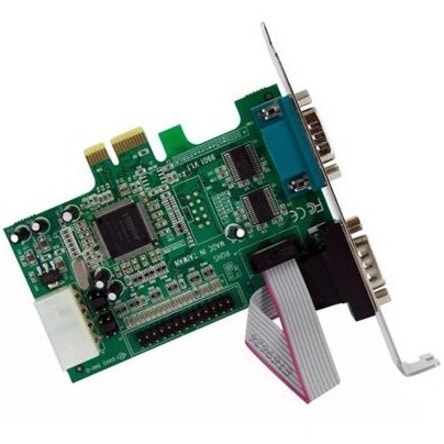

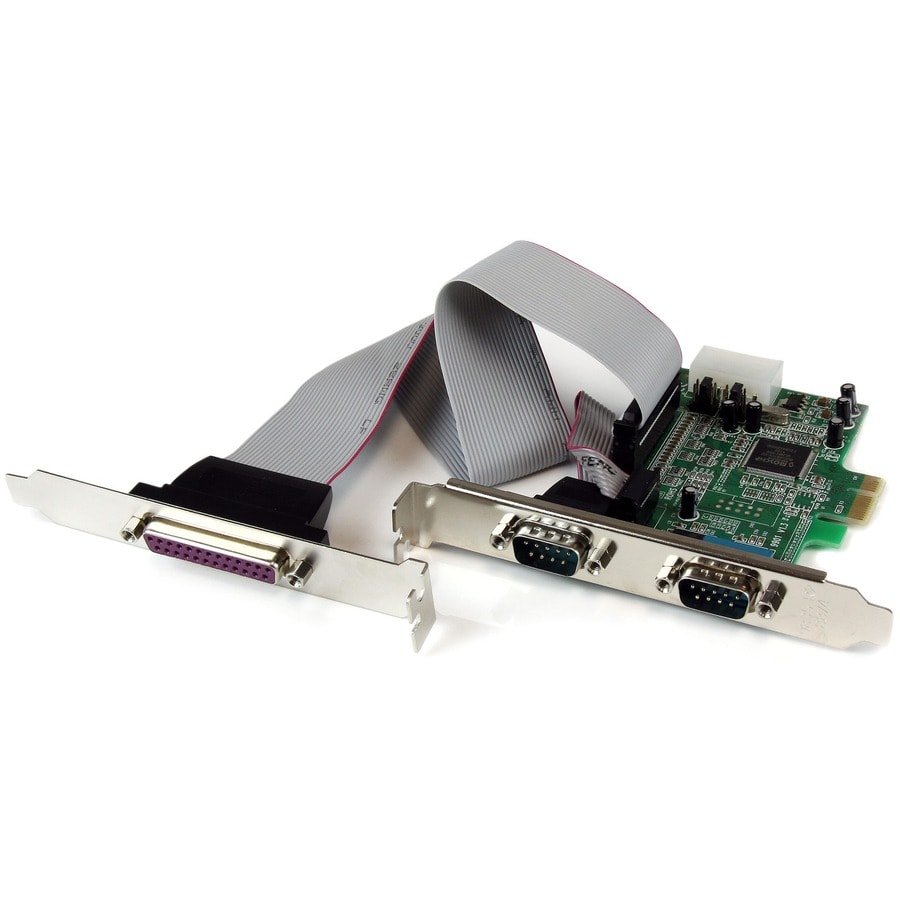

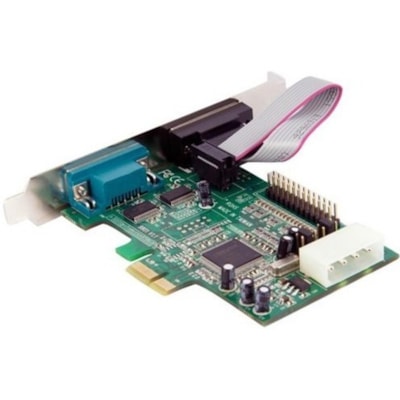

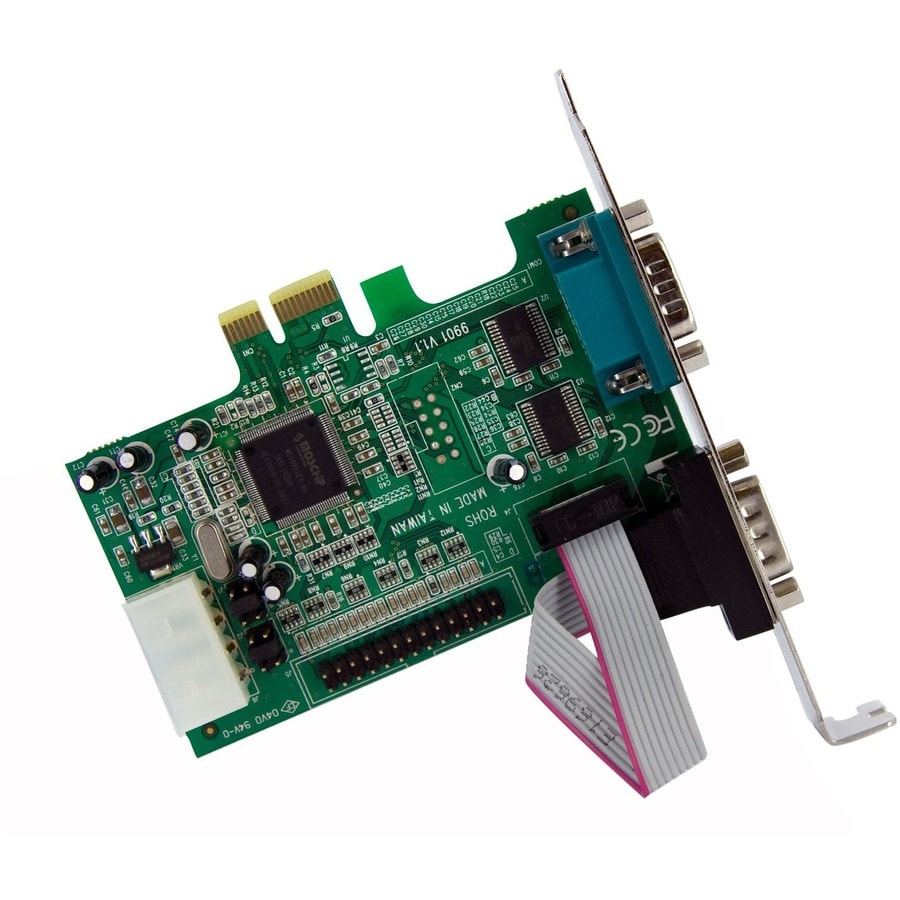

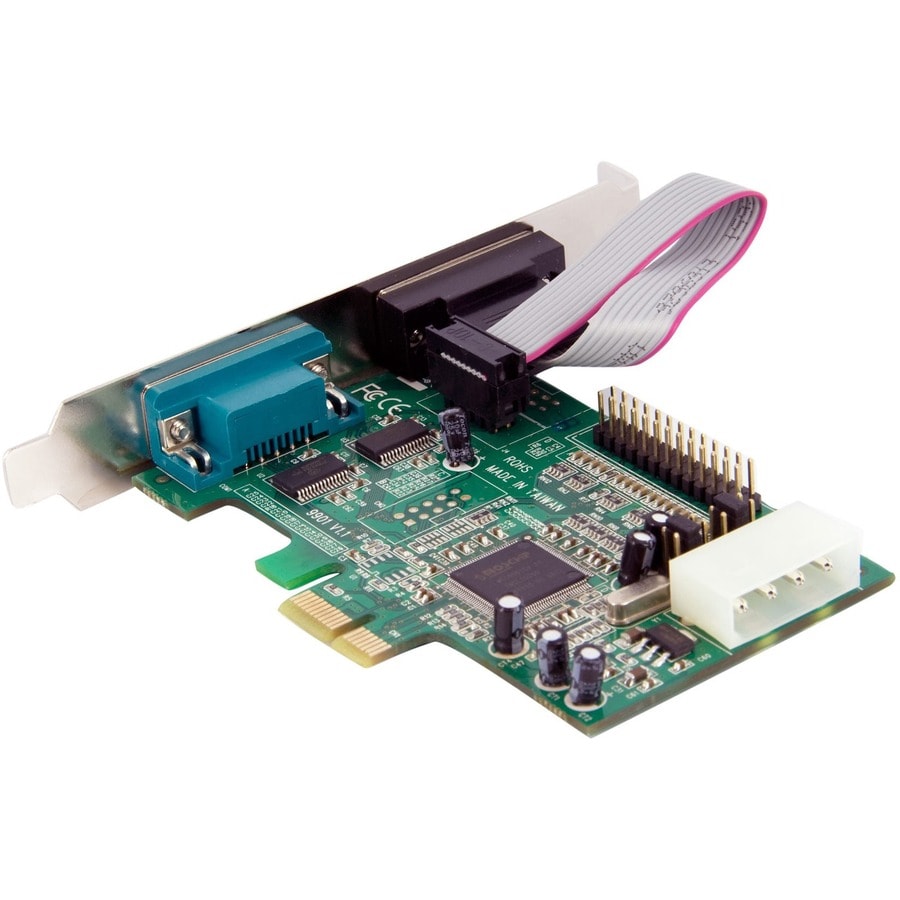

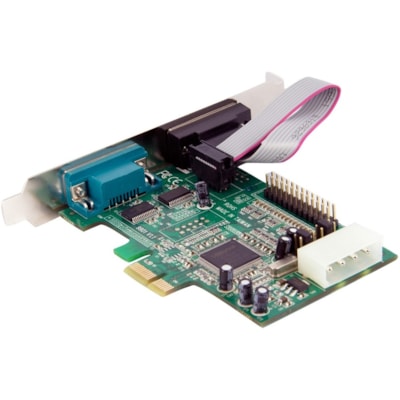

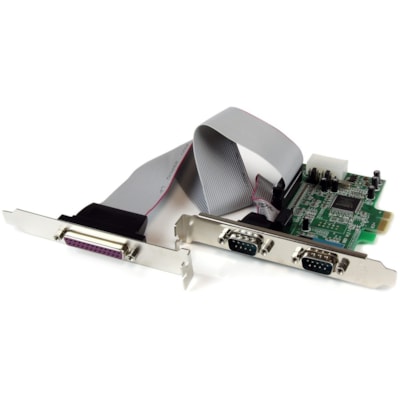

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

This product is a replacement for our PEX2S5521P card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x1
  • Platform Supported : PC,Mac,Linux
  • UART Type : 16550
  • Number of Parallel Ports (External) : 1
  • Number of Serial Ports (External) : 2
  • Form Factor : Plug-in Card
  • Card Height : Dual-profile
  • Height : 0.80" (20.32 mm)
  • Width : 4.70" (119.38 mm)
  • Weight (Approximate) : 4 oz (113.40 g)
  • Environmentally Friendly : Yes
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Limited Warranty : 2 Year
  • Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
  • One parallel port with data transfer rate up to 1.5 Mbps
  • Compliant with PCI Express base specifications revision 1.0a
  • 128-byte deep FIFO per transmitter and receiver
  • Configurable in 5V, 12V, and RI (non-powered) modes
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band flow control using programmable Xon/Xoff in both directions

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX2S5531P
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Model PEX2S5531P
Product Name 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Packaged Quantity 1
Product Type Serial/Parallel Combo Adapter
Host Interface PCI Express x1
Data Transfer Rate 1.5MB/s Parallel Port
Data Transfer Rate 460.8kB/s Serial Port
UART Type 16550
Platform Supported Linux
Platform Supported Mac
Platform Supported PC
Number of Parallel Ports (External) 1
Number of Serial Ports (External) 2
Form Factor Plug-in Card
Card Height Dual-profile
Height 0.80" (20.32 mm)
Width 4.70" (119.38 mm)
Length 4.10" (104.14 mm)
Weight (Approximate) 4 oz (113.40 g)
Package Contents
  • 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Parallel Port (with Ribbon Cable)
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual
Additional Information
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 - 10.6
  • Linux
  • Environmentally Friendly Yes
    Country of Origin Taiwan
    TAA Compliant Yes
    Limited Warranty 2 Year
