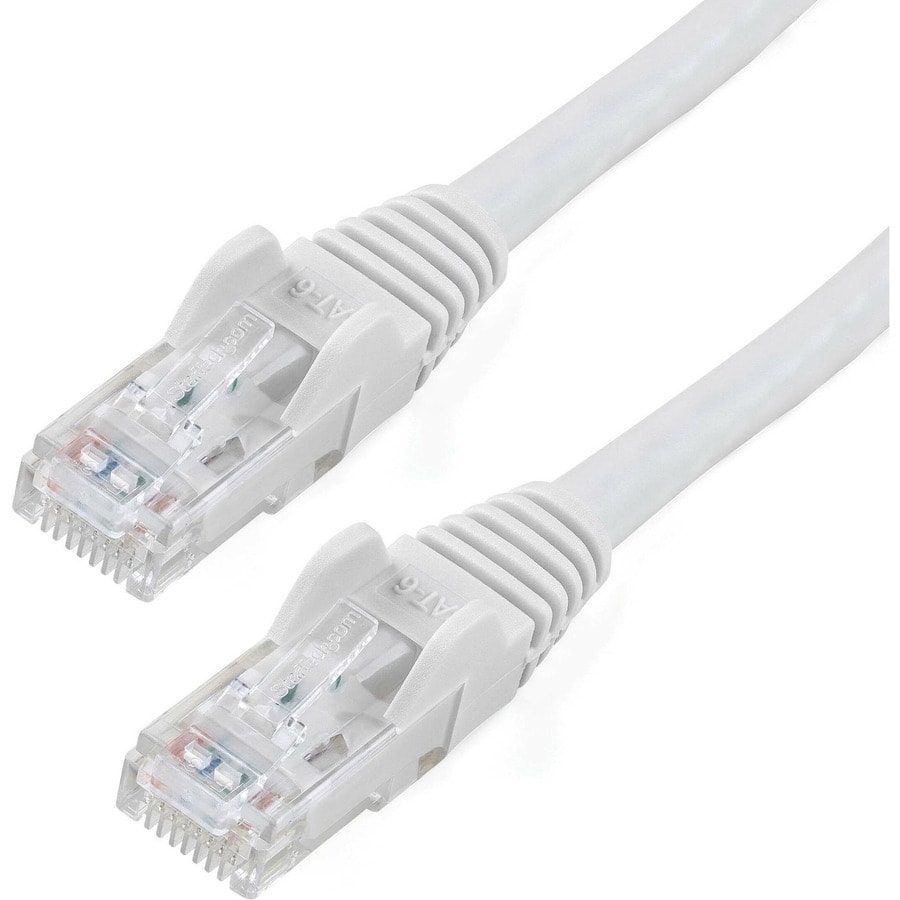

This 75-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable white PVC jacket that enables you to color code your network cable runs as needed.

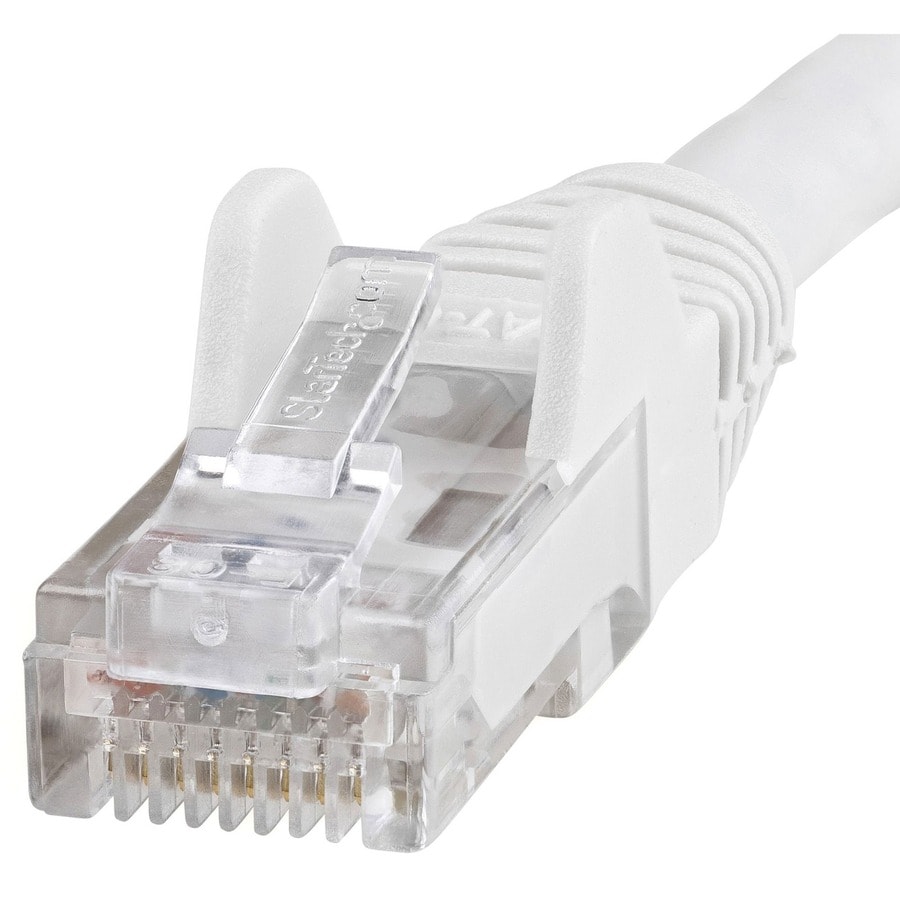

For easier cable runs, the snagless connectors protect the cable's RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.

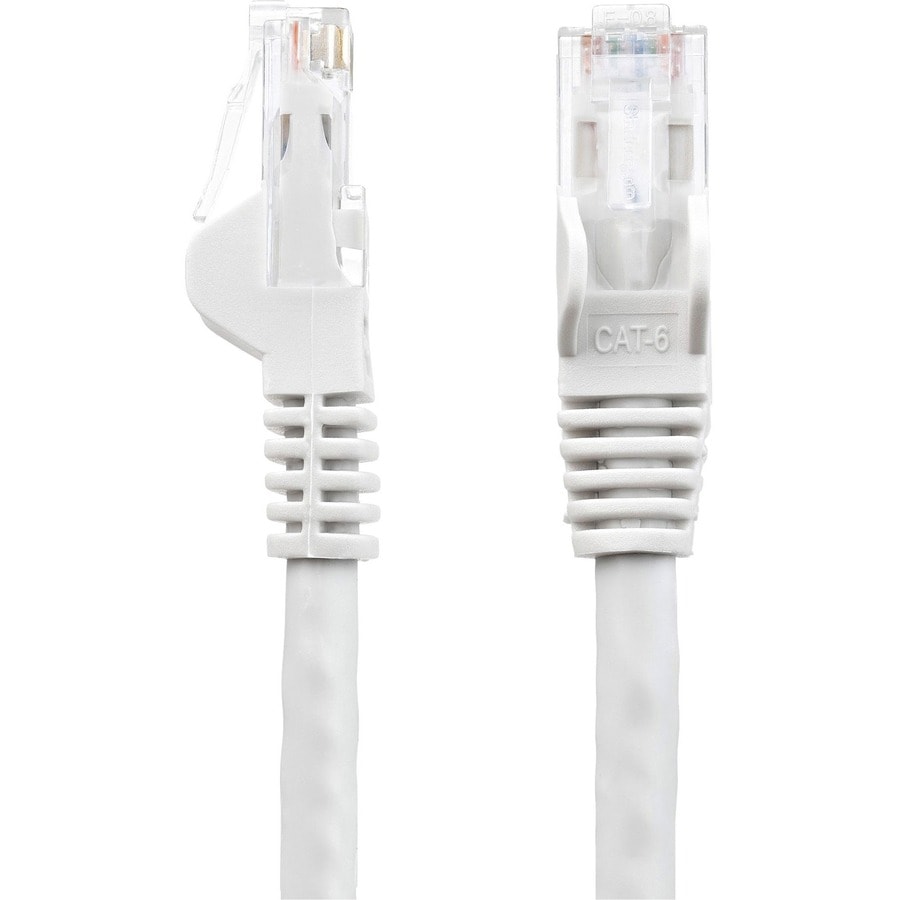

The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH75WH is backed by StarTech.com's lifetime warranty for guaranteed reliability

More from the Manufacturer

DETAILS

• Cable Type : Category 6
• Cable Characteristic : Patch Cable
• Cable Length : 75 ft (22.86 m)
• Connector Type on First End : RJ-45 Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x RJ-45 Network - Male
• Connector Type on Second End : RJ-45 Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x RJ-45 Network - Male
• Connector Plating : Gold
• Shielding : No
• Jacket Type : CMG
• Device Supported : Network Device,Workstation,IP Phone,Hub,Distribution Panel,Wall Outlet
• American Wire Gauge : 24 AWG
• Data Transfer Rate : 10 Gbit/s
• Boot Type : Snagless,Molded
• Features : Molded,Minimized Near-End Crosstalk (NEXT),Strain Relief,Stranded,Booted,Bend Resistant,Fray Resistant,Damage Resistant,Rust Resistant,Corrosion Resistant,PoE++,Heat Resistant,Flexible,Snag Resistant,Break Resistant,PoE,Stress Resistant
• Color Family : White
• Product Color : White
• Product Material : Copper
• Jacket Material : Polyvinyl Chloride (PVC)
• Weight (Approximate) : 2.06 lb (935.53 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : Lifetime

• Colored hoods for departmental color coding
• Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point
• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
• POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
• EASY INSTALLATION: 75 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
• SPECS: Length: 75ft (22.8m) | Color: White | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
