MARKETING INFORMATION

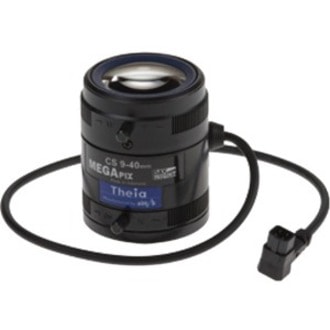

16x magnification telephoto lens for megapixel cameras

Supporting both P-Iris technology and DC-iris, Theia offers compact high resolution telephoto lenses 9-40 mm. The lenses are IR corrected in order to provide a perfect focused image both day and night. The P-Iris lens is specially made for cameras with support for P-Iris technology.

These multi megapixel resolution lenses support cameras up to 5 megapixels. The long focal length magnifies objects from far away for unobtrusive security. These lenses allow the user to digitally zoom in up to 16x. They are high quality lenses designed to allow the installer to take full advantage of the high resolution of HDTV and multi megapixel cameras. The focal length is 9 - 40 mm and the lenses fast aperture (F-number) is 1.5.

DETAILS

• Lens Type : Varifocal
• Lens Type Detail : Telephoto
• Minimum Focal Length : 9 mm (0.35")
• Maximum Focal Length : 40 mm (1.57")
• Magnification : 16x
• Optical Zoom : 4.4x
• Maximum Aperture : f/1.5
• Minimum Focus Distance : 98.43" (2500 mm)
• Lens Mount Type : CS Mount
• Height : 1.94" (49.30 mm)
• Diameter : 2.17" (55 mm)
• Application/Usage : Digital Camera
• Compatibility : Axis Network Cameras:

  • AXIS P1354/-E
  • AXIS P1355/-E
  • AXIS P1357/-E
  • AXIS Q1602/-E
  • AXIS Q1604/-E
  • AXIS Q1614/-E
• Model Compatibility : AXIS P1354/-E,AXIS P1355/-E,AXIS P1357/-E,AXIS Q1602/-E,AXIS Q1604/-E,AXIS Q1614/-E

• A high-performance lens for professional photographers
• Designed to be used with digital camera
