StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 RS232 Controller Card, 16C1050 UART, 15kV ESD, Windows Only, TAA - 8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD - Bi-directional speed 921.6Kbps/port; 256byte FIFO - Expansion controller card; Pin 9 power 5v

PEX8S1050
Also known as IM635WWV,SY6647902

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express 1.0a x1
  • Maximum Data Transfer Rate : 921.40 kbit/s
  • Number of Serial Ports : 1
  • Ports Expandability : 8 x DB-9 RS-232 - Serie, vía cable
  • Form Factor : Plug-in Card
  • Height : 4.70" (119.38 mm)
  • Width : 0.60" (15.24 mm)
  • Weight (Approximate) : 2.60 oz (73.71 g)
  • Package Contents :
    • PCIe Serial Card
    • 1 x DB62 to 8 Port DB9
    • Breakout Cable
    • 1 x Quick Start Guide
    • 8 x Optional DB9 Connector Hex Nut Pairs
  • Country of Origin : Taiwan
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime

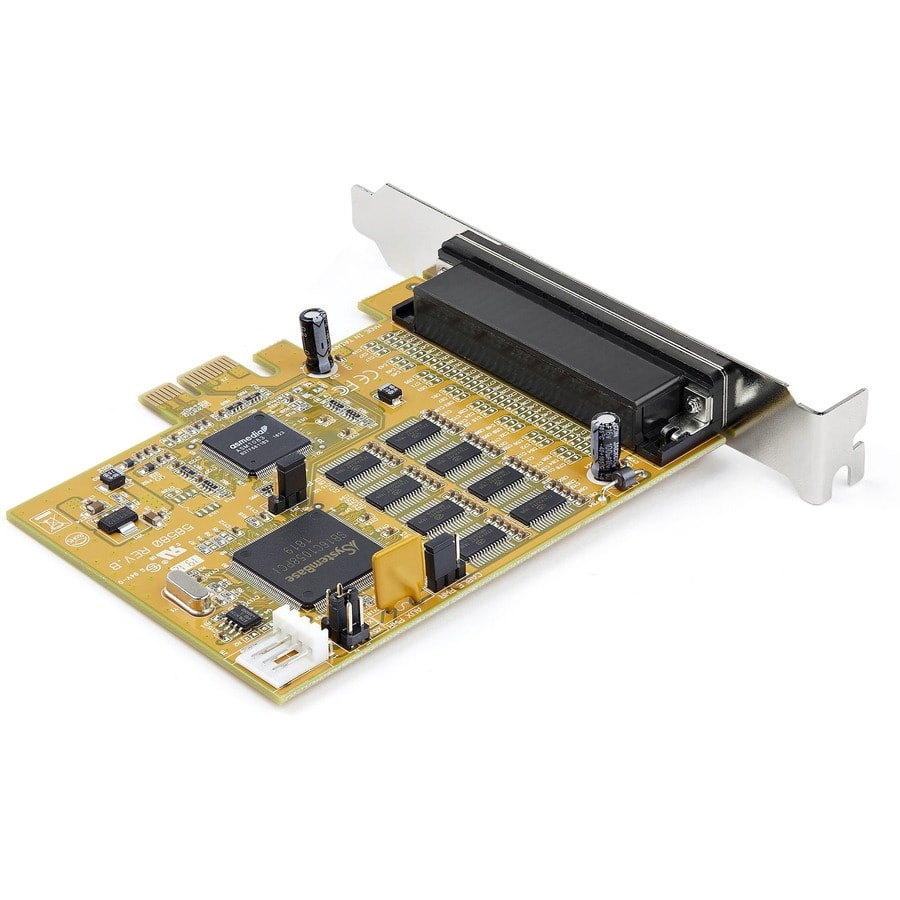

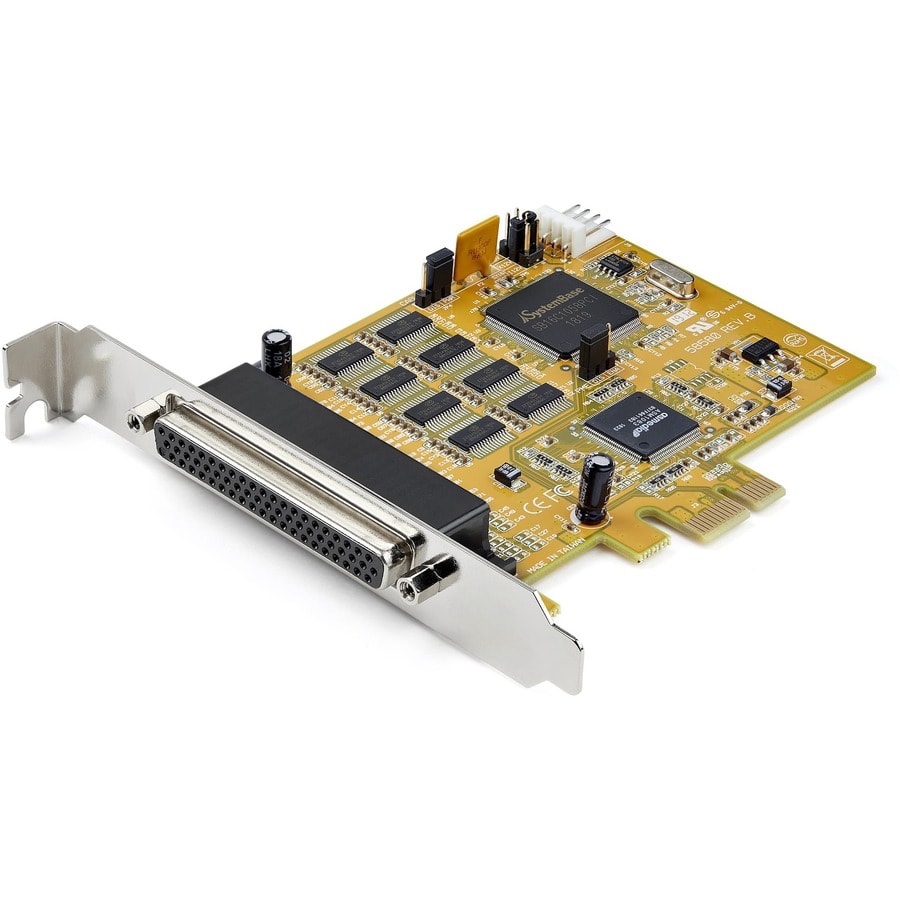

  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952

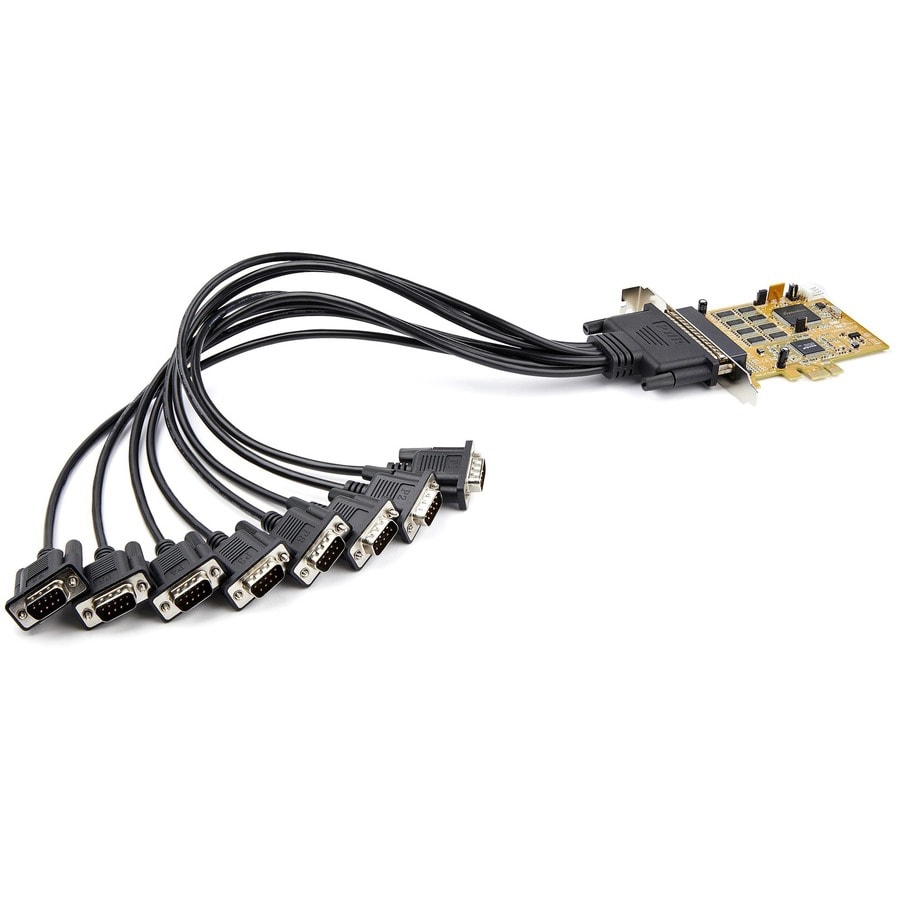

  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
  • WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers
  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

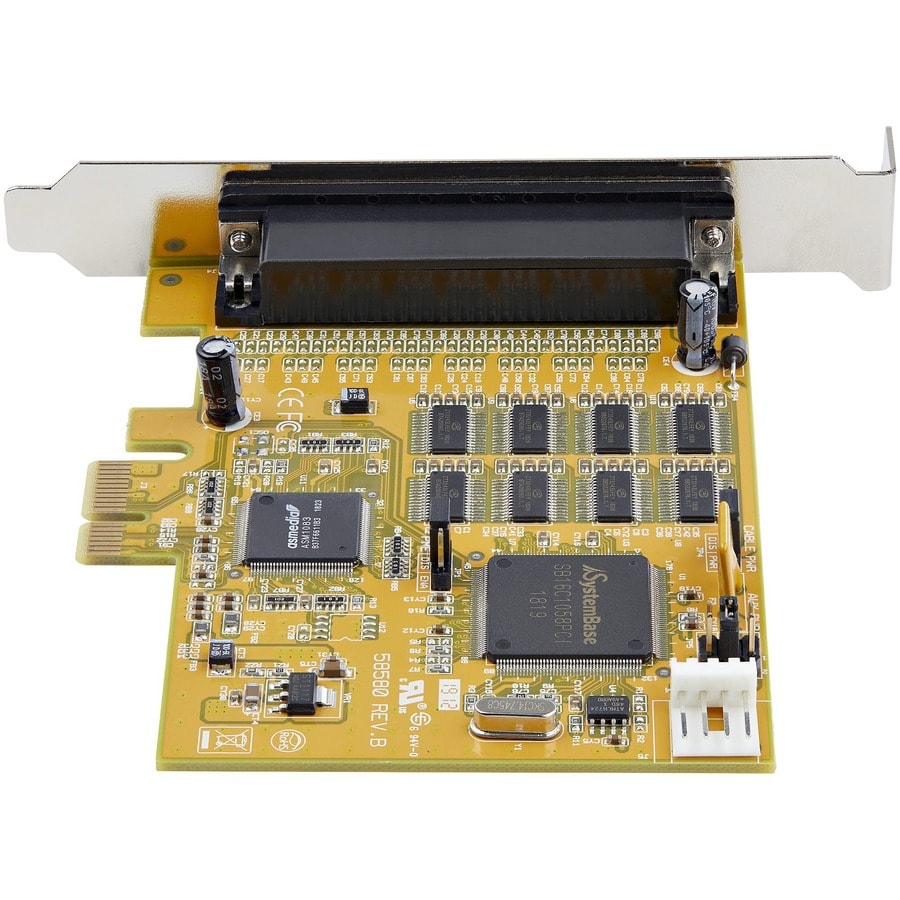

  • TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity Modes; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX8S1050
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name PCIe Serial Card
Packaged Quantity 1 Each
Product Type Multiport Serial Adapter
Host Interface PCI Express 1.0a x1
Maximum Data Transfer Rate 921.40 kbit/s
UART Type 16C1050
Platform Supported Linux
Platform Supported PC
Number of Serial Ports 1
Ports Expandability 8 x DB-9 RS-232 - Serie, vía cable
Color Family Yellow
Product Color Yellow
Form Factor Plug-in Card
Height 4.70" (119.38 mm)
Width 0.60" (15.24 mm)
Weight (Approximate) 2.60 oz (73.71 g)
Package Contents
  • PCIe Serial Card
  • 1 x DB62 to 8 Port DB9
  • Breakout Cable
  • 1 x Quick Start Guide
  • 8 x Optional DB9 Connector Hex Nut Pairs
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty Lifetime
