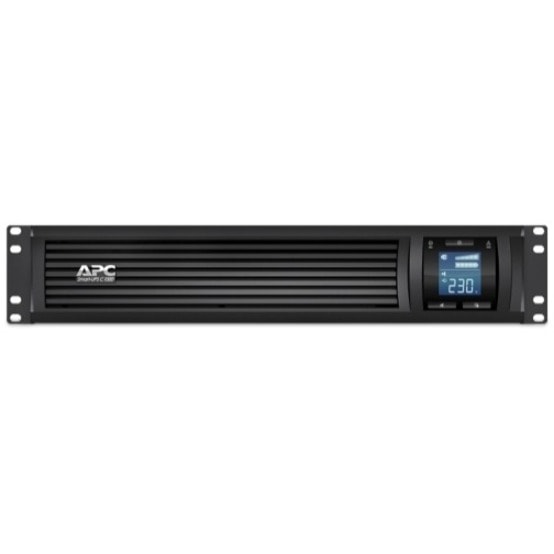

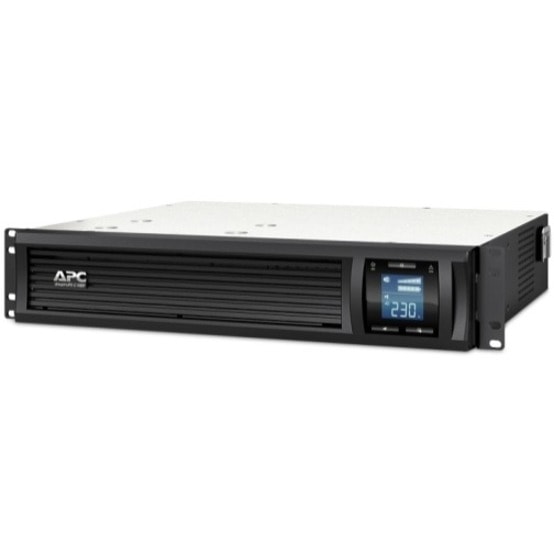

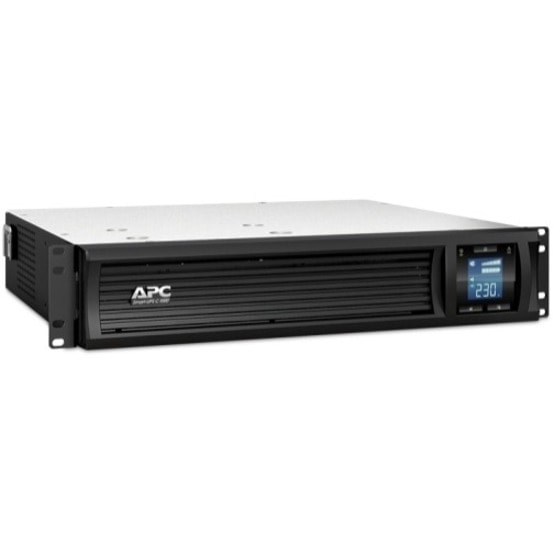

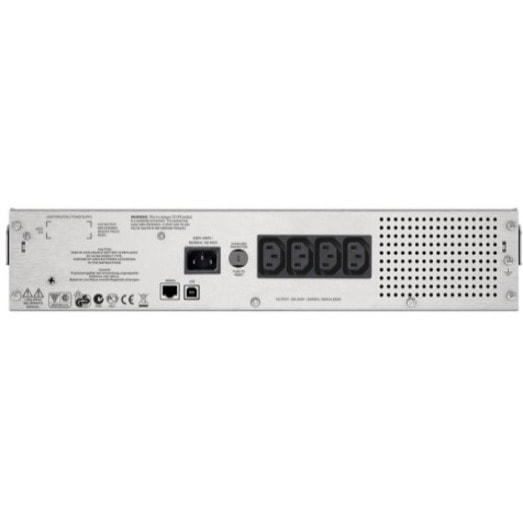

APC by Schneider Electric Smart-UPS C 1000VA 2U Rack Mountable LCD 230V - 2U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 230 V AC Output - Sine Wave - Serial Port - USB - 6 x Battery/Surge Outlet
SMC1000I-2U
Also known as IM61332U
MARKETING INFORMATION
Over 20 million units sold - the UPS you can trust
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
DETAILS
- Number of Battery & Surge Outlets : 6
- Load Capacity (VA) : 1 kVA
- Load Capacity (Watt) : 600 W
- Output Voltage : 230 V AC
- Waveform Type : Sine Wave
- Circuit Breaker : Yes
- Alarm : On Battery,Low Battery,Configurable Delay,Battery Failure
- Status Indicators :
- LCD Status Moniter
- LED Indicator
- Serial Port : Yes
- USB : Yes
- Number of Batteries : 1
- Battery Characteristics : Spill-proof, Maintenance-free
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 6 Minute
- Backup/Run Time (Half Load) : 11 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Maximum Operating Temperature : 113°F (45°C)
- Sound Emission (A-Weighted) : 42 dB(A)
- Thermal Dissipation : 46 BTU/h
- Product Color : Black
- Height : 3.50" (89 mm)
- Width : 17.01" (432 mm)
- Depth : 15.98" (406 mm)
- Rack Height : 2U
- Form Factor : Rack-mountable
- Weight (Approximate) : 45.24 lb (20520 g)
- Package Contents :
- Smart-UPS C 1000VA 2U Rack Mountable LCD 230V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- USB cable
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Works adequately in situations where the supply is prone to sags and surges
- 600 W load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 6 minute at full load
- 1 kVA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMC1000I-2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SMC |
| Product Name | Smart-UPS C 1000VA 2U Rack Mountable LCD 230V |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Number of Battery & Surge Outlets | 6 |
| Protection Type | Surge |
| Protection Type | Lightning |
| Protection Type | Spike |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Circuit Breaker | Yes |
| Alarm | Configurable Delay |
| Alarm | Battery Failure |
| Alarm | Low Battery |
| Alarm | On Battery |
| Status Indicators |
|
| Serial Port | Yes |
| USB | Yes |
| Number of Batteries | 1 |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 42 dB(A) |
| Thermal Dissipation | 46 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 15.98" (406 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 45.24 lb (20520 g) |
| Package Contents | |
| Environmentally Friendly | Yes |
| Limited Warranty | 2 Year |
