MARKETING INFORMATION

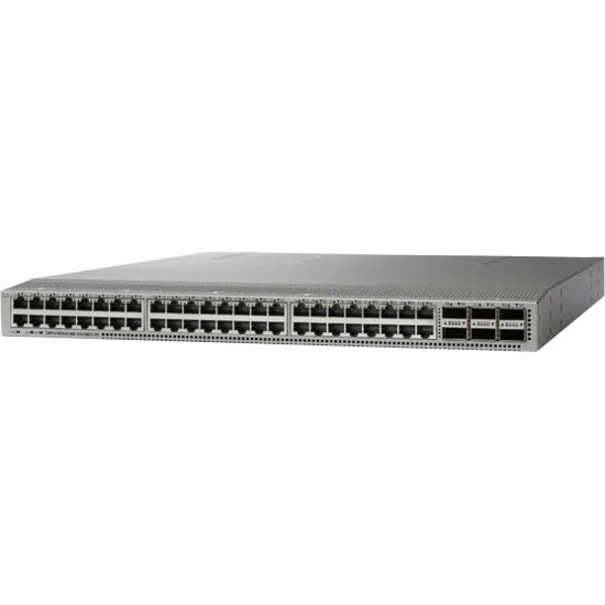

Based on Cisco Cloud Scale technology, the Cisco Nexus^® 9300-EX and 9300-FX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.

Cisco Nexus 9300-EX and 9300-FX platform switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

The platform hardware is capable of collecting comprehensive Cisco Tetration Analytics^™ telemetry information at line rate across all the ports without adding any latency to the packets or negatively affecting switch performance. This telemetry information is exported every 100 milliseconds by default directly from the switch's Application-Specific Integrated Circuit (ASIC). This information consists of three types of data:

? Flow information: This information contains information about endpoints, protocols, ports, when the flow started, how long the flow was active, etc.

? Interpacket variation: This information captures any interpacket variations within the flow. Examples include variation in Time To Live (TTL), IP and TCP flags, payload length, etc.

? Context details: Context information is derived outside the packet header, including variation in buffer utilization, packet drops within a flow, association with tunnel endpoints, etc.

The Cisco Tetration Analytics platform consumes this telemetry data, and by using unsupervised machine learning and behavior analysis it can provide outstanding pervasive visibility across everything in your data center in real time. By using algorithmic approaches, the Cisco Tetration Analytics platform provides a deep application insights and interactions, enabling dramatically simplified operations, a zero-trust model, and migration of applications to any programmable infrastructure.

DETAILS

• Total Number of Network Ports : 48
• Uplink Port : Yes
• Modular : Yes
• Stack Port : No
• Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Network,6 x 100 Gigabit Ethernet Expansion Slot
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : 10 Gigabit Ethernet,100 Gigabit Ethernet
• Network Technology : 10GBase-T,100GBase-X
• Total Number of Expansion Slots : 6.0
• Expansion Slot Type : QSFP28
• Shared SFP Slot : No
• Layer Supported : 3
• Manageable : Yes
• Power Source : Power Supply
• Redundant Power Supply Supported : Yes
• Power Consumption : 460 W
• Compatible Rack Unit : 1U
• Form Factor : Rack-mountable
• Height : 1.72" (43.69 mm)
• Width : 17.30" (439.42 mm)
• Depth : 22.50" (571.50 mm)
• Weight (Approximate) : 17.40 lb (7892.51 g)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 1 Year

• Cascade to other network devices through the uplink port to expand your local area network
• Quickly and easily set up a wired network with 48 networking ports
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Can work as layer 3 routing for scalable network design
• Rack mounting enables you to organize wires & secure cables for professional installation
• 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
