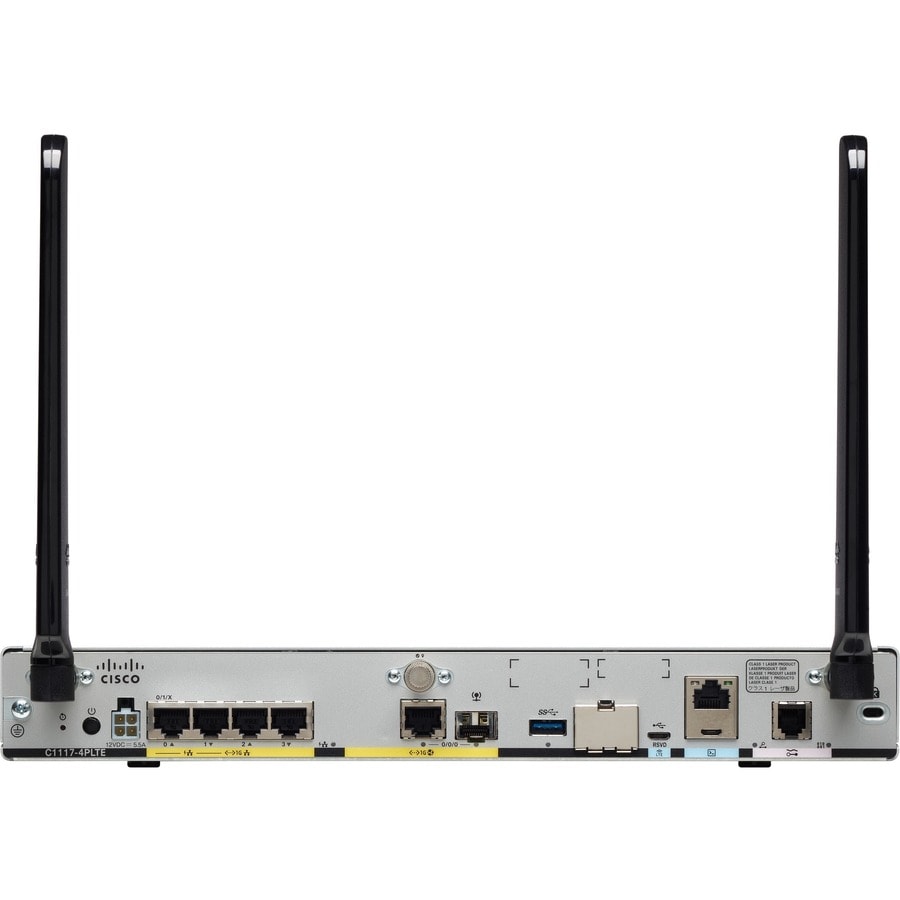

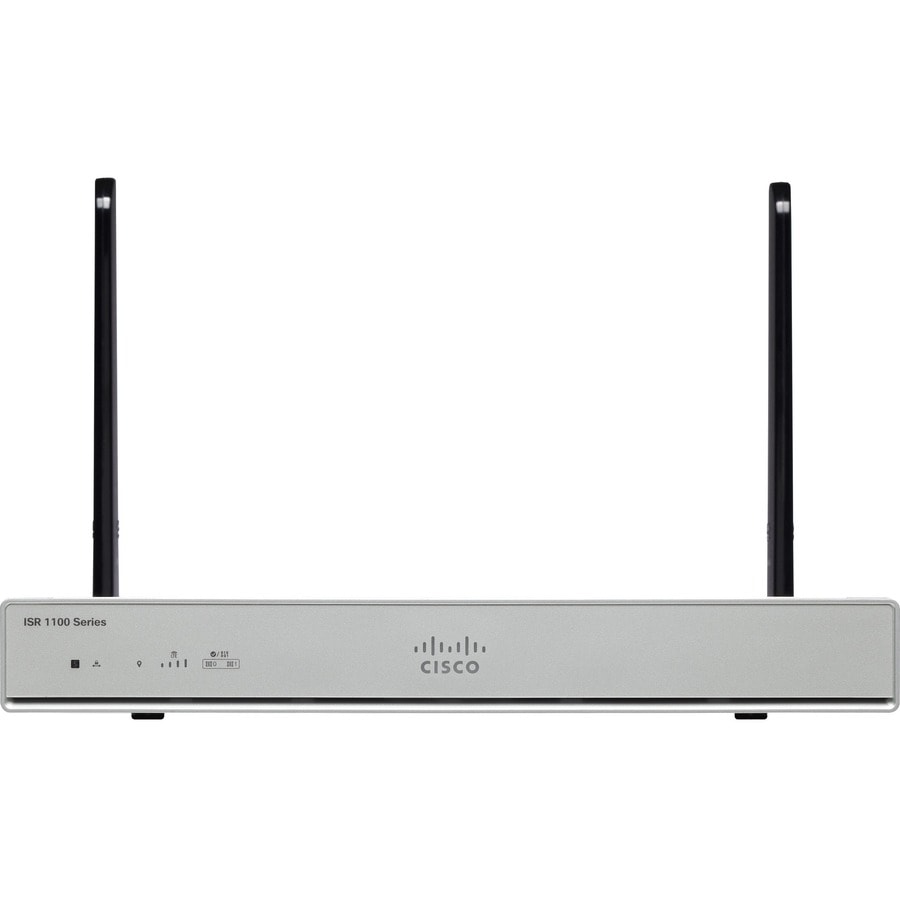

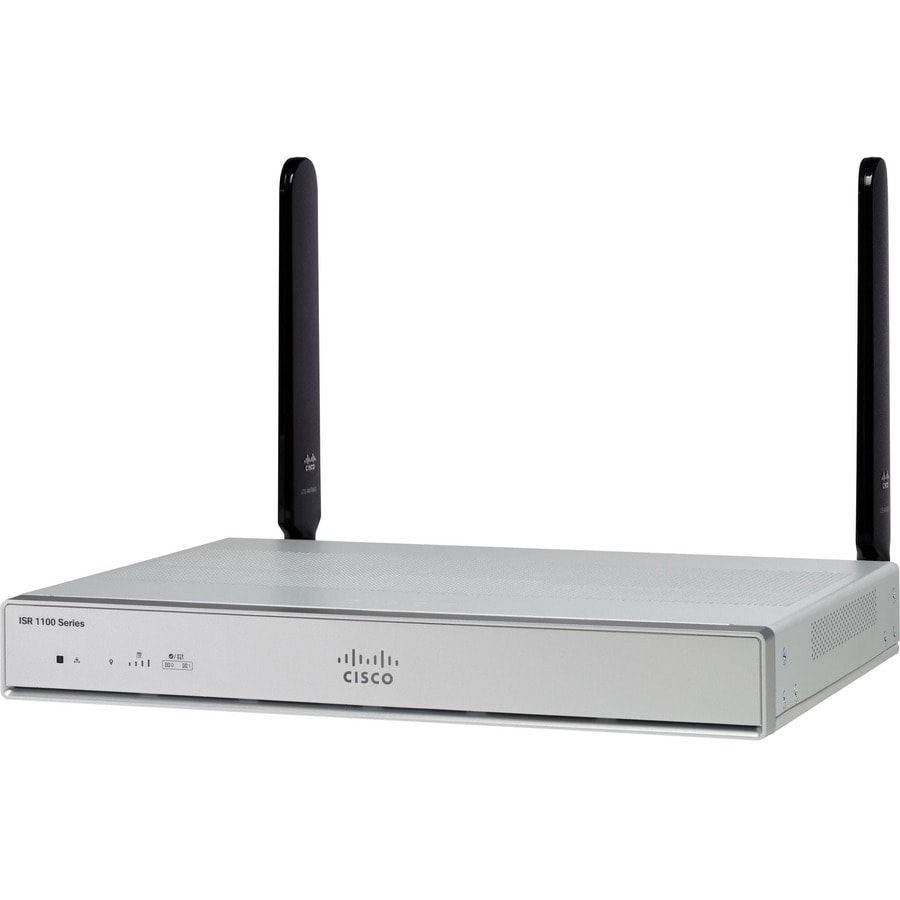

Cisco C1111-4PLTEEA Cellular Wireless Integrated Services Router - 4G - LTE 700, LTE 850, LTE 900, LTE 1500, LTE 1800, LTE 2100, LTE 2600, LTE 1900, LTE 2500, LTE 2300 - UMTS, HSPA+, LTE, DC-HSPA+ - 2 x Antenna(2 x External) - 108.34 MB/s Wireless Speed - 6 x Network Port - USB - PoE Ports - Gigabit
C1111-4PLTEEA
Also known as IM5434JD
MARKETING INFORMATION
Cisco 1100 Series Integrated Services Routers
Cisco® 1100 Series Integrated Services Router (ISRs) with Cisco IOS® XE Software combines WAN, comprehensive security, wired and wireless access in a single, high-performance platform.
The Cisco 1100 Series ISR is well suited for deployment in Small and Medium enterprise branch offices.
DETAILS
- Broadband Transmission Technology : Cellular
- ISM Band : No
- UNII Band : No
- Cellular Generation : 4G
- Cellular Network Supported : LTE 700,LTE 850,LTE 900,LTE 1500,LTE 1800,LTE 2100,LTE 2600,LTE 1900,LTE 2500,LTE 2300
- Cellular Data Connectivity Technology : UMTS,HSPA+,LTE,DC-HSPA+
- Total Number of Antennas : 2
- Number of External Antennas : 2
- Total Wireless Transmission Speed : 108.34 MB/s
- Number of Network (RJ-45) Ports : 6
- USB : Yes
- PoE (RJ-45) Port : Yes
- Ethernet Technology : Gigabit Ethernet
- VPN Supported : Yes
- Form Factor : Rack-mountable,Desktop
- Height : 1.75" (44.45 mm)
- Width : 12.70" (322.58 mm)
- Depth : 9.60" (243.84 mm)
- Weight (Approximate) : 5.70 lb (2585.48 g)
- Country of Origin : China
- Cost-effective, rapidly deployable, and secure backup solution is how you can describe the Integrated Services Router with wireless 3G
- Gigabit Ethernet port for ultra-fast wired network speeds
- Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
- Access USB-compatible peripherals accross the wireless network via built-in USB port
SPECIFICATIONS
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C1111-4PLTEEA |
Manufacturer Website Address | http://www.cisco.com |
Brand Name | Cisco |
Product Series | 1100 |
Product Model | C1111-4PLTEEA |
Product Name | C1111-4PLTEEA Wireless Integrated Services Router |
Product Type | Wireless Integrated Services Router |
Broadband Transmission Technology | Cellular |
ISM Band | No |
UNII Band | No |
Cellular Generation | 4G |
Cellular Network Supported | LTE 2300 |
Cellular Network Supported | LTE 2500 |
Cellular Network Supported | LTE 1900 |
Cellular Network Supported | LTE 2600 |
Cellular Network Supported | LTE 2100 |
Cellular Network Supported | LTE 1800 |
Cellular Network Supported | LTE 1500 |
Cellular Network Supported | LTE 900 |
Cellular Network Supported | LTE 850 |
Cellular Network Supported | LTE 700 |
Cellular Data Connectivity Technology | HSPA+ |
Cellular Data Connectivity Technology | UMTS |
Cellular Data Connectivity Technology | DC-HSPA+ |
Cellular Data Connectivity Technology | LTE |
Total Number of Antennas | 2 |
Number of External Antennas | 2 |
Total Wireless Transmission Speed | 108.34 MB/s |
Number of Network (RJ-45) Ports | 6 |
USB | Yes |
PoE (RJ-45) Port | Yes |
Ethernet Technology | Gigabit Ethernet |
VPN Supported | Yes |
Form Factor | Rack-mountable |
Form Factor | Desktop |
Height | 1.75" (44.45 mm) |
Width | 12.70" (322.58 mm) |
Depth | 9.60" (243.84 mm) |
Weight (Approximate) | 5.70 lb (2585.48 g) |
Country of Origin | China |
