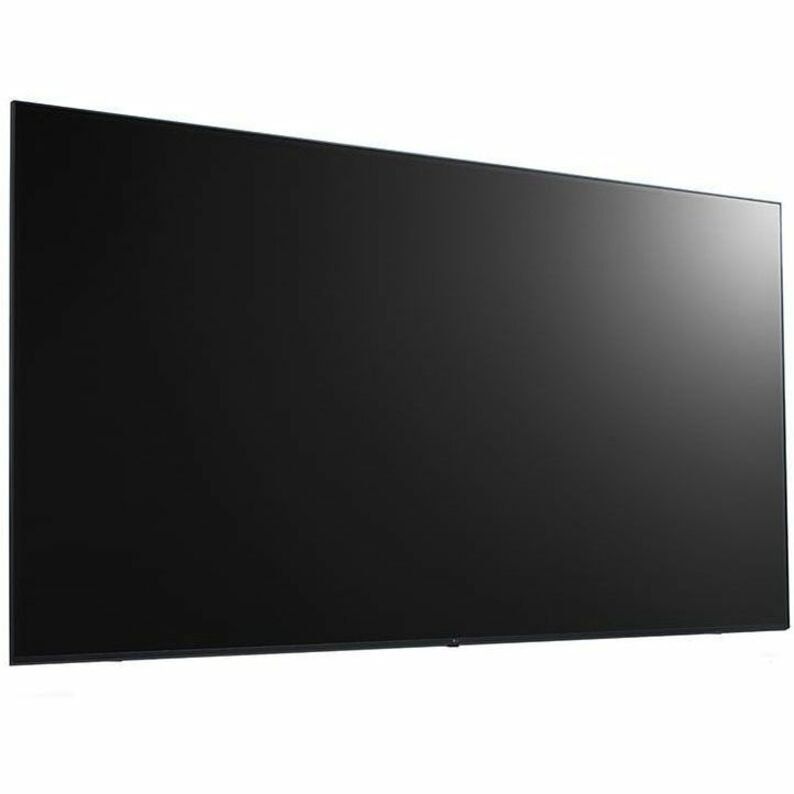

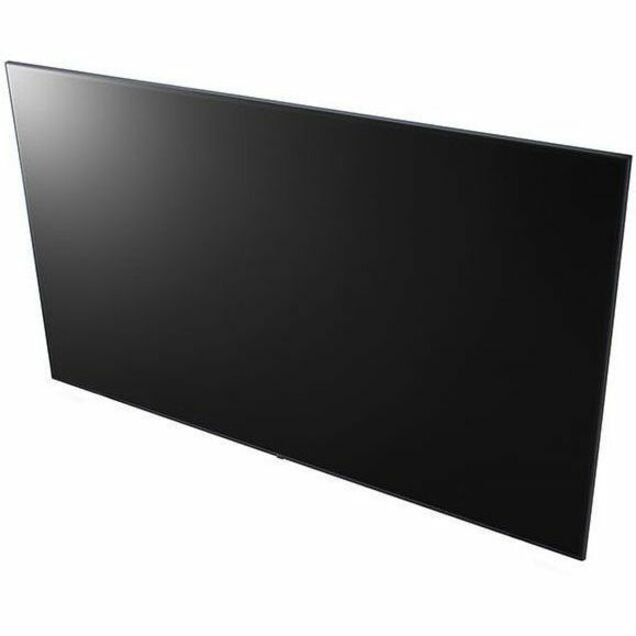

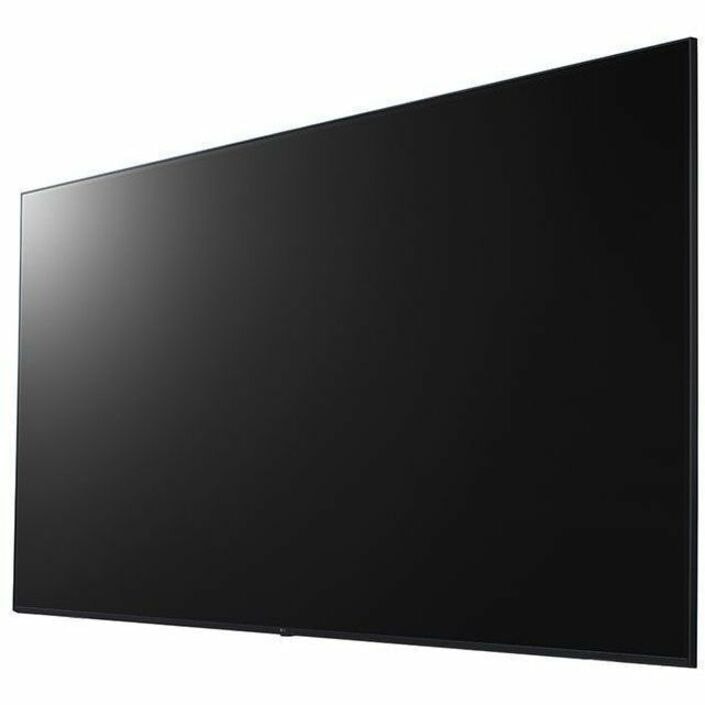

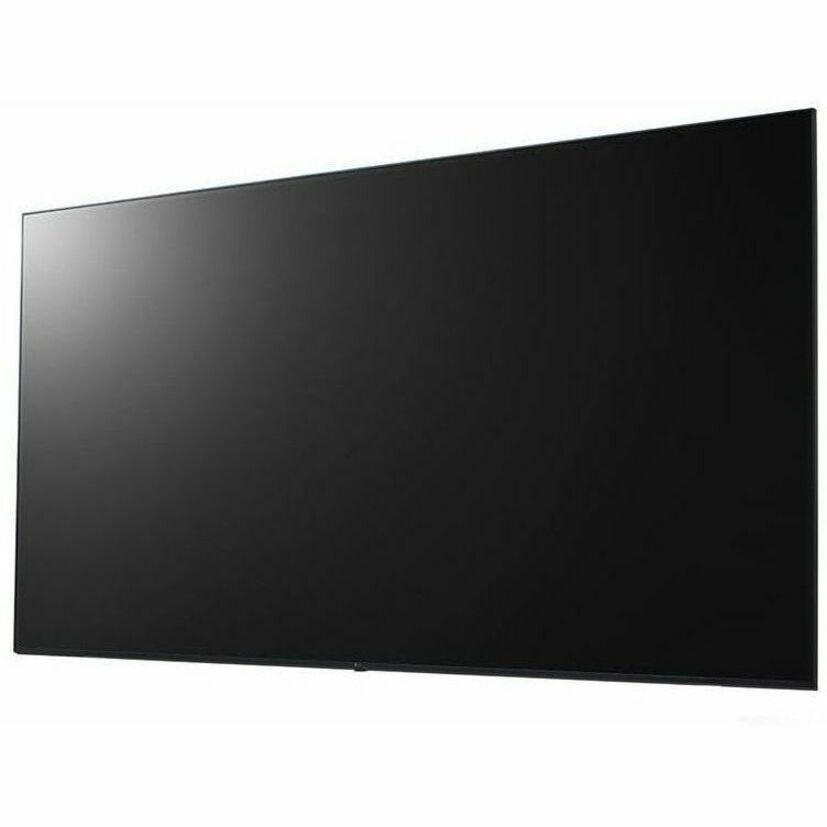

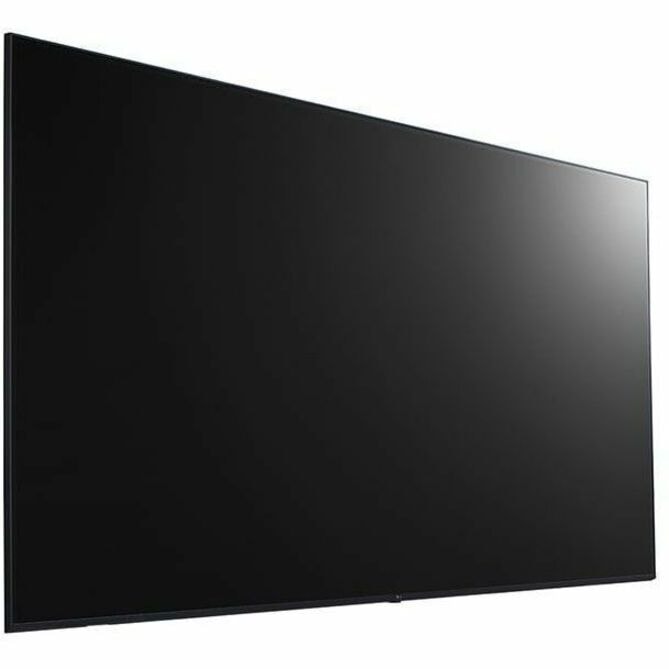

LG 86UL3J-B WebOS UHD Signage - 86" (2184.40 mm) LCD - In-plane Switching (IPS) Technology - 16 Hours/ 7 Days Operation - 8 GB - 3840 x 2160 - 16:9 - 8 ms - Direct LED - 330 cd/m² - 2160p - Speakers - HDMI - USB - Serial - Wireless LAN - Ethernet - webOS 6.0 - Ashed Blue

86UL3J-B
Also known as IM534A6L,DH86UL3JBCA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

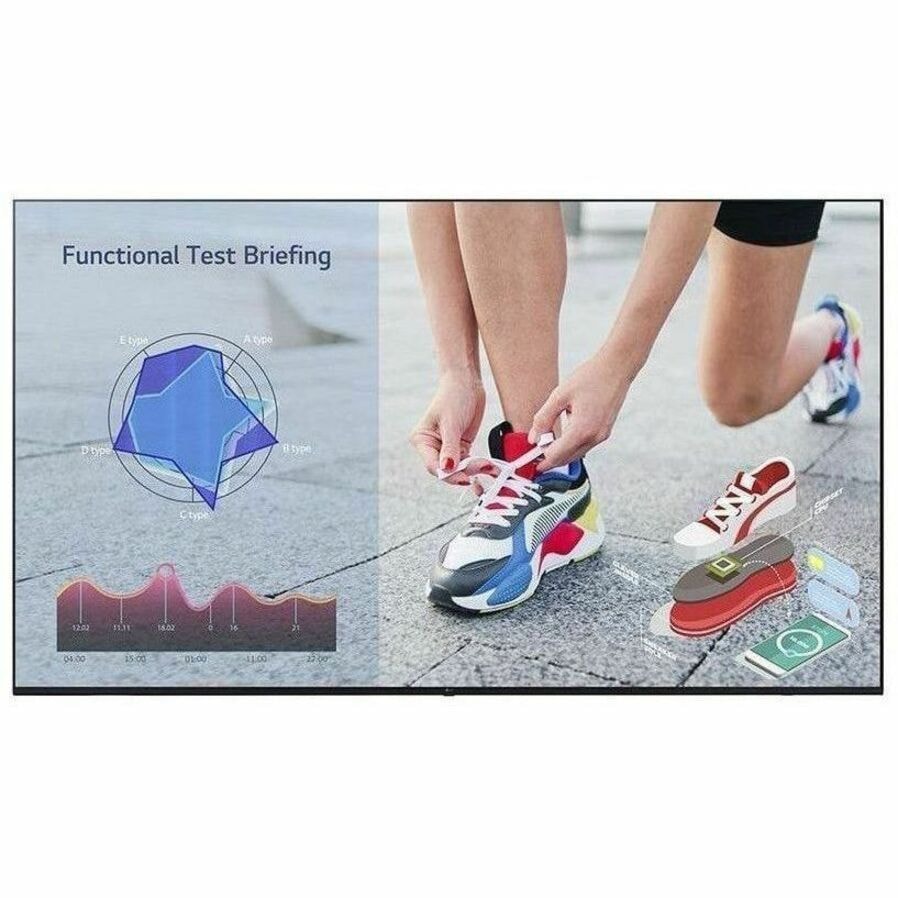

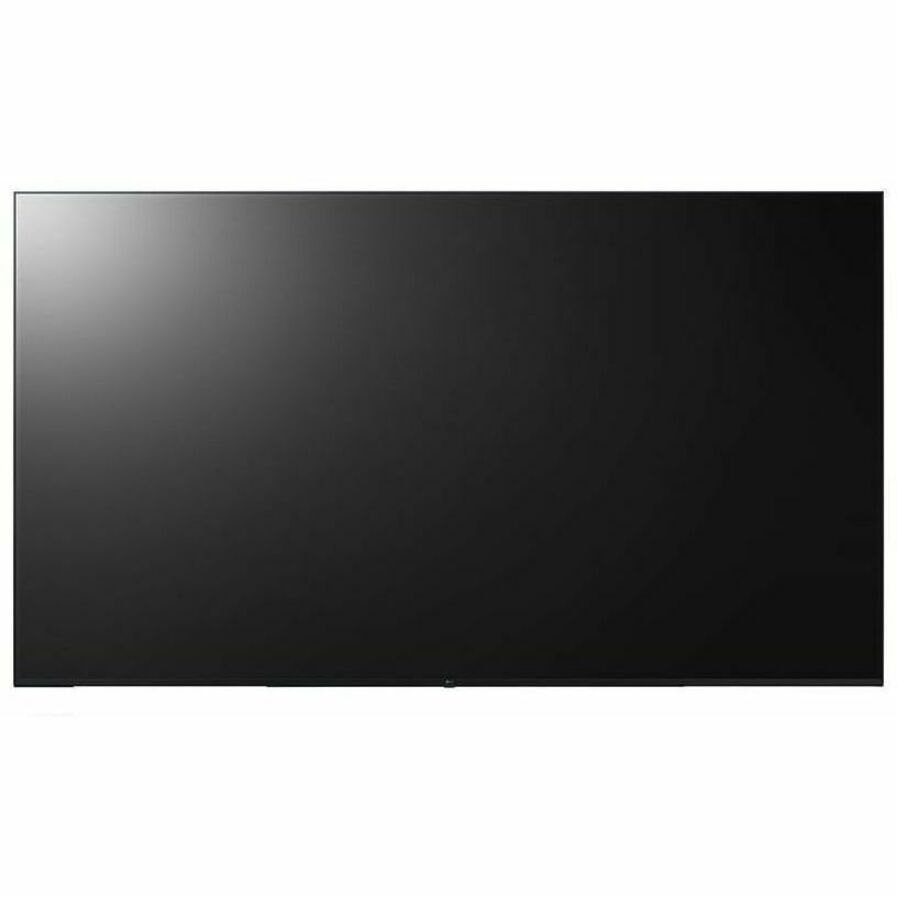

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

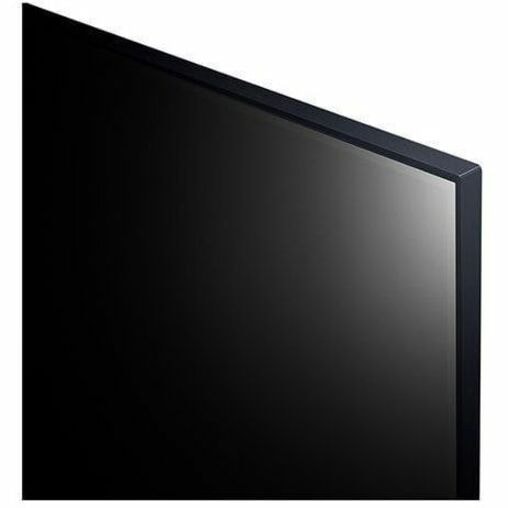

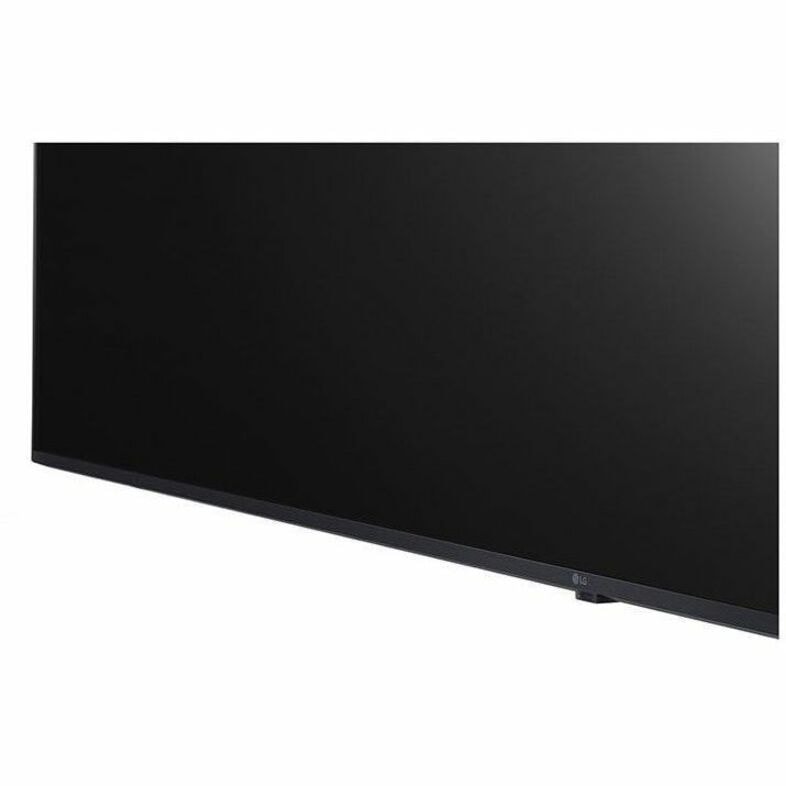

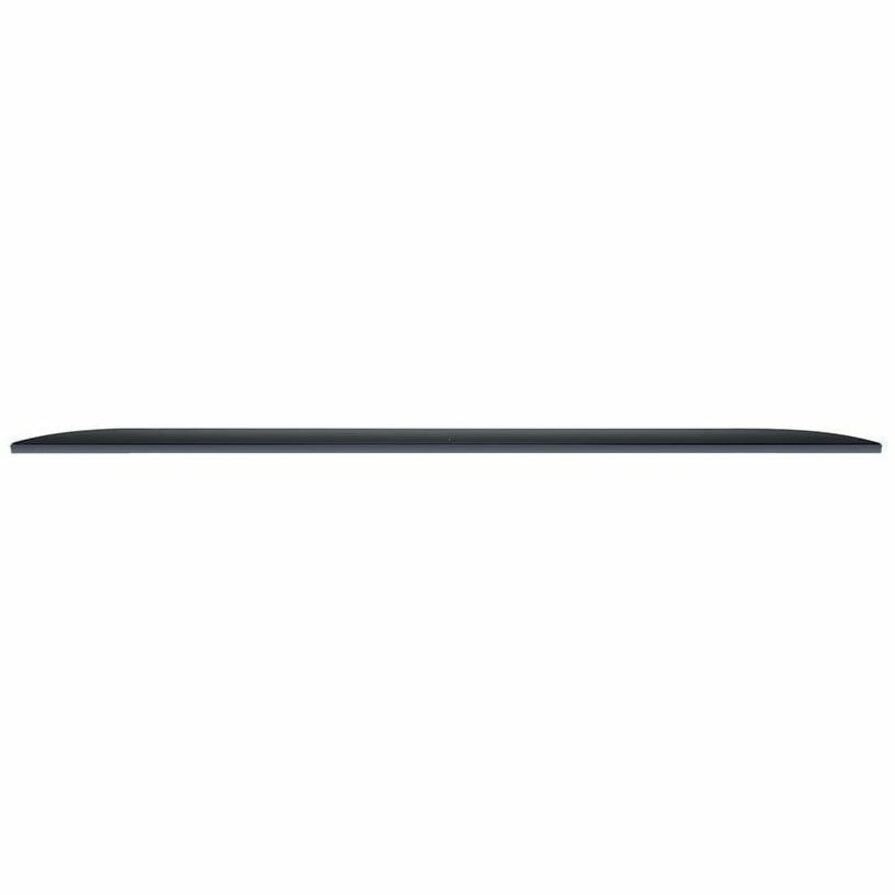

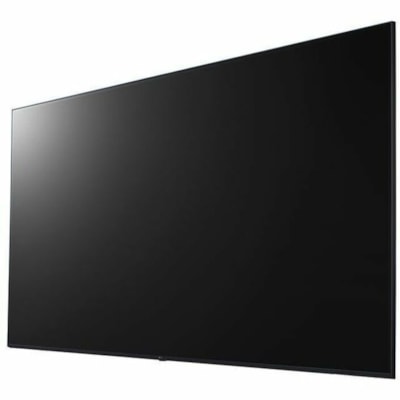

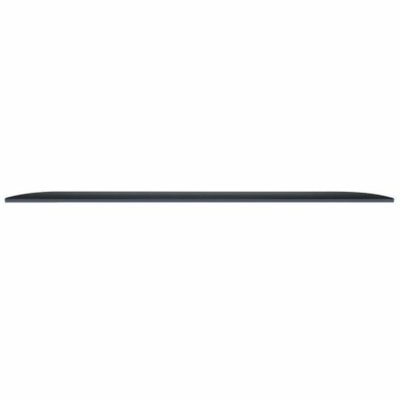

Sophisticated Slim Design

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

LG's Simple Advertisement Helper, Promota

Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

LG's Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems

The UL3J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Compatible with Video Conference System

For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control for a smarter video conference.

Easy Menu Setup for Vertical Needs

UL3J series increases users' convenience by organizing frequently used menus by industry.

Easy Content Distribution & SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

DETAILS

  • Bezel Width (Top) : 0.27" (6.90 mm)
  • Bezel Width (Bottom) : 0.72" (18.40 mm)
  • Bezel Width (Left) : 0.27" (6.90 mm)
  • Bezel Width (Right) : 0.27" (6.90 mm)
  • Panel Technology : In-plane Switching (IPS) Technology
  • Operation Hours : 16 Hours/ 7 Days
  • On Screen Display (OSD) Languages : English,Arabic,Simplified Chinese,Czech,Danish,Dutch,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Russian,Spanish,Swedish,Turkish
  • Standard Memory : 8 GB
  • Viewable Screen Size : 86" (2184.40 mm)
  • Display Screen Type : LCD
  • Response Time : 8 ms
  • Display Resolution : 3840 x 2160
  • Backlight Technology : Direct LED
  • Aspect Ratio : 16:9
  • Maximum LED Life : 3.4 Year
  • Speakers : Yes
  • Scan Format : 2160p
  • Dynamic Contrast Ratio : 1,000,000:1
  • Brightness : 330 cd/m²
  • Color Gamut : 80% DCI
  • Ethernet : Yes
  • Wireless LAN : Yes
  • USB : Yes
  • HDMI : Yes
  • Audio Line Out : Yes
  • Serial : Yes
  • Number of USB 2.0 Ports : 2
  • Number of HDMI Inputs : 3
  • Operating System : webOS 6.0
  • Color Family : Blue
  • Product Color : Ashed Blue
  • Bezel Color : Navy Blue
  • VESA Mount Compatible : Yes
  • VESA Mount Standard : 600 x 400
  • Height : 43.46" (1104 mm)
  • Width : 75.87" (1927 mm)
  • Depth : 2.36" (59.90 mm)
  • Weight (Approximate) : 99.60 lb (45177.80 g)
  • Minimum Operating Temperature : 32°F (0°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Minimum Operating Humidity : 10%
  • Maximum Operating Humidity : 80%
  • Package Contents :
  • 86UL3J-B WebOS UHD Signage
  • Remote Control (w/ 2 batteries)
  • Power Cord
  • Regulation Book
  • Phone to D-Sub9 Adapter
  • Cable Holder
  • Limited Warranty : 3 Year
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Engages your customers and makes their viewing experience breathtaking with its 2160p content
  • Direct LED backlight technology for a consistent picture quality from corner to corner

SPECIFICATIONS

Manufacturer LG Electronics
Manufacturer Part Number 86UL3J-B
Manufacturer Website Address http://www.lg.com
Brand Name LG
Product Series UL3J
Product Model 86UL3J-B
Product Name 86UL3J-B WebOS UHD Signage
Product Type Digital Signage Display
Features Auto Set ID
Features FailOver
Features Temperature Sensor
Features Wake on LAN (WOL)
On Screen Display (OSD) Languages English
On Screen Display (OSD) Languages Arabic
On Screen Display (OSD) Languages Simplified Chinese
On Screen Display (OSD) Languages Czech
On Screen Display (OSD) Languages Danish
On Screen Display (OSD) Languages Dutch
On Screen Display (OSD) Languages Finnish
On Screen Display (OSD) Languages French
On Screen Display (OSD) Languages German
On Screen Display (OSD) Languages Greek
On Screen Display (OSD) Languages Italian
On Screen Display (OSD) Languages Japanese
On Screen Display (OSD) Languages Korean
On Screen Display (OSD) Languages Norwegian
On Screen Display (OSD) Languages Brazilian Portuguese
On Screen Display (OSD) Languages Russian
On Screen Display (OSD) Languages Spanish
On Screen Display (OSD) Languages Swedish
On Screen Display (OSD) Languages Turkish
Bezel Width (Bottom) 0.72" (18.40 mm)
Bezel Width (Top) 0.27" (6.90 mm)
Bezel Width (Left) 0.27" (6.90 mm)
Bezel Width (Right) 0.27" (6.90 mm)
Panel Technology In-plane Switching (IPS) Technology
Operation Hours 16 Hours/ 7 Days
Standard Memory 8 GB
Viewable Screen Size 86" (2184.40 mm)
Display Screen Type LCD
Display Resolution 3840 x 2160
Response Time 8 ms
Aspect Ratio 16:9
Backlight Technology Direct LED
Maximum LED Life 3.4 Year
Speakers Yes
Scan Format 2160p
Standard Refresh Rate 60 Hz
Dynamic Contrast Ratio 1,000,000:1
Color Depth 8-bit
Brightness 330 cd/m²
Color Gamut 80% DCI
Ethernet Yes
Wireless LAN Yes
USB Yes
HDMI Yes
Network (RJ-45) Yes
Audio Line Out Yes
Serial Yes
Number of USB 2.0 Ports 2
Number of HDMI Inputs 3
Operating System webOS 6.0
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 80%
Color Family Blue
Product Color Ashed Blue
Bezel Color Navy Blue
VESA Mount Compatible Yes
VESA Mount Standard 600 x 400
Height 43.46" (1104 mm)
Width 75.87" (1927 mm)
Depth 2.36" (59.90 mm)
Weight (Approximate) 99.60 lb (45177.80 g)
Package Contents
  • 86UL3J-B WebOS UHD Signage
  • Remote Control (w/ 2 batteries)
  • Power Cord
  • Regulation Book
  • Phone to D-Sub9 Adapter
  • Cable Holder
  • Limited Warranty 3 Year
