StarTech.com Cisco GLC-LH-SM Compatible SFP Module - 1000BASE-LX/LH - 1GE Gigabit Ethernet SFP Transceiver - 10km - Cisco GLC-LH-SM Compatible SFP - 1000BASE-LX/LH 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 1310nm - Single Mode (SMF)/Multi Mode (MMF) Transceiver - 10km (6.2mi) - LC Connector -

SFPGLCLHSMST
Also known as IM52356T,SY4970743

New! Log in or create an account to see price and availability


MARKETING INFORMATION

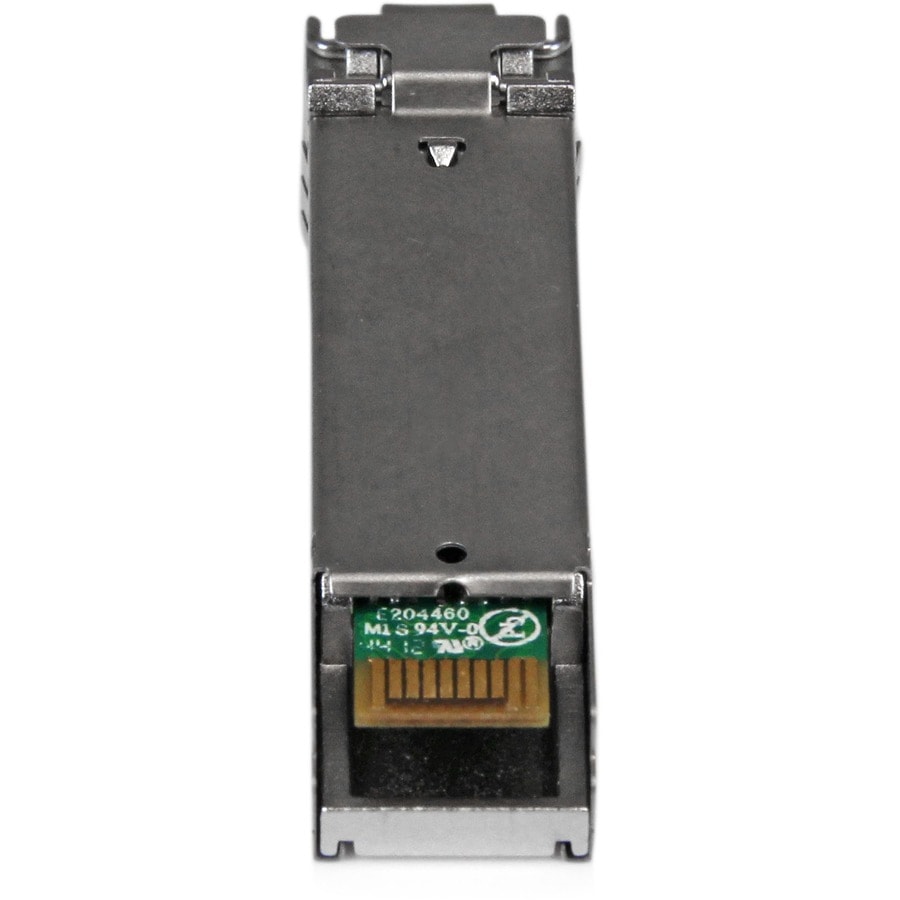

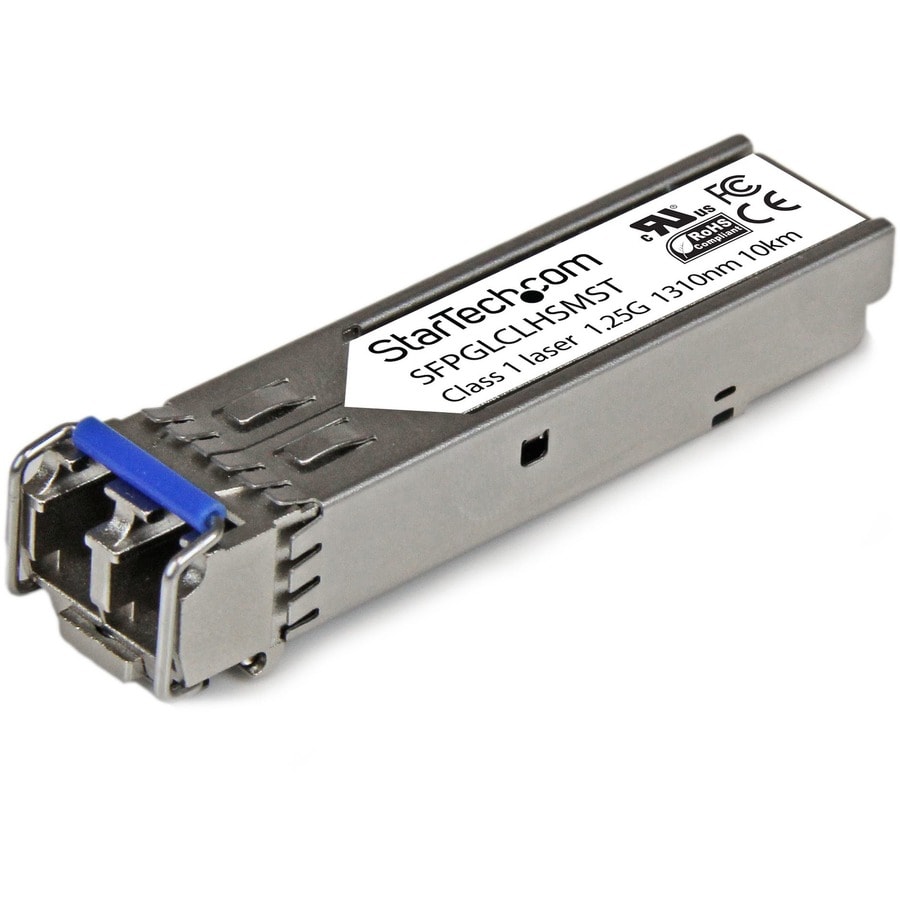

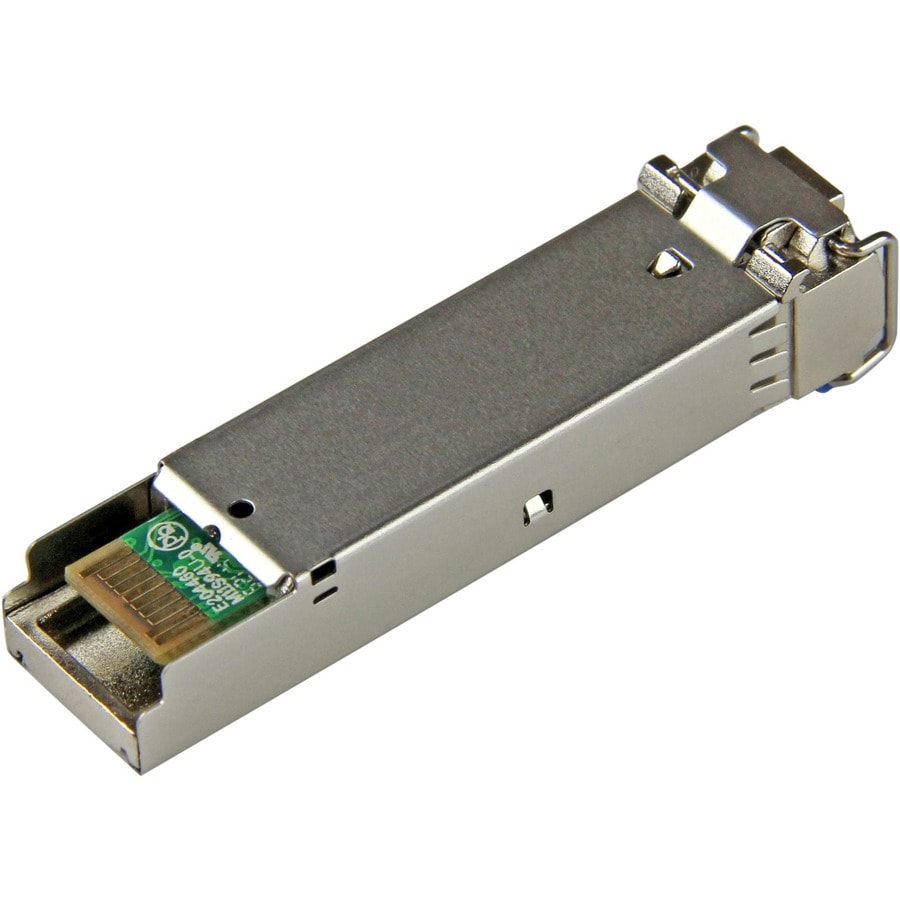

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1310 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode / Multimode Fiber

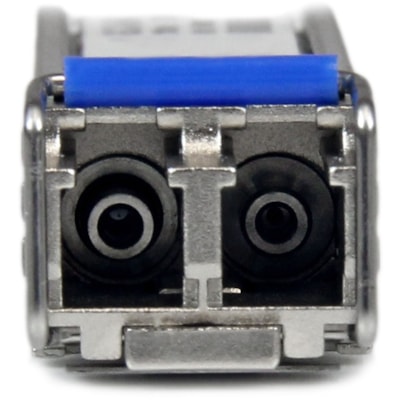

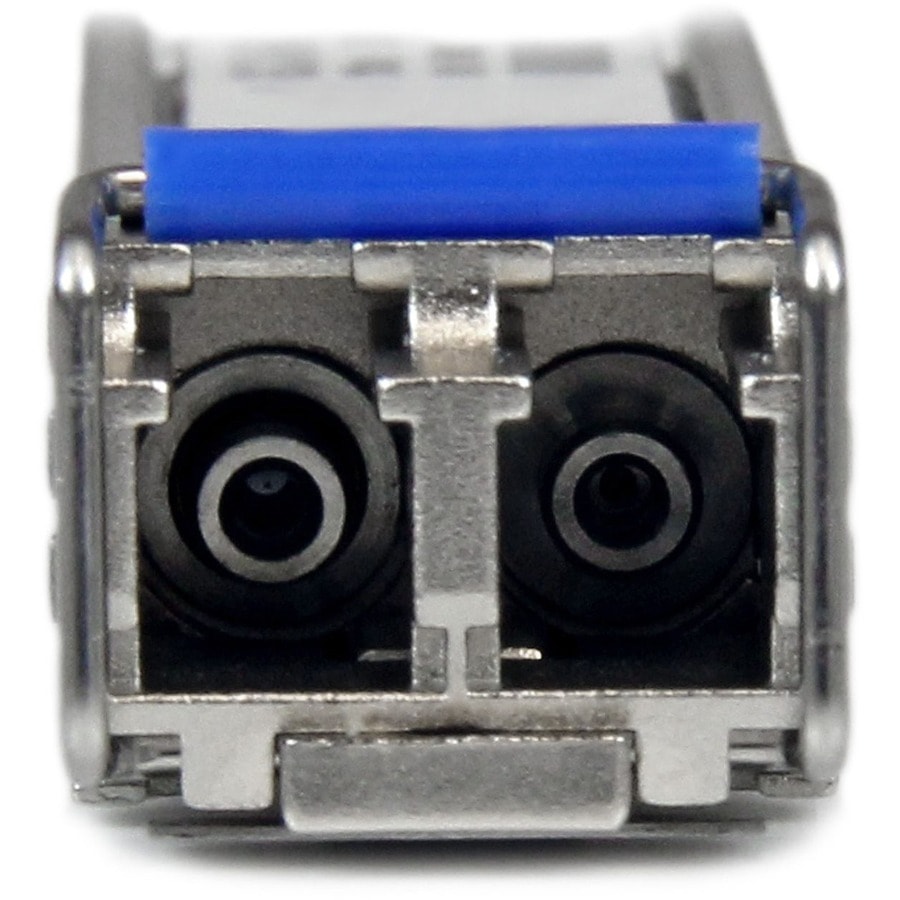

  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
  • MTBF: 3,092,408 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): No

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Application/Usage : Data Networking,Optical Network
  • Total Number of Ports : 1
  • Connector Type : LC
  • Interfaces/Ports Details : 1 x LC Duplex 1000Base-LH Network
  • Media Type Supported : Optical Fiber
  • Fiber Mode Supported : Single-mode
  • Ethernet Technology : 1.25 Gigabit Ethernet
  • Network Technology : 1000Base-LH
  • Form Factor : Hot-pluggable,Hot-swappable
  • Height : 0.40" (10.16 mm)
  • Width : 0.50" (12.70 mm)
  • Depth : 2.40" (60.96 mm)
  • Weight (Approximate) : 0.70 oz (19.84 g)
  • Compatibility :

    MSA Compliant

    Cisco Firepower Switches:

    • IE3400
    • IE3300
    • IE3200
    • ME1200
    • ME2400
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : Lifetime
  • 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
  • TECHNICAL SPECS: 1000BASE-LX/LH | 1 Gbps | Single Mode (SMF)/Multi Mode (MMF) | LC Connector | 1310nm | Distances up to 10km (6.2mi)
  • TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
  • OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
  • WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number SFPGLCLHSMST
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC - 10 km (Mini-GBIC)
Packaged Quantity 1 Each
Product Type SFP (mini-GBIC)
Application/Usage Optical Network
Application/Usage Data Networking
Total Number of Ports 1
Connector Type LC
Interfaces/Ports Details 1 x LC Duplex 1000Base-LH Network
Media Type Supported Optical Fiber
Fiber Mode Supported Single-mode
Ethernet Technology 1.25 Gigabit Ethernet
Network Technology 1000Base-LH
Form Factor Hot-pluggable
Form Factor Hot-swappable
Height 0.40" (10.16 mm)
Width 0.50" (12.70 mm)
Depth 2.40" (60.96 mm)
Weight (Approximate) 0.70 oz (19.84 g)
Compatibility

MSA Compliant

Cisco Firepower Switches:

  • IE3400
  • IE3300
  • IE3200
  • ME1200
  • ME2400
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty Lifetime
