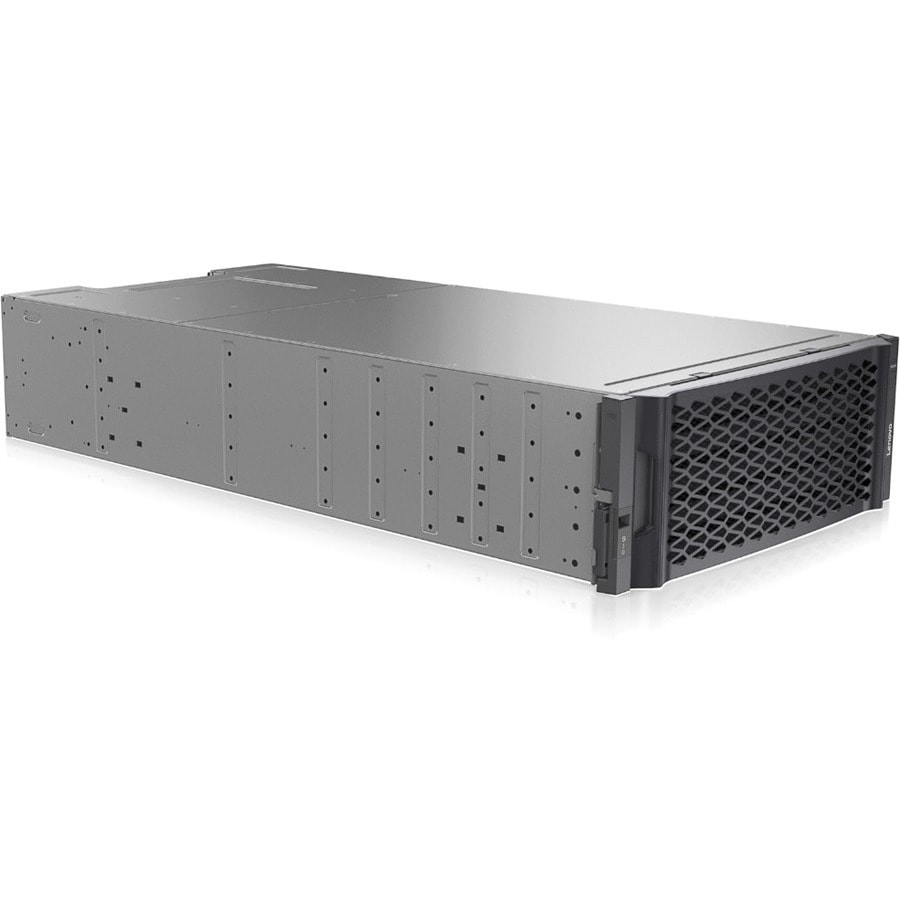

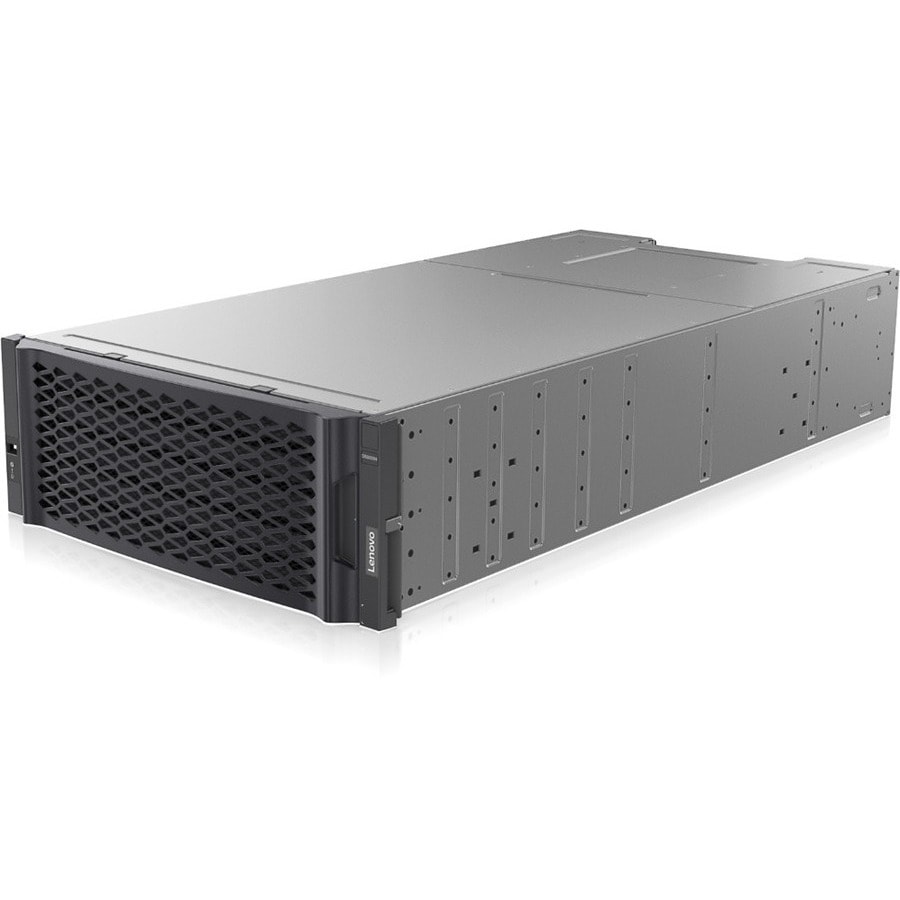

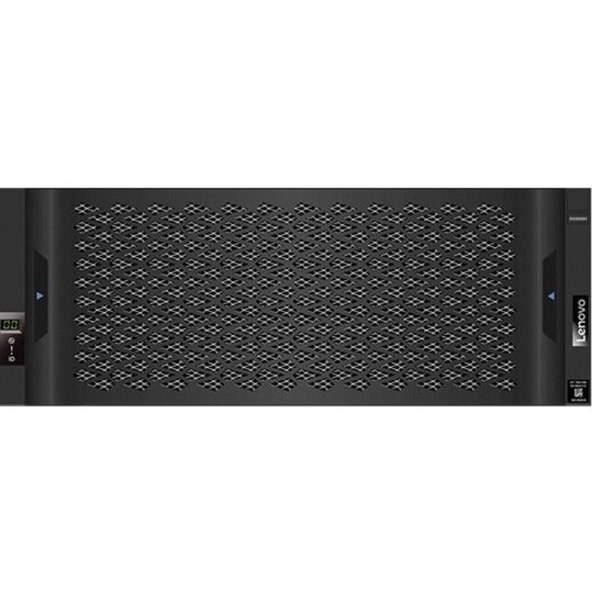

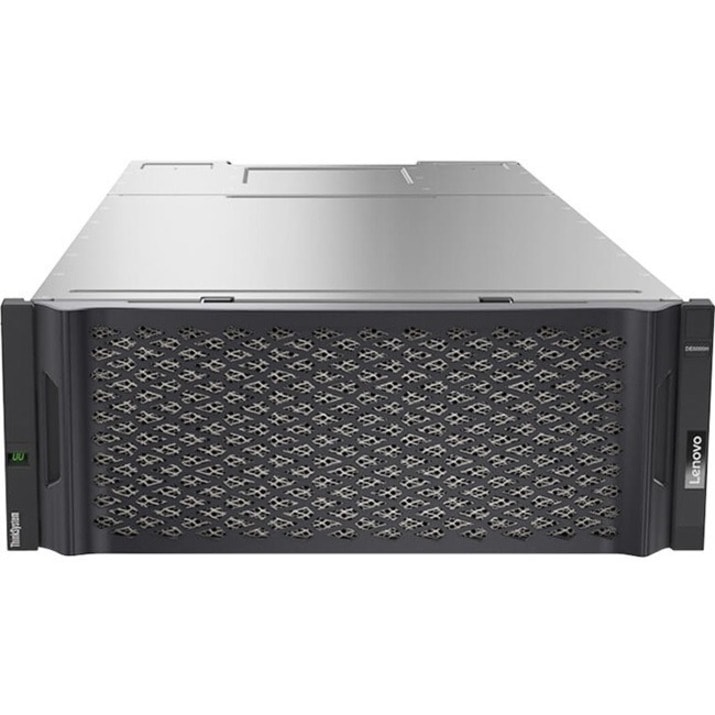

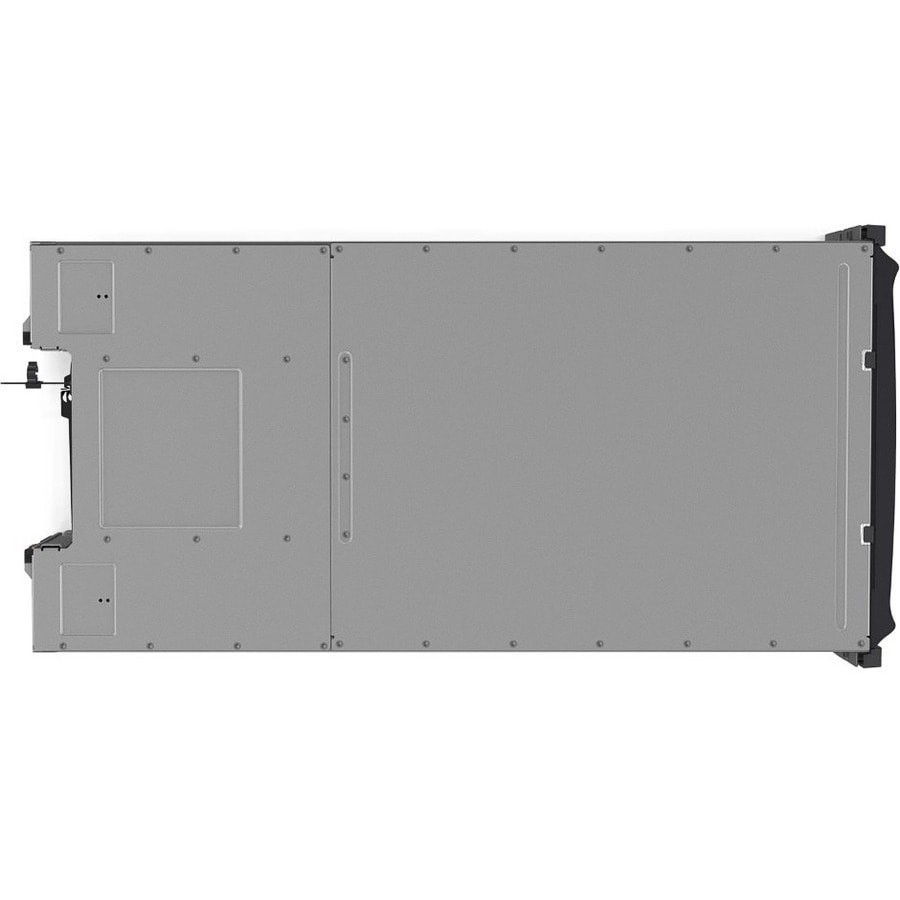

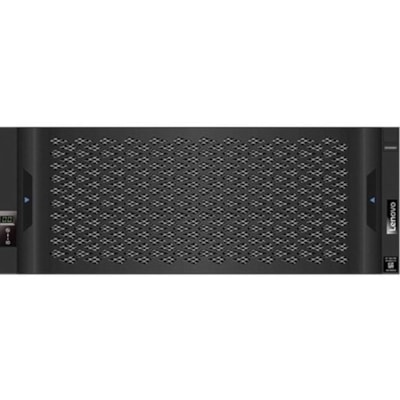

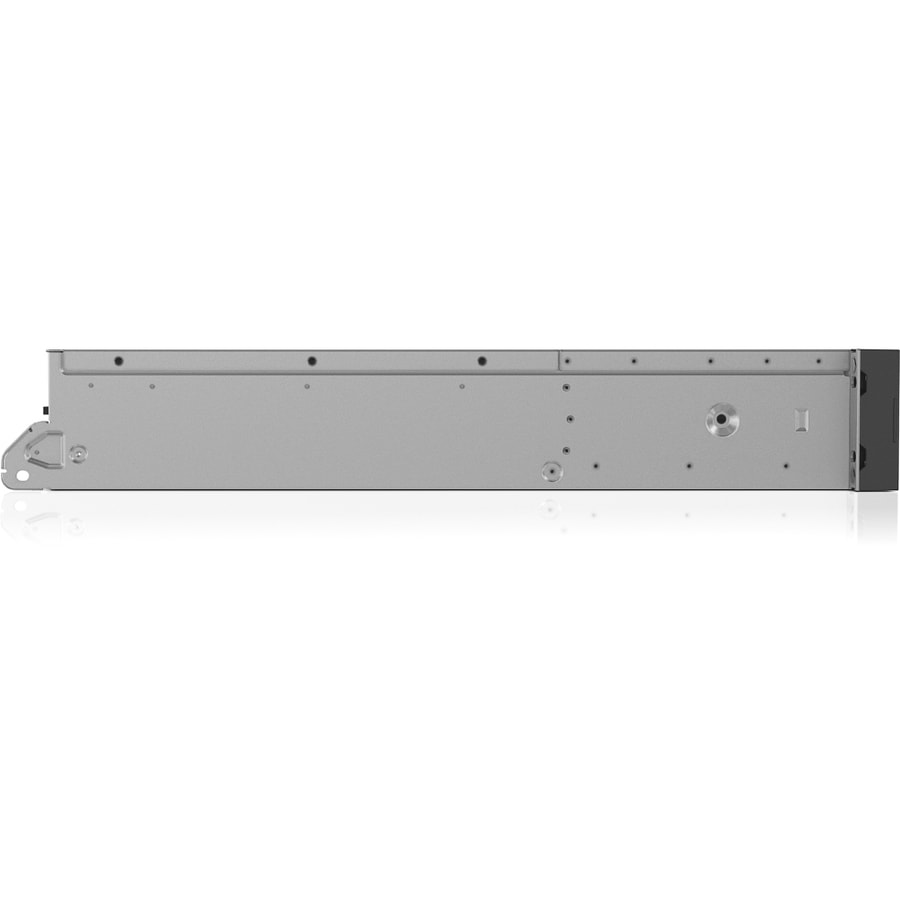

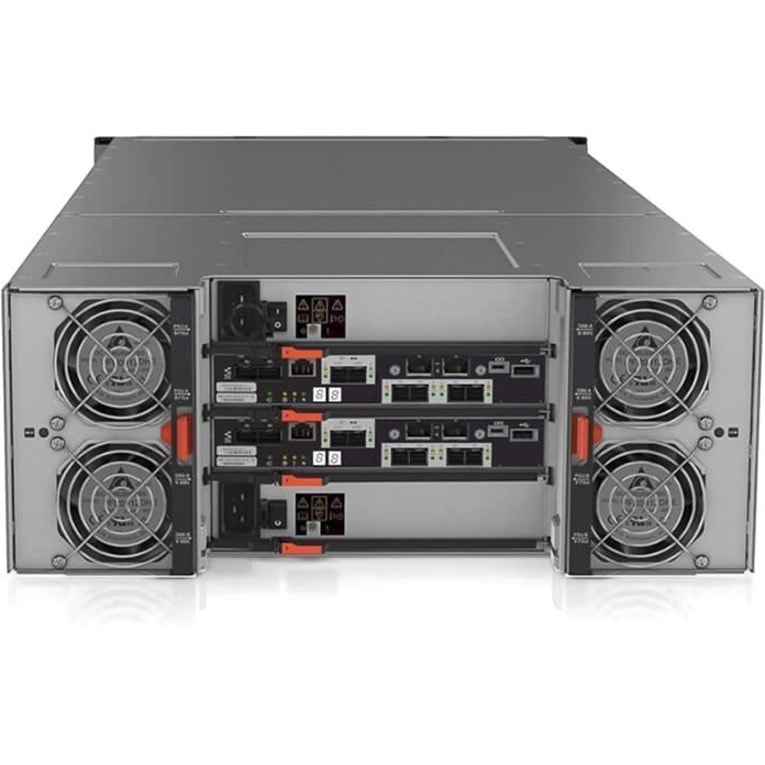

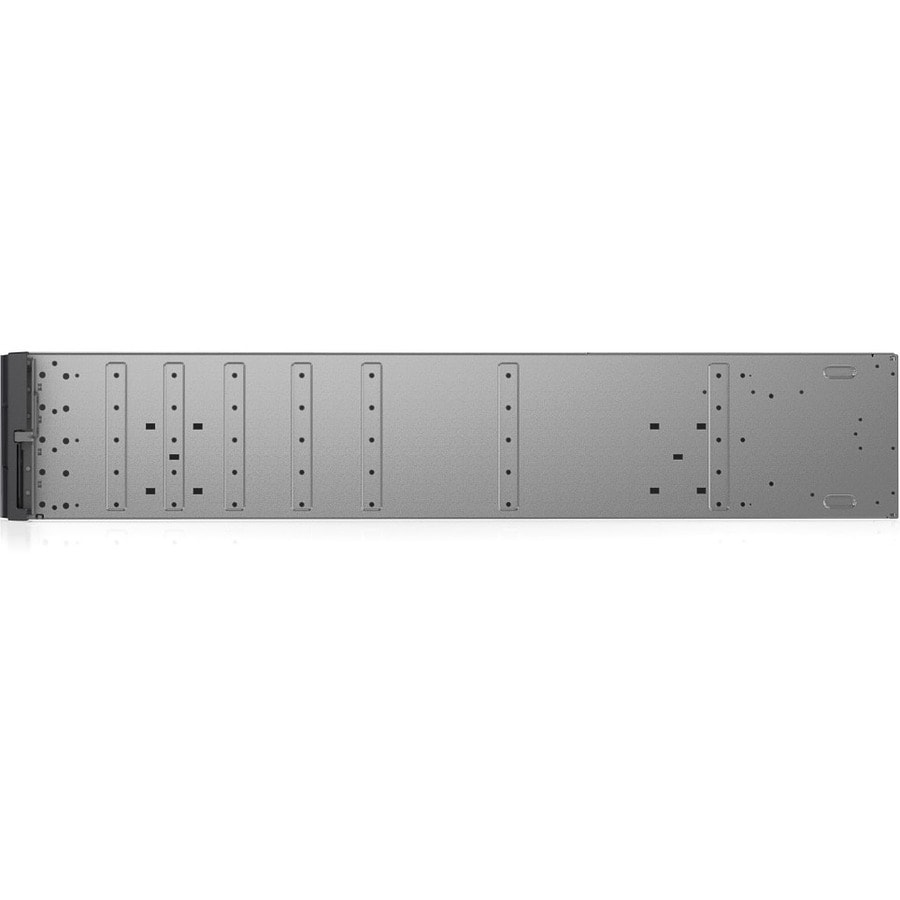

Lenovo ThinkSystem DE4000H DAS/SAN Storage System - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FC
7Y75A00SWW
Also known as IM508B6Z
MARKETING INFORMATION
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
DETAILS
- Number of Hard Drives Supported : 24
- Number of Hard Drives Installed : 0
- Number of Solid State Drive Supported : 24
- Number of Solid State Drive Installed : 0
- SSD Cache Capacity : 8 GB
- Ethernet Technology : Gigabit Ethernet
- Number of Total Expansion Bays : 24
- Number of 2.5" Bays : 24
- Number of Controllers : 2
- Controller Type : 12Gb/s SAS
- RAID Supported : Yes
- RAID Levels : 0, 1, 3, 5, 6, 10
- Host Interface : 12Gb/s SAS
- Number of SAS Ports (External) : 12
- Total Number of USB Ports : 2
- Network (RJ-45) : Yes
- Number of Network (RJ-45) Ports : 2
- Fibre Channel : Yes
- Protocols : FCP,SSH,SMI-S,SNMP,SSL,LDAP
- Number of Power Supplies Installed : 2
- Plug/Connector Type : C13 to IEC 320-C14
- Maximum Power Supply Wattage : 913 W
- Redundant Power Supply : Yes
- Height : 3.35" (85 mm)
- Width : 17.68" (449 mm)
- Depth : 21.77" (553 mm)
- Form Factor : Rack-mountable
- Rack Height : 2U
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Additional Warranty Information : Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered.
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y75A00SWW |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | DE |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H DAS/SAN Storage System |
| Product Type | DAS/SAN Storage System |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| SSD Cache Capacity | 8 GB |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Number of Controllers | 2 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Host Interface | 12Gb/s SAS |
| Number of SAS Ports (External) | 12 |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Fibre Channel | Yes |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | SMI-S |
| Protocols | SSH |
| Protocols | FCP |
| Protocols | SSL |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Maximum Power Supply Wattage | 913 W |
| Redundant Power Supply | Yes |
| Height | 3.35" (85 mm) |
| Width | 17.68" (449 mm) |
| Depth | 21.77" (553 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
