Tripp Lite SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS - 5000VA/3750W - 10 Minute Full Load - 1 x NEMA L6-30R, 2 x NEMA L6-20R, 2 x NEMA 5-15R
SMART5000TEL3U
Also known as IM508032,SY3954693
MARKETING INFORMATION
Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).DETAILS

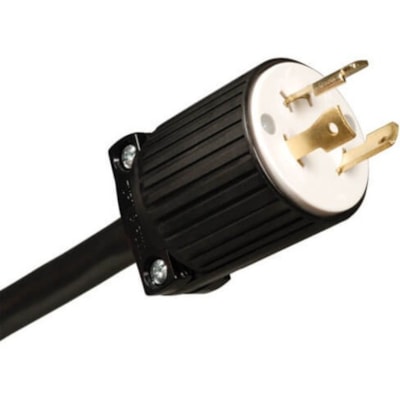

- Plug/Connector Type : NEMA L6-30P
- Receptacle Type : NEMA L6-30R,NEMA L6-20R,NEMA 5-15R
- Receptacle Detail : 1 x NEMA L6-30R,2 x NEMA L6-20R,2 x NEMA 5-15R
- Transfer Time : 8 ms
- Load Capacity (VA) : 5 kVA
- Load Capacity (Watt) : 3.75 kW
- Input Voltage : 208 V AC
- Input Current : 24 A
- Output Voltage : 208 V AC
- Network Management : SNMP Manageable
- USB : Yes
- Backup/Run Time (Full Load) : 10 Minute
- Backup/Run Time (Half Load) : 24 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 4 Hour
- Height : 5.25" (133.35 mm)
- Width : 17.50" (444.50 mm)
- Depth : 25" (635 mm)
- Rack Height : 3U
- Form Factor : Rack/Tower
- Weight (Approximate) : 143.30 lb (64999.79 g)

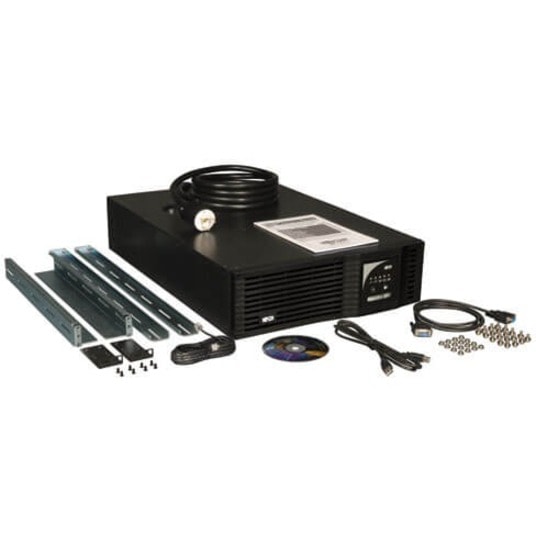

- Package Contents :
- Smart Pro 5000TEL3U UPS
- SMART5000TEL3U UPS System
- PowerAlert Software and cabling
- Mounting hardware
- Warranty information
- Instruction manual
- Software Included : PowerAlert Software
- Country of Origin : Taiwan
- Limited Warranty : 2 Year
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- 208V nominal output during inputs of 174-282V; Supports 600VA 120V output
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 97% line-mode efficiency; Hot-swappable internal batteries

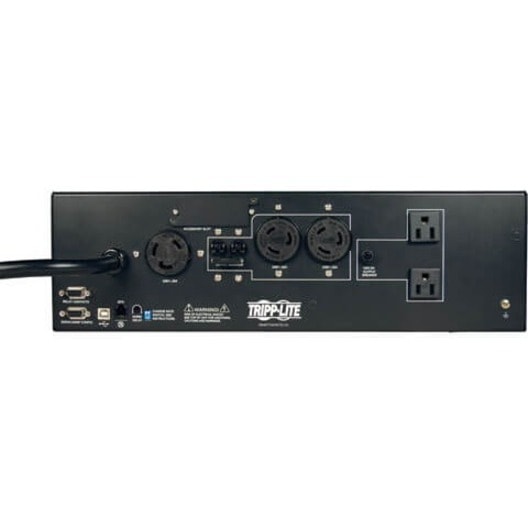

- NEMA L6-30P input; 2 NEMA 5-15R, 2 L6-20R & 1 L6-30R outlets
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART5000TEL3U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART5000TEL3U |
| Product Name | SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Detail | 2 x NEMA 5-15R |
| Emergency Power OFF | Yes |
| Transfer Time | 8 ms |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.75 kW |
| Input Voltage | 208 V AC |
| Input Current | 24 A |
| Output Voltage | 208 V AC |
| Network Management | SNMP Manageable |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 143.30 lb (64999.79 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), CSA (Canada), FCC Class A (Emissions) |
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| Limited Warranty | 2 Year |
