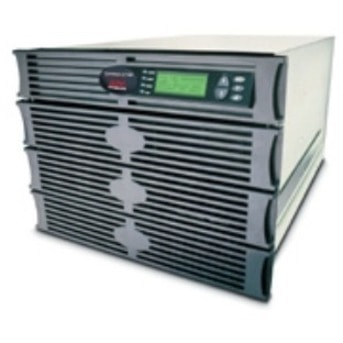

APC Symmetra RM 2kVA Scalable to 6kVA N+1 Rack-mountable UPS - 12.6 Minute Full Load - 2kVA - SNMP Manageable

SYH2K6RMI
Also known as IM50347U

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The first UPS with redundancy and scalability within a single chassis!
Engineered to deliver the highest level of business continuity possible, Symmetra RM 2kVA uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. Symmetra's integrated manageability, and hot-swappable, user replaceable power, battery, and intelligence modules enable easy, fast maintenance and serviceability. Its 2-6kVA N+1 redundant rack-optimized form factor makes Symmetra ideal for protecting critical server racks and network rooms. Typical applications include Web and other key application servers, IP based and traditional PBX voice solutions, and enterprise type network switches.

DETAILS

  • Plug/Connector Type : Hard Wire 3-wire
  • Receptacle Type : IEC 320-C13,IEC 320-C19
  • Receptacle Detail : 8 x IEC 320-C13,2 x IEC 320-C19
  • Number of Battery & Surge Outlets : 10
  • Dataline Protection : RJ-45
  • Overload Protection : Yes
  • Load Capacity (VA) : 2 kVA
  • Input Voltage : 220 V AC
  • Output Voltage : 230 V AC
  • Input Frequency : 60 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Sine Wave
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Low Battery,Configurable Delay
  • Battery Characteristics : Spill-proof/Maintenance-free
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 12.60 Minute
  • Backup/Run Time (Half Load) : 29.80 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 60 dB(A)
  • Thermal Dissipation : 590 BTU/h
  • Product Color : Black
  • Form Factor : Rack-mountable
  • Rack Height : 8U
  • Height : 14.02" (356 mm)
  • Width : 19.02" (483 mm)
  • Depth : 28.74" (730 mm)
  • Weight (Approximate) : 164.35 lb (74550 g)
  • Package Contents :
  • Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
  • Limited Warranty : 2 Year

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SYH2K6RMI
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Symmetra
Product Series RM
Product Name Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS
Product Type Double Conversion Online UPS
Plug/Connector Type Hard Wire 3-wire
Receptacle Type IEC 320-C19
Receptacle Type IEC 320-C13
Receptacle Detail 8 x IEC 320-C13
Receptacle Detail 2 x IEC 320-C19
Number of Battery & Surge Outlets 10
Dataline Protection RJ-45
Overload Protection Yes
Load Capacity (VA) 2 kVA
Input Voltage 220 V AC
Output Voltage 230 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave
Network Management SNMP Manageable
Alarm On Battery
Alarm Configurable Delay
Alarm Low Battery
Bypass Switch Internal
Emergency Power OFF Yes
Modular Slots 1 x SmartSlot
Battery Characteristics Spill-proof/Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 12.60 Minute
Backup/Run Time (Half Load) 29.80 Minute
Typical Battery Recharge Time 4 Hour
Maximum Operating Temperature 104°F (40°C)
Sound Emission (A-Weighted) 60 dB(A)
Thermal Dissipation 590 BTU/h
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 8U
Height 14.02" (356 mm)
Width 19.02" (483 mm)
Depth 28.74" (730 mm)
Weight (Approximate) 164.35 lb (74550 g)
Package Contents
  • Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
  • Additional Information
    • Automatic restart of loads after UPS shutdown
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Configurable for 220, 230 or 240 nominal output voltage
    Certifications & Standards
    • C-tick
    • EN 50091-2
    • VDE
    Limited Warranty 2 Year
