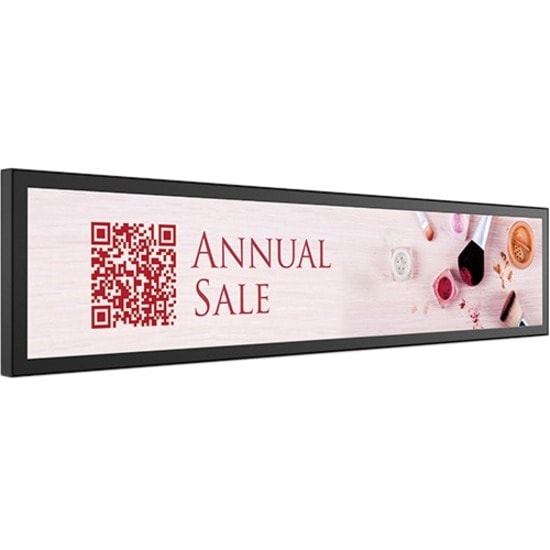

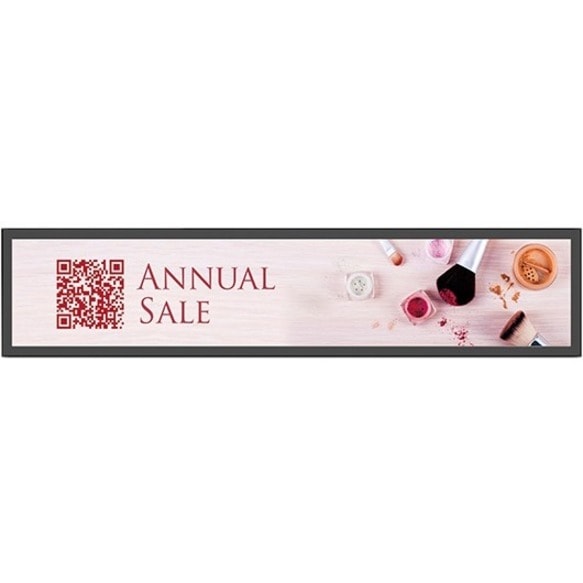

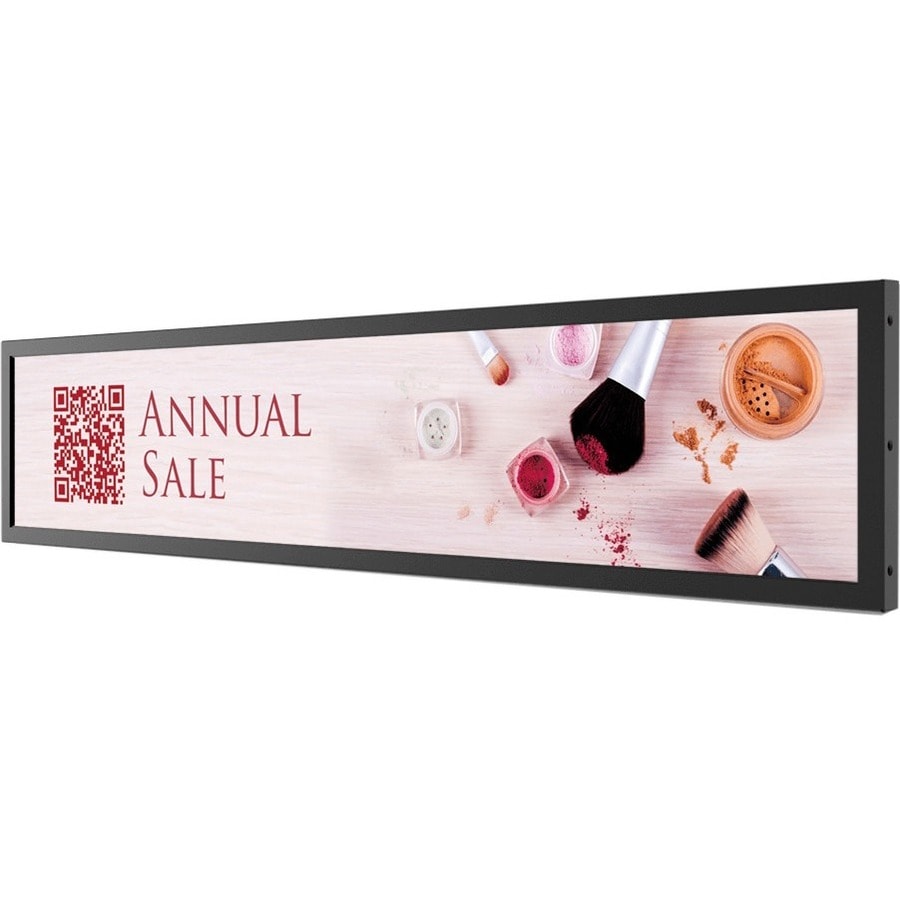

BenQ 28" Smart Stretched Display - BH2801 - 28" (711.20 mm) LCD - In-plane Switching (IPS) Technology Cortex A53 - 2 GB - 1920 x 360 - Edge LED - 1000 cd/m² - HDMI - USB - SerialEthernet - Android 6.0 Marshmallow

BH2801
Also known as IM500A5B

New! Log in or create an account to see price and availability


MARKETING INFORMATION

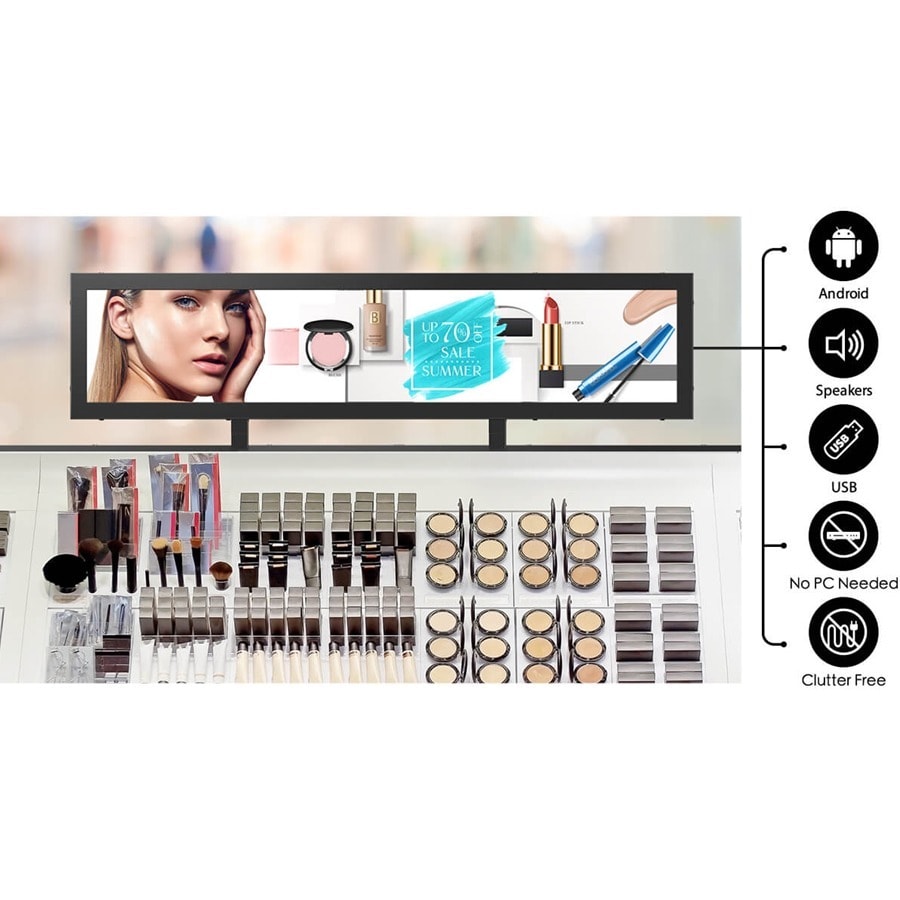

Elegant, Durable Display Cover | Anti-Reflective Glass

BenQ BH2801's display is covered with high-performance anti-reflective glass that ensures content is always vibrant and clear. With a beautiful design that looks like an integral part of the shelves it sits on, BH2801 can confer a distinctive premium atmosphere to retail outlets and boost brand positioning.

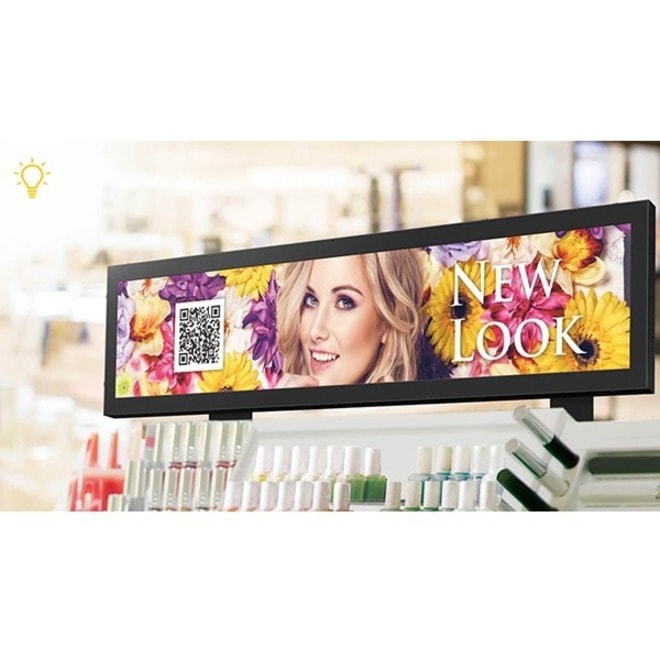

High Brightness

At 1000 nits brightness, striking colors and clarity still can be provided even in brightly lit environments, which allows BH2801 to fully support your indoor and semi-outdoor applications.

24/7 Non-Stop Operation

A 55,000-hour lifespan and industrial-class performance make BH2801 far more economical than consumer display models. Built especially for business use with advanced panel technology, BH2801 can provide reliable 24/7 non-stop performance for years and years.

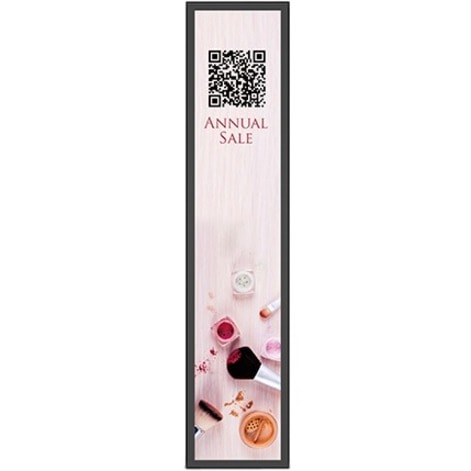

Flawless Display in Portrait and Landscape View

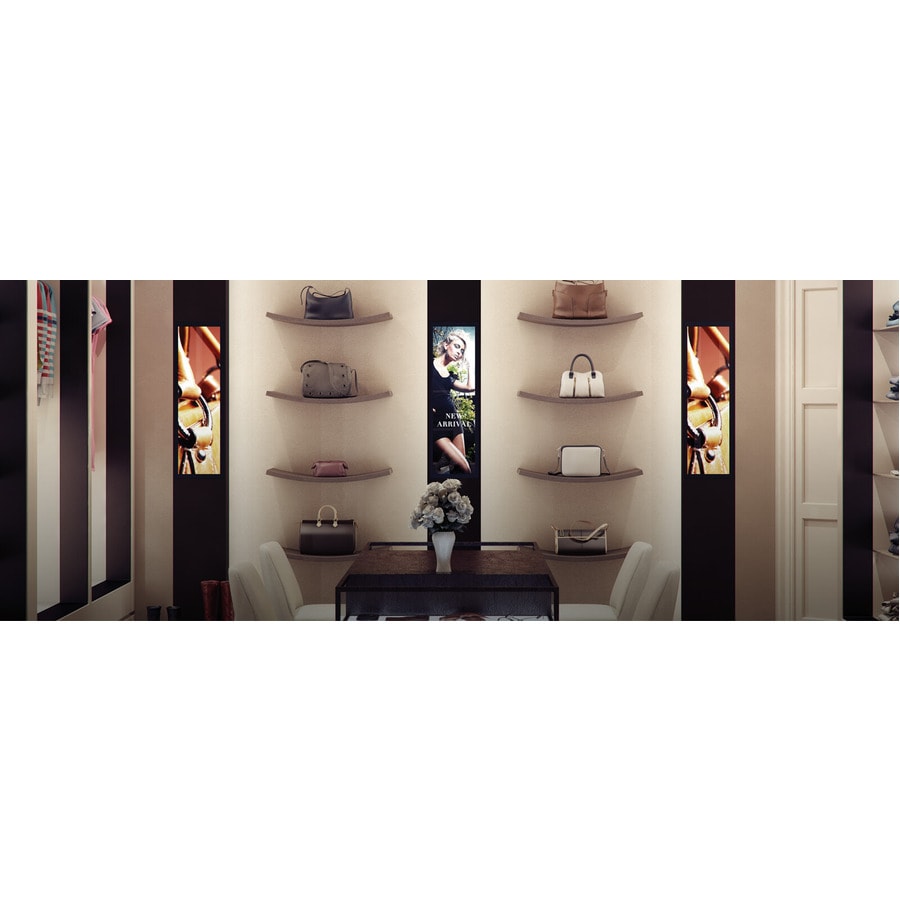

Unlike anything else available on the market, BenQ Bar Type displays are built to ensure flawless portrait and landscape view. This choice between vertical and horizontal installation greatly increases flexibility when operators are designing and arranging their stores.

Integrated X-Sign 2.0 Software with Stretch Content Templates | Specially Designed Long-and-Narrow Templates

X-Sign offers templates especially designed to fit the screens of Stretch Display Series. After choosing a template, users can make the perfect advertisement simply by adding images and text.

Real Time Messages

X-Sign lets operators push real-time messages to the display network to create instant excitement.

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

X-Sign Designer

BenQ's X-Sign 2.0 takes the hassle out of designing signage content. Included with BH2801, BenQ's exclusive X-Sign software provides content templates that are especially designed for long-and-narrow bar-type displays, making it easy for operators to quickly design and roll out new promotional material. The templates also let operators add images, videos, and scrolling text to their marketing materials. The long-size templates let operators create marketing content easily while the ability to enrich materials with media content will boost the store's bottom line.

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

Real Time Messages

X-Sign lets operators push real-time messages to the display network to create instant excitement.

DETAILS

  • Panel Technology : In-plane Switching (IPS) Technology
  • Processor Type : Cortex A53
  • Processor Core : Quad-core (4 Core)
  • Standard Memory : 2 GB
  • Number of Screens : 1
  • Viewable Screen Size : 28" (711.20 mm)
  • Display Screen Type : LCD
  • Display Resolution : 1920 x 360
  • Backlight Technology : Edge LED
  • Graphics Controller Model : Mali-T720MP2
  • Dynamic Contrast Ratio : 3,000:1
  • Brightness : 1000 cd/m²
  • Color Gamut : 72% NTSC

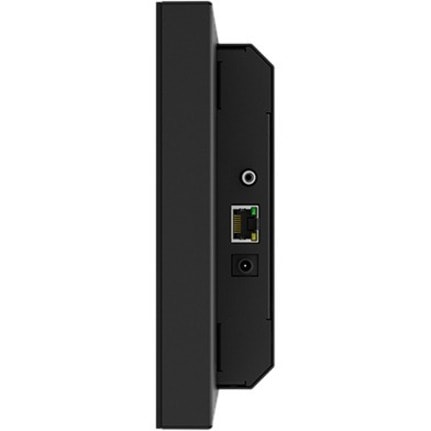

  • Ethernet : Yes
  • USB : Yes
  • HDMI : Yes
  • Serial : Yes

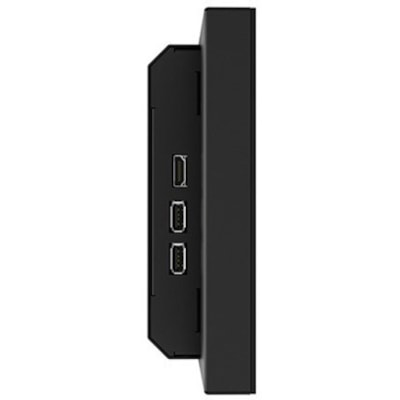

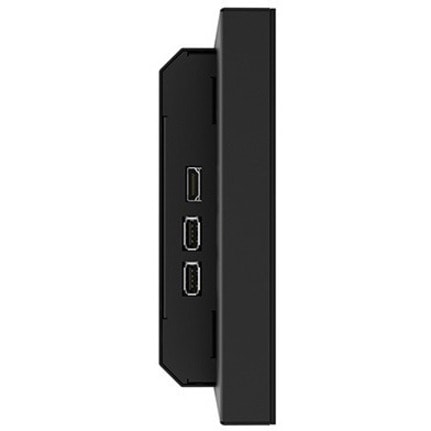

  • Number of USB 2.0 Ports : 2
  • Number of HDMI Inputs : 1
  • Operating System : Android 6.0 Marshmallow
  • Input Voltage : 120 V AC,230 V AC
  • VESA Mount Standard : 400 x 100
  • Mount Type : Panel Mount
  • Height : 6.39" (162.40 mm)
  • Width : 28.69" (728.80 mm)
  • Depth : 1.79" (45.50 mm)
  • Weight (Approximate) : 11.68 lb (5300 g)
  • Package Contents :
    • 28" Smart Stretched Display - BH2801
    • HDMI Cable (1.5m)
    • 1 x Remote Control
    • Power cord
  • Application/Usage : Outdoor,Indoor
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Energy Efficiency Compliance : Energy-related Products Directive (ErP)
  • Sleek design with anti-reflective glass
  • Built-in media player and speakers
  • 1000 nits of brightness suitable for well-lit spaces
  • Display content in portrait or landscape mode
  • Designed for 24/7 non-stop operation

SPECIFICATIONS

Manufacturer BenQ Corporation
Manufacturer Part Number BH2801
Manufacturer Website Address http://www.benq.ca
Brand Name BenQ
Product Line Smart Stretched
Product Model BH2801
Product Name 28" Smart Stretched Display - BH2801
Product Type Digital Signage Display
Processor Type Cortex A53
Processor Core Quad-core (4 Core)
Panel Technology In-plane Switching (IPS) Technology
Standard Memory 2 GB
Number of Screens 1
Viewable Screen Size 28" (711.20 mm)
Display Screen Type LCD
Display Resolution 1920 x 360
Backlight Technology Edge LED
Graphics Controller Model Mali-T720MP2
Dynamic Contrast Ratio 3,000:1
Color Depth 8-bit
Brightness 1000 cd/m²
Color Gamut 72% NTSC
Ethernet Yes
USB Yes
HDMI Yes
Serial Yes
Number of USB 2.0 Ports 2
Number of HDMI Inputs 1
Operating System Android 6.0 Marshmallow
Input Voltage 120 V AC
Input Voltage 230 V AC
VESA Mount Standard 400 x 100
Mount Type Panel Mount
Height 6.39" (162.40 mm)
Width 28.69" (728.80 mm)
Depth 1.79" (45.50 mm)
Weight (Approximate) 11.68 lb (5300 g)
Package Contents
  • 28" Smart Stretched Display - BH2801
  • HDMI Cable (1.5m)
  • 1 x Remote Control
  • Power cord
Application/Usage Indoor
Application/Usage Outdoor
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Energy Efficiency Compliance Energy-related Products Directive (ErP)
