MARKETING INFORMATION

All-in-One, Clutter Free Solution | Android Built-In

Built-in Android means that BenQ BH3501 is ready to work as soon as operators plug it in. There's no need to hook it up to a PC or other device to serve content, and embedded speakers provide for BH3501's audio needs. With no cables to hide, the all-in-one BH3501 fits neatly on shelves and reduces clutter.

USB Plug & Play

BH3501's plug-and-play simplicity enables you to access and play multimedia files directly from a USB flash drive. Requiring no PC connection or complicated cable setup, BH3501 ensures a holistic shopping experience with the most hassle-free installation.

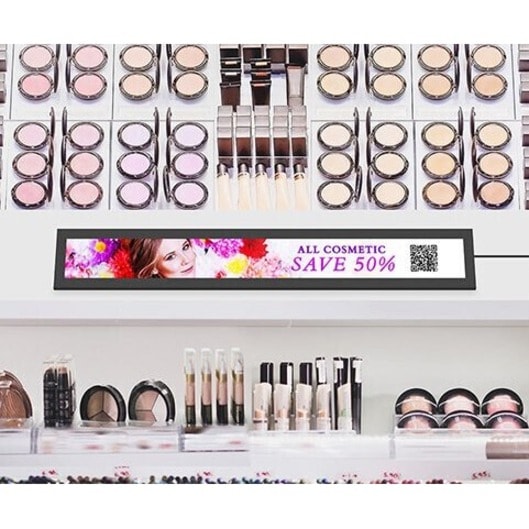

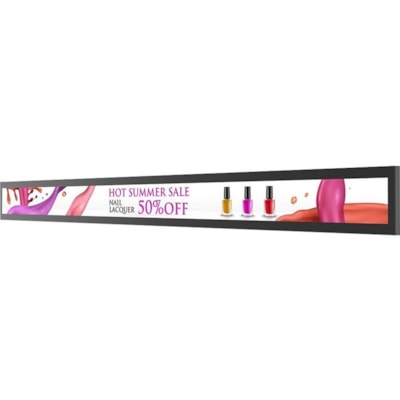

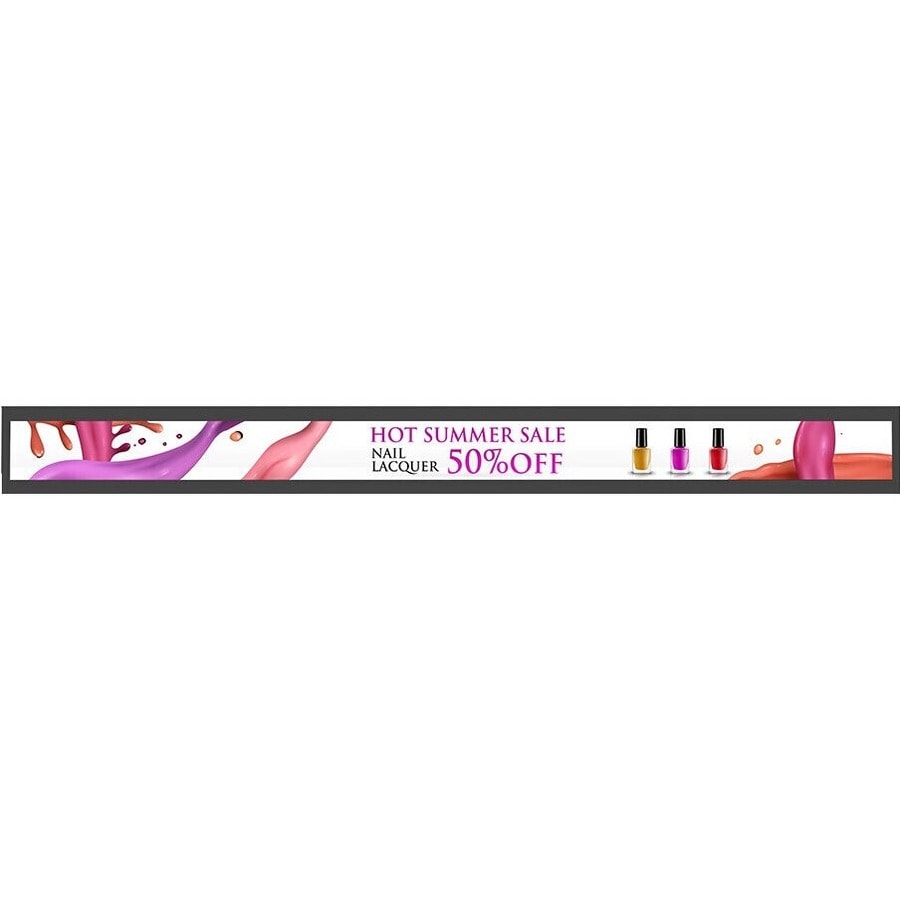

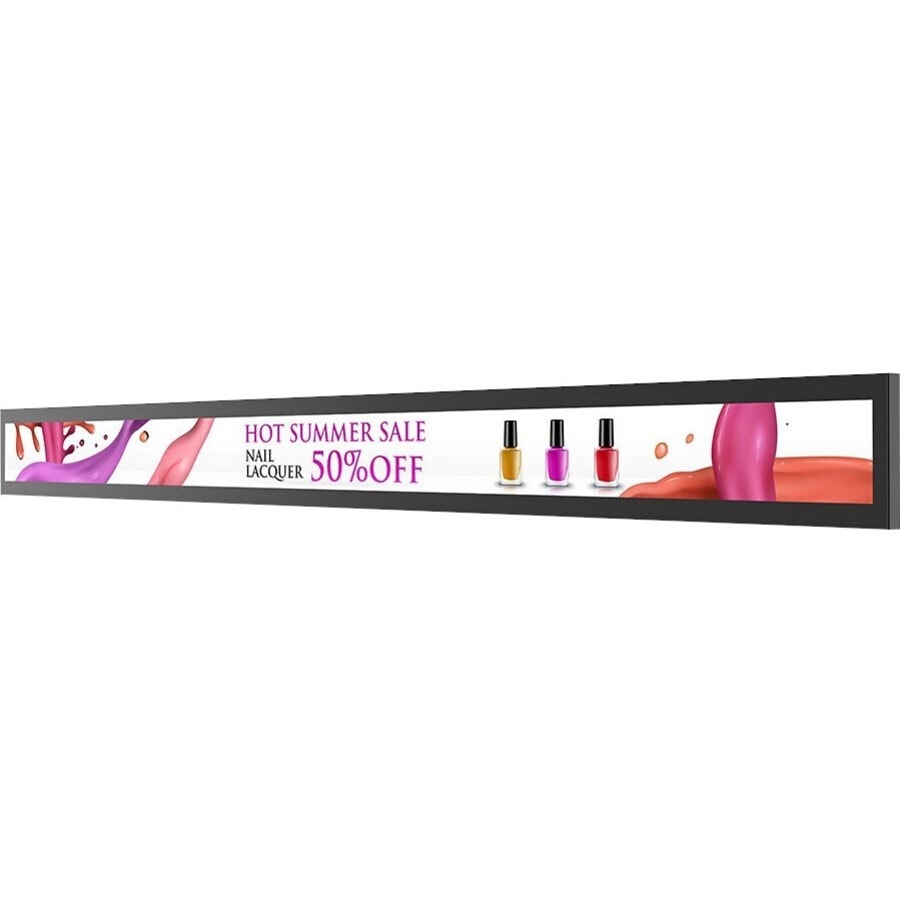

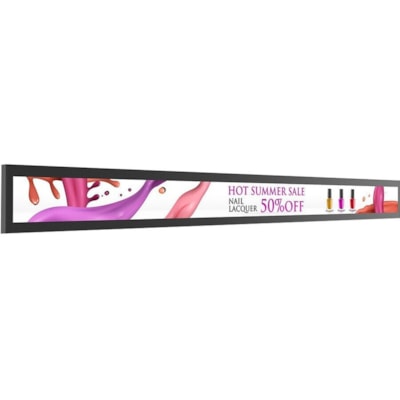

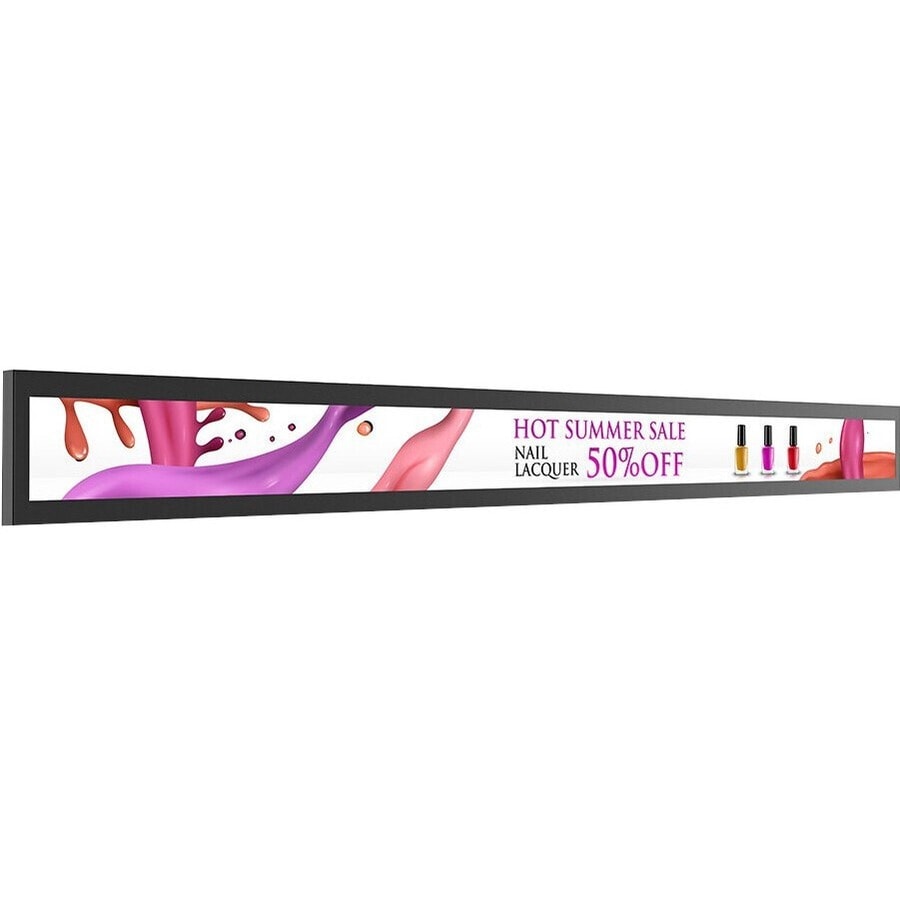

Elegant, Durable Stretch Display | Anti-Reflective Glass

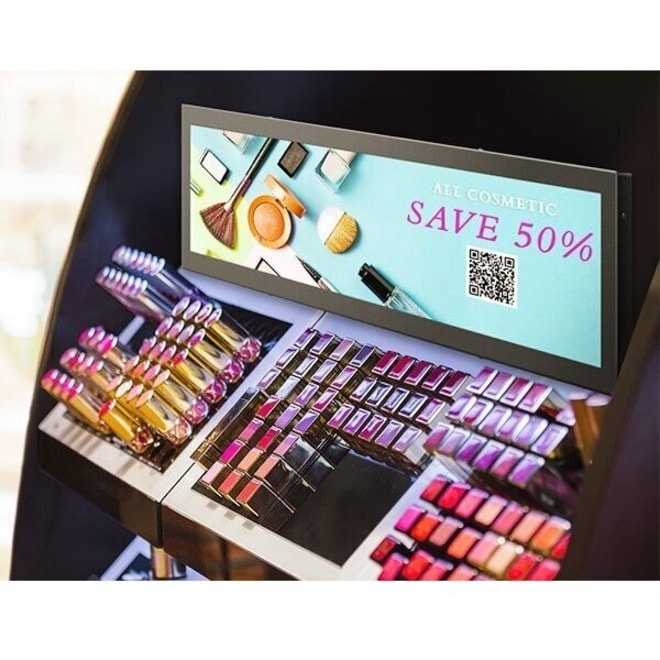

BenQ BH3501's display is covered with high-performance anti-reflective glass that ensures content is always vibrant and clear. With a beautiful design that looks like an integral part of the shelves it sits on, BH3501 can confer a distinctive premium atmosphere to retail outlets and boost brand positioning.

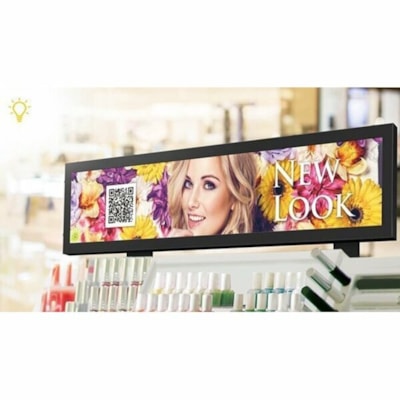

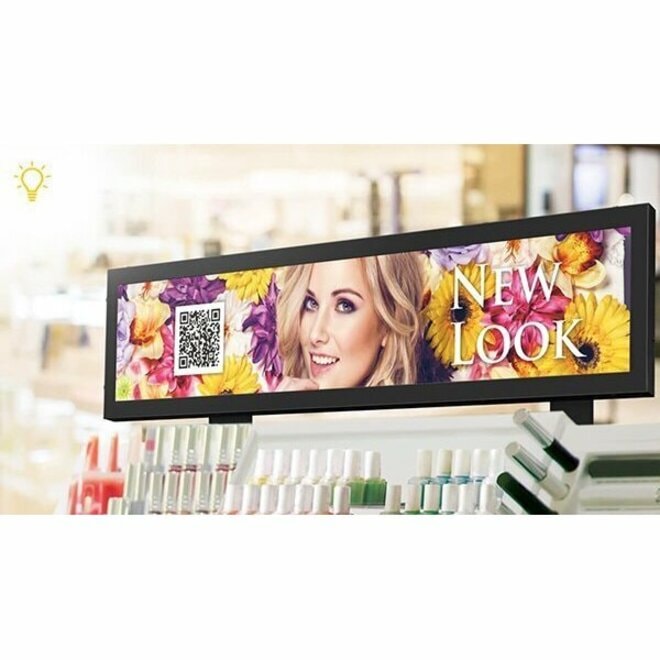

High Brightness

At 1000 nits brightness, striking colors and clarity still can be provided even in brightly lit environments, which allows BH3501 to fully support your indoor and semi-outdoor applications.

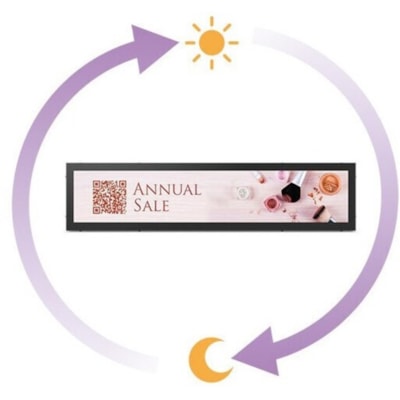

24/7 Non-Stop Operation

A 55,000-hour lifespan and industrial-class performance make BH3501 far more economical than consumer display models. Built especially for business use with advanced panel technology, BH3501 can provide reliable 24/7 non-stop performance for years and years.

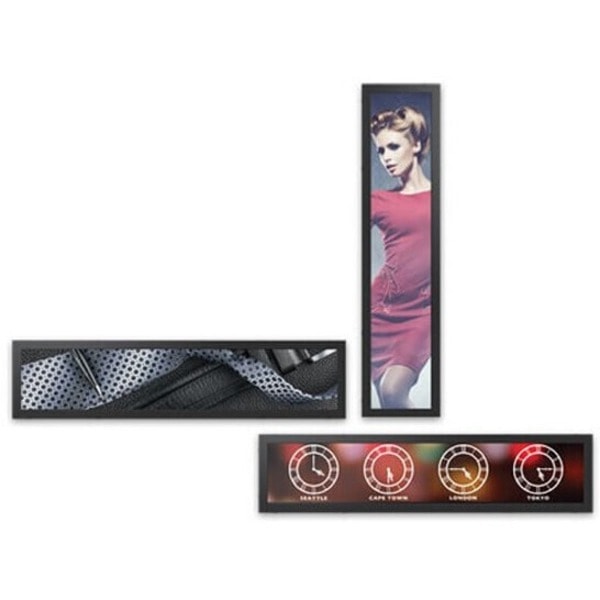

Flawless Display in Portrait and Landscape View

Unlike anything else available on the market, BenQ Bar Type displays are built to ensure flawless portrait and landscape view. This choice between vertical and horizontal installation greatly increases flexibility when operators are designing and arranging their stores.

Integrated X-Sign 2.0 Software with Stretch Content Templates | Specially Designed Long-and-Narrow Templates

X-Sign offers templates especially designed to fit the screens of Stretch Display Series. After choosing a template, users can make the perfect advertisement simply by adding images and text.

Real Time Messages

X-Sign lets operators push real-time messages to the display network to create instant excitement.

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

X-Sign Designer

BenQ's X-Sign 2.0 takes the hassle out of designing signage content. Included with BH3501, BenQ's exclusive X-Sign software provides content templates that are especially designed for long-and-narrow bar-type displays, making it easy for operators to quickly design and roll out new promotional material. The templates also let operators add images, videos, and scrolling text to their marketing materials. The long-size templates let operators create marketing content easily while the ability to enrich materials with media content will boost the store's bottom line.

Broadcast YouTube Live Streaming across Multiple Displays

With X-Sign, operators can insert live YouTube broadcasts of product launches on Smart Signage in real time, which makes promoting new products instant and easy.

DETAILS

• Panel Technology : Vertical Alignment (VA)
• Processor Type : Cortex A53
• Processor Core : Quad-core (4 Core)
• Standard Memory : 2 GB
• Number of Screens : 1
• Viewable Screen Size : 35" (889 mm)
• Display Screen Type : LCD
• Backlight Technology : Edge LED
• Graphics Controller Model : Mali-T720MP2
• Dynamic Contrast Ratio : 3,000:1
• Brightness : 1000 cd/m²
• Color Gamut : 72% NTSC

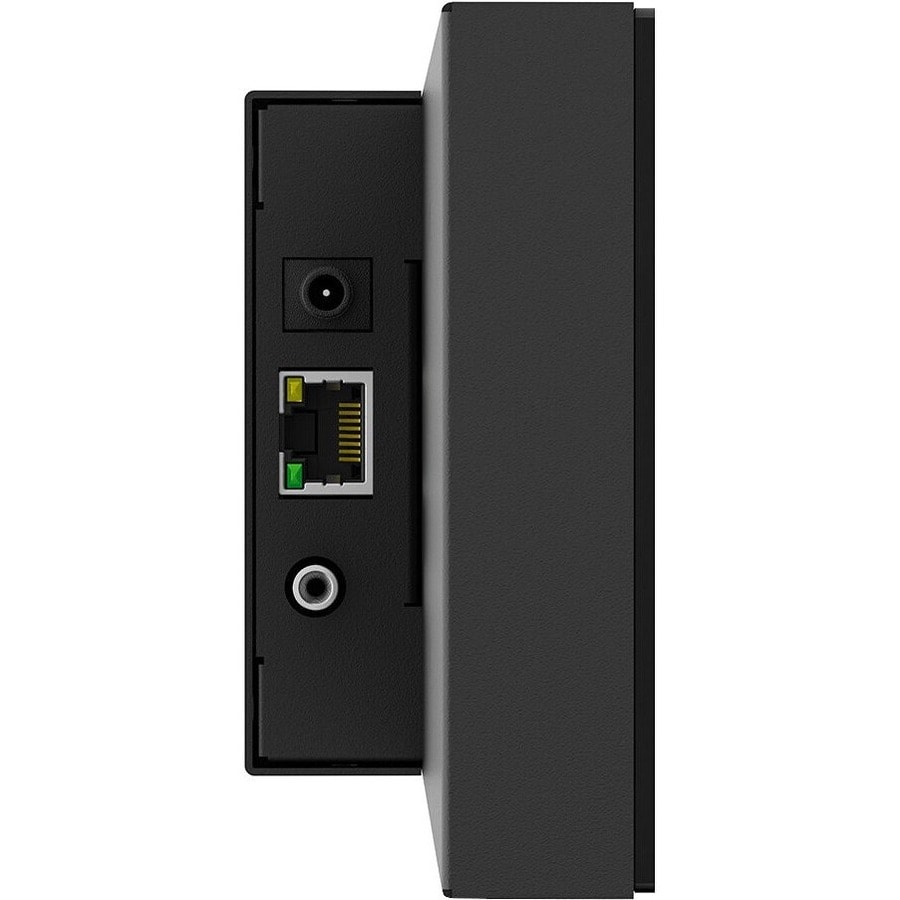

• Ethernet : Yes
• USB : Yes
• HDMI : Yes
• Serial : Yes

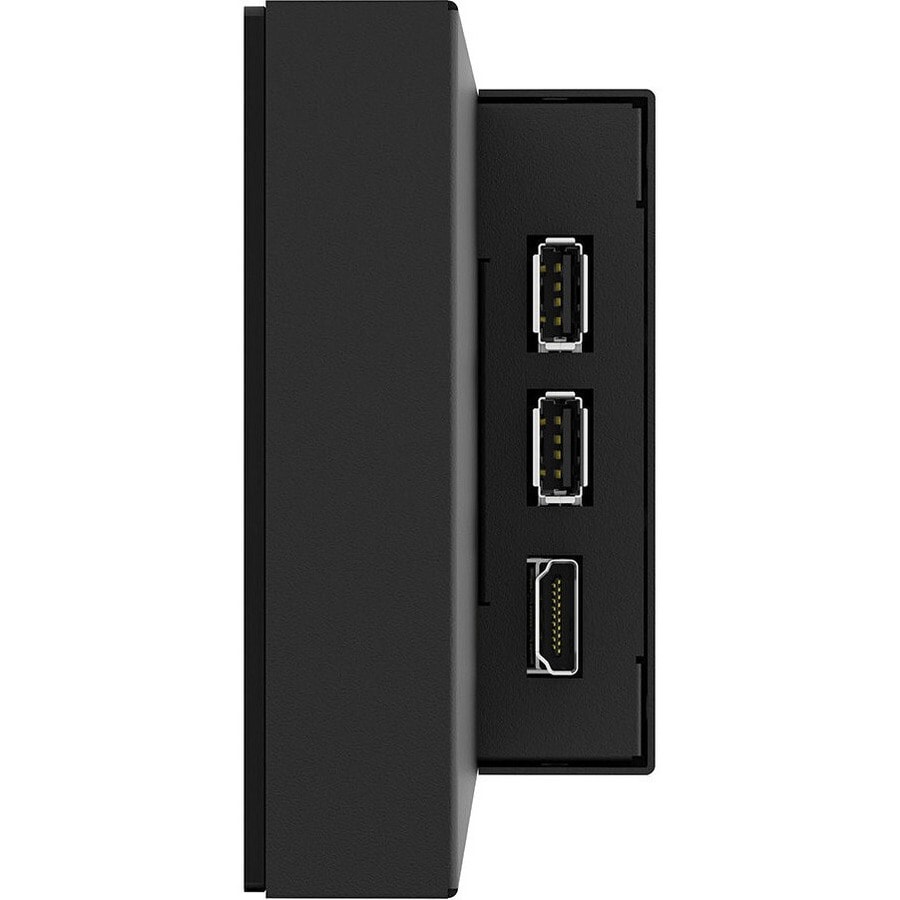

• Number of USB 2.0 Ports : 2
• Number of HDMI Inputs : 1
• Operating System : Android 6.0 Marshmallow
• Input Voltage : 120 V AC,230 V AC
• Color Family : Black
• Product Color : Black
• Mount Type : Panel Mount
• Height : 3.51" (89.20 mm)
• Width : 35.63" (905 mm)
• Depth : 1.78" (45.30 mm)
• Weight (Approximate) : 8.60 lb (3900 g)
• Package Contents :
  • 35" Smart Stretched Display - BH3501
  • HDMI Cable (1.5m)
  • 1 x Remote Control
  • Power Cord
• Application/Usage : Indoor,Outdoor
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Energy Efficiency Compliance : Energy-related Products Directive (ErP)

• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
• Experience luminescent visual images with LCD display
