MARKETING INFORMATION

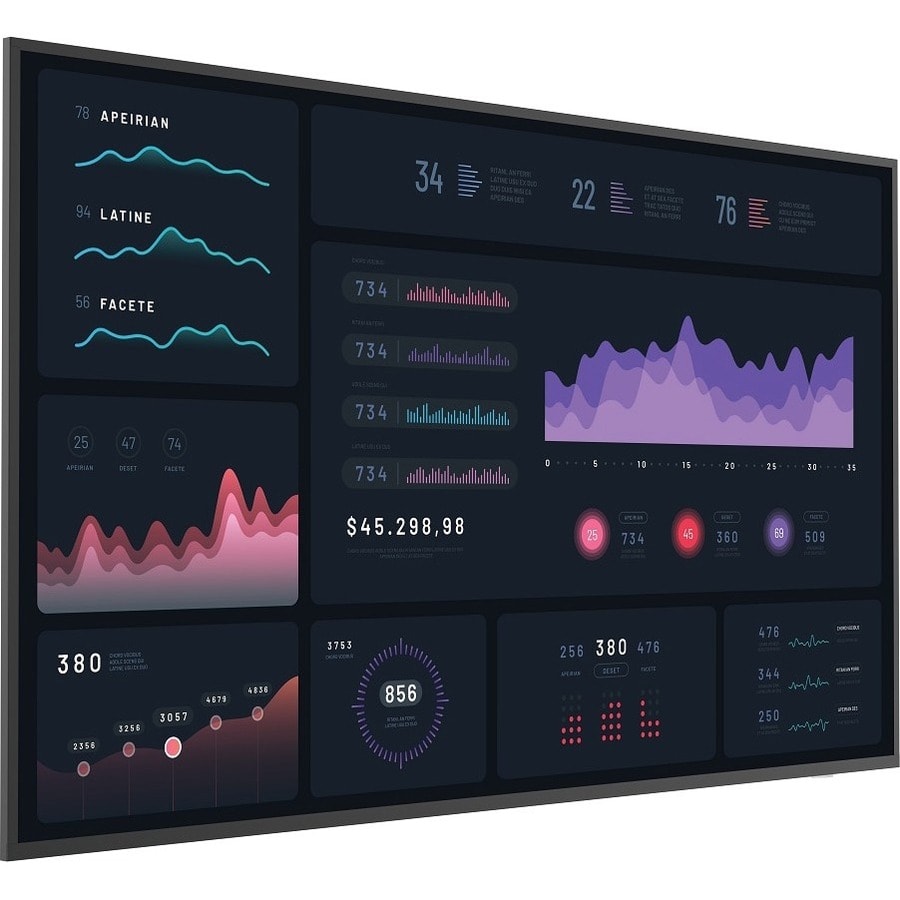

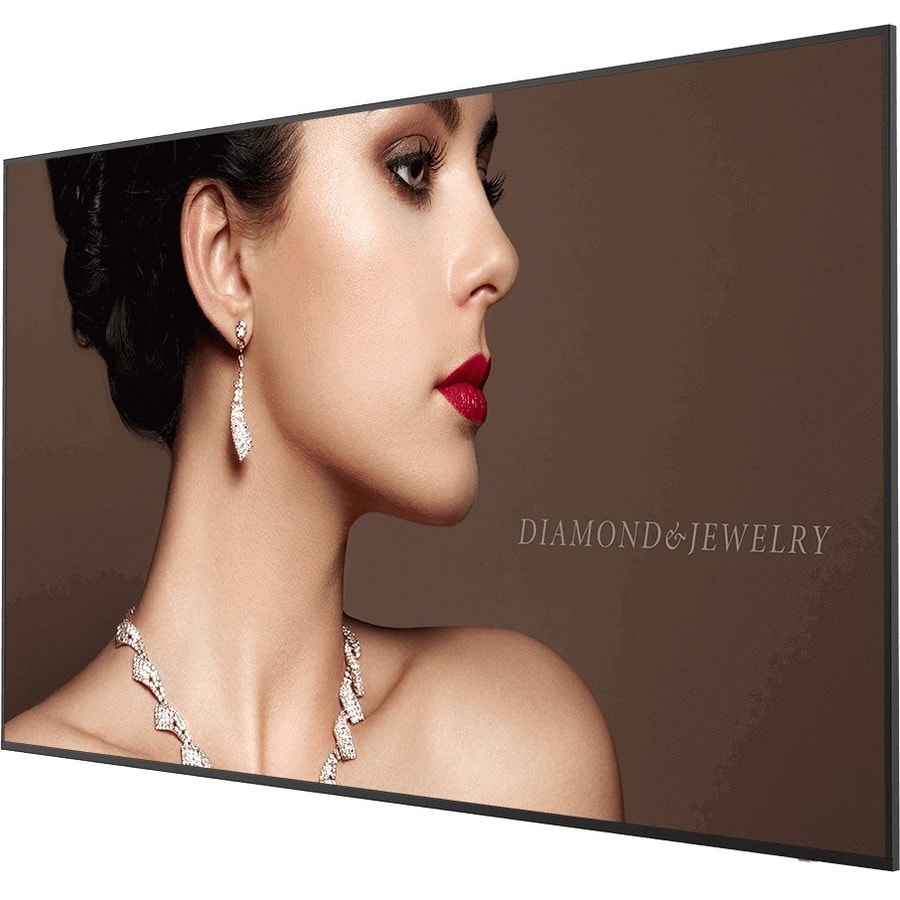

Designed for Performance & Flexibility | Ultra-thin Bezels and 4K UHD Clarity

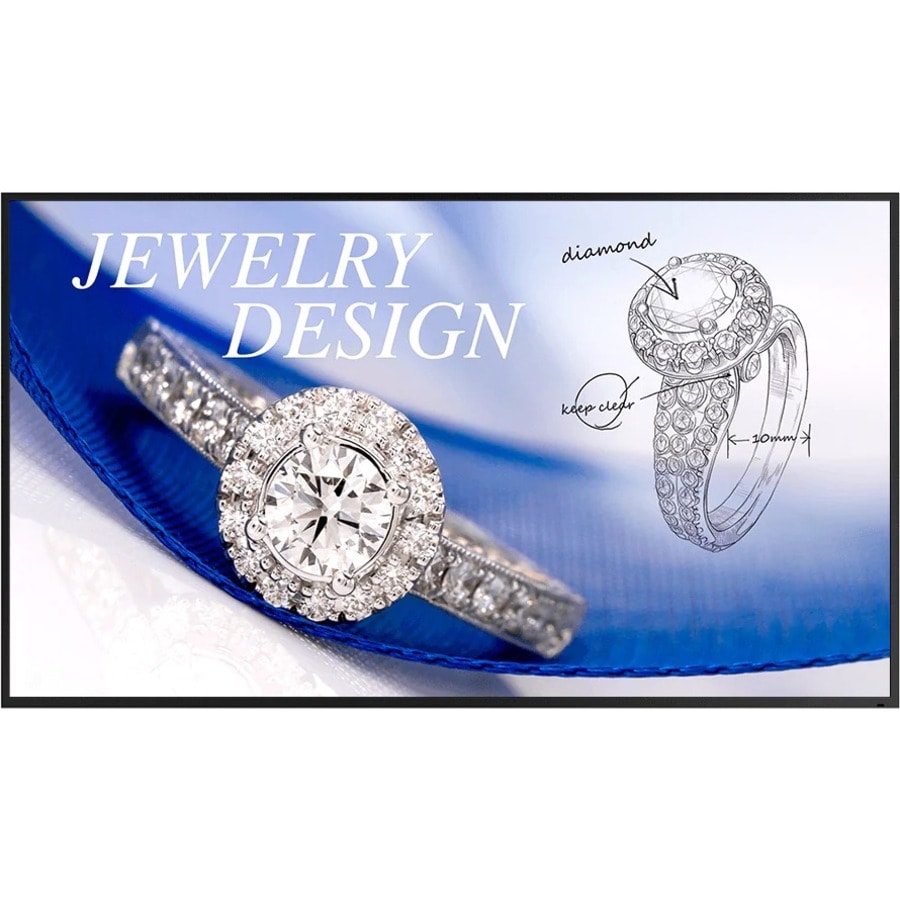

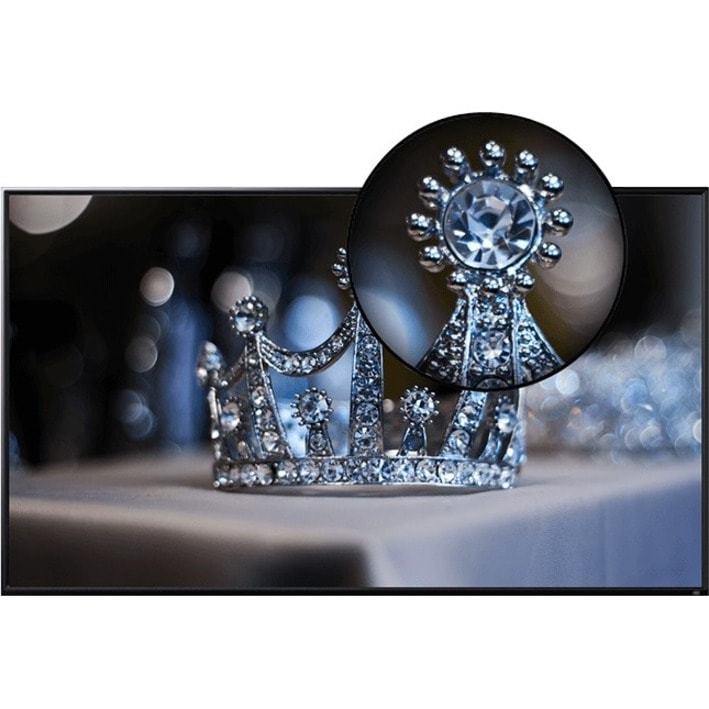

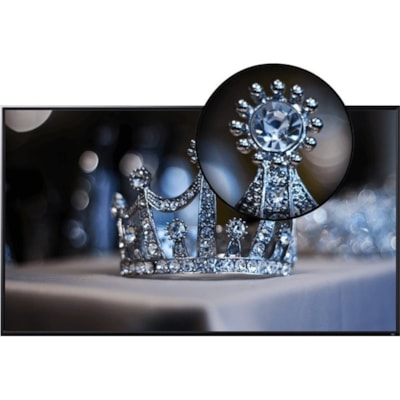

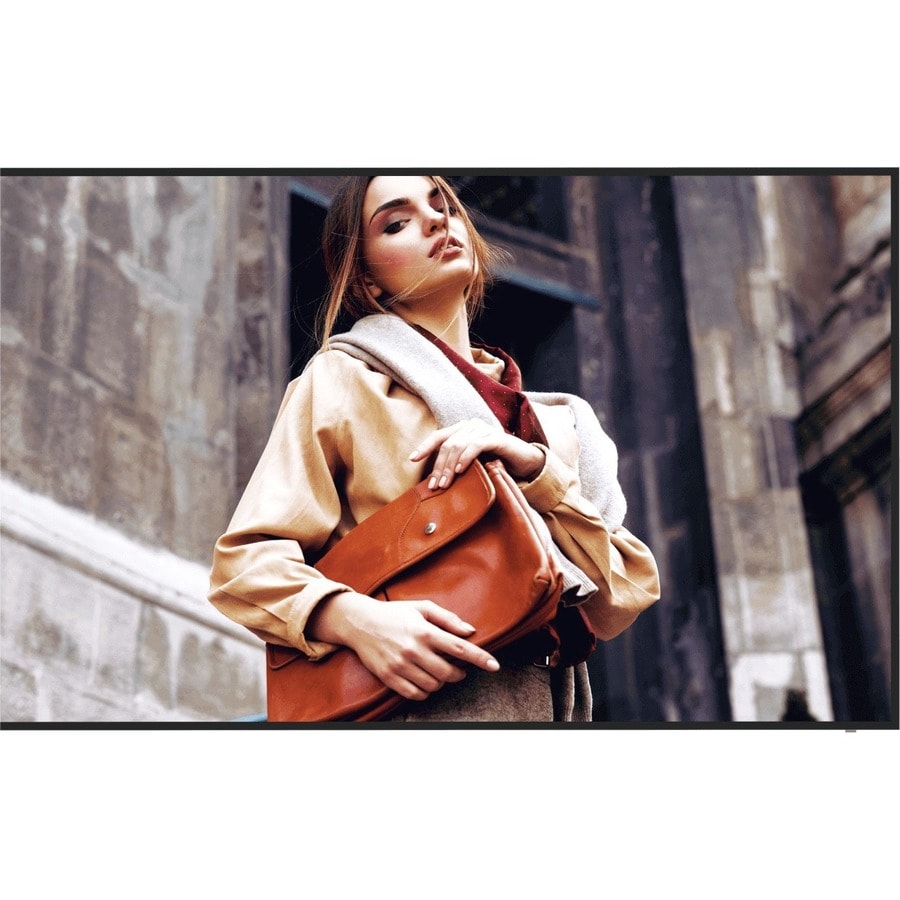

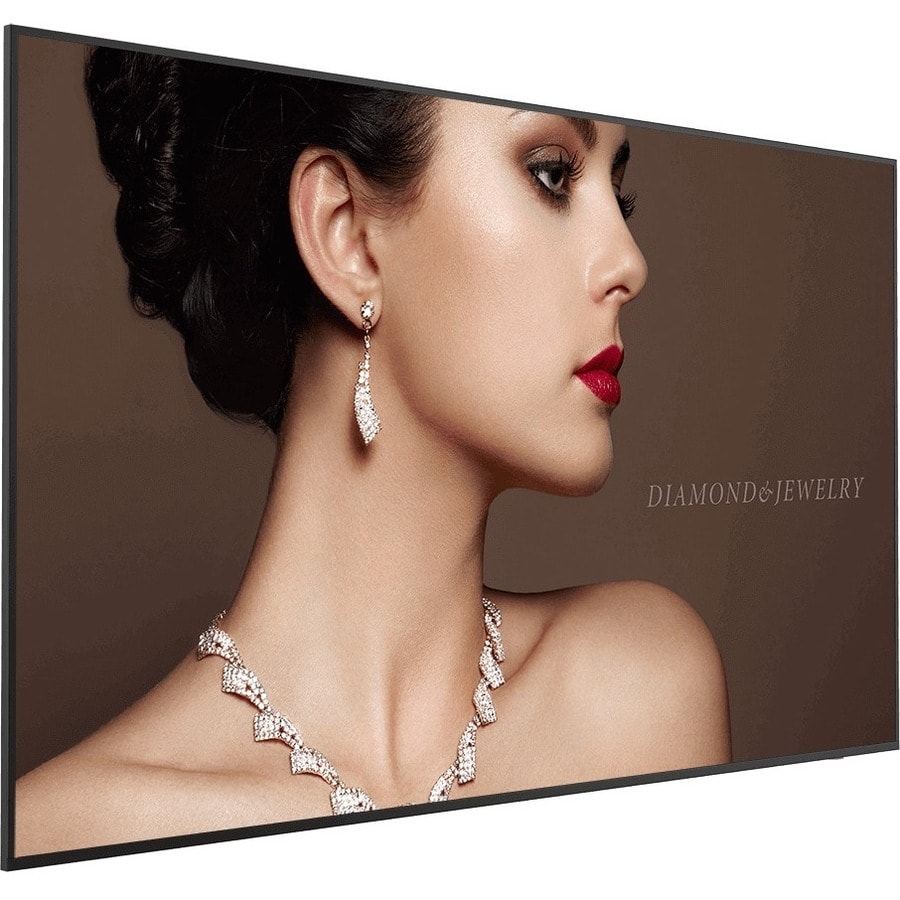

With one of the slimmest bezels on the market, the ST02 is engineered to give users a more expansive canvas to showcase their designs. The 4K UHD resolution (3840 x 2160) provides vivid picture quality by offering four times more detail and workspace than a 1080p Full HD display.

High Brightness Anti-Glare Display

The ST02 provides 450 nits of brightness to display vibrant pictures that are clearly visible even in high brightness environments. The ST02 features an anti-glare screen that ensures optimal readability in any viewing condition. The matte finish on the display reduces reflection, while enhancing visibility for both indoor and outdoor use.

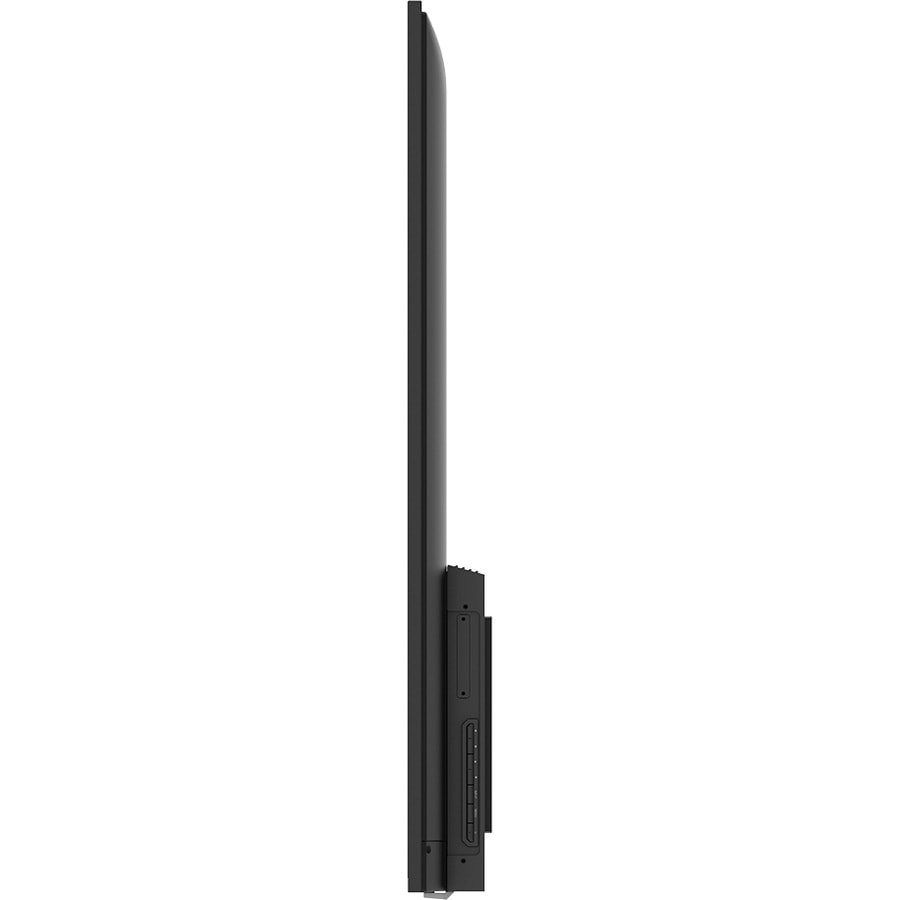

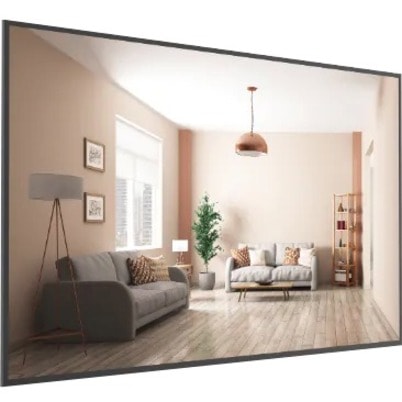

Slim & Lightweight

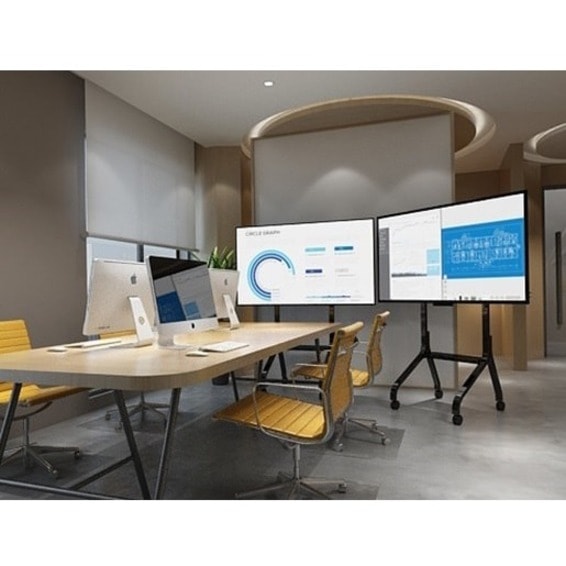

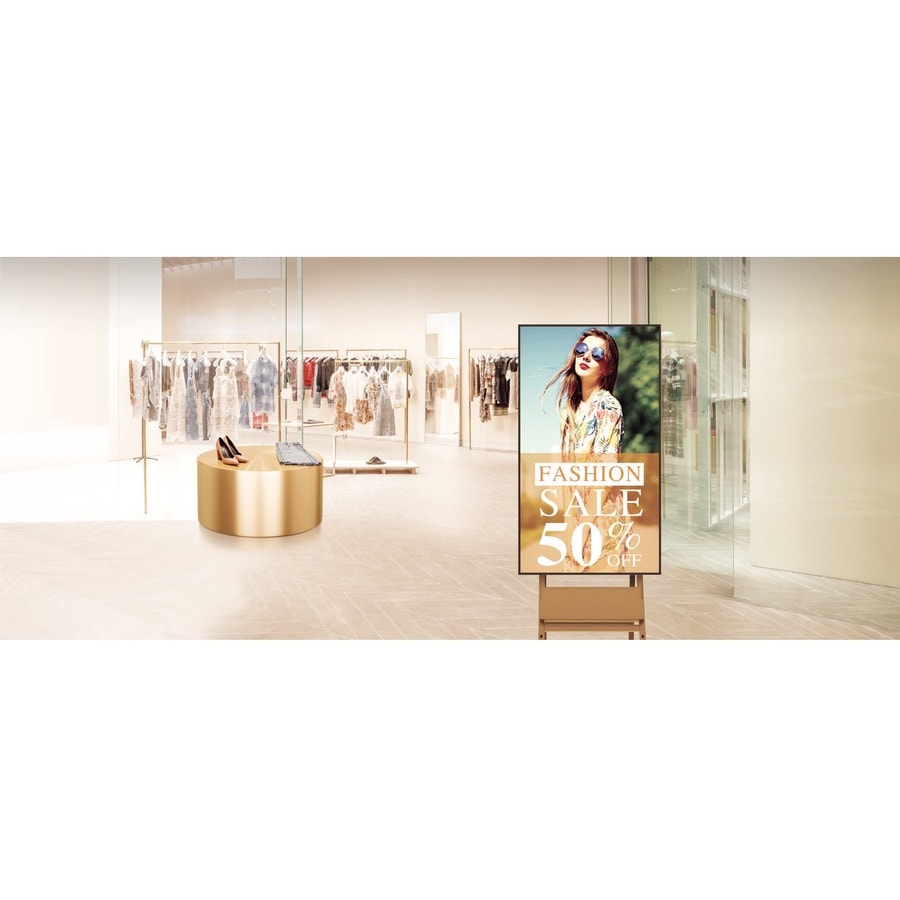

The thin and lightweight design fits any in-store environment. It makes the smart signage ideal as a mounted or portable retail display.

Simple, Effortless Setup | Built-In Android™ OS

The smart signage comes with its own Android OS, eliminating the need for an external processing device or player to access and display content.

Plug and Play

USB plug-and-play lets you access and play multimedia files directly from a USB flash drive without requiring a PC connection or complicated setups.

Quick Setup with BenQ Launcher

The BenQ Launcher running on the Android OS aggregates all device and connection settings and tools into one place for ease of use.

Wireless Presentation

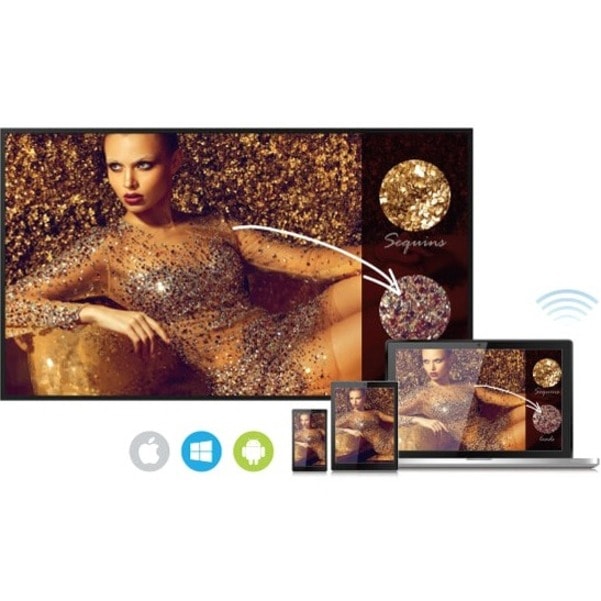

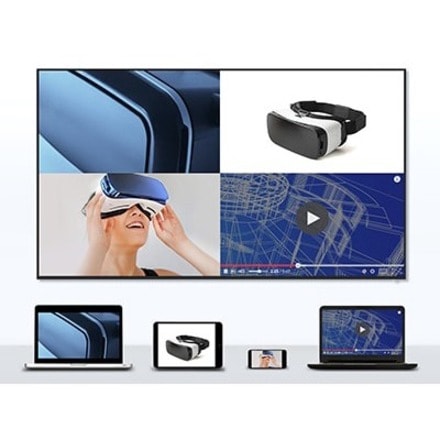

The smart signage supports InstaShare, a simple presentation and collaboration solution that allows designers to wirelessly display content.

X-Sign 2.0: Easy Content Design & Delivery | X-Sign

X-Sign, BenQ's content management software, facilitates effortless content creation, management, and delivery. Designers can either publish original material or use one of X-Sign's templates to quickly create eye-catching visuals.

Instant Price and Inventory Updates

Updating prices and other variable content is easy. Operators just need to modify a centralized CSV file in the cloud and push the update to one or more displays.

Real-Time Messages

X-Sign pushes real-time messages to displays for important live announcements and promotions. Operators can set which displays receive each message.

QR Code Interaction & Analysis

X-Sign's built-in QR code generator allows customers to scan codes on the display to receive additional promotional information. Operators can save QR code interactions for consumer behavioral analysis.

Broadcast YouTube Live Streaming across Multiple Displays

With X-Sign, operators can livestream YouTube broadcasts of product launches and events on displays in real time, making it ideal for remote promotions.

Hassle-Free Management | Device Management

Remotely control all your displays through the BenQ Device Management Solution (DMS). The centralized management console lowers both management cost and energy consumption.

App Management

Eliminate the need for repetitive manual installation and configuration. Using DMS Cloud, you can install and manage Android apps on multiple BenQ displays in one go.

Over-the-Air Updates

Receive over-the-air (OTA) updates so that your displays are always equipped with the latest features and security patches.

DETAILS

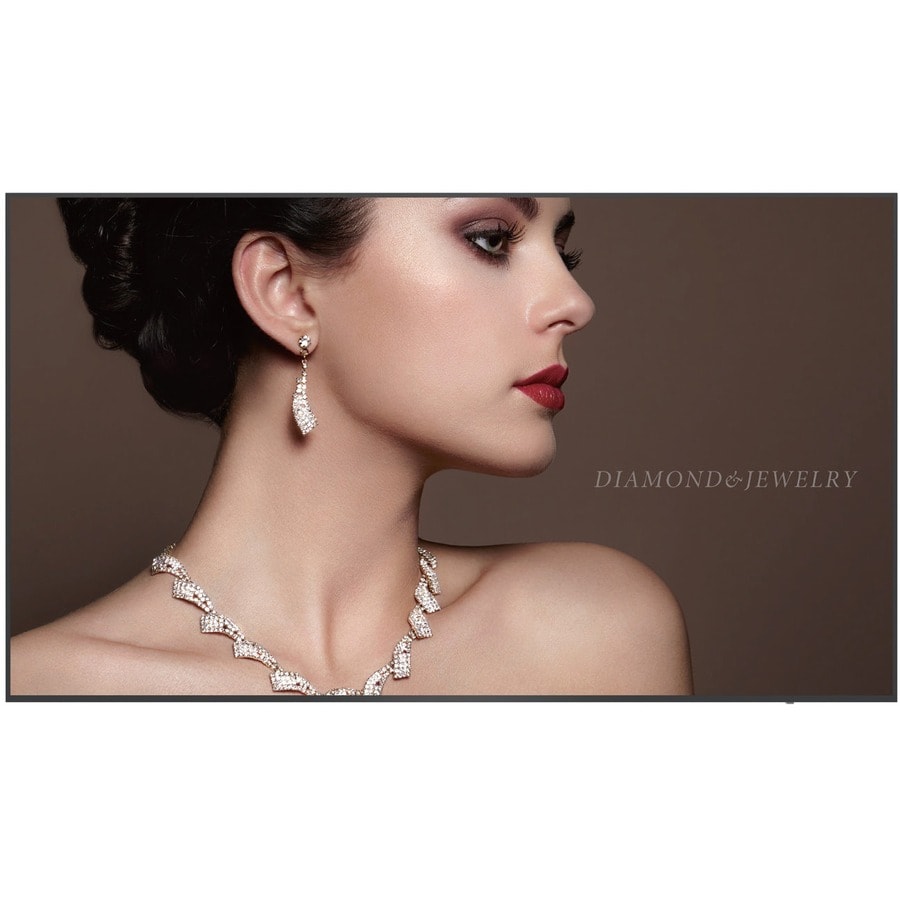

• Bezel Width (Top) : 0.35" (8.80 mm)
• Bezel Width (Bottom) : 0.50" (12.80 mm)
• Bezel Width (Left) : 0.35" (8.80 mm)
• Bezel Width (Right) : 0.35" (8.80 mm)
• Standard Memory : 3 GB
• Viewable Screen Size : 65" (1651 mm)
• Display Screen Type : LCD
• Display Resolution : 3840 x 2160
• Backlight Technology : Direct LED
• Scan Format : 2160p
• Brightness : 450 cd/m²
• Ethernet : Yes
• Wireless LAN : No
• USB : Yes
• HDMI : Yes
• DisplayPort : Yes
• Serial : Yes
• Number of USB 2.0 Ports : 2
• Number of USB 3.0 Ports : 1
• Number of HDMI Inputs : 2
• Number of HDMI Outputs : 1
• Operating System : Android 8.0 Oreo

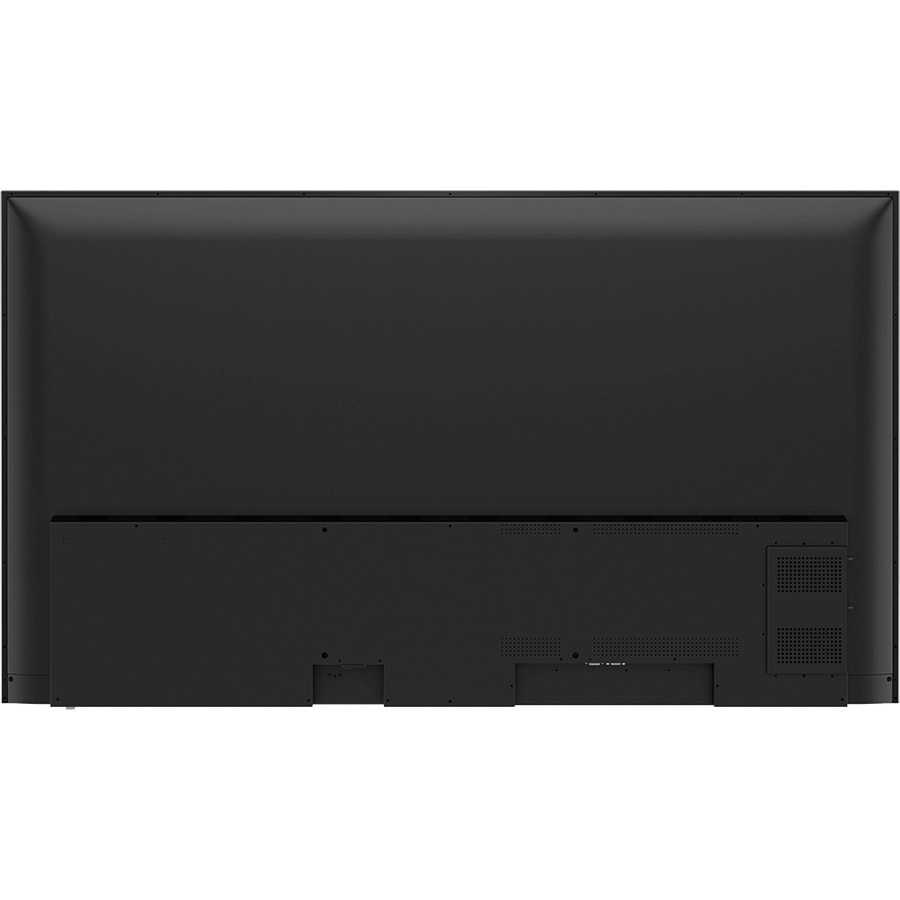

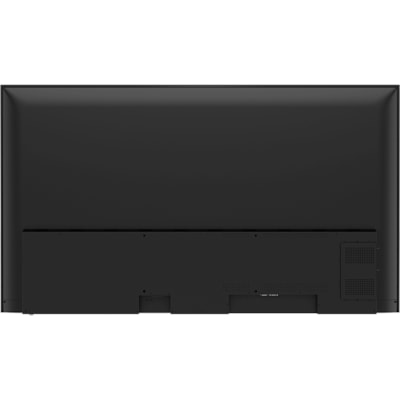

• VESA Mount Standard : 400 x 200
• Mount Type : Wall Mountable
• Height : 32.60" (828.10 mm)
• Width : 57.11" (1450.60 mm)
• Depth : 3.09" (78.50 mm)
• Weight (Approximate) : 50.49 lb (22900 g)
• Country of Origin : China

• Digital Signage Display - Ideal for rack, passageway, booth or display counter
• Experience luminescent visual images with LCD display
• 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
• Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
• Direct LED lighting offers a brighter picture result
