Tripp Lite series SmartOnline SUINT1000LCD2UN 1000VA Rack-mountable UPS - 2U Rack-mountable - 4.10 Hour Recharge - 4.70 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Pure Sine Wave - Serial Port - 6 x IEC 60320 C13 Receptacle(s) - SNMP/HT

SUINT1000LCD2UN
Also known as IM491PPN,SY6555332

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss

This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 900W capacity, high 0.9 power factor, 627 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline® SUINT1000LCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.

Set Power Strategies to Reflect Your Protection Priorities

Pick your power strategy, from precise power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are good and enhanced power quality when power conditions are poor.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely

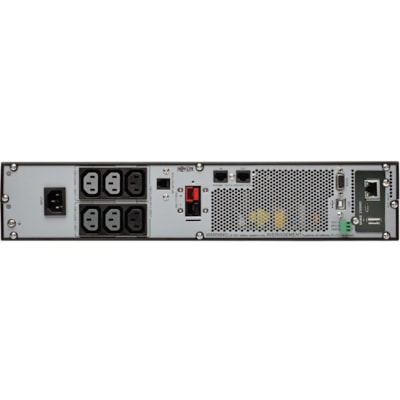

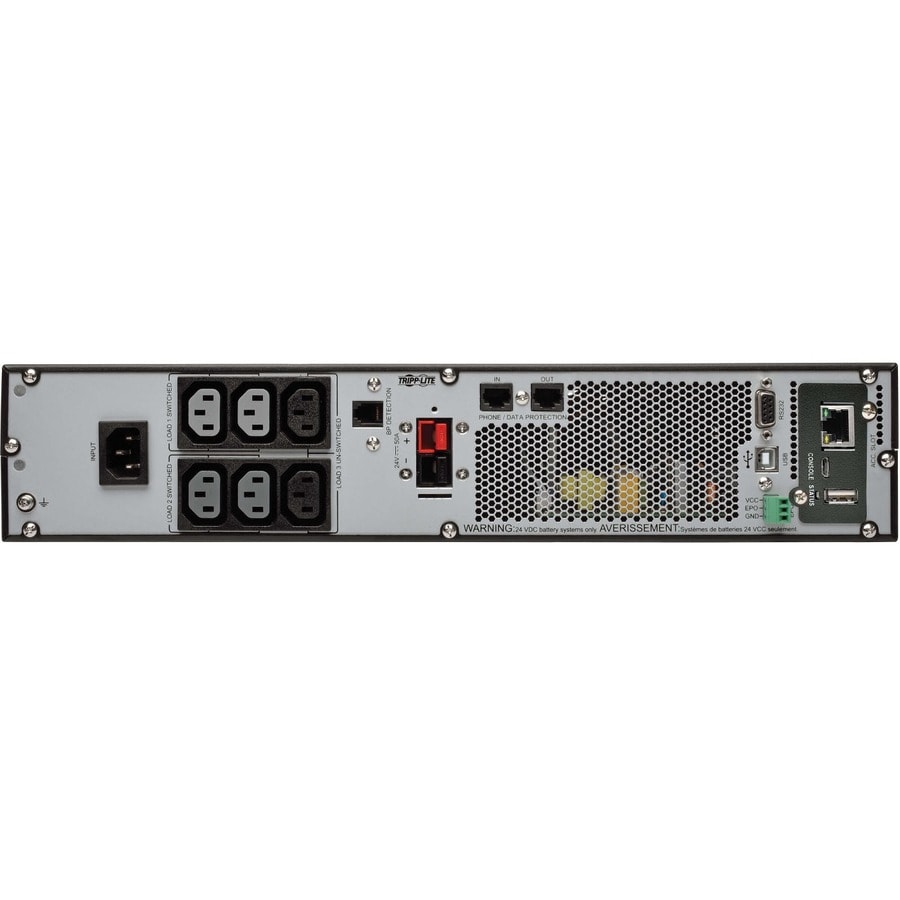

Four C13 outlets are split evenly into two switchable load banks, allowing you to reboot select components or shed loads remotely. In addition to those four outlets, this UPS provides two more C13 outlets in their own unswitched bank for powering critical components.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery (RBC24S) provides 12.3 minutes of support at half load (450W) and 4.7 minutes at full load (900W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports "smart" external battery packs, such as Tripp Lite's BP24V36-2US (sold separately). Both the internal and external batteries are automatically sensed and configured during replacement to offer accurate runtime-remaining and battery age notifications during outages. The intelligent battery management system with temperature-compensated charging extends battery life.

Automatic Bypass Maintains Utility Output During Fault Conditions

Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault conditions.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment

By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Automatically Turns Back On After Power Is Restored

Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.

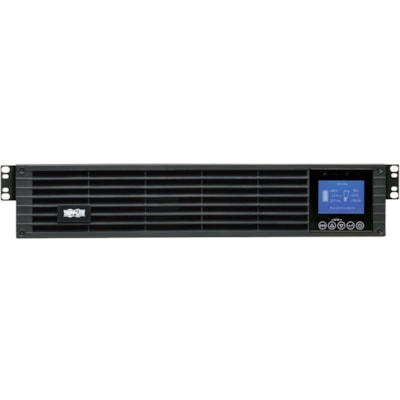

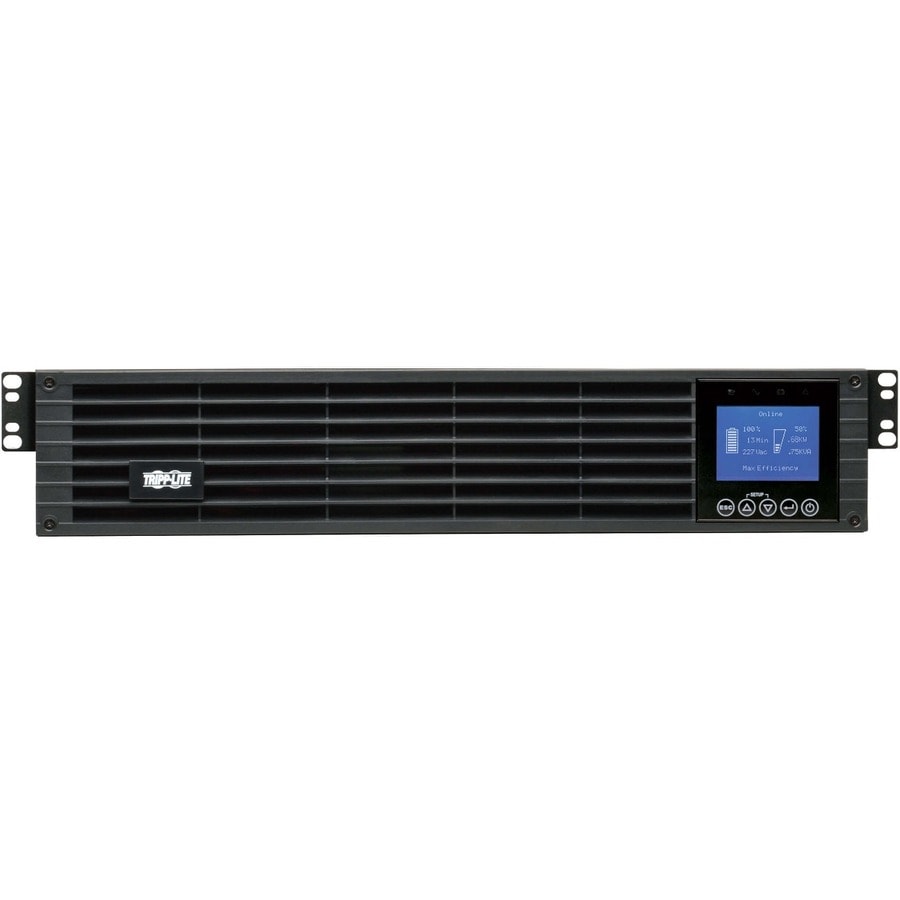

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

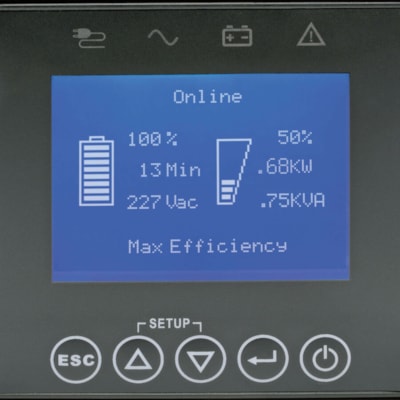

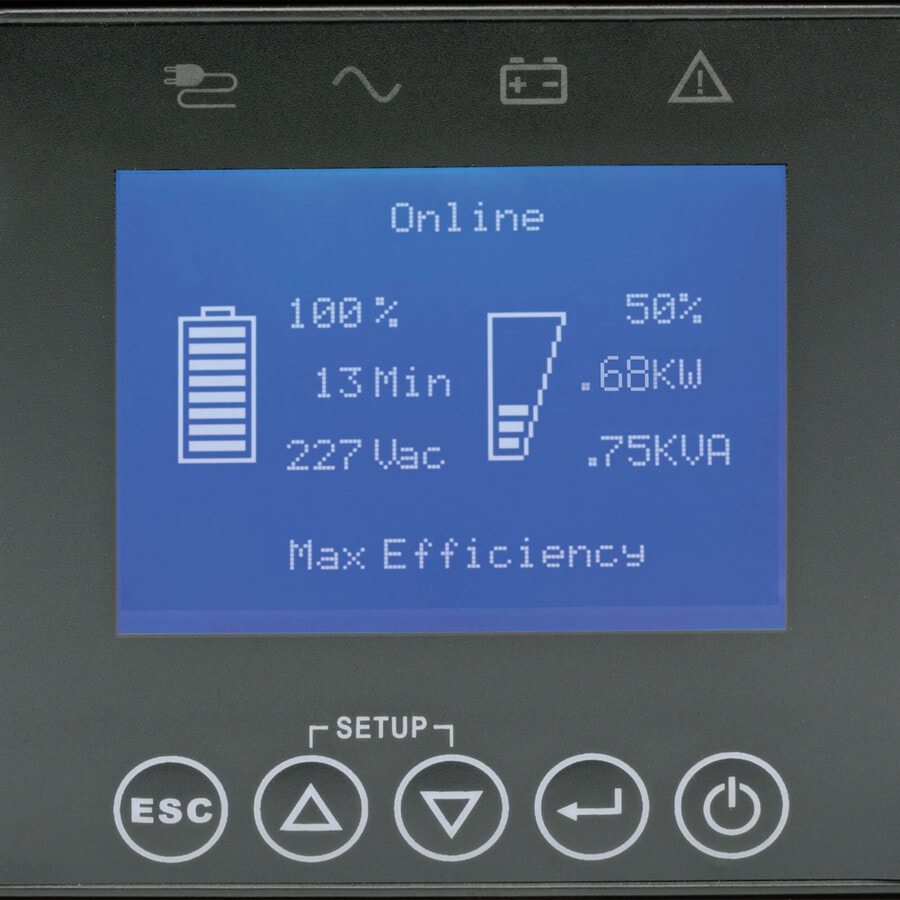

The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information, as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure.

DETAILS

  • Plug/Connector Type : IEC 60320 C14
  • Receptacle Type : IEC 60320 C13
  • Receptacle Detail : 6 x IEC 60320 C13
  • Dataline Protection : RJ-11,RJ-45
  • Overload Protection : Yes
  • Transfer Time : 0 ns
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Green Energy-Saving
  • Application/Usage : Mission Critical Equipment,Data Center,Computer Room,Network Closet,Server
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 900 W
  • Input Voltage : 230 V AC
  • Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
  • Input Frequency : 50 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 627 J
  • Network Management : SNMP/HTTP Remote Monitoring
  • Alarm : Power Failure,Low Battery,Overload,Fault
  • Serial Port : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • DC System Voltage : 24 V DC
  • Backup/Run Time (Full Load) : 4.70 Minute
  • Backup/Run Time (Half Load) : 12.30 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.10 Hour
  • Replaceable Battery : Yes
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Height : 3.46" (88 mm)
  • Width : 17.24" (438 mm)
  • Depth : 15.63" (397 mm)
  • Rack Height : 2U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 28 lb (12700 g)
  • Energy Star : Yes
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Offers network-grade protection against power failures and voltage fluctuations
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Optional external battery packs provide additional runtime for applications requiring it
  • Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
  • ENERGY STAR-certified to save electricity, lower costs, and protect the environment
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SUINT1000LCD2UN
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartOnline
Product Model SUINT1000LCD2UN

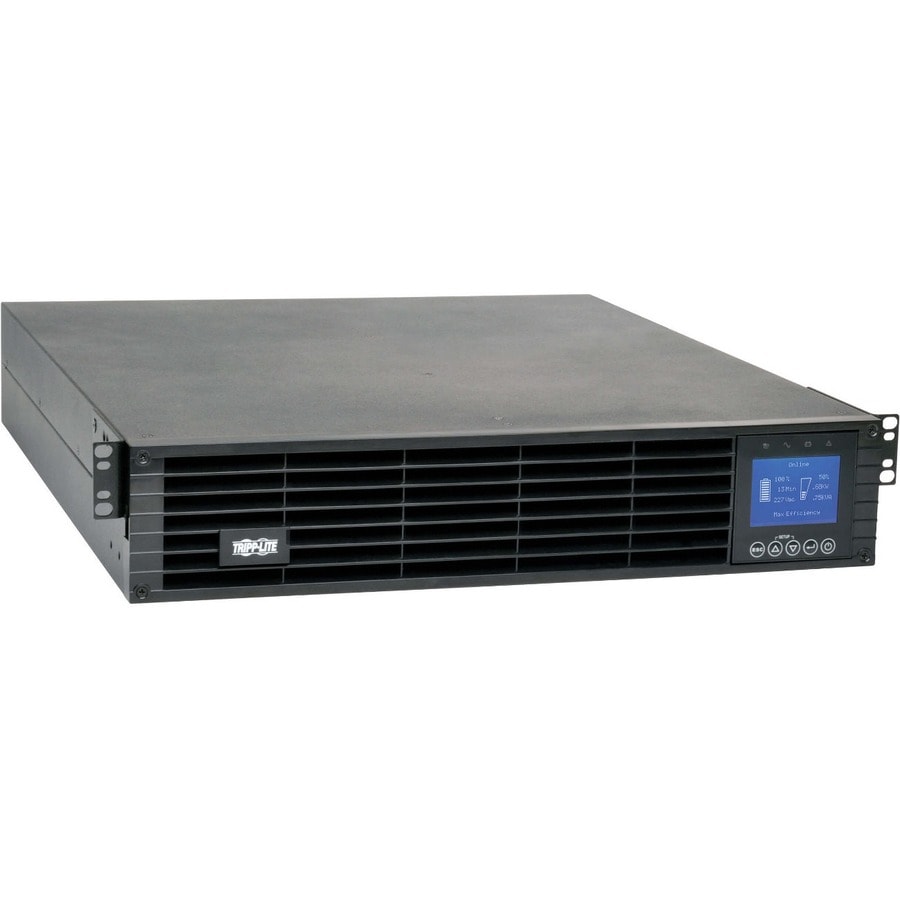

Product Name SmartOnline SUINT1000LCD2UN 1000VA Rack-mountable UPS
Product Type Double Conversion Online UPS
Plug/Connector Type IEC 60320 C14
Receptacle Type IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C13
Dataline Protection RJ-45
Dataline Protection RJ-11
Overload Protection Yes
Transfer Time 0 ns
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Green Energy-Saving
Application/Usage Server
Application/Usage Network Closet
Application/Usage Computer Room
Application/Usage Data Center
Application/Usage Mission Critical Equipment
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 900 W
Input Voltage 230 V AC
Output Voltage 208 V AC
Output Voltage 200 V AC
Output Voltage 230 V AC
Output Voltage 220 V AC
Output Voltage 240 V AC
Input Frequency 50 Hz
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 627 J
Network Management SNMP/HTTP Remote Monitoring
Alarm Fault
Alarm Overload
Alarm Low Battery
Alarm Power Failure
Status Indicators

4 Front Panel LEDs:

  • AC Input (Green)
  • AC Output (Green)
  • Battery (Yellow)
  • Fault (Red)

Front Panel LCD Display:

  • Interactive Front-panel LCD Interface Reports UPS Operating Mode
  • Fetailed UPS Status And Site-Power Information
  • LCD Interface Also Enables A Variety Of Advanced UPS Setup And Configuration Options
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
DC System Voltage 24 V DC
Backup/Run Time (Full Load) 4.70 Minute
Backup/Run Time (Half Load) 12.30 Minute
Typical Battery Recharge Time 4.10 Hour
Hot Swappable Yes
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Height 3.46" (88 mm)
Width 17.24" (438 mm)
Depth 15.63" (397 mm)
Rack Height 2U
Form Factor Rack-mountable
Weight (Approximate) 28 lb (12700 g)

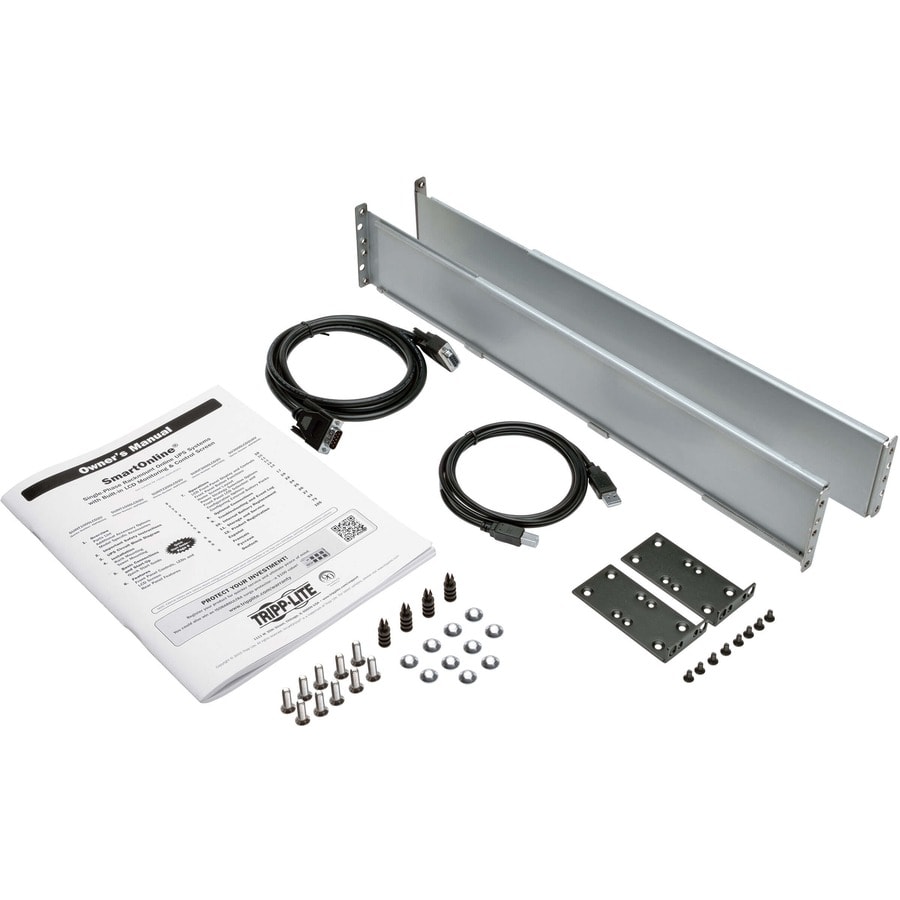

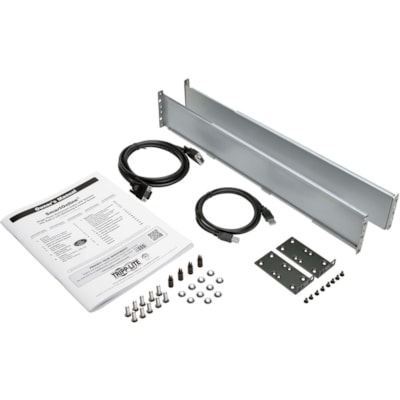

Package Contents
  • SmartOnline SUINT1000LCD2UN 1000VA Rack-mountable UPS
  • WEBCARDLX Network Interface Card
  • USB Cable
  • RS-232 Cable
  • EPO Cable
  • 2 x C13-to-C14 Power Cables
  • 4-post Rack-mounting Hardware
  • Owner's Manual
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
