MARKETING INFORMATION

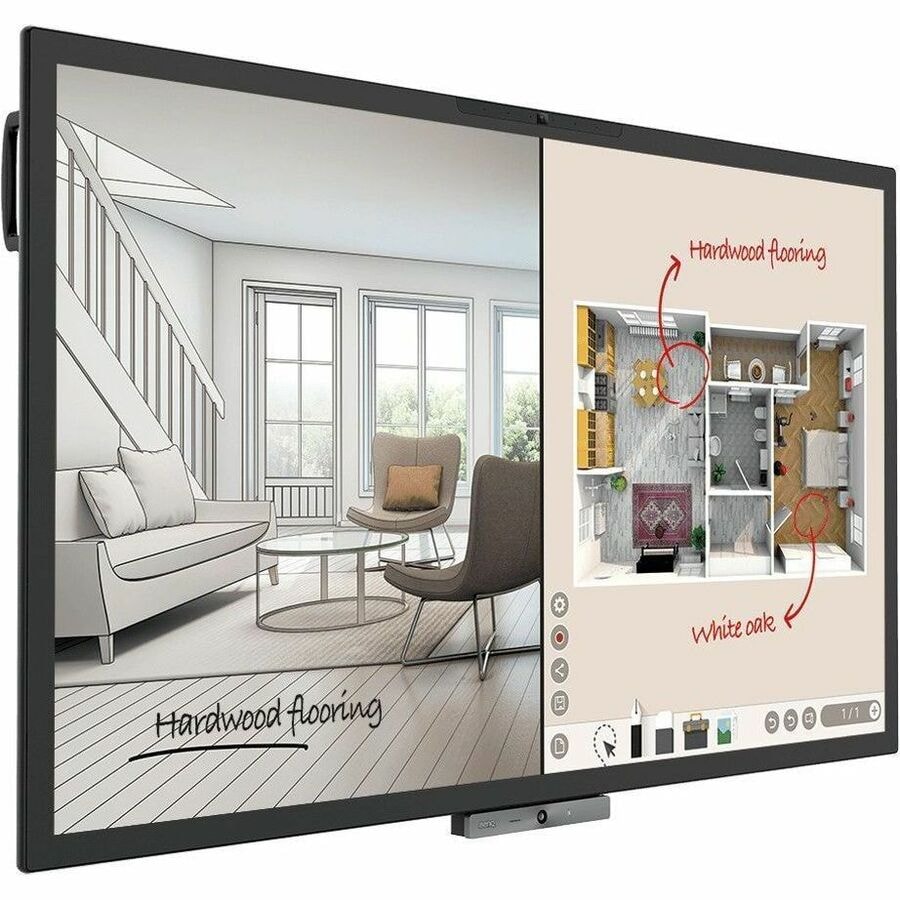

The DuoBoard is a premium corporate display solution designed for hybrid work settings, hands-on collaboration, and engaging meetings.

• Collaborate effectively in hybrid work settings
• Seamlessly start meetings and access your apps
• Multitask using the Duo Windows or Duo OS modes
• Double your workspace with the Duo Boards mode
• Easily load files and personal settings with AMS

Set up Your Meeting by One-Step | Instant Meetings without Wait

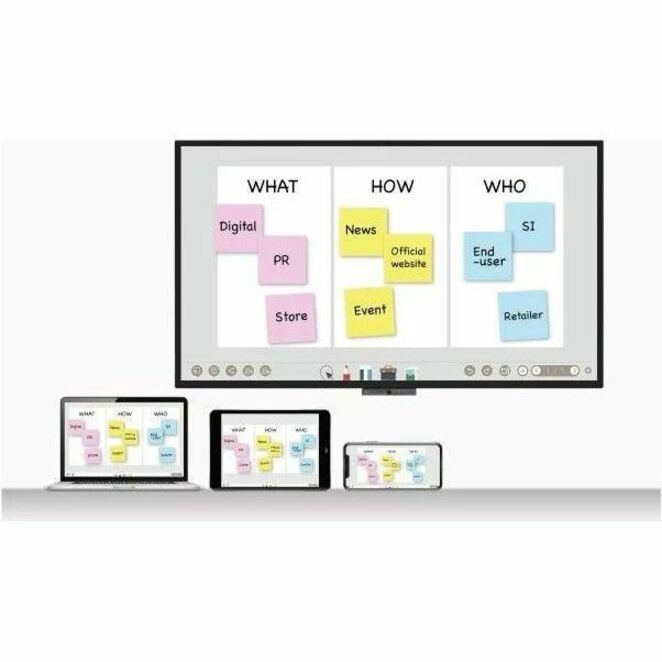

DuoBoard allows users to just bring their own portable devices to start the meeting right away. The built-in camera and array mic also allow for direct video conference without troublesome preparations and cable cluster. By supporting various input sources including OPS, HDMI, VGA, USB flash drive and more, DuoBoard offers an excellent compatibility.

Account Management System for Personalized Workspace

DuoBoard supports multi-account management through NFC technology, which allows users to directly access and manage their personal system-setting, network drive and cloud storage space such as Google drive and Dropbox, by simply scanning BenQ designed NFC cards without having to enter password.

Start Meetings Quickly with BenQ Launcher

DuoBoard makes it easy for users to launch meetings without delay. Created to aggregate all key tools in one hub, BenQ Launcher allows employees to access video input sources or use the EZWrite whiteboard without having to log into their accounts. Additionally, BenQ Launcher comes with a task switcher, letting users switch between recent apps and input signal sources with just a simple touch.

Hassle-free Video Conferencing with Any Solution

With a built-in camera, microphone array, and speakers, the DuoBoard is designed for video conferencing. Pair the display with a slot-in PC to launch video calls with a single click. The DuoBoard comes out of the box with TeamViewer Meeting and is compatible with all leading video conferencing software such as Zoom, Google Meet, and Microsoft Teams.

Collaboration+ Unleashes Infinite Possibilities | Duo Boards

This feature is designed for extending collaboration, fostering teamwork, and stimulating innovation. Combining two DuoBoards together, users can seamlessly double the collaboration space and develop borderless ideas. Users can use the EZwrite to work jointly with their teammates to complete a complicated task. Files saved in individual IFP are also shareable between IFPs. One plus one is definitely more than two.

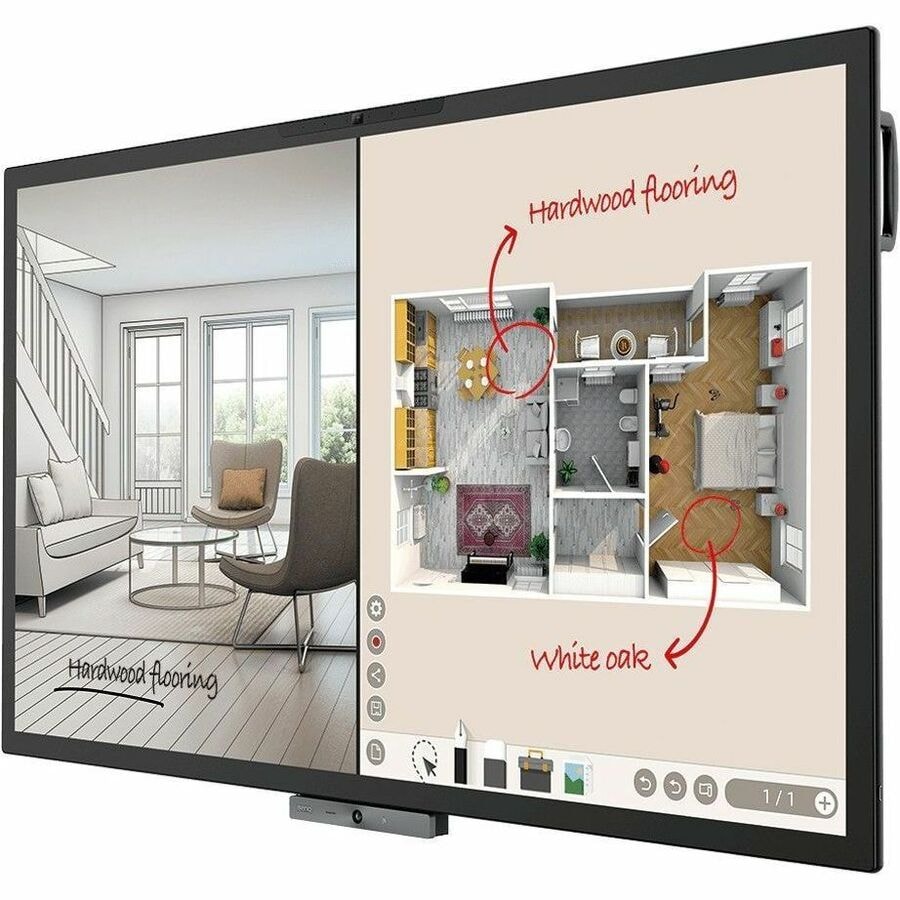

Duo Windows

This feature allows users to work on two tasks at the same time, on a single IFP, doubling efficiency. Users are now able to open two applications simultaneously and complete multi-tasks quicker than ever before. Scenarios include: comparing two documents, writing meeting minutes during a video conference, searching for information while brainstorming, opening an Android app with other input source data, and much more.

Duo OS

Duo OS achieves cross-platform compatibility between Android, iOS, macOS, and Windows OS. Insert the OPS into the DuoBoard to run two different operating systems concurrently. This allows for a quick switch between the Android and OPS applications, even in full screen size.

DETAILS

• Display Screen Type : LCD
• Display Screen Technology : Vertical Alignment (VA)
• Screen Mode : 4K UHD
• Screen Resolution : 3840 x 2160
• Scan Format : 2160p
• Aspect Ratio : 16:9
• Response Time : 8 ms
• Contrast Ratio : 5,000:1,30,000:1
• Brightness : 320 cd/m²
• Graphics Controller Manufacturer : ARM
• Graphics Controller Model : Mali-G51MP4
• Tempered Glass : Yes
• Ambient Light Sensor : Yes
• Touchscreen : Yes
• Multi-touch Screen : Yes
• Number of Touch Points : 20
• Touchscreen Technology : Capacitive
• Processor Manufacturer : ARM
• Processor Type : Cortex A73 + A53
• Standard Memory : 4 GB
• Speakers : Yes
• Number of Speakers : 2
• Microphone : Yes
• Number of Microphone Array Elements : 6
• RMS Output Power : 20 W
• Webcam : Yes
• Ethernet : Yes
• HDMI : Yes
• Total Number of USB Ports : 9
• USB : Yes
• Network (RJ-45) : Yes
• VGA : Yes
• S/PDIF Out : Yes
• Operating System Platform : Android
• Operating System : Android 8.0 Oreo
• Software Included :
  • EZWrite 5.0
  • InstaShare 2
  • X-Sign Broadcast
• Input Voltage : 120 V AC,230 V AC
• Power Consumption : 300 W
• Color Family : Black
• Product Color : Black

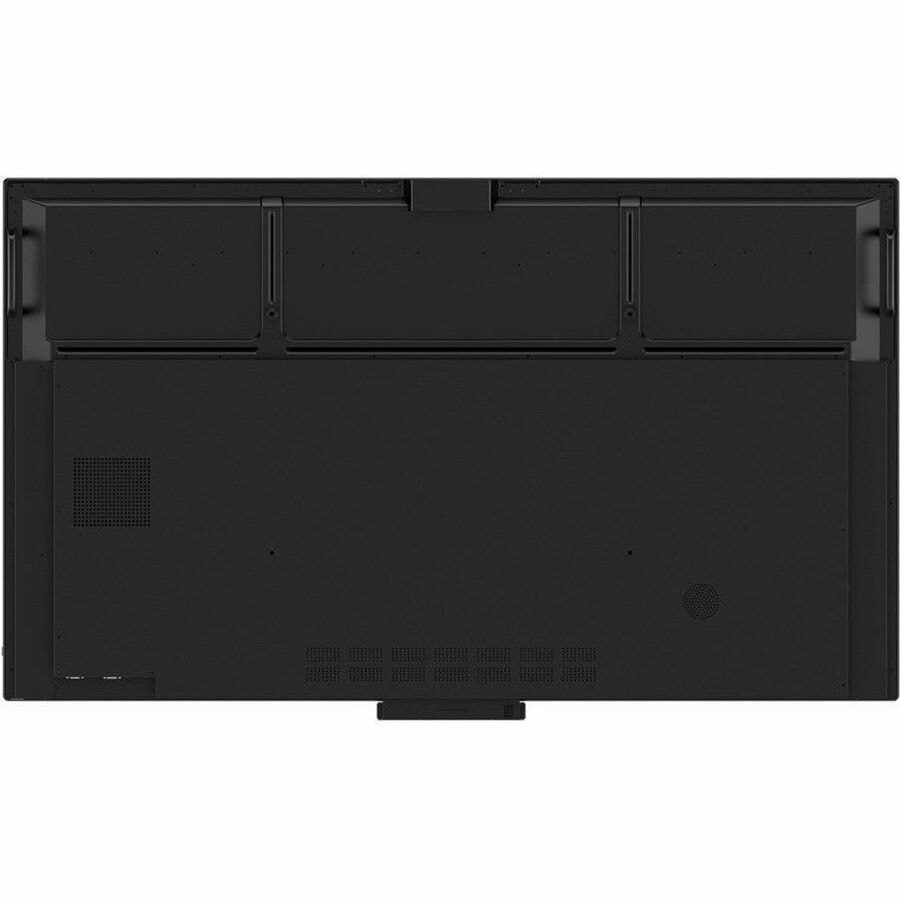

• VESA Mount Compatible : Yes
• VESA Mount Standard : 600 x 400
• Height : 35.79" (909 mm)
• Width : 59.17" (1503 mm)
• Depth : 3.35" (85 mm)
• Weight (Approximate) : 95.24 lb (43200 g)
• Limited Warranty : 3 Year
