MARKETING INFORMATION

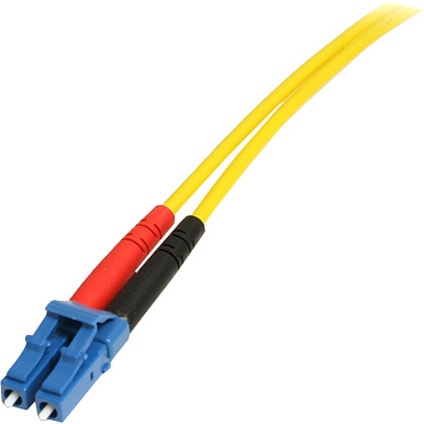

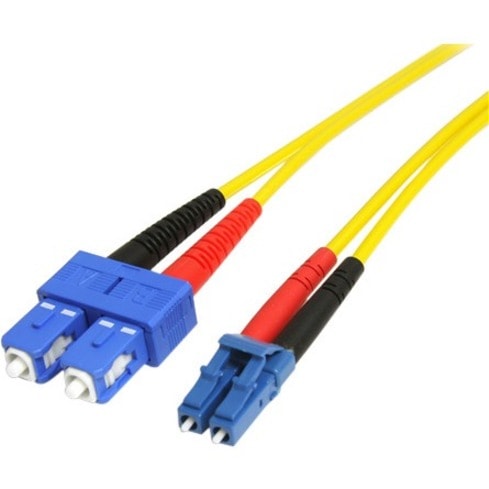

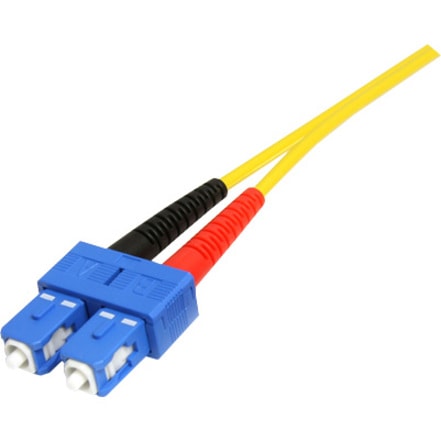

Connect fiber network devices for high-speed transfers with LSZH rated cable. The SMFIBLCSC7 7m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

More from the Manufacturer

DETAILS

• Cable Type : Fiber Optic
• Cable Characteristic : Patch Cable
• Fiber Optic Mode : Single-mode
• Fiber Optic Cable Core/Cladding Specification : 9/125 µm
• Cable Length : 23 ft (7 m)
• Connector Type on First End : LC Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 2 x LC Network - Male
• Connector Type on Second End : SC Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 2 x SC Network - Male
• Jacket Type : LSZH
• Device Supported : Network Device
• Features : Flame Retardant,Corrosion Resistant
• Color Family : Yellow
• Product Color : Yellow
• Weight (Approximate) : 3.50 oz (99.22 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : Lifetime

• This Network Cable provides splendid performance and clear connectivity
• Features Fiber Optic cable type
• Features Flame Retardant
• Fully compatible with network devices
