1.5kVA/1.2kW/120V Battery Backup for Applications in Low- and High-Temperature Extremes

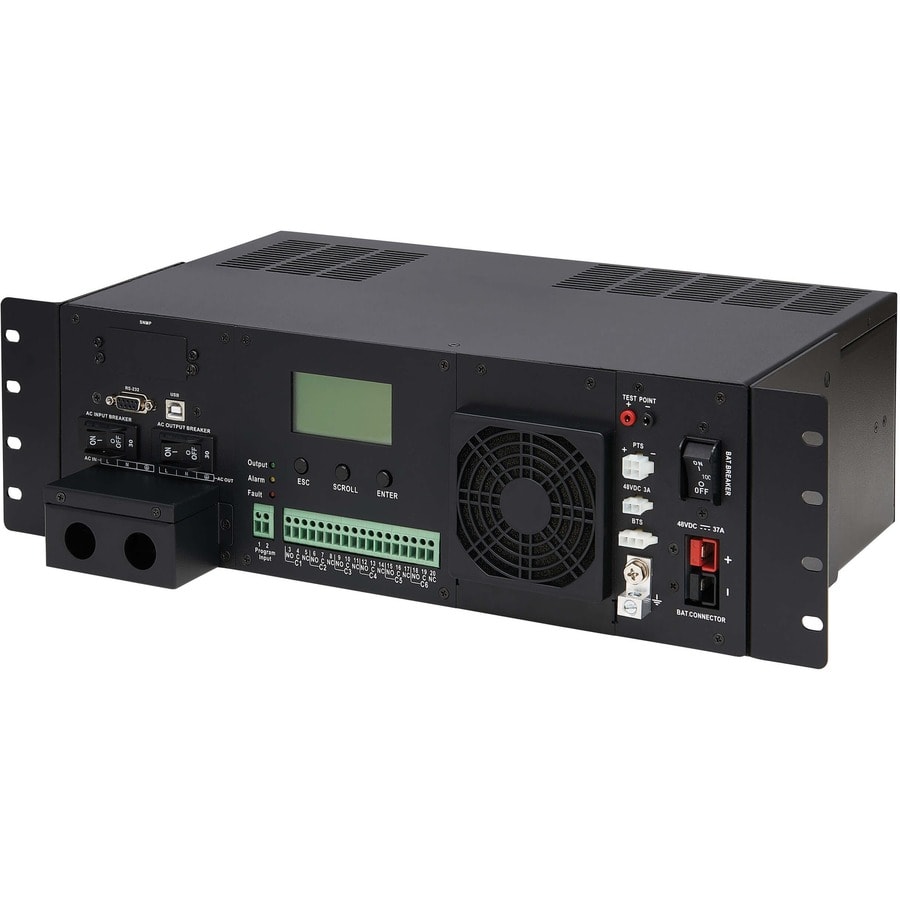

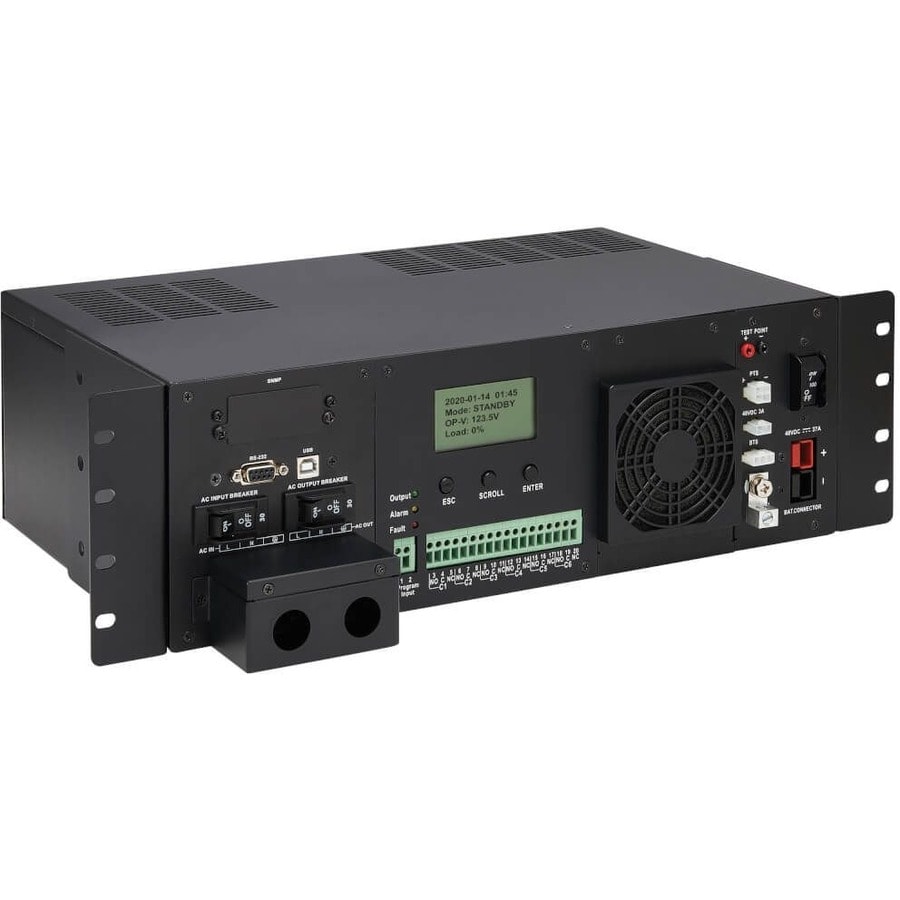

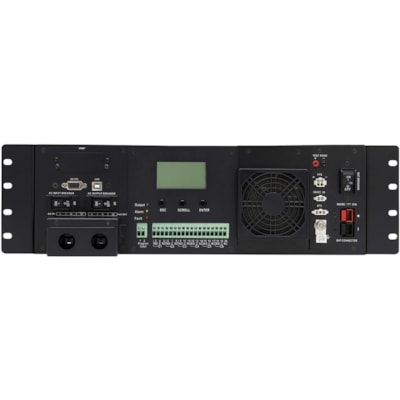

This SmartPro® line-interactive SMART1548ET UPS system with hardwire AC input/output offers a wide operating temperature range and provides constant and reliable backup power to critical equipment in harsh environments, including outdoor and industrial equipment. It prevents surges, spikes, overvoltage, undervoltage and blackouts from damaging equipment, destroying data and contributing to costly downtime.

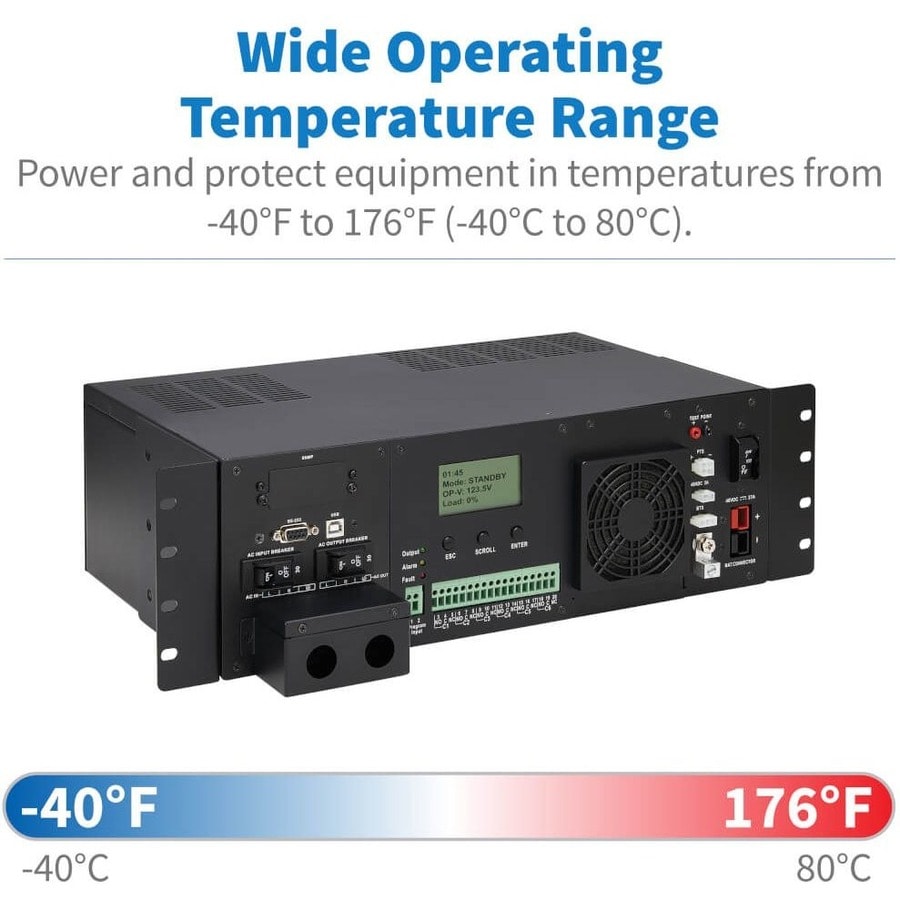

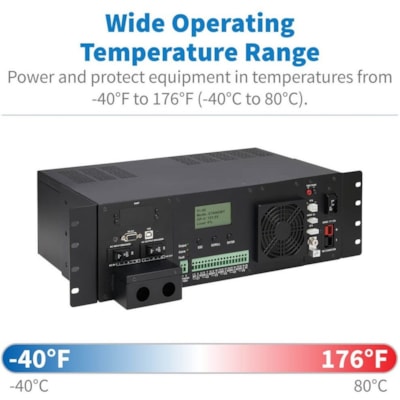

Ideal for Running Networking, Security or Traffic Equipment in -40°C to 80°C Temperatures

The SMART1548ET is ideal protection for a wide variety of industry-specific IT, communications, edge computing, security, surveillance, traffic signage and traffic camera equipment in remote locations where temperatures are typically within -40°C and 55°C (for max output), -40°C and 75°C (for up to 1200W output) or -40°C and 80°C (for up to 1000W output). Internal circuitry is covered with a conformal coating that protects against extreme temperatures. Applications range from oil fields, offshore oil rigs and other industrial locations to remote security and military applications to traffic-related setups involving signals and cameras.

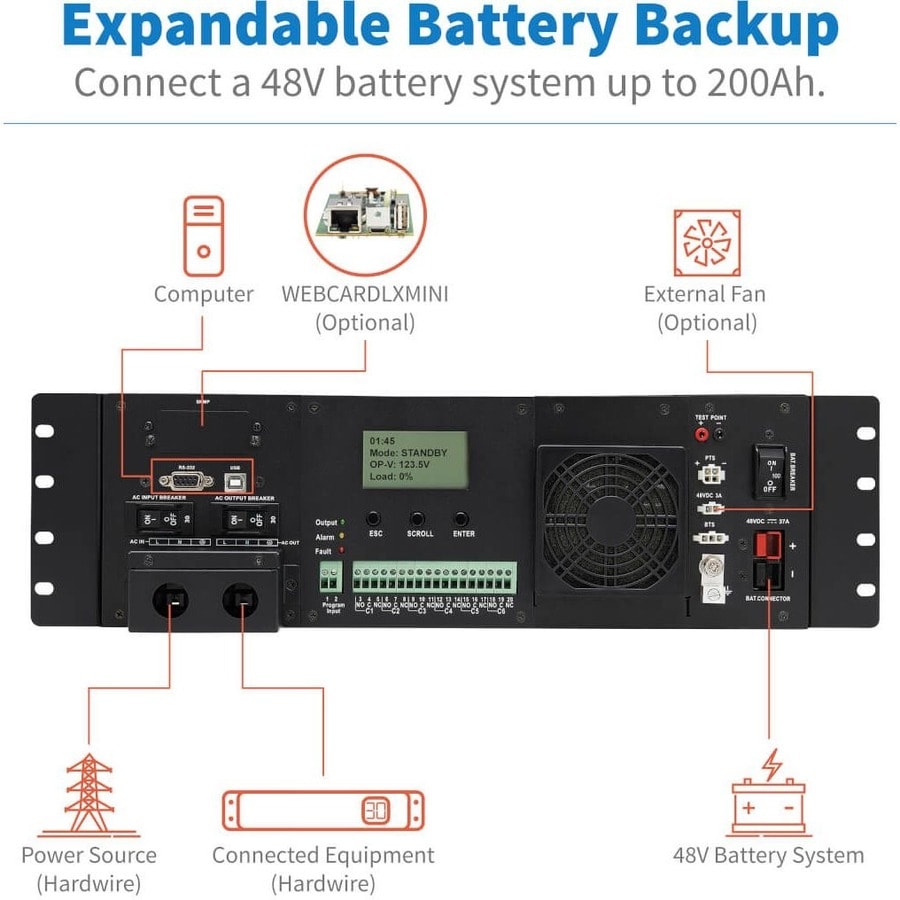

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

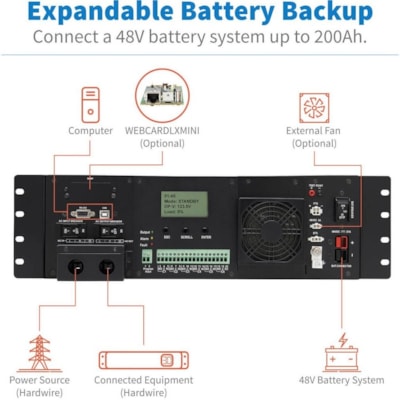

Backup support allows you to safely maintain the operation of critical traffic/industrial equipment and other applications requiring reliable extended UPS runtime in demanding environments. A battery connector kit with wireable contact pins lets you connect your own 48V battery banks up to 200Ah (batteries and cables not included). A temperature sensor monitors the battery terminals and customizes charging to optimum levels to extend the lifespan of the connected batteries.

Optional WEBCARDLXMINI Network Interface Offers 24/7 Remote Access for Monitoring and Control

The Java-free HTML5-based WEBCARDLXMINI (sold separately) enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLXMINI allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices. Note: WEBCARDLXMINI has a temperature range of 0°C to 70°C, as measured inside the UPS housing.

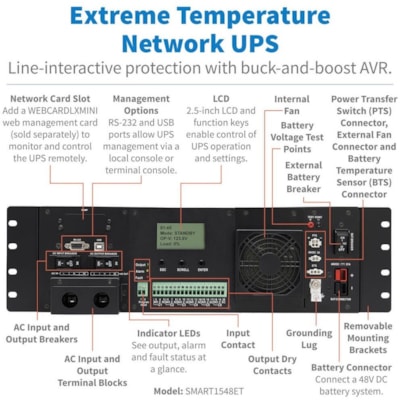

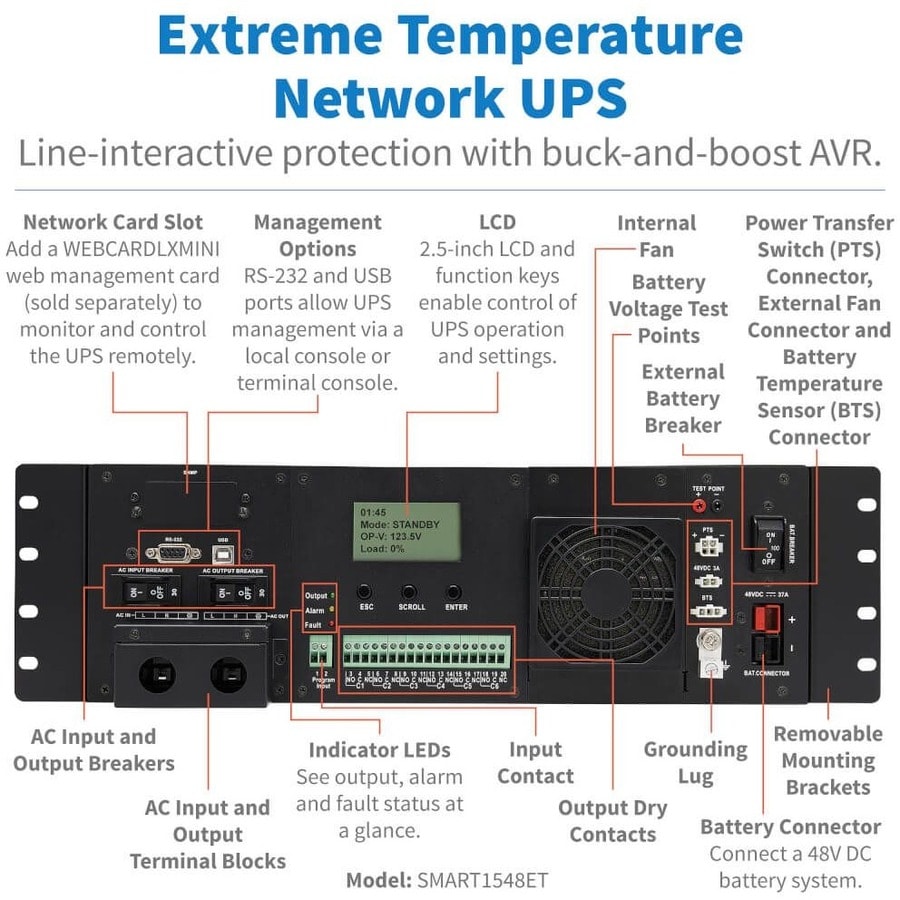

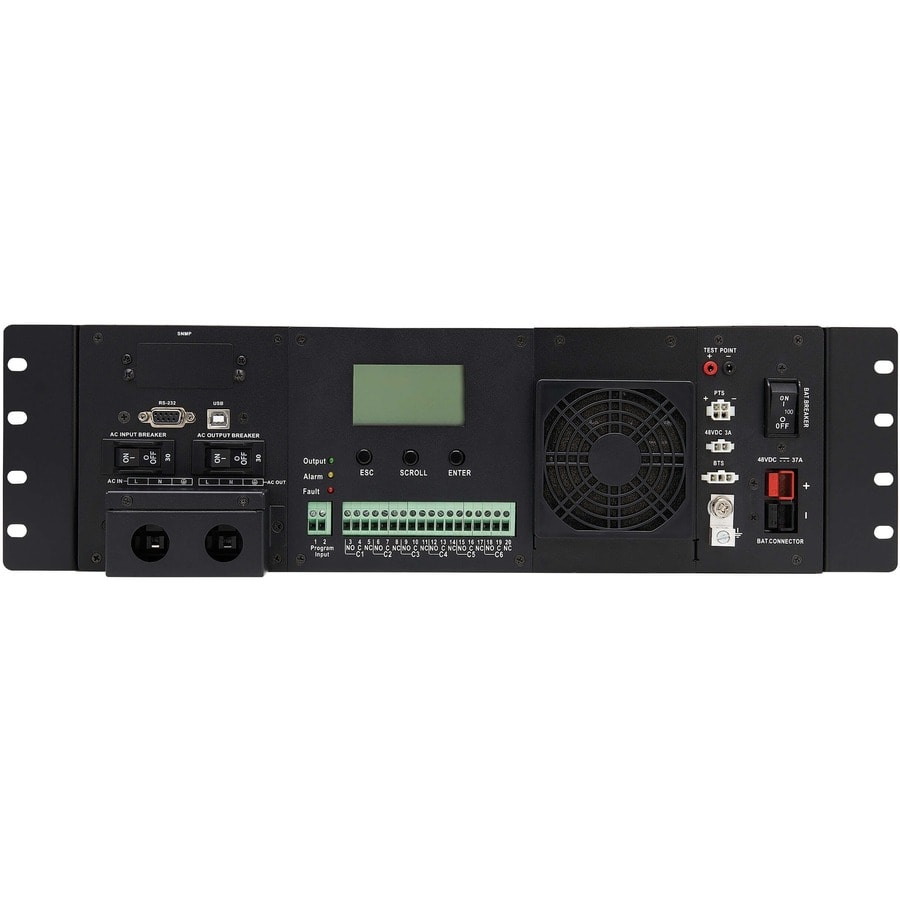

Built-in Input/Output Dry Contacts and 48V DC Temperature-Controlled Fan Power Outlet

Six sets of output dry contacts support Normally Open (NO) or Normally Closed (NC) signaling of user-configurable UPS conditions, such as On Battery, Low Battery or UPS Fault to other integrated devices. One set of input dry contacts supports the connection of one user-supplied contact-closure sensor for remote notification via WEBCARDLXMINI and local notification via front-panel LCD. A temperature-controlled 48V DC output power jack supports optional user-supplied fan installation to control over-temperature conditions in equipment enclosures.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1548ET can correct brownouts as low as 88V and overvoltages as high as 152V with user-configurable buck-and-boost settings, all while keeping the battery fully charged and ready to take over in case of power failure.

DETAILS

• AVR : Yes
• Plug/Connector Type : Hardwired
• Receptacle Type : Hardwired
• Overload Protection : Yes
• Transfer Time : 10 ms
• EMI/RFI Noise Filter : Yes
• Phase : Single Phase
• Application/Usage : Industry,Military,Network Equipment,Telecommunication,Security System,Network Closet,Mission Critical Equipment,Outdoor,Communication System,Edge Computing,Surveillance System,IT Equipment,Traffic Signage,Traffic Camera
• Load Capacity (VA) : 1.50 kVA
• Load Capacity (Watt) : 1.20 kW
• Input Voltage : 120 V AC
• Output Voltage : 120 V AC
• Output Frequency : 60 Hz
• Waveform Type : Pure Sine Wave
• Surge Energy Rating : 474 J
• Network Management : SNMP/Telnet/SSH
• Alarm : Battery Mode,Low Battery,Overload,UPS Fault
• Serial Port : Yes
• USB (HID Compliant) Port : Yes
• DC System Voltage : 48 V DC
• Environmental Sensors : Temperature Sensor,Contact Closure Sensor
• Maximum Operating Elevation : 3300 ft (1005840 mm)
• Storage Temperature : -40°F (-40°C) - 176°F (80°C)
• Maximum Operating Temperature : 176°F (80°C)
• Sound Emission : 52 dB
• Thermal Dissipation : 266 BTU/h

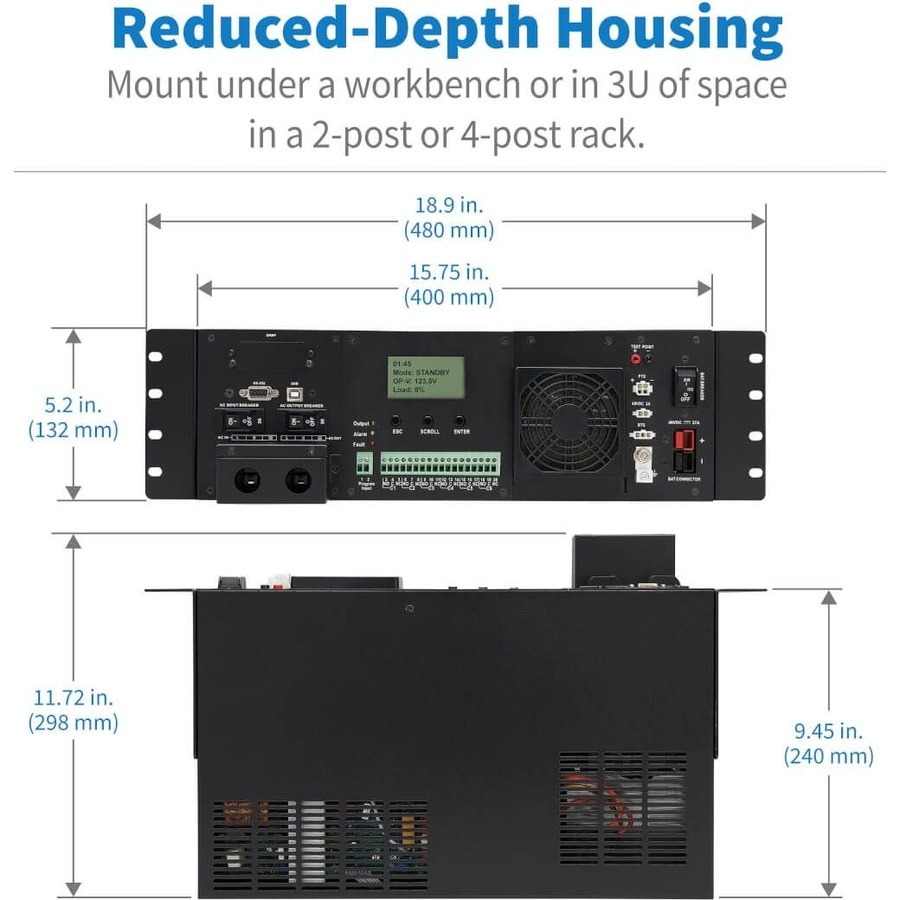

• Height : 5.24" (133 mm)
• Width : 15.75" (400 mm)
• Depth : 9.45" (240 mm)
• Rack Height : 3U
• Form Factor : Rack-mountable
• Weight (Approximate) : 32.41 lb (14700 g)
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• Recommended for remote locations where temperatures range within -40°C and 80°C
• Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
• Keeps power running during blackouts to allow time for safe system shutdown
• Maintains continuous 120V nominal output during brownouts and overvoltages
• Optional WEBCARDLXMINI network interface supports Auto Probe feature
• 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.a
• $250,000 Ultimate Lifetime Insurance
