MARKETING INFORMATION

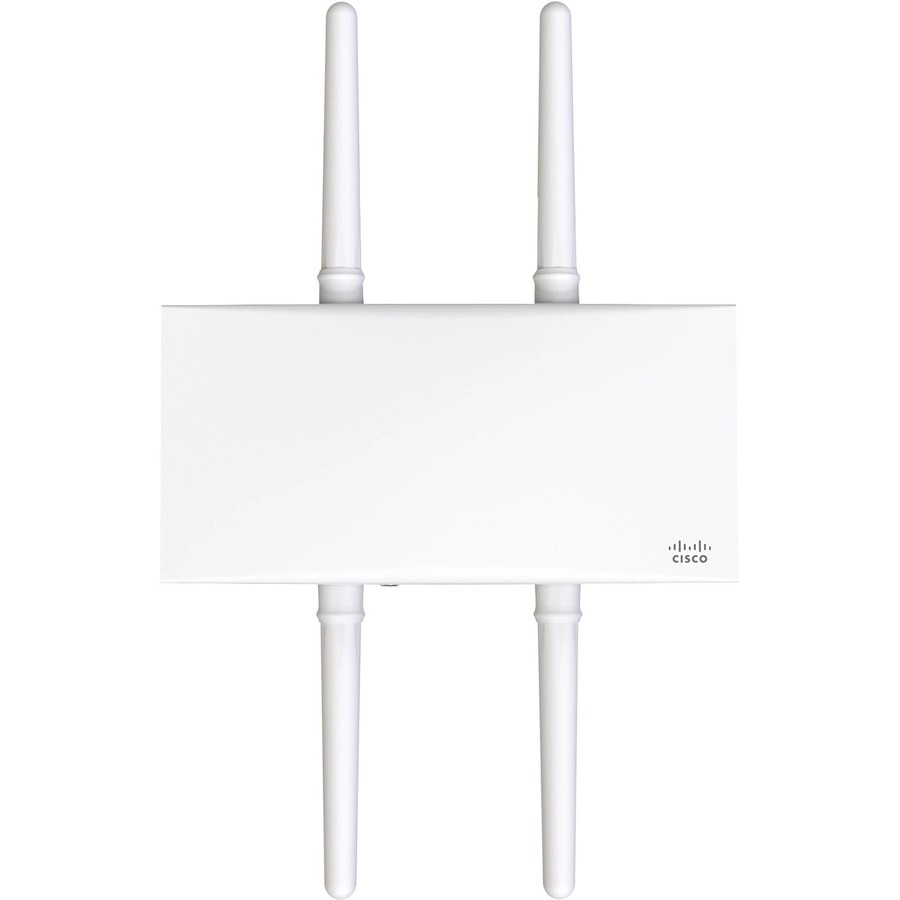

The Meraki MR series is the world's first enterprise-grade line of cloud-managed WLAN access points. Designed for challenging enterprise environments, the MR access points use advanced WiFi 6 technologies including MU-MIMO, OFDMA, beam forming and channel bonding to deliver the throughput and reliable coverage required by demanding business applications.

Centralized cloud management

The award-winning Cisco Meraki cloud management architecture provides powerful and intuitive centralized management, while eliminating the cost and complexity of traditional on-site wireless controllers. Seamlessly manage campus-wide Wi-Fi deployments and distributed multi-site networks with zero-touch access point provisioning, network-wide visibility and control, cloud-based RF optimization, seamless firmware updates and more. With an intuitive browser-based user interface, Meraki WLAN configures in minutes without training or dedicated staff. Adding new sites to a network takes minutes, not hours or days, and there's no need to train additional staff to monitor or manage the remote networks. Meraki devices self-provision, enabling large campus and multisite deployments without on-site IT.

Class-leading enterprise features

The MR series comes equipped with industry-leading features that make them ideal for demanding enterprise deployments:

• Self-configuring, plug-and-play deployment
• 802.11ax MU-MIMO with up to eight spatial streams, built for voice and video
• Integrated enterprise security and guest access
• Dedicated radio for security and RF optimization with integrated spectrum analysis (indoor models)
• Integrated intrusion detection and prevention system (WIDS/WIPS)
• Self-learning application-aware traffic analytics engine
• Flexible group policy engine for creating and applying application-aware policies by network, device-type, and end-user
• Integrated Bluetooth IoT radio
• Self-healing, zero-configuration mesh
• Role-based administration and automatic, scheduled firmware upgrades delivered over the web
• E-mail and text message alerts upon power loss, downtime, or configuration changes

Rapid deployment and scalability

Built from the ground up, for multi-site networks, Meraki access points have revolutionized distributed branch wireless networking. Zero-touch deployments, multi-site visibility and control, and automated alerts make deploying, securing, and centrally managing branch networks a breeze.

DETAILS

• Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
• Network Band : Dual Band
• Frequency Band : 2.40 GHz,5 GHz
• Total Number of Antennas : 4
• Number of External Antennas : 4
• Indoor/Outdoor : Outdoor
• Wireless Transmission Speed : 3.50 Gbit/s
• MIMO Technology : Yes
• Beamforming Technology : Yes
• Data Encryption : Yes
• Encryption Standard : WPA,WPA2-ENT,WPA2-PSK
• Ingress Protection (IP) Rating : IP67
• Ethernet Technology : 2.5 Gigabit Ethernet
• Number of Network (RJ-45) Ports : 1
• PoE (RJ-45) Port : Yes
• PoE PD Port : Yes
• Form Factor : Pole-mountable,Wall Mountable
• Antenna Form Factor : External
• Height : 2.16" (54.86 mm)
• Width : 11.81" (299.97 mm)
• Depth : 6.02" (152.91 mm)
• Weight (Approximate) : 3.31 lb (1499.973267 g)
• Limited Warranty : Lifetime
