StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Controller 16C1050 UART, Low Profile, 15kV ESD, Windows Only, TAA - 8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD; Low Profile - Bi-directional speed 921.6Kbps/port|256byte FIFO - Controller card; Pin 9 power

PEX8S1050LP
Also known as IM433HHT,DHPEX8S1050LPCA,SY6479800

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

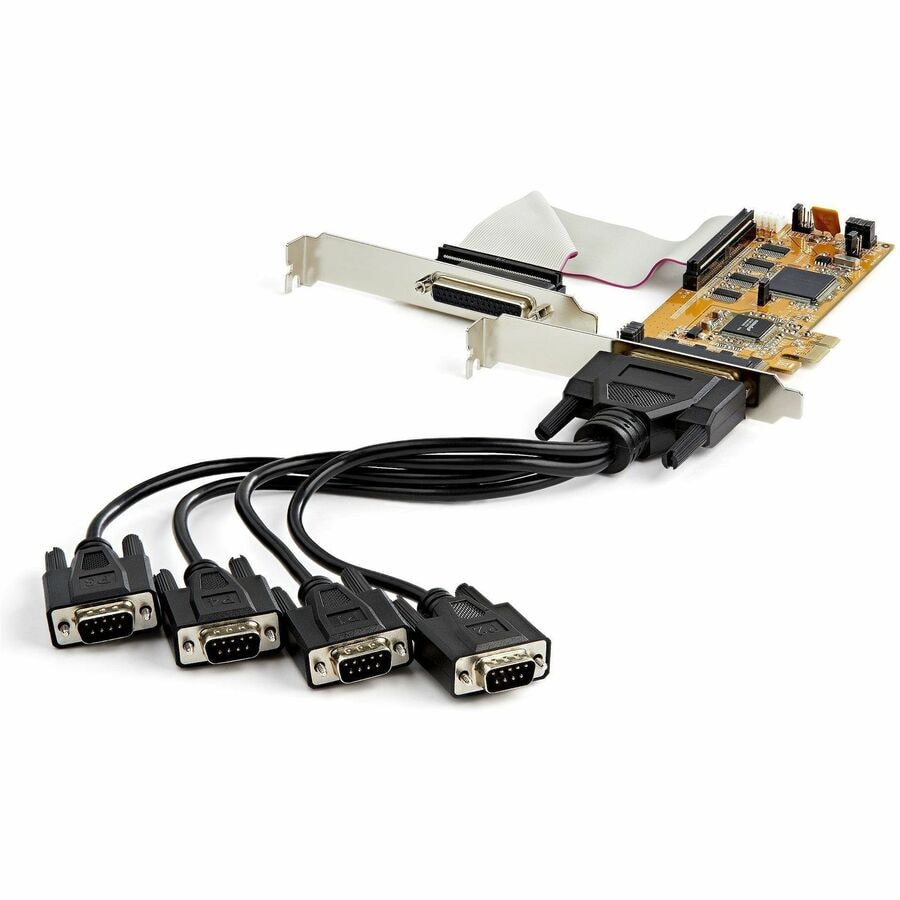

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

Versatile Use

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x1
  • Maximum Data Transfer Rate : 921.40 kbit/s
  • Number of Serial Ports : 8
  • Ports Expandability : 8 x DB-9 - Serie, vía cable
  • Form Factor : Plug-in Card
  • Height : 2.40" (60.96 mm)
  • Width : 0.90" (22.86 mm)
  • Weight (Approximate) : 4.09 oz (116 g)

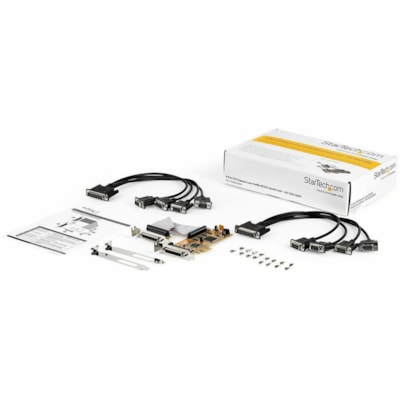

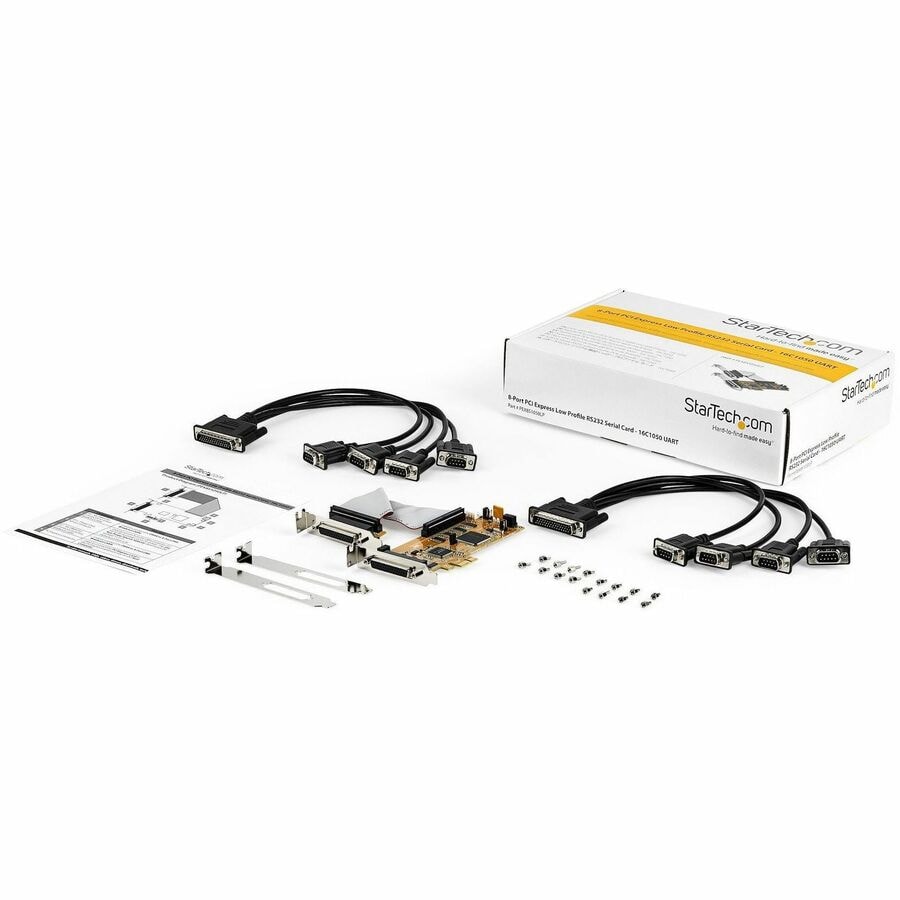

  • Package Contents :
    • 8-Port PCI Express Serial Card with 16C1050 UART
    • 2 x DB44 to 4-Port SB9 Breakout Cables
    • 2 x Full Profile Brackets
    • 1 x Quick-Start Guide
  • TAA Compliant : Yes
  • Country of Origin : Taiwan
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : Lifetime
  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer | An upgrade to our popular card PEX8S950LP
  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
  • WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers
  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
  • TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART Compat.; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; None/Even/Odd Parity Modes; 5/6/7/8 Data Bits; RS-232; 2x Low Profile Brackets installed (Full Profile Brackets incl.)

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX8S1050LP
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 8-Port PCI Express Serial Card with 16C1050 UART
Packaged Quantity 1 Each
Product Type Multiport Serial Adapter
Host Interface PCI Express x1
Maximum Data Transfer Rate 921.40 kbit/s
Platform Supported PC
Platform Supported Linux
Number of Serial Ports 8
Ports Expandability 8 x DB-9 - Serie, vía cable
Color Family Yellow
Product Color Yellow
Form Factor Plug-in Card
Height 2.40" (60.96 mm)
Width 0.90" (22.86 mm)
Weight (Approximate) 4.09 oz (116 g)
Package Contents
  • 8-Port PCI Express Serial Card with 16C1050 UART
  • 2 x DB44 to 4-Port SB9 Breakout Cables
  • 2 x Full Profile Brackets
  • 1 x Quick-Start Guide
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty Lifetime
