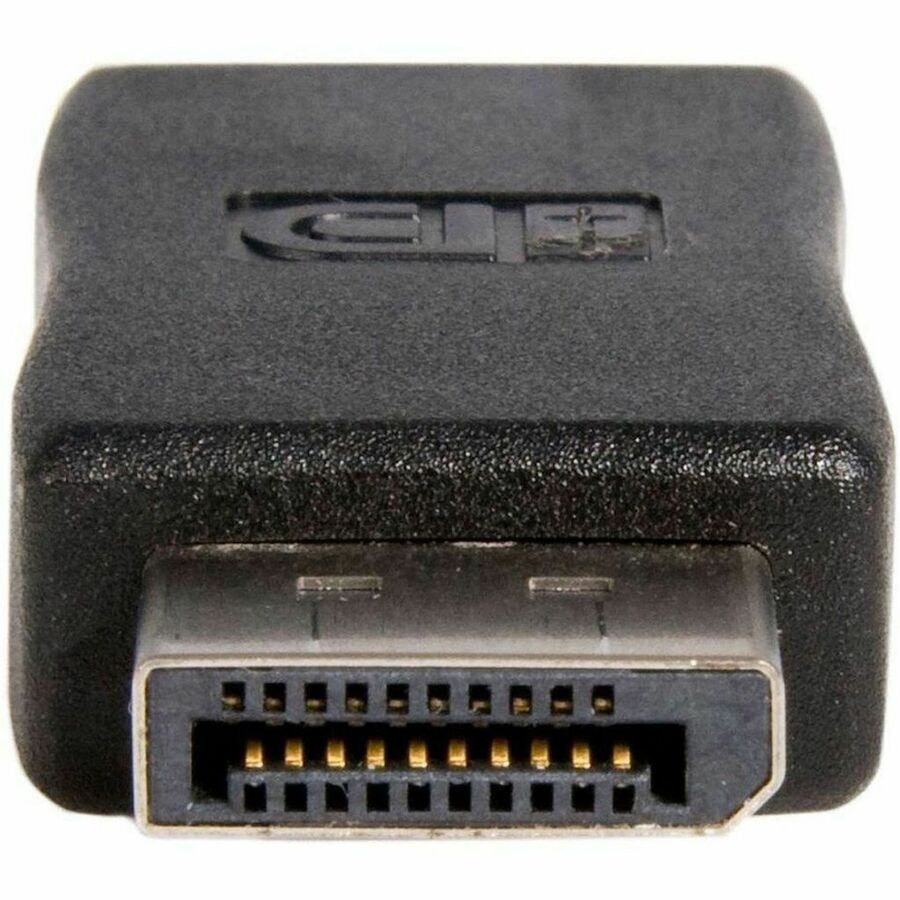

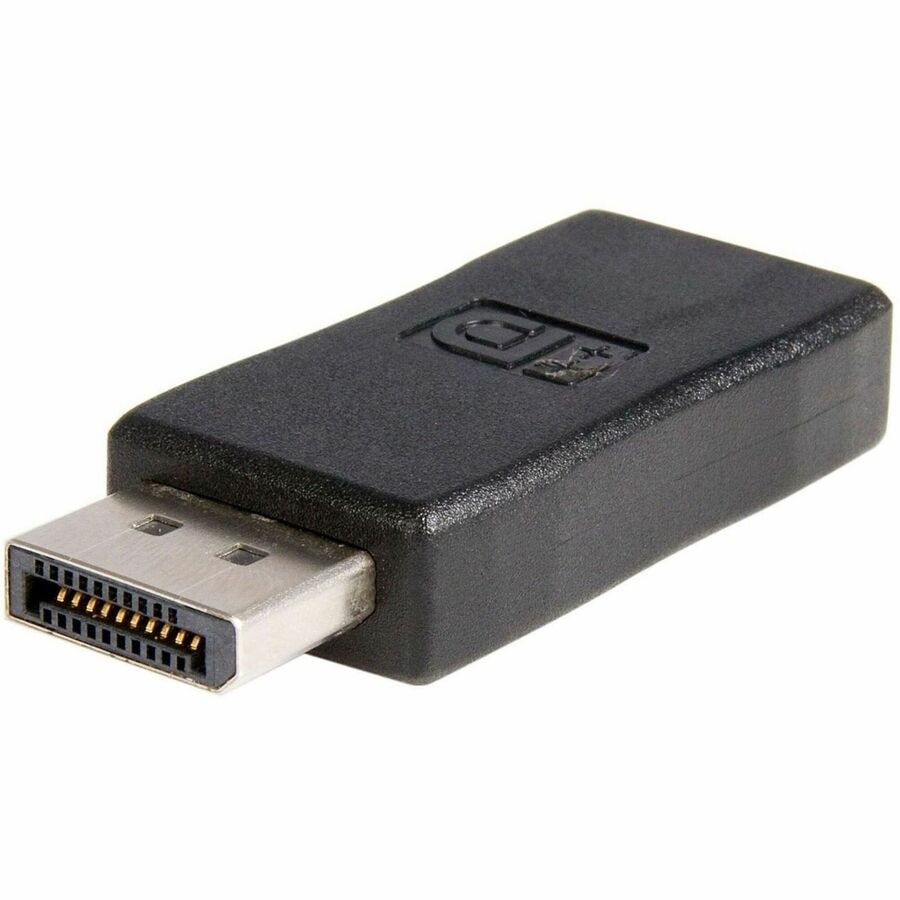

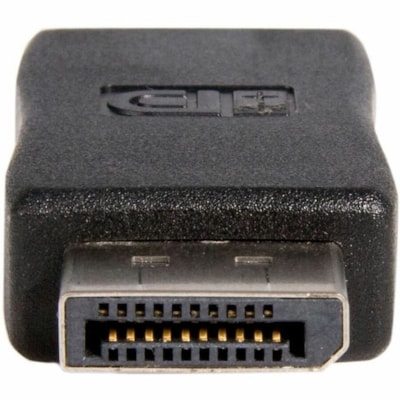

The DP2HDMIADAP DisplayPort® to HDMI® Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.

Supporting display resolutions of up to 1920x1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.

DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Adapter Type : DisplayPort/HDMI
• Connector Type on First End : HDMI Digital Audio/Video - Female
• Connector on First End Details : 1 x 19-pin HDMI Digital Audio/Video Female
• Connector Type on Second End : DisplayPort Digital Audio/Video - Male
• Connector on Second End Details : 1 x 20-pin DisplayPort Digital Audio/Video Male
• Maximum Resolution Supported : 1920 x 1200
• Features : Passive
• Color Family : Black
• Product Color : Black
• Height : 0.40" (10.16 mm)
• Width : 0.70" (17.78 mm)
• Length : 2.20" (55.88 mm)
• Weight (Approximate) : 0.60 oz (17.01 g)
• Country of Origin : China
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• PERFORMANCE: This DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, projector, monitor or TV | Supports HD 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4 | VESA DisplayPort Certified
• HOST COMPATIBILITY: DisplayPort to HDMI adapter tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations
• SMALL FORM FACTOR: With no attached cable and compact design, the adapter connects directly to your HDMI cable for a clean look | Use to connect primary monitor or projector or add a secondary display | Perfect for travel and easily fits into a bag pocket
• STABLE CONNECTION: DP to HDMI adapter features a non-latching DP connector that is easy to disconnect from a hard to reach source | Tested with HDMI cables at extended lengths up to 35ft
• EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter is OS independent; DP male to HDMI female
