MARKETING INFORMATION

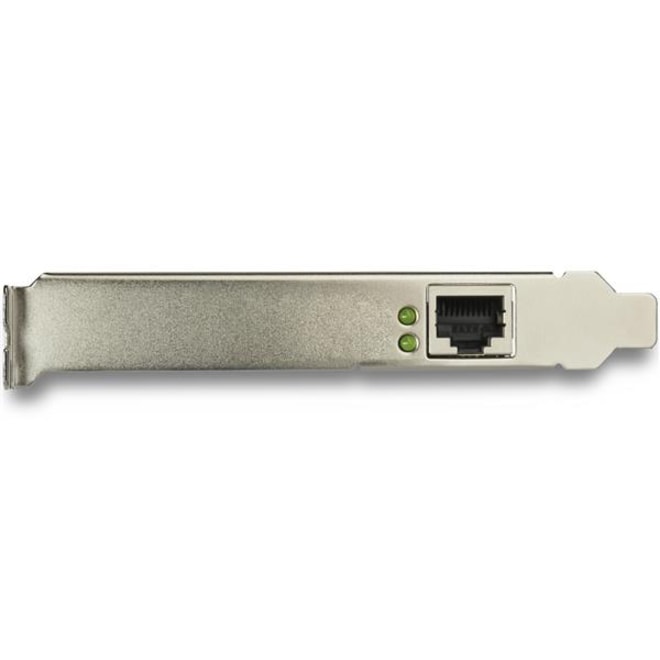

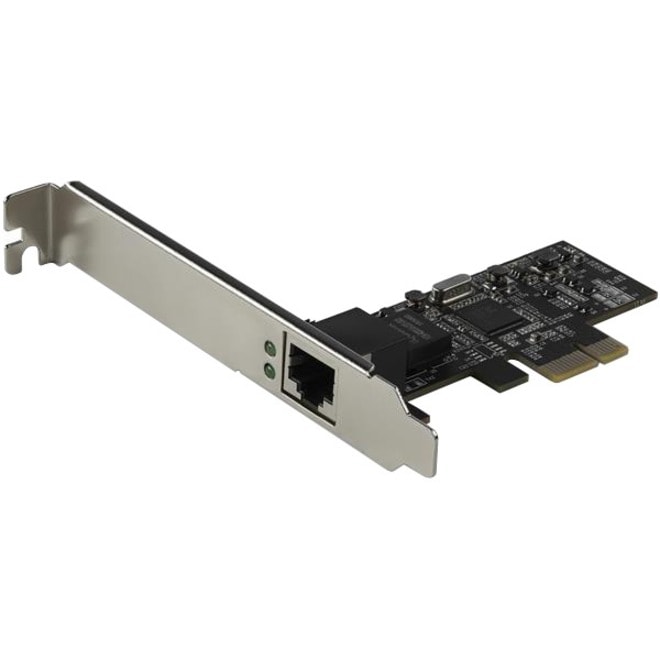

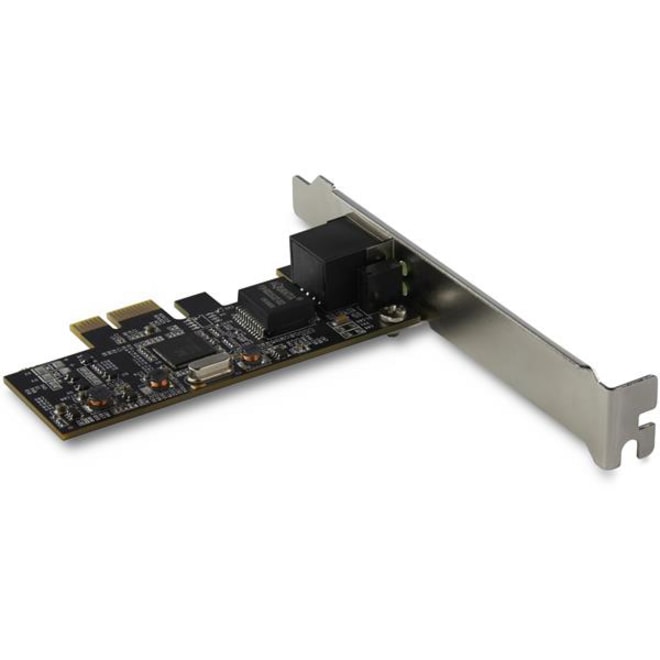

This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance

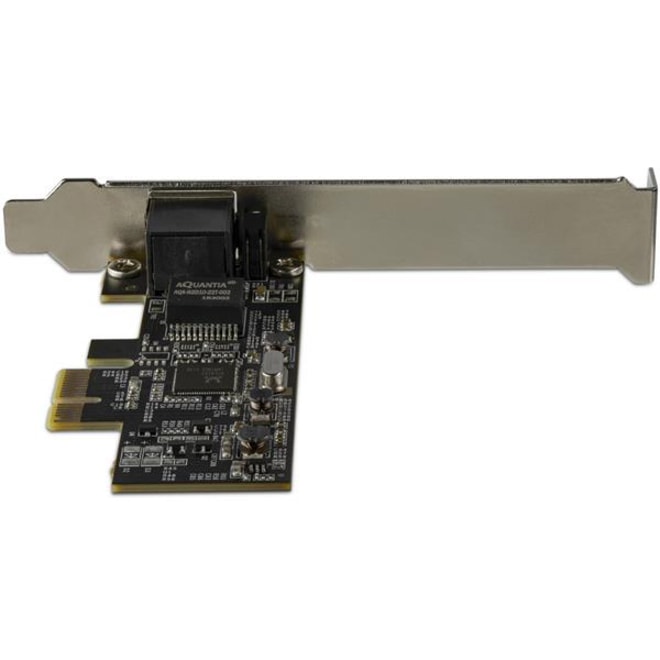

The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Host Interface : PCI Express x4
• Total Number of Ports : 1
• Number of Network (RJ-45) Ports : 1
• Media Type Supported : Twisted Pair
• Network Technology : 2.5GBase-T,1000Base-T,10/100Base-TX
• Form Factor : Plug-in Card
• Height : 0.80" (20.32 mm)
• Width : 4.70" (119.38 mm)
• Depth : 3.10" (78.74 mm)
• Weight (Approximate) : 4.90 oz (138.91 g)
• Package Contents :
  • 2.5Gbps 2.5GBASE-T PCIe Network Card
  • 1 x Low-Profile Bracket
  • 1 x Quick-Start Guide
• Device Supported : Access Point,Switch,Computer,Server,Workstation
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
• Country of Origin : China
• Limited Warranty : 2 Year

• Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
• Compatible with both 2.5GBASE-T and NBASE-T specifications
• Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
• IEEE 802.3az and IEEE802.3u compliant energy efficient Realtek™ RTL8125 chipset
• Flexible installation with both standard and low-profile brackets included

SPECIFICATIONS
