MARKETING INFORMATION

Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

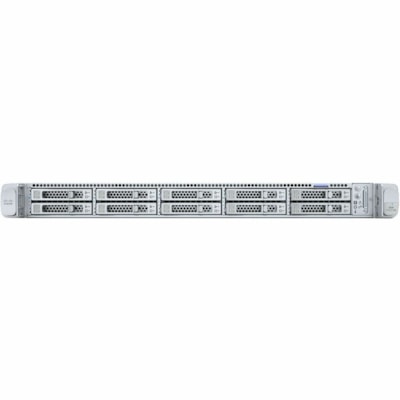

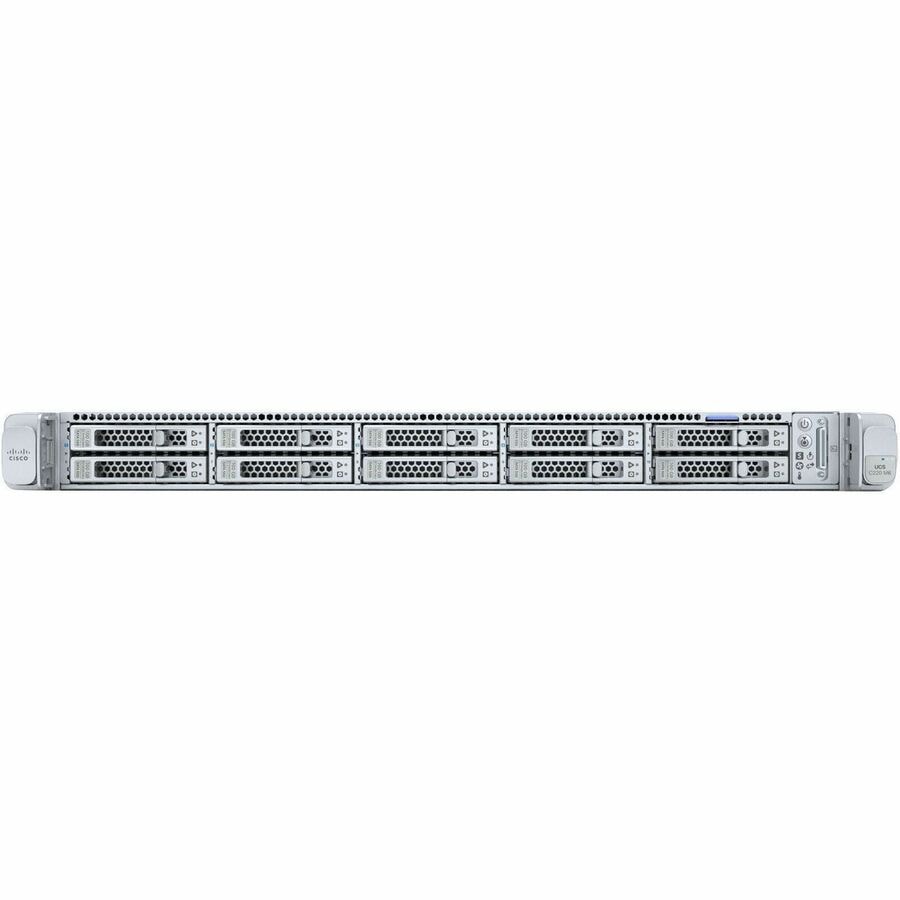

The Cisco HyperFlex Express HX220C M6 All NVMe/All Flash/Hybrid Server Nodes extends the capabilities of Cisco's HyperFlex Express portfolio in a 1U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 64 GB. The maximum memory capacity for 2 CPUs is listed here:

• 2 TB: 32 x 64 GB DDR4 DIMMs

DETAILS

• Number of Processors Supported : 2
• Processor Supported : Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
• 64-bit Processing : Yes
• Chipset Manufacturer : Intel
• Chipset Model : C621A
• Maximum Memory Supported : 2 TB
• Memory Technology : DDR4 SDRAM
• Memory Standard : DDR4-3200/PC4-25600
• Total Number of Memory Slots : 32
• Intel Optane Memory Ready : Yes
• Controller Type : Serial Attached SCSI (SAS),Serial ATA
• RAID Supported : Yes
• Graphics Controller Model : G200e
• Graphics Memory Capacity : 8 MB
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
• Number of Total Expansion Bays : 10
• Total Number of Expansion Slots : 5
• Number of PCI Express x16 Slots : 5
• Total Number of USB Ports : 2
• Number of USB 3.0 Ports : 2
• Network (RJ-45) : Yes
• Number of Network (RJ-45) Ports : 3
• Number of VGA Ports : 1
• Operating System Supported : Windows Server 2019 Datacenter,Windows Server 2019 Standard
• Input Voltage : 120 V AC,230 V AC
• Plug/Connector Type : C14
• Form Factor : Rack-mountable
• Rack Height : 1U
• Height : 1.70" (43.18 mm)
• Width : 16.90" (429.26 mm)
• Depth : 30" (762 mm)
• Weight (Approximate) : 42.55 lb (19300 g)
• Limited Warranty : 3 Year
• Additional Warranty Information :
  • Three-year parts coverage
  • Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
  • 90-day software warranty on media

• Compatible Xeon Platinum processor lets you perform all your computational tasks at a swift pace
• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
• Featuring Gigabit Ethernet port for ultra-fast network speeds
• Connect USB-enabled devices via 2 USB ports
• Serial Attached SCSI (SAS) interface provides quick data transfer and greater throughput
