MARKETING INFORMATION

Unleash Creativity with Maximum Comfort

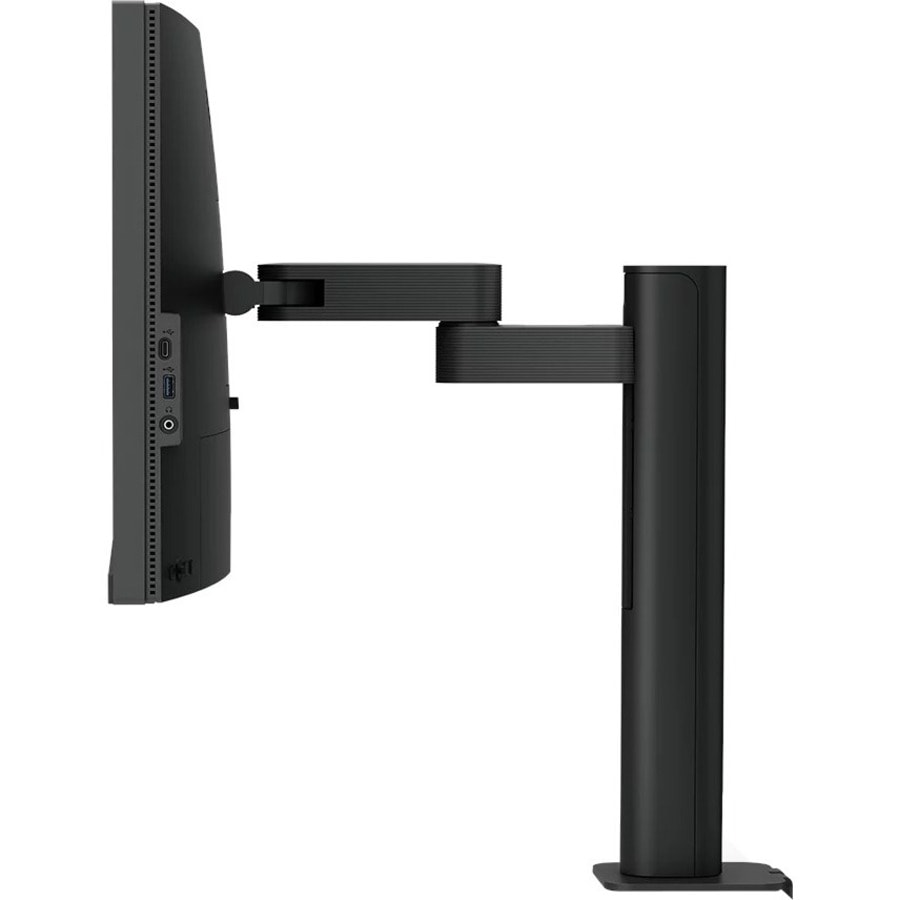

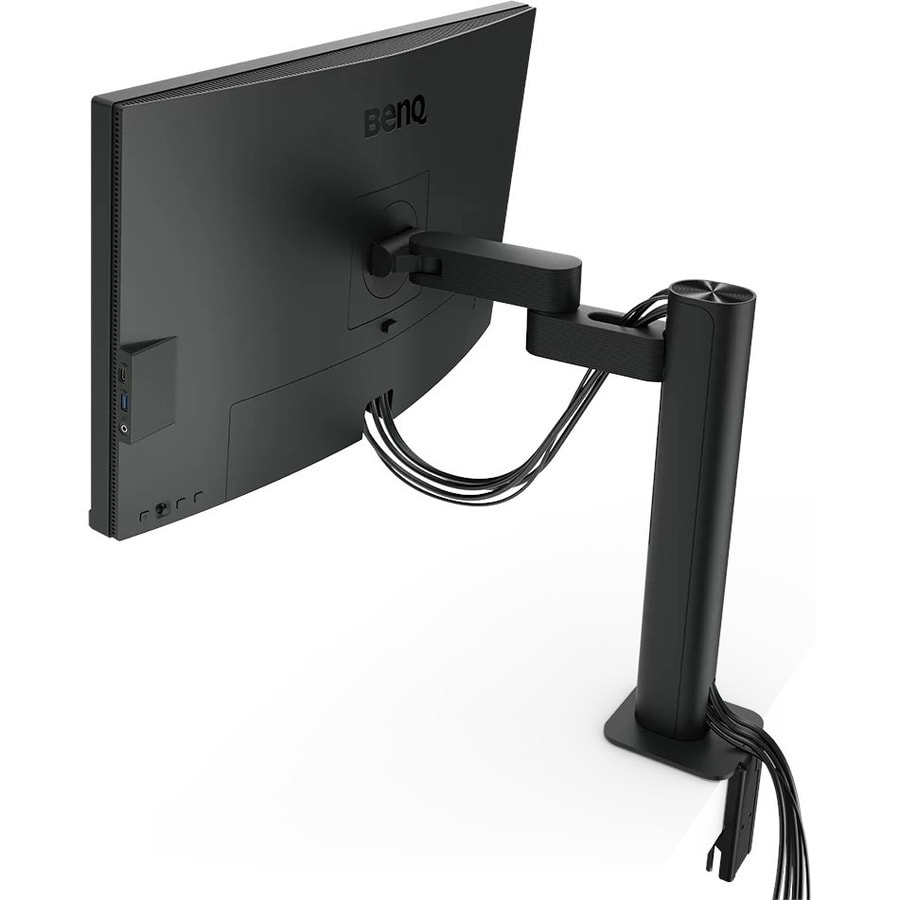

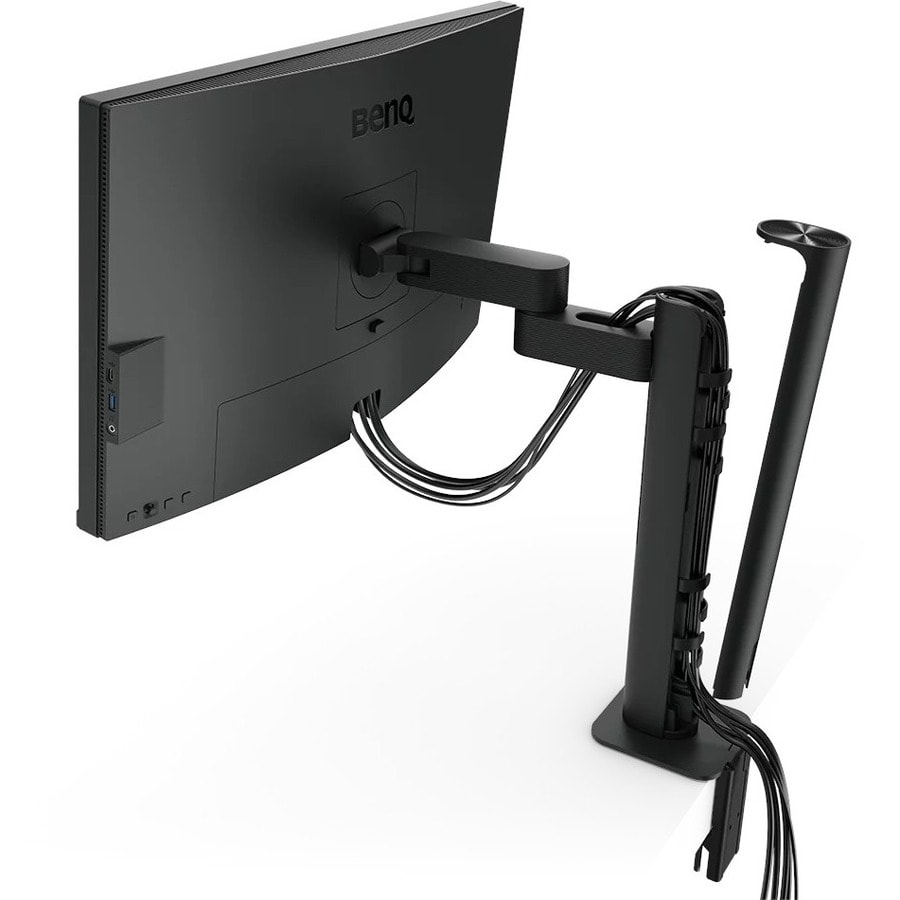

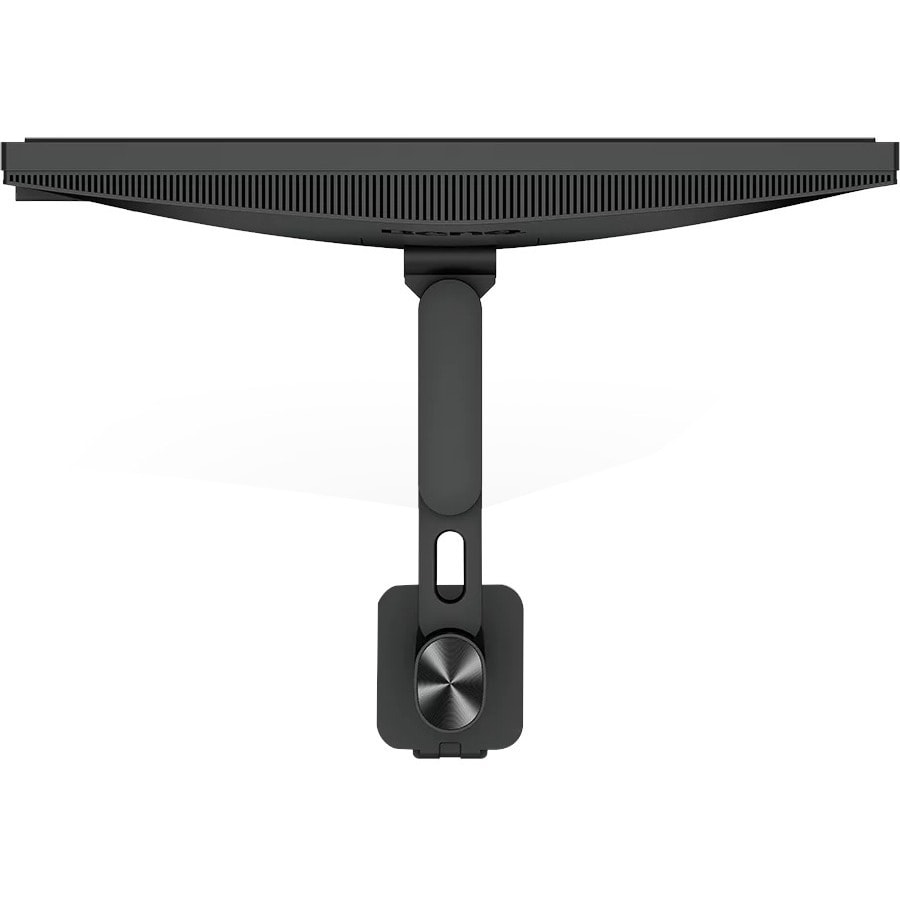

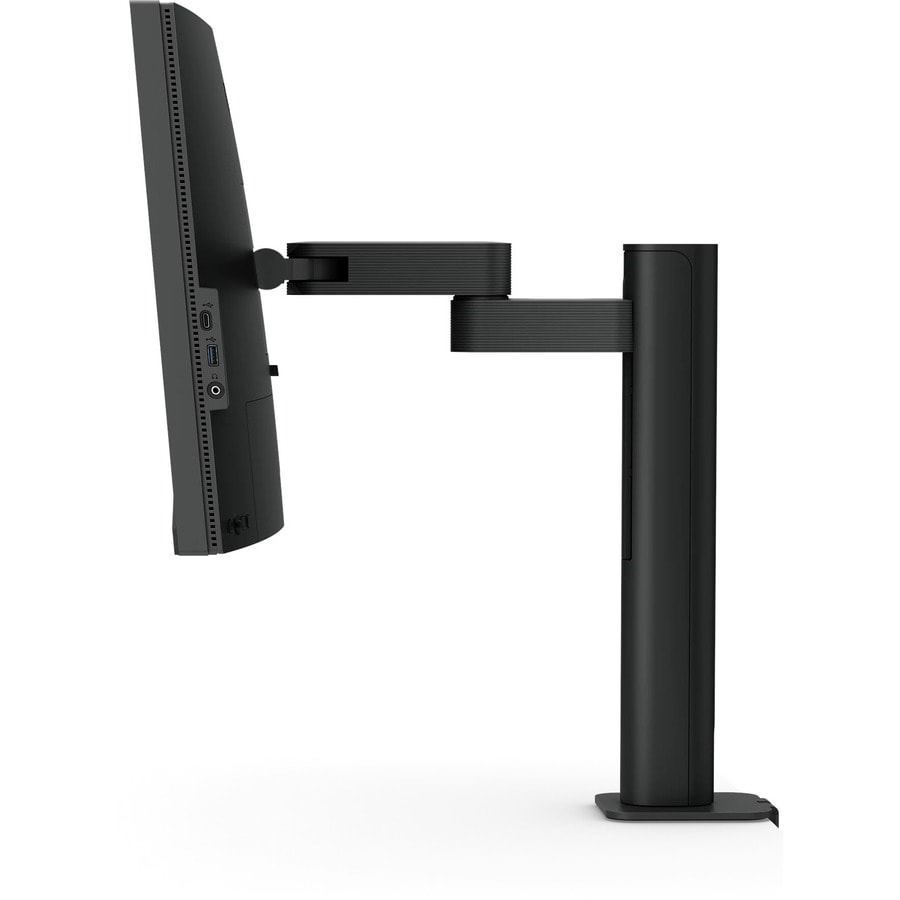

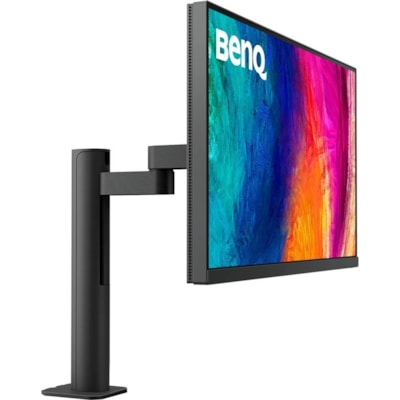

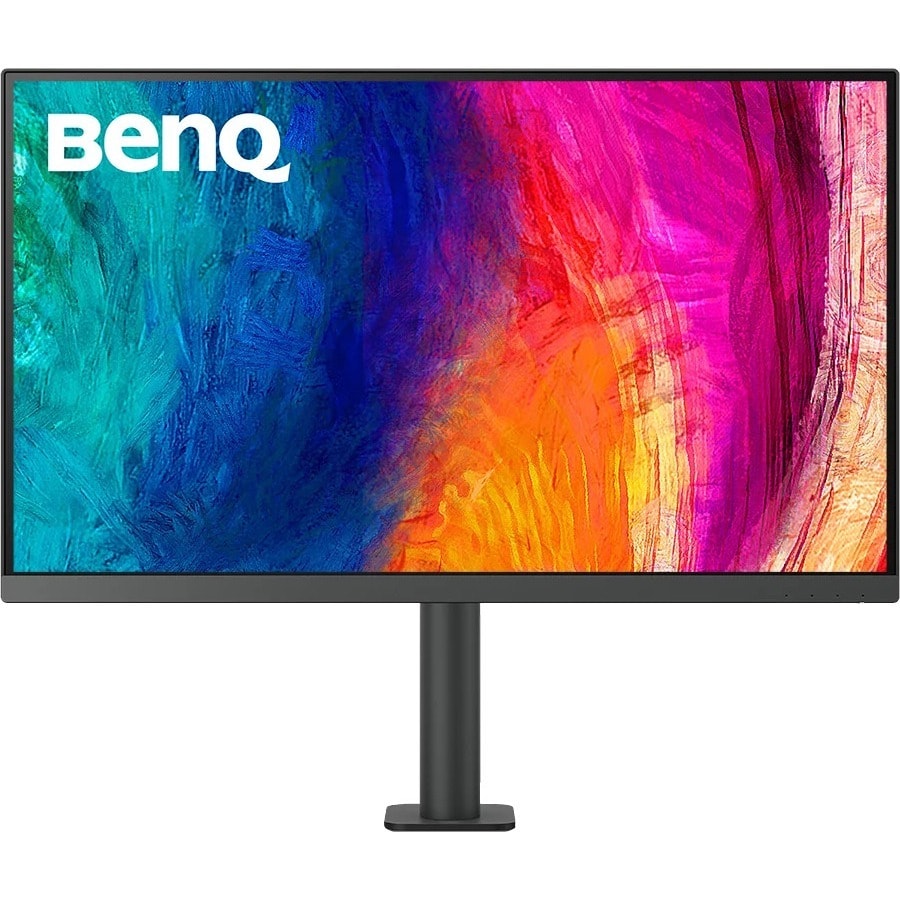

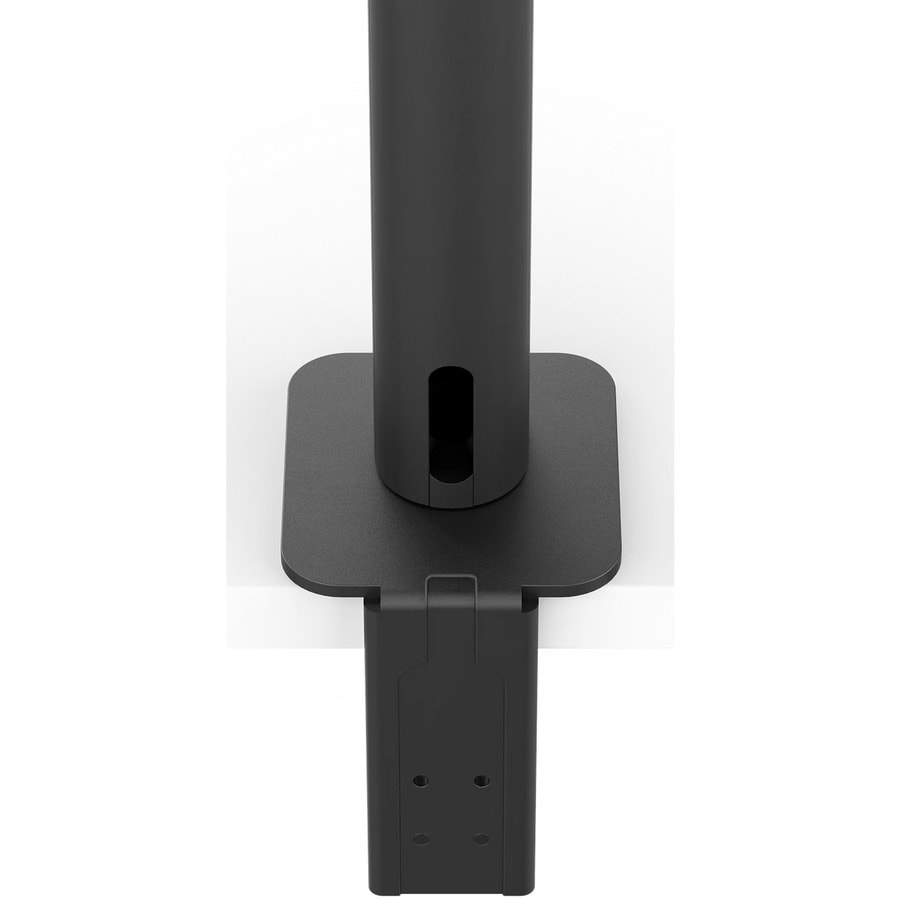

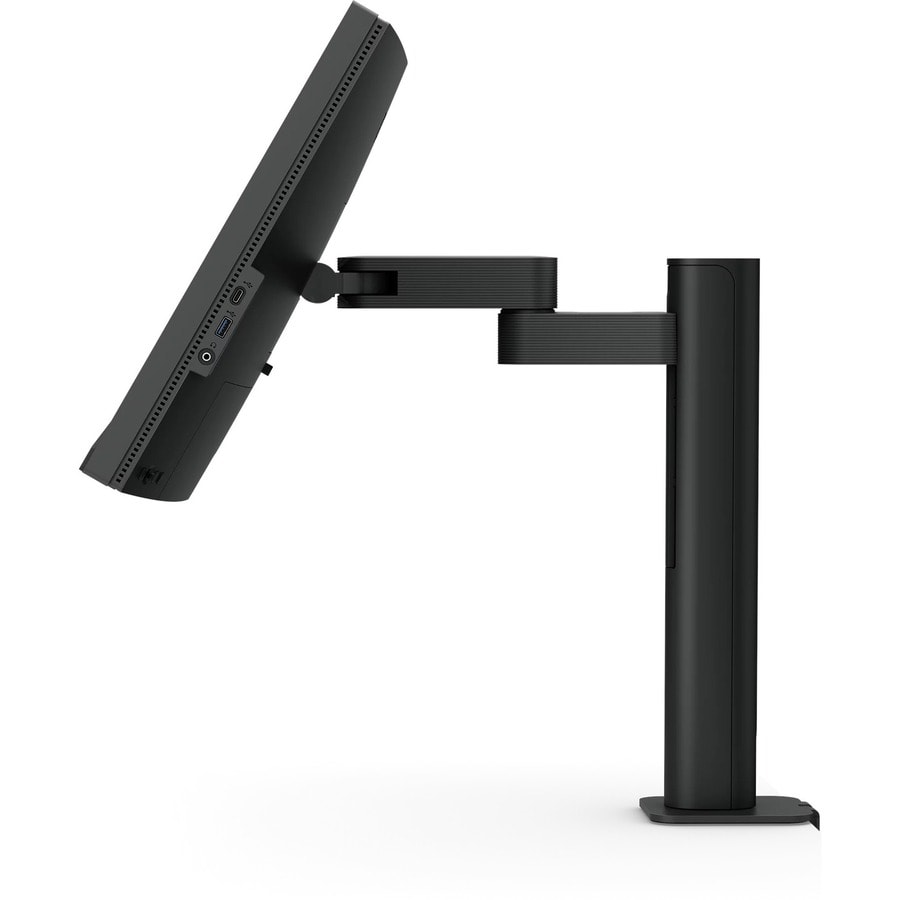

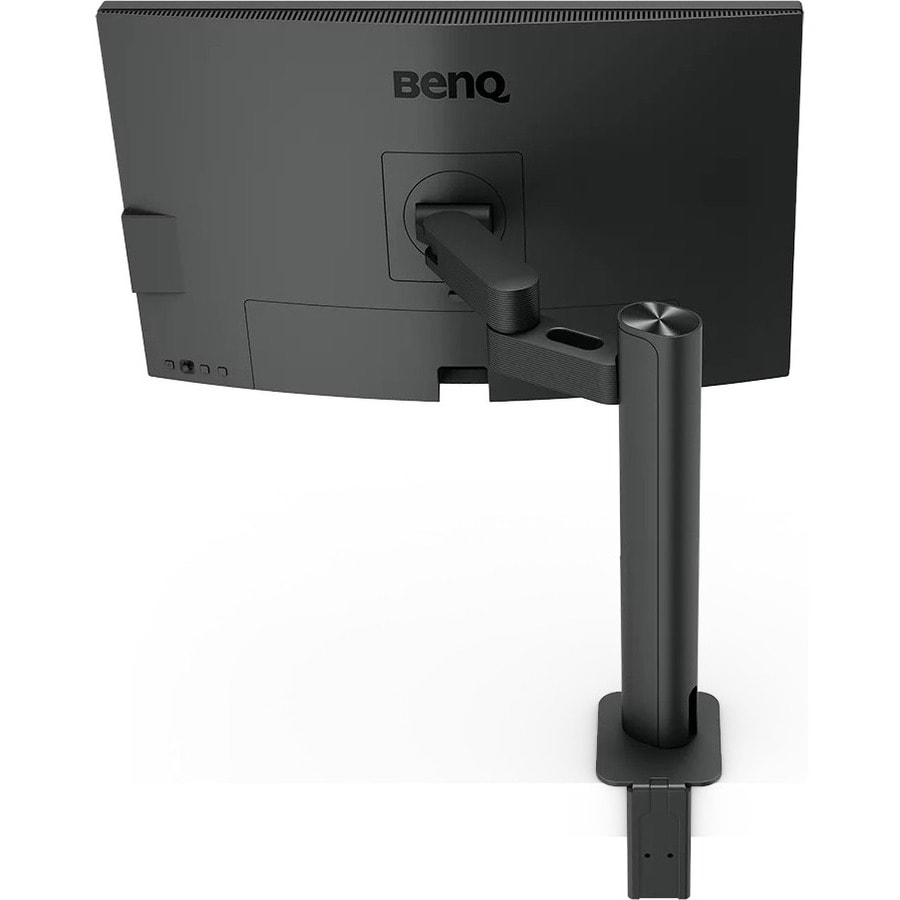

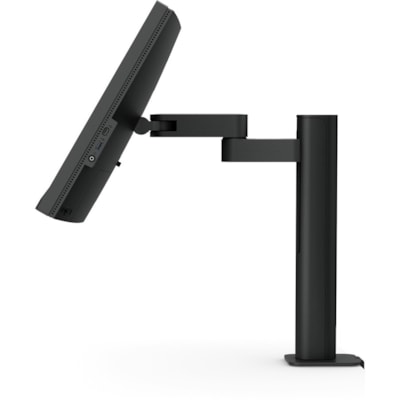

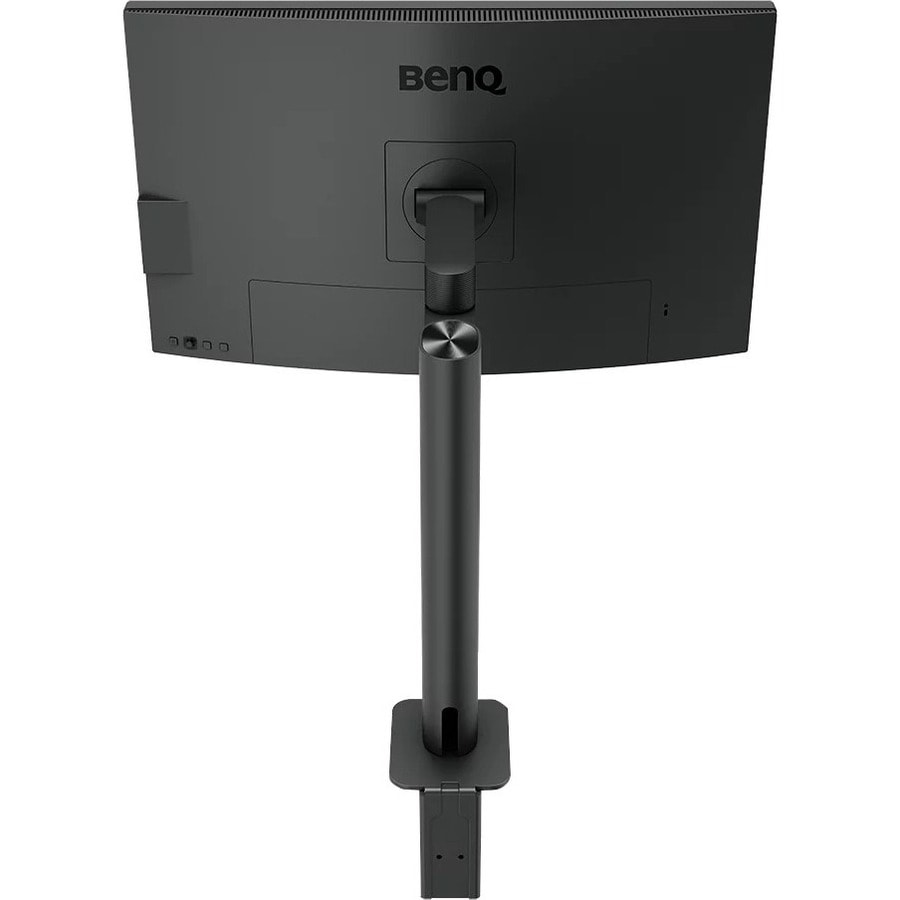

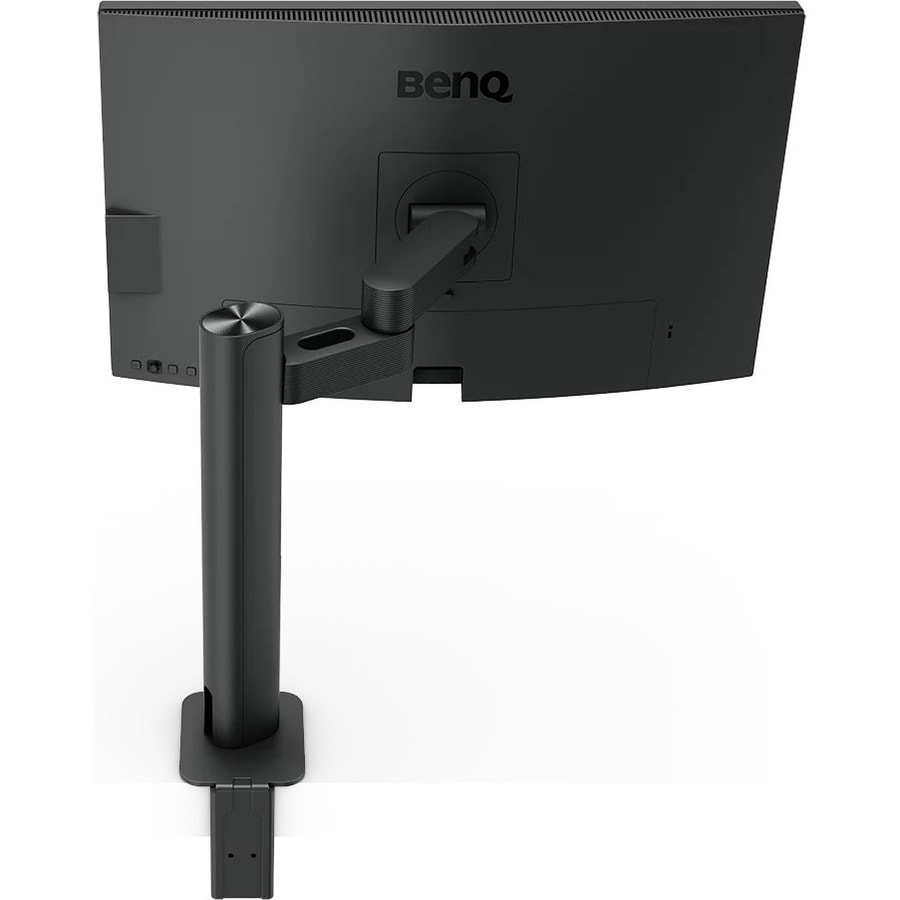

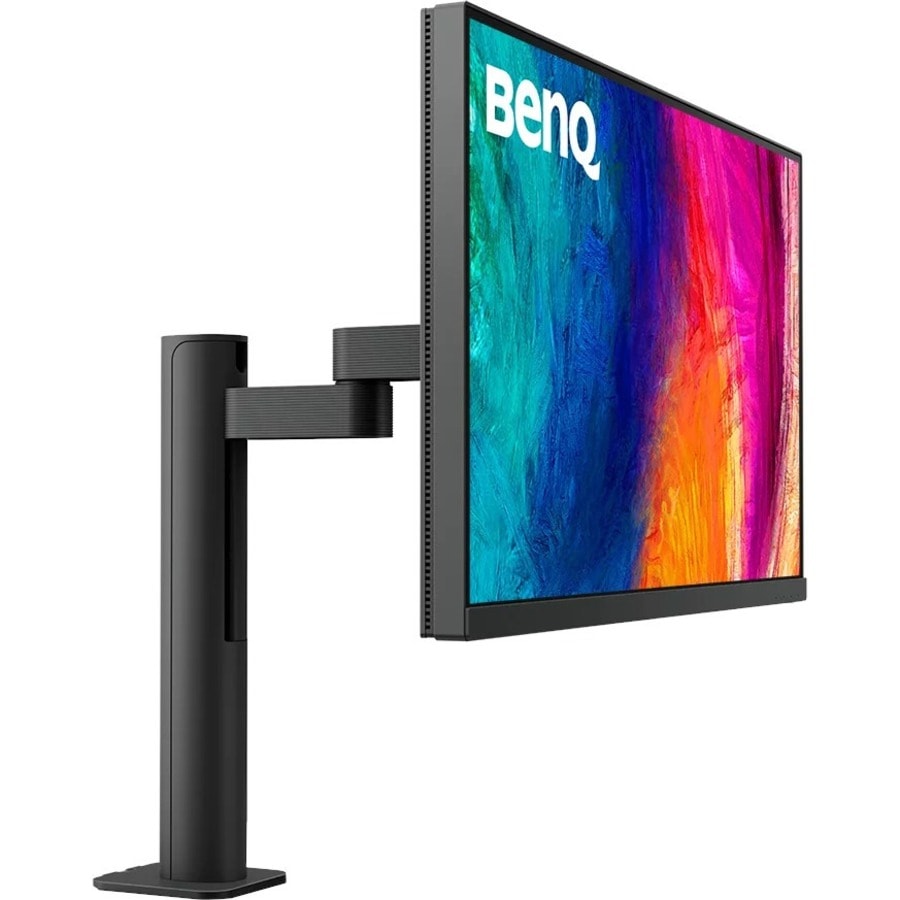

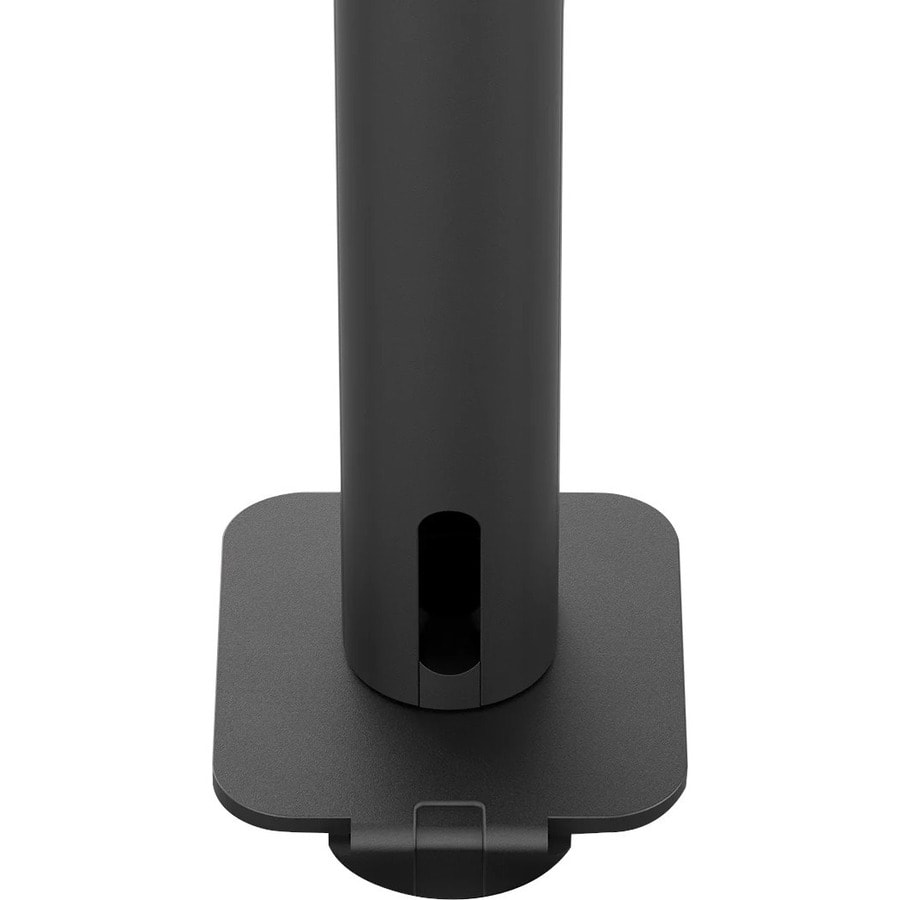

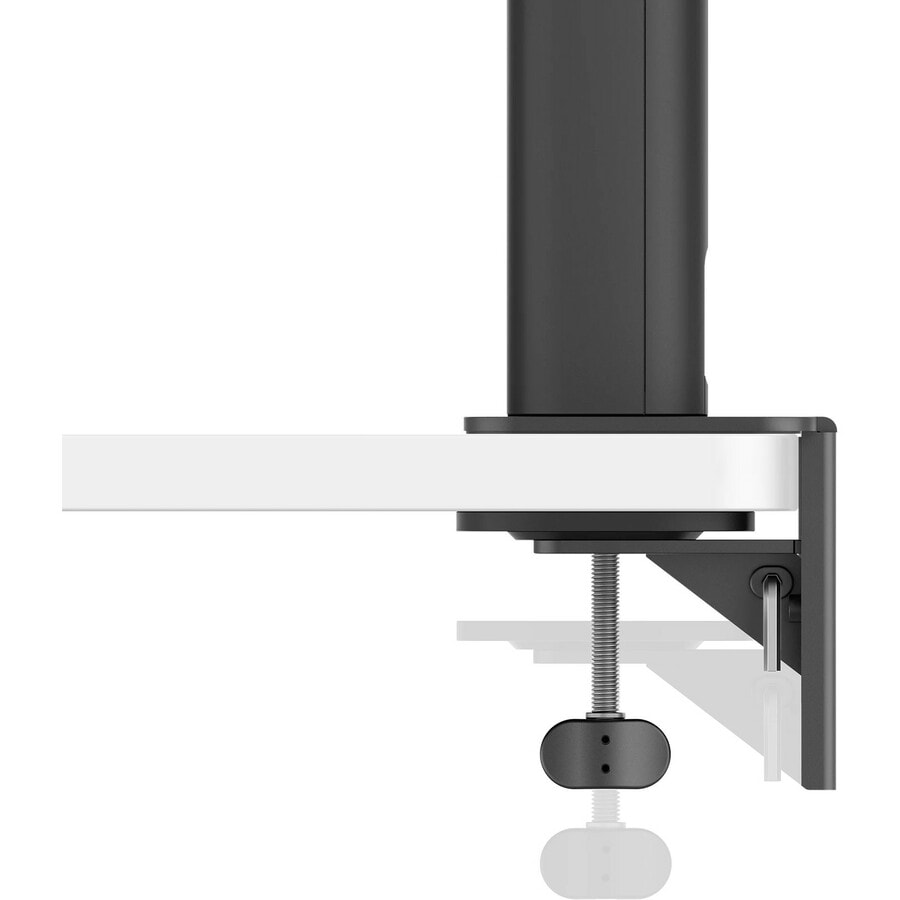

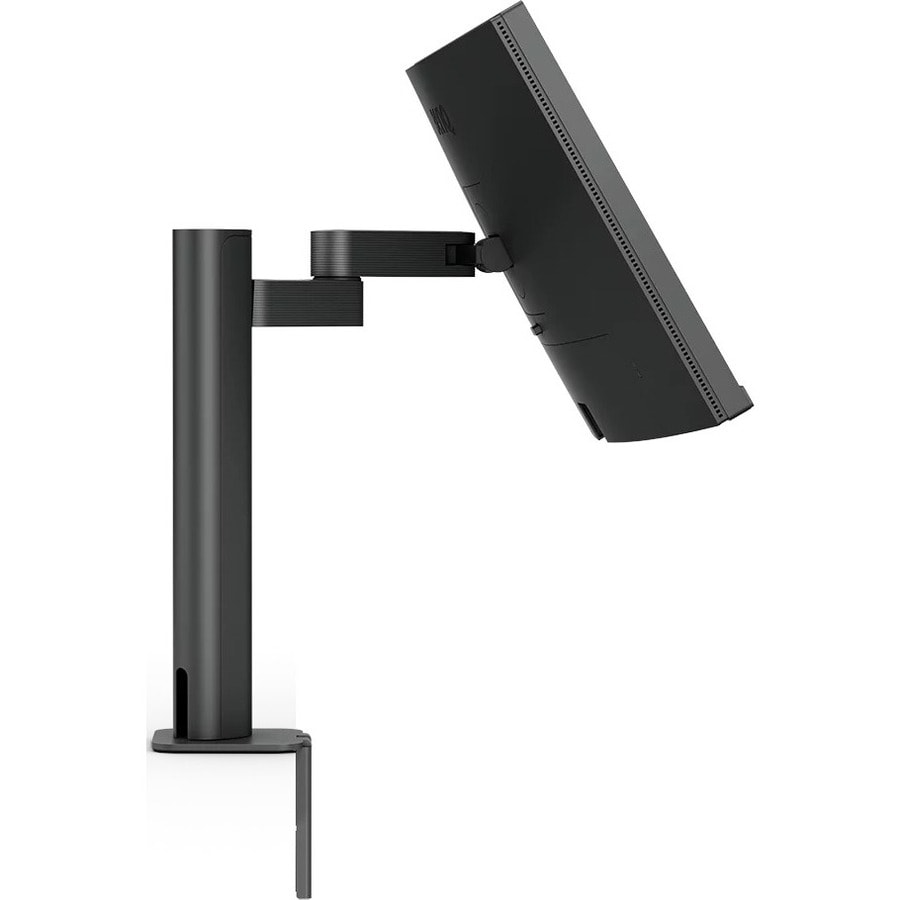

As a workspace magician, PD Ergo Arm fully supports the flexibilities for swivel, height adjustment, pivoting, tilting, and the amazing cable management inside the arm. Create with the customizable ergonomic design and enjoy the incredible color performance at the same time. Whether you're working on the design or presenting your ideas to your clients, there's always the right spot and right angle to do it.

Colors You Can Trust

BenQ's AQCOLOR technology guarantees "Accurate Reproduction," displaying colors as intended with out-of-the-box precision. Designers benefit from wide color space coverage, with each monitor ensuring corner-to-corner uniformity and undergoing rigorous testing, earning Calman and Pantone validation for professional-grade accuracy.

Industry Standard

Experience broad coverage of in-demand color spaces, carefully calibrated for color temperature, gamma, and brightness.

Displaying Uniformity

Delivers consistent color uniformity from edge to edge on a single monitor or across multiple monitors.

Accuracy Guarantee

Ensure your monitor accurately represents your intended colors, with third-party validation for precise reproduction.

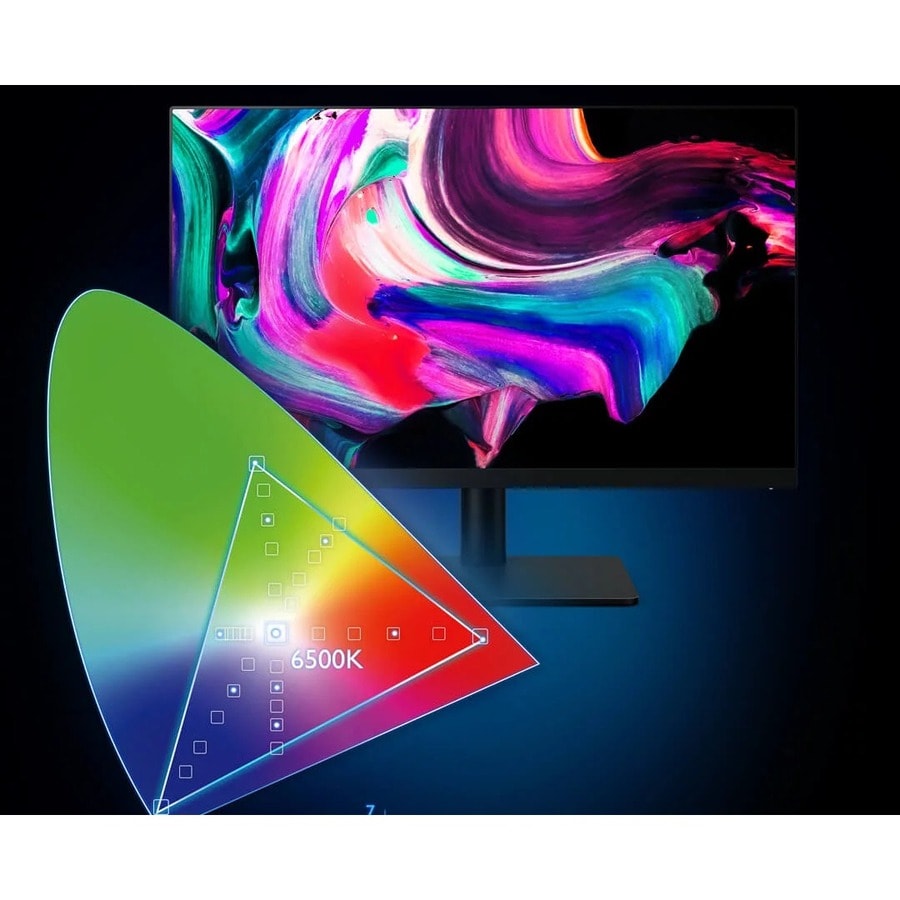

Industry Leading Color Performance | Incredible Color Space Coverage

PD2705UA covers 99% sRGB and 99% Rec.709 color spaces and has amazing Delta E ≤ 3 color reproduction to ensure superb accuracy and absolute color confidence.

One Click Syncs Mac Device Colors

The monitor ships from the factory with default color settings that perfectly match Mac® and MacBook® Pro laptop colors. Exclusive M-Book mode provides active color syncing, creating an additional layer of color precision assurance.

Color Consistency at Your Fingertips

The ICCsync feature in Display Pilot 2 software automatically matches and synchronizes ICC profiles on the monitor when changing color modes and also between your Mac and BenQ monitor. All of this is done instantly.

Unique Hotkey by Your Mac Keyboard

Effortlessly adjust display brightness using your Mac keyboard through Display Pilot 2 software.

Animation Mode

Enhance the clarity of dark areas without overexposing bright regions.

CAD/CAM Mode

Enjoy superior contrast of lines and shapes in technical illustrations.

DualView

Showcase designs in two modes side-by-side for improved workflow and enhanced productivity.

Your Handy Display Assistant

Experience simplified workflows with BenQ Display Pilot 2, which provides a customizable interface for organizing functions such as ICCsync, Application Mode, and Software Dimming, making design work more convenient and flexible.

Accuracy Guarantee | Factory Calibrated for Color Accuracy

BenQ DesignVue monitors feature meticulous factory calibration, so designers make full use of total display color accuracy from the get go.

DETAILS

• Number of Screens : 1
• Screen Size Class : 27"
• Viewable Screen Size : 27"
• Screen Mode : 4K UHD
• Panel Technology : In-plane Switching (IPS) Technology
• Response Time : 5 ms
• Response Time Details : 5ms GTG
• Aspect Ratio : 16:9
• Horizontal Viewing Angle : 178°
• Vertical Viewing Angle : 178°
• Backlight Technology : LED
• Mount Type : Wall Mountable
• HDCP Supported : Yes
• Features : HDR10,sRGB,M-book Mode,DICOM Calibrated,CAD/CAM Mode,Animation Mode,Darkroom Mode,Low Blue Light,Anti-glare,Color Temperature Selection,On-screen Display (OSD),Advanced Motion Accelerator (AMA),Flicker-free,Eye Care Technology,Calman Verified,Pantone-validated Display,Hotkey Puck G2,Picture by Picture,Picture in Picture,Ergonomic Design,Cable Management,AQCOLOR Technology,Auto Power Off,Wide Viewing Angle
• Curved Screen : No
• Adjustable Stand : Yes

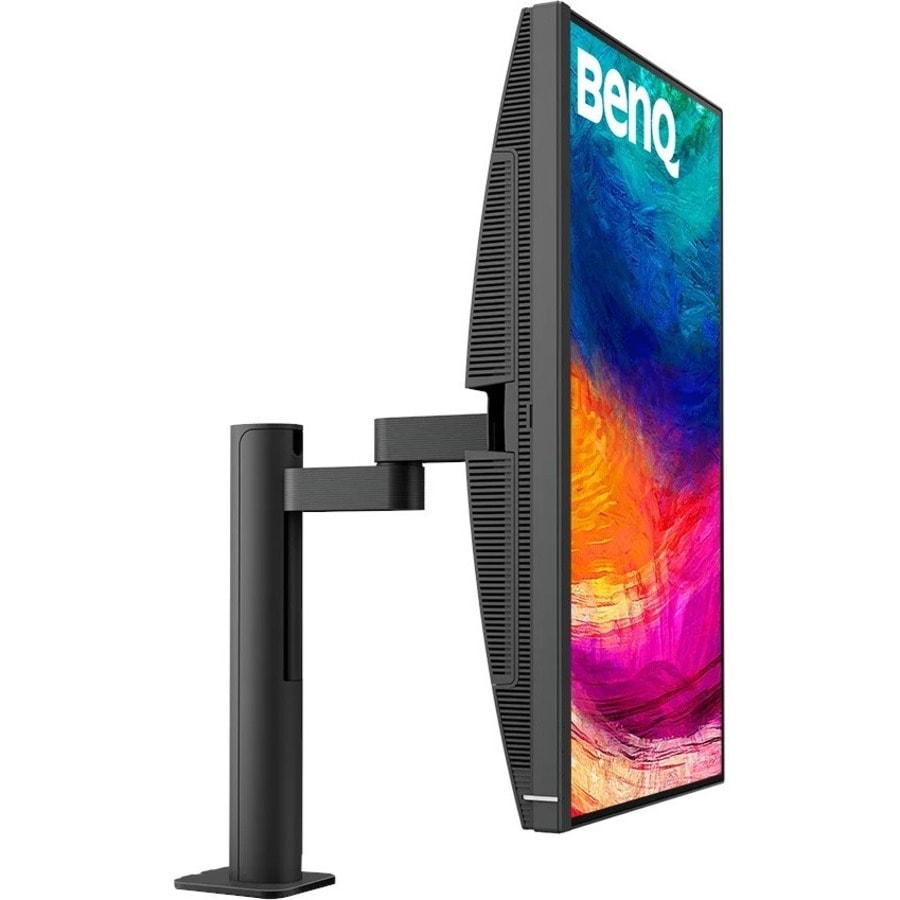

• Stand Adjustments : Swivel,Height,Pivot,Tilt
• Maximum Resolution : 3840 x 2160
• Standard Refresh Rate : 60 Hz
• Color Supported : 1.07 Billion Colors
• Native Contrast Ratio : 1,200:1
• Brightness : 350 cd/m²
• Color Gamut : 99% sRGB,99% Rec. 709
• Pixel Per Inch (PPI) : 163
• Number of Speakers : 2
• Speakers : Yes
• HDMI : Yes
• USB : Yes
• DisplayPort : Yes
• USB Type-C : Yes
• Total Number of HDMI Ports : 1
• Number of DisplayPorts : 1
• Number of USB Ports : 7
• Number of USB 3.2 Ports : 3
• Number of USB 3.2 Downstream Ports : 3
• Number of USB Type-B Ports : 2
• Number of USB Type-B Upstream Ports : 2
• Total Number of USB Type-C Ports : 2
• Number of HDMI 2.0 Ports : 1
• USB Type-B : Yes
• Built-in Devices : USB Hub,KVM Switch
• Operating Power Consumption : 27.50 W
• Maximum Power Consumption : 152 W
• VESA Mount Compatible : Yes
• Bezel Finishing : Matte
• Height : 14.40" (365.76 mm)
• Width : 24.20" (614.68 mm)
• Depth : 3.20" (81.28 mm)
• Height with Stand : 27.70" (703.58 mm)
• Width with Stand : 24.20" (614.68 mm)
• Depth with Stand : 18.10" (459.74 mm)
• Weight (Approximate) : 13.67 lb (6200 g)
• Weight with Stand (Approximate) : 22.05 lb (10000 g)
• Compressed Height with Stand : 21.80" (553.72 mm)
• Extended Height with Stand : 27.70" (703.58 mm)
• Package Contents :

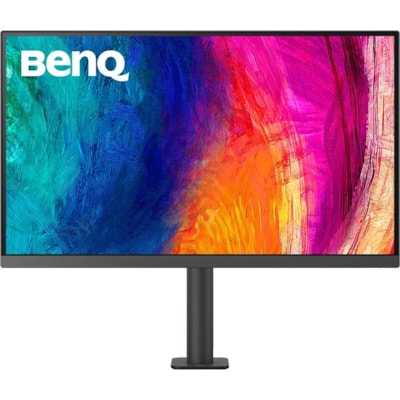

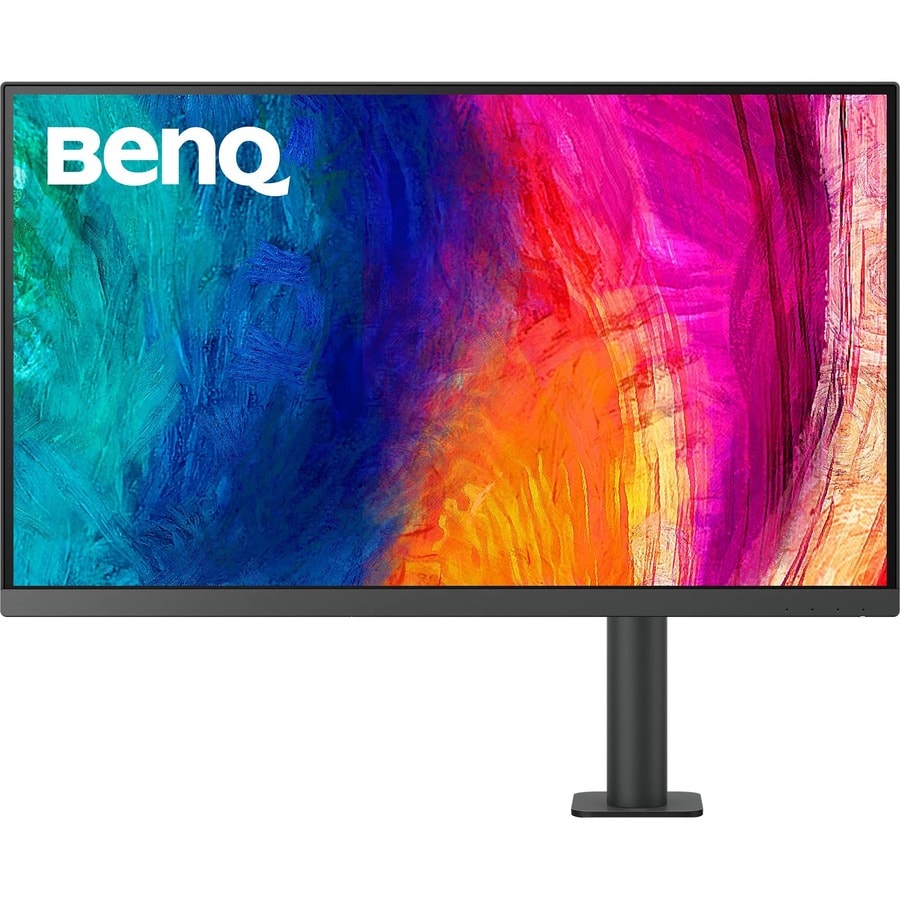

  • Designer PD2705UA Widescreen LED Monitor
  • QSG
  • Warranty Card
  • Calibration Report
  • Hotkey Puck G2
• Limited Warranty : 3 Year

• 5 ms response time makes it excellent for latest action films, sports or gaming
• Enjoy crisp content and energetic hues with the 350 cd/m² brightness
• Experience breathtaking level of details when you open your eyes to the clarity of 4K UHD screen
• LED backlight technology provides for industry-leading low power consumption and less hazardous materials
• 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work
• VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs
