StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps - 4-Port USB 3.0 PCI/PCI-X Card (USB 3.1 Gen 1/USB 3.2 Gen 1x1) - Achieve speeds up to PCI bus max (1.3Gbps) - Optional SATA/SP4 power - PCI 3.3V/5V 32-bit - Full/low profile brackets - For PCs with PCI slots like De
PCIUSB3S4
Also known as IM40422T,SY4941140
MARKETING INFORMATION
The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product.
This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Host Interface : PCI-X
- Data Transfer Rate : 5 GB/s
- UASP Support : Yes
- Total Number of USB Ports : 4
- Number of USB 3.2 Ports : 4
- Number of SATA Ports : 1
- Operating System Supported : Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
- Color Family : Red
- Product Color : Red
- Form Factor : Plug-in Card
- Height : 2.60" (66.04 mm)
- Width : 0.80" (20.32 mm)
- Length : 5.20" (132.08 mm)
- Weight (Approximate) : 2.54 oz (72 g)
- Package Contents :
- 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Platform Supported : PC
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : Lifetime
- ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1
- TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
- OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port

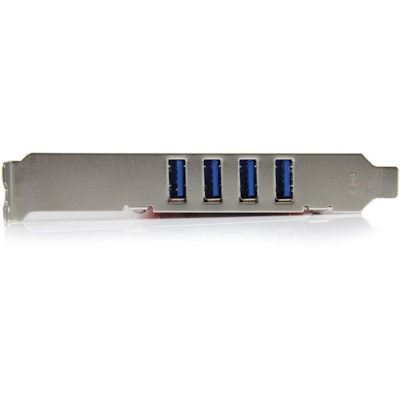

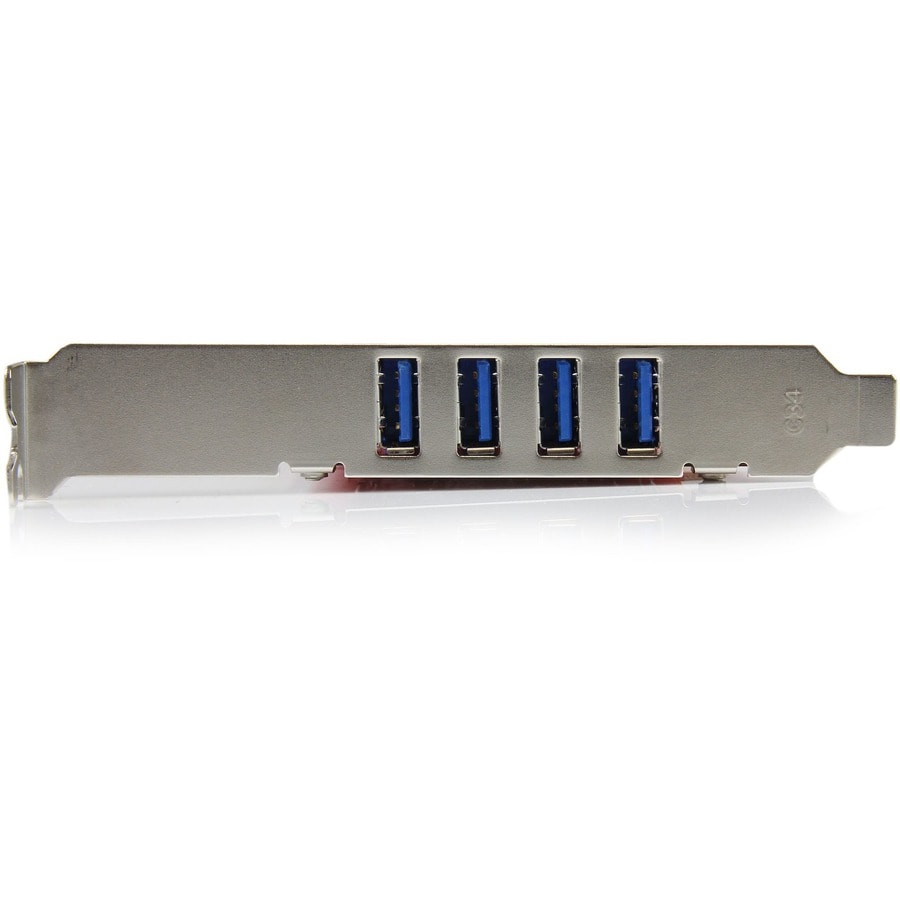

- STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
- COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution
SPECIFICATIONS
Manufacturer | StarTech.com |
Manufacturer Part Number | PCIUSB3S4 |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power |
Packaged Quantity | 1 Each |
Product Type | USB Adapter |
Host Interface | PCI-X |
Data Transfer Rate | 5 GB/s |
UASP Support | Yes |
Total Number of USB Ports | 4 |
Number of USB 3.2 Ports | 4 |
Number of SATA Ports | 1 |
Operating System Supported | Windows Server 2016 |
Operating System Supported | Windows Server 2012 |
Operating System Supported | Windows Server 2008 R2 |
Operating System Supported | Windows Server 2003 |
Operating System Supported | Windows 11 |
Operating System Supported | Windows 8.1 |
Operating System Supported | Windows Server 2019 |
Operating System Supported | Windows XP |
Operating System Supported | Windows Vista |
Operating System Supported | Windows 7 |
Operating System Supported | Windows 8 |
Operating System Supported | Windows 10 |
Color Family | Red |
Product Color | Red |
Form Factor | Plug-in Card |
Height | 2.60" (66.04 mm) |
Width | 0.80" (20.32 mm) |
Length | 5.20" (132.08 mm) |
Thickness | 0.80" (20.32 mm) |
Weight (Approximate) | 2.54 oz (72 g) |
Package Contents |
|
Additional Information | |
Platform Supported | PC |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Limited Warranty | Lifetime |
