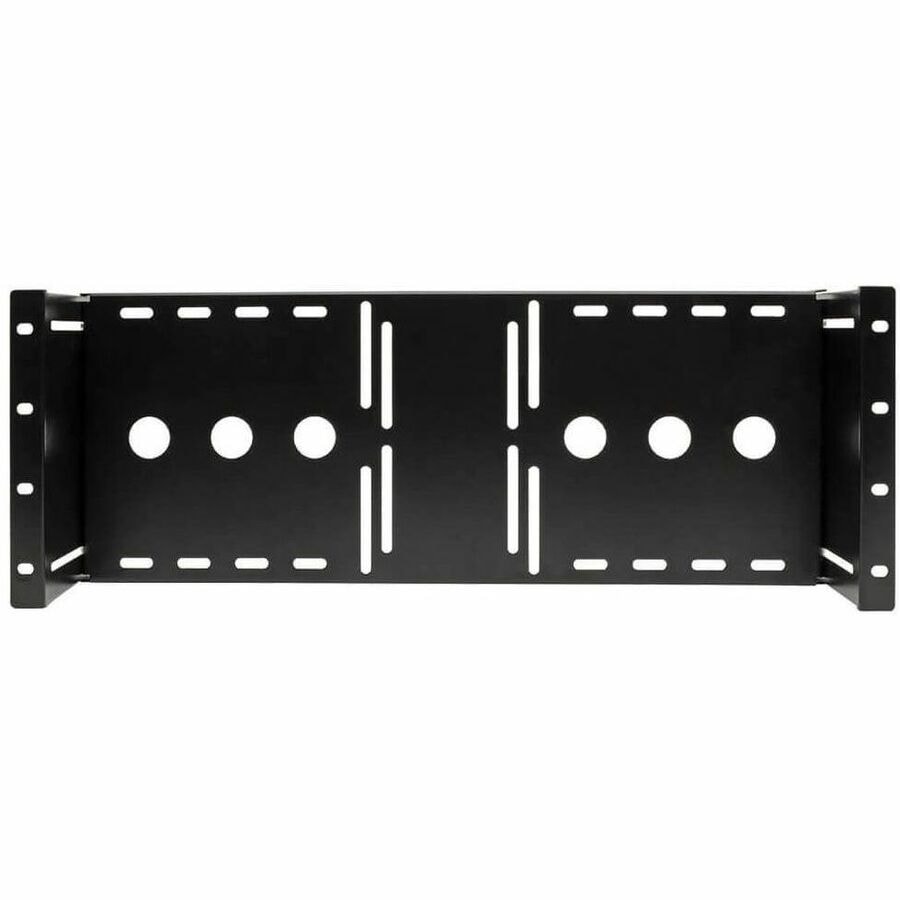

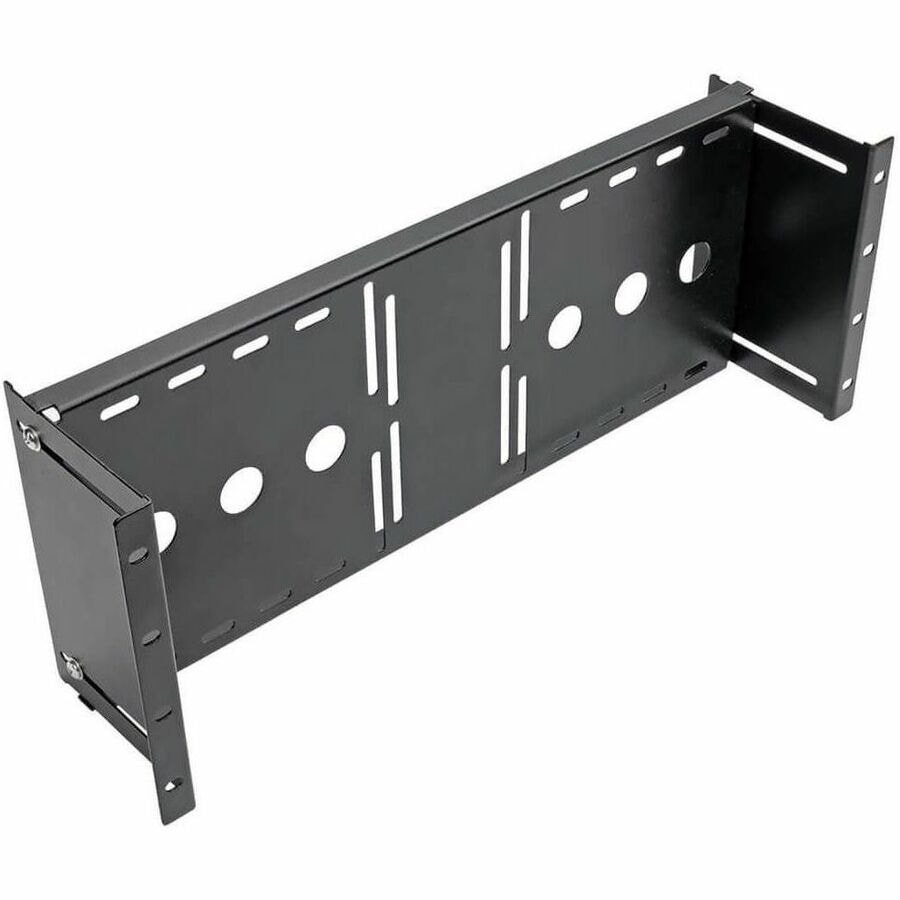

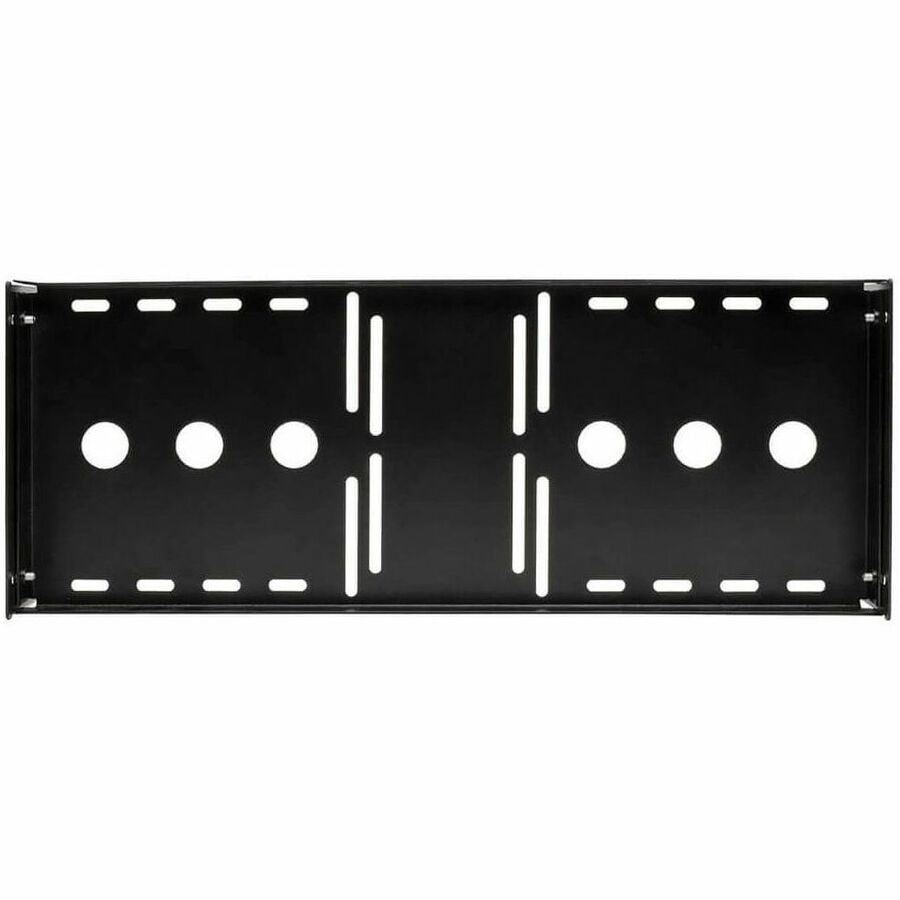

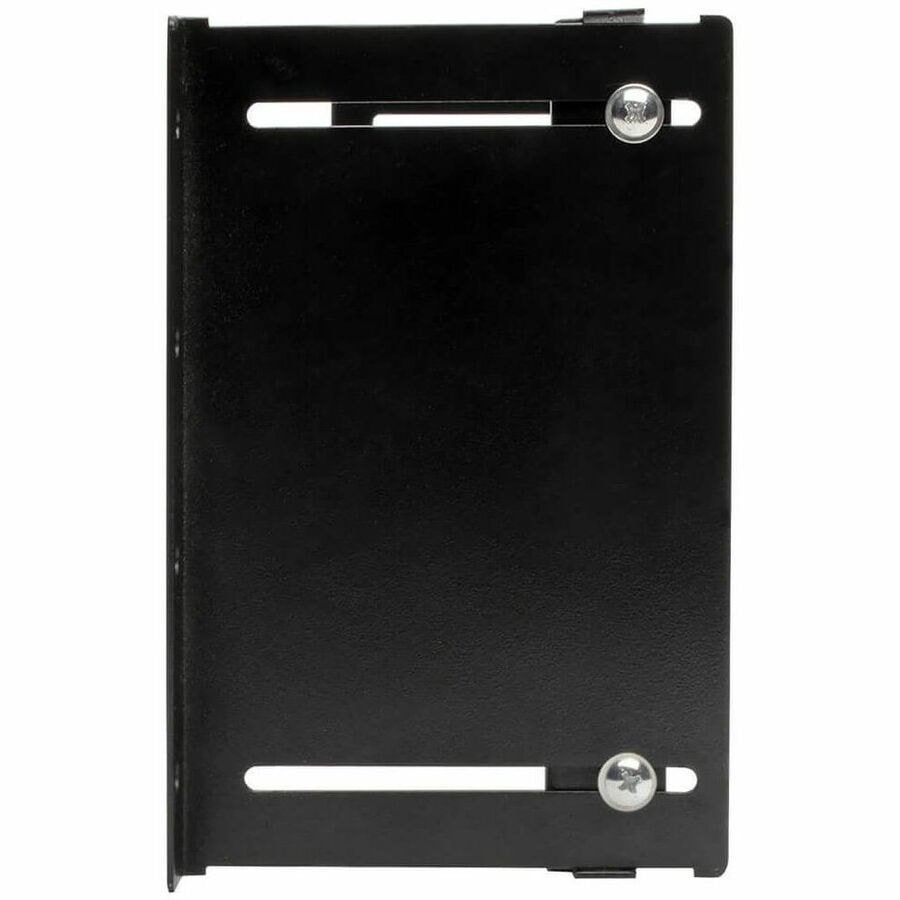

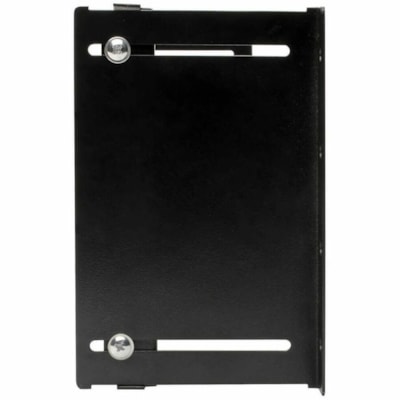

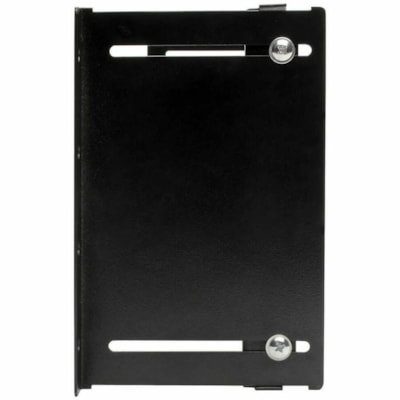

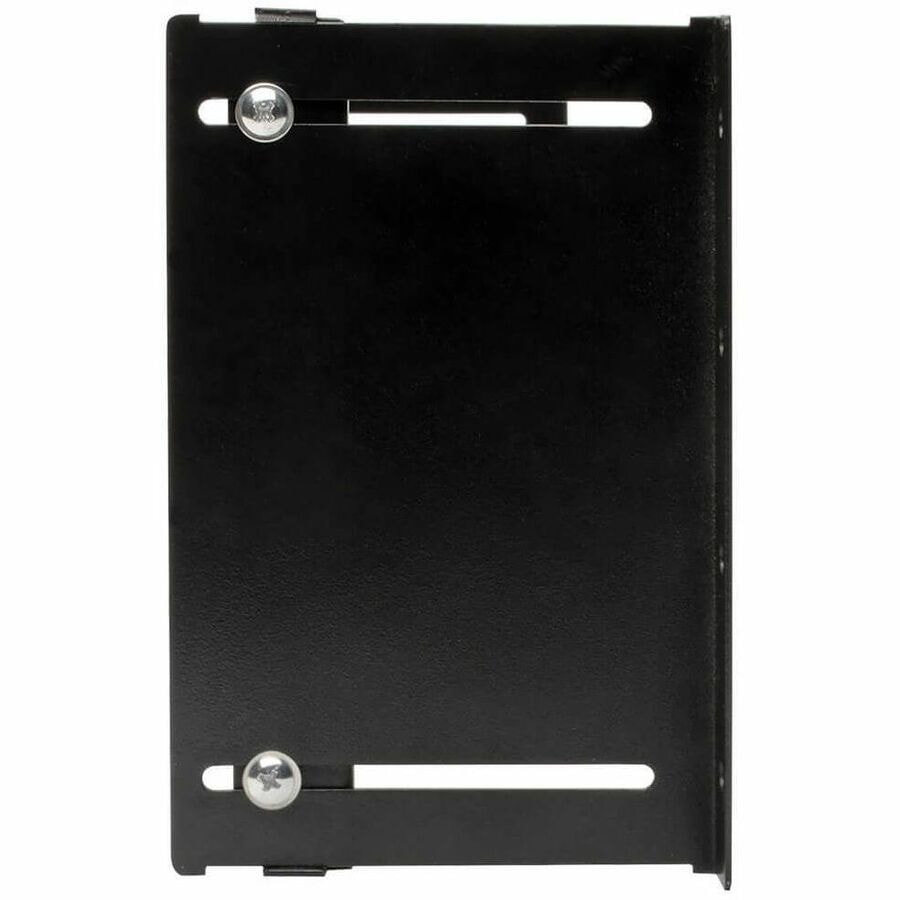

Tripp Lite series Monitor Rack-Mount Bracket, 4U, for LCD Monitor up to 17-19 in. - For Monitor - 4U Rack Height x 19" (482.60 mm) Rack Width - Rack-mountable - Black - Cold-rolled Steel (CRS) - 39.68 lb (18000 g) Static/Stationary Weight Capacity

SRLCDMOUNT
Also known as IM3973ZT,SY6170575

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Easy Mounting of LCD Monitors or Televisions up to 19 in.

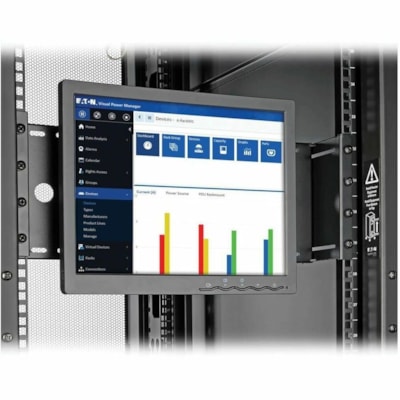

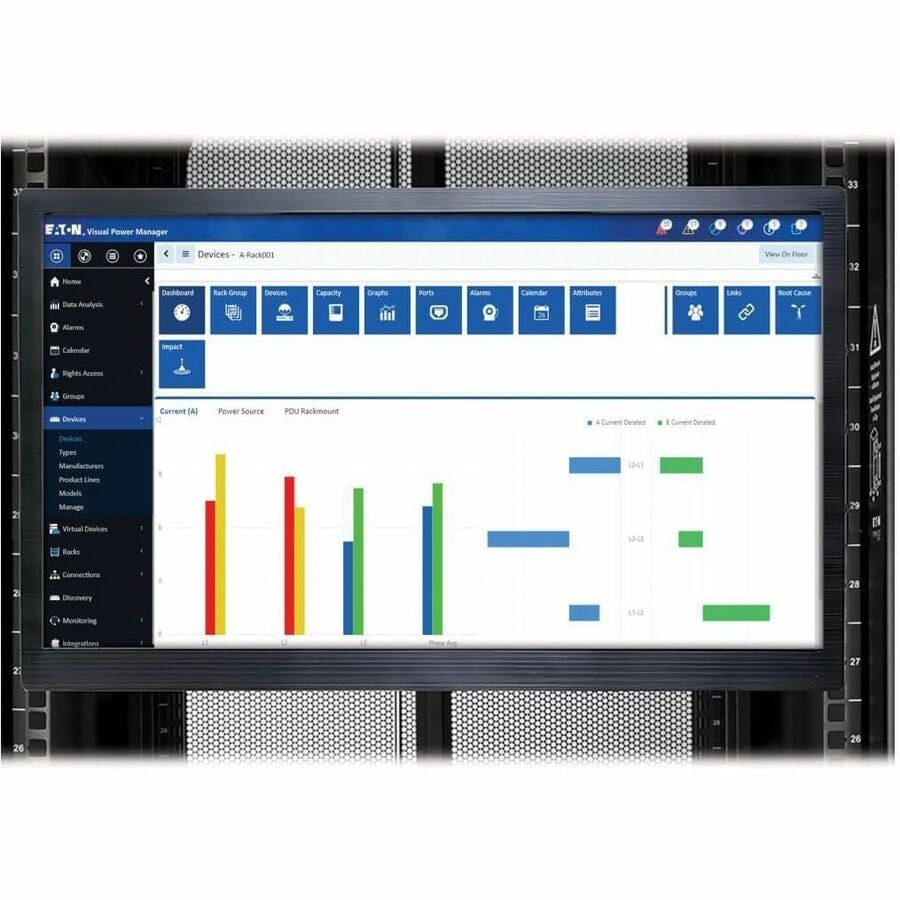

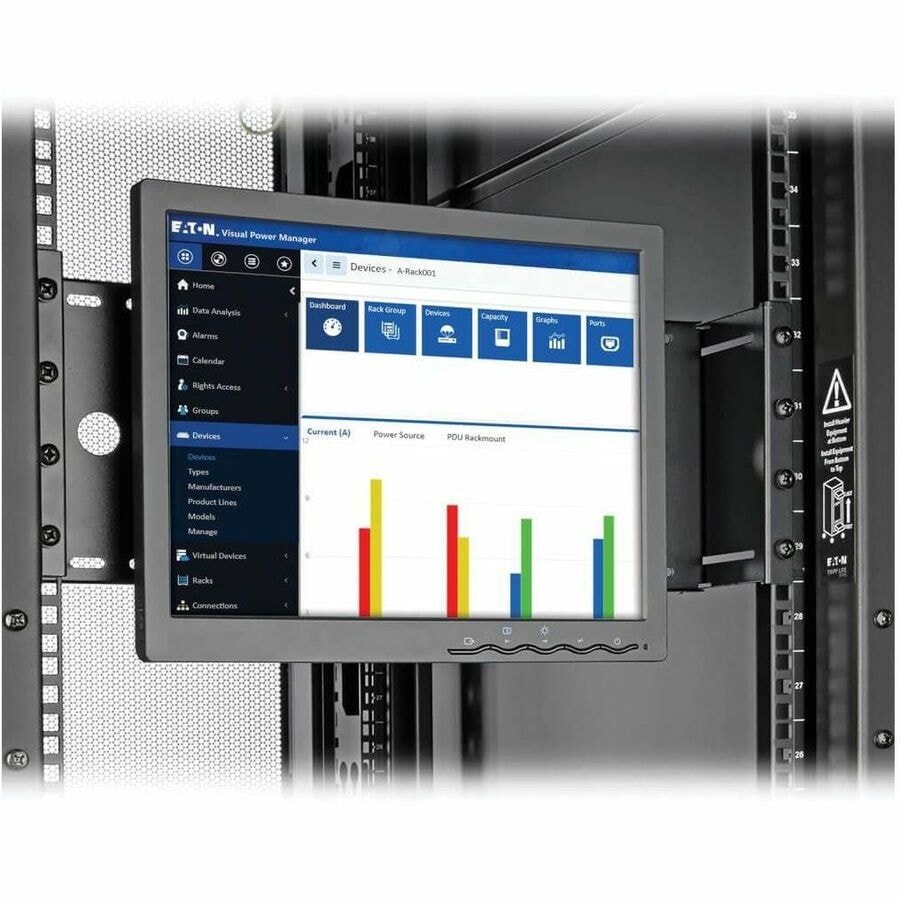

This rack-mount monitor bracket is compliant with multiple VESA patterns, making it compatible with a wide range of retail LCD displays and touch-screen monitors up to 44 pounds. The SRLCDMOUNT supports LCD monitors up to 17 inches, which allows the display to fit snugly within a closed rack. If closing rack doors isn't an issue, simply reverse the rack-mount monitor bracket so that it's facing outward. With this configuration, the SRLCDMOUNT supports LCD monitors up to 19 inches. Compatible VESA mounting-hole patterns are 75 x 75 mm, 100 x 100 mm and 100 x 150 mm.

Includes Necessary Hardware for Mounting in 4U of Rack Space

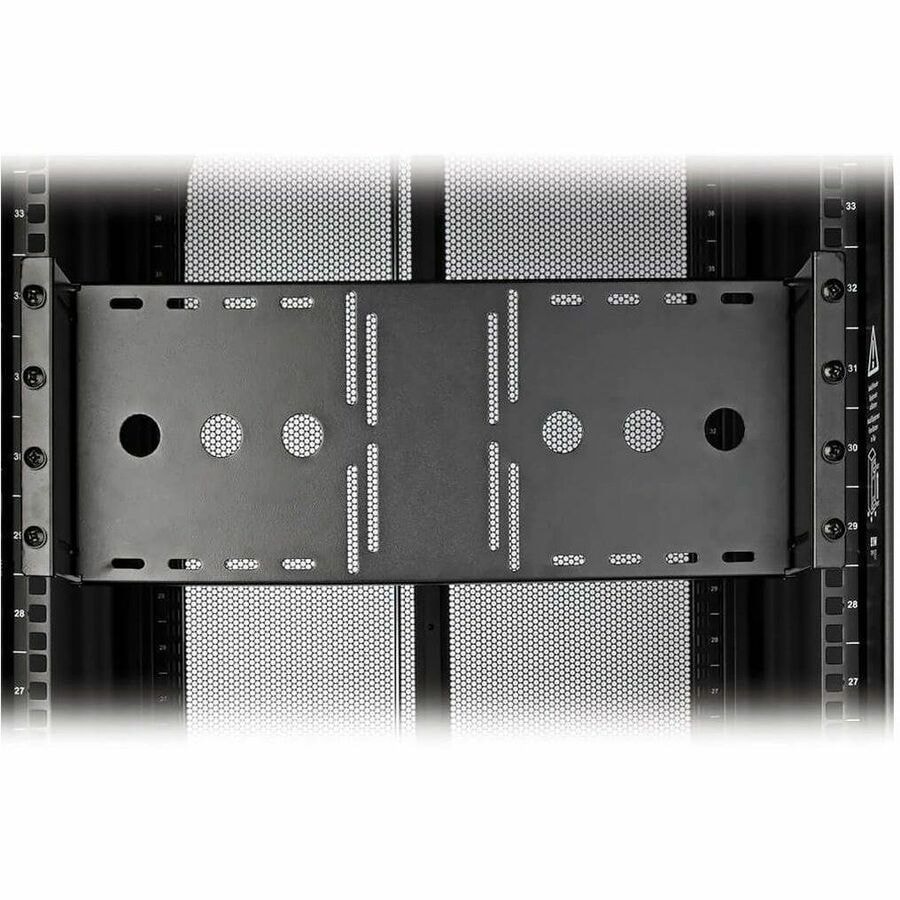

This VESA bracket fits all EIA-compliant 19-inch open frame racks and floor-standing rack enclosures. It's made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack décor. Rack-mounting hardware is included, as well as a convenient Quick Start Guide that walks you through the simple rack-mounting process.

2-Year Warranty and Environmentally Responsible Design
The SRLCDMOUNT comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

DETAILS

  • Application/Usage : Monitor
  • Form Factor : Rack-mountable
  • Color Family : Black
  • Product Color : Black
  • Product Material : Cold-rolled Steel (CRS)
  • Static/Stationary Weight Capacity : 39.68 lb (18000 g)
  • Height : 6.97" (177 mm)
  • Width : 18.98" (482 mm)
  • Depth : 4.53" (115 mm)
  • Rack Height : 4U
  • Rack Width : 19" (482.60 mm)
  • Weight (Approximate) : 3.57 lb (1620 g)
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Rack Mount Bracket allows quick and easy retrieval of your items with better organizing and feasible mounting
  • Comes in black color for a sophisticated and dazzling loo
  • Built with cold-rolled steel (crs) for added firmness and maximum reliability
  • Rack-mountable rack mount bracket enables you to organize wires and secure cables for professional installation
  • Monitor application, usage for your items, valuables, equipment organizational, storage, placement convenience and ease

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SRLCDMOUNT
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model SRLCDMOUNT
Product Name Monitor Rack-Mount Bracket, 4U, for LCD Monitor up to 17-19 in.
Product Type Rack Mount Bracket
Application/Usage Monitor
Form Factor Rack-mountable
Color Family Black
Product Color Black
Product Material Cold-rolled Steel (CRS)
Static/Stationary Weight Capacity 39.68 lb (18000 g)
Height 6.97" (177 mm)
Width 18.98" (482 mm)
Depth 4.53" (115 mm)
Weight (Approximate) 3.57 lb (1620 g)
Rack Height 4U
Rack Width 19" (482.60 mm)

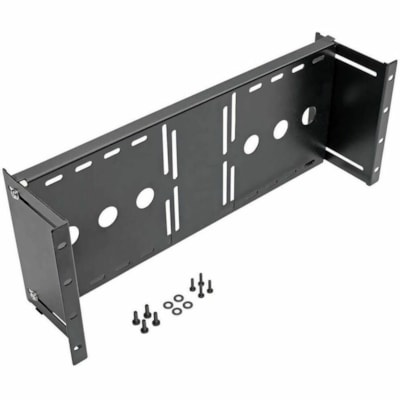

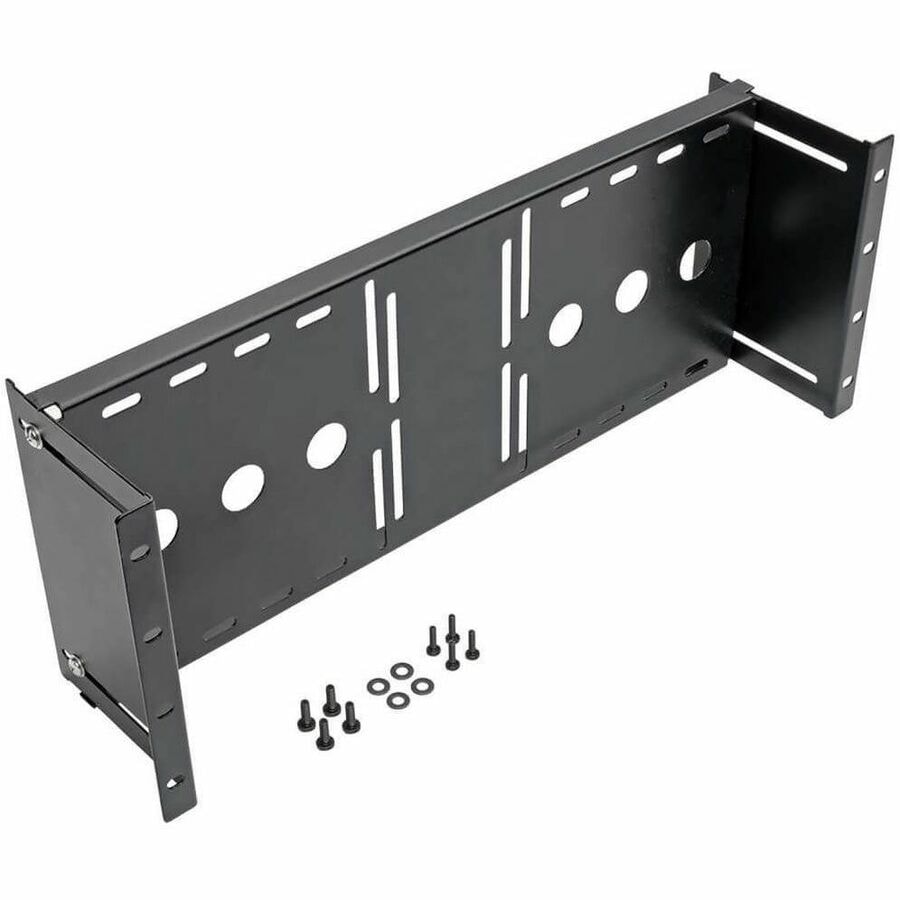

Package Contents
  • Monitor Rack-Mount Bracket, 4U, for LCD Monitor up to 17-19 in
  • 1 x Rack Brackets
  • 8 x M6 x 16 Screws
  • 8 x M6 Cup Washers
  • 8 x M6 Cage Nuts
  • 8 x M5 x 10 Screws
  • 8 x M5 Flat Washers
  • Installation Guide
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
