StarTech.com Desk Mount Monitor Arm with 2x USB 3.0 ports for VESA Display up to 34" (17.6lb/8kg), C-Clamp/Grommet, Mechanical Spring - VESA 75x75/100x100mm pole mount heavy duty single monitor arm for large 32in (16:9) or 34in (21:9/ultrawide) display up to 8kg; 2 USB 3.0 passthrough ports - Tilt/s

ARMPIVOT2USB3
Also known as IM394VVG,SY6583353

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Save space with this premium desk mount monitor arm, by suspending your screen above your desk.

Versatile Use

Use the single arm monitor mount to mount your VESA mount monitor (75x75, 100x100) up to 34".

Sleek and Stable Design

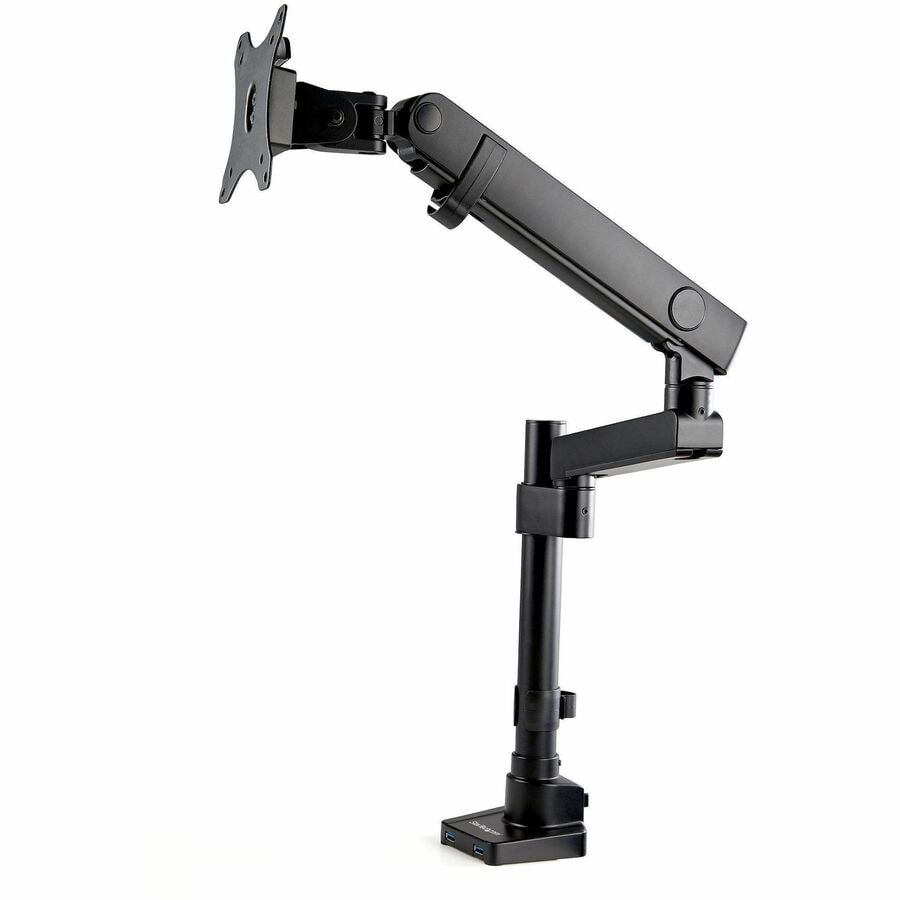

Made of aluminum, the VESA mount monitor stand provides stable support for your display, with a weight capacity of up to 17.6 lb. (8 kg). Built-in USB 3.0 ports provide convenient connectivity for your computer.

The arm extends 20.2" (514 mm) to allow a wide range of motion. Move the monitor holder arm effortlessly side to side to adjust your screen.

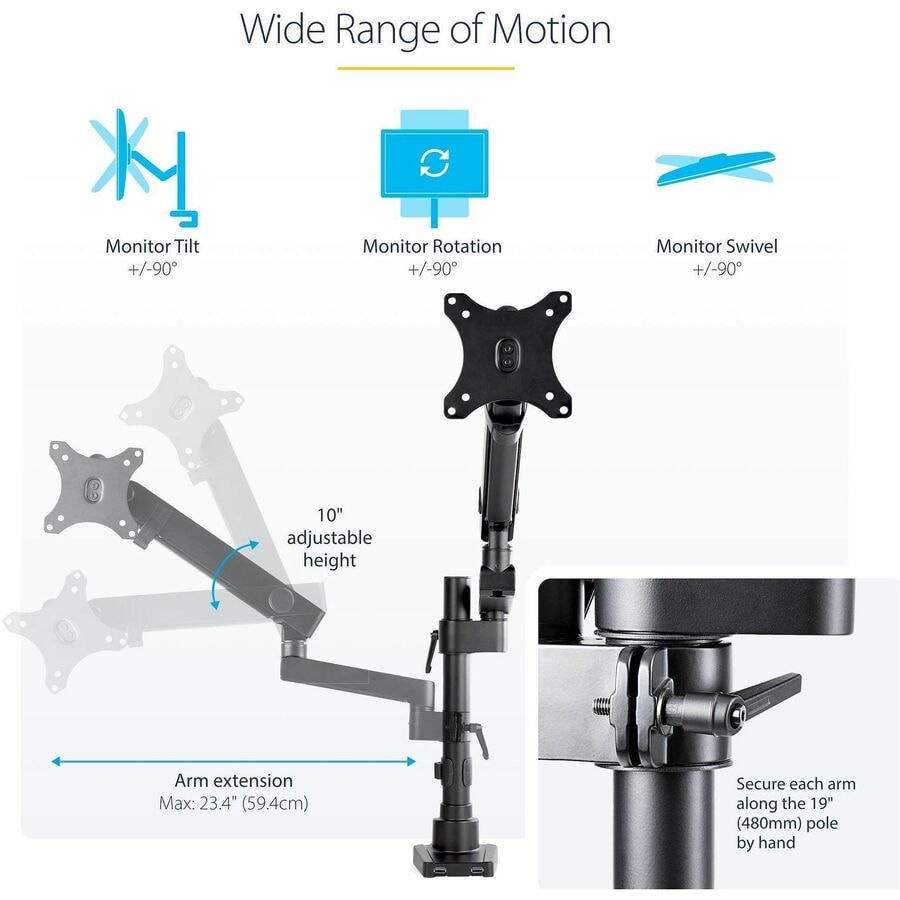

With its articulating arm, the monitor mount makes it easy to find the right viewing angle. Pan +90/-90 degrees left or right and tilt your display +90/-90 degrees up or down. For landscape or portrait viewing, rotate your display +90/-90 degrees.

Height Adjustment

Work in comfort with this height adjustable monitor stand that lets you raise or lower the monitor arm along the pole, up to 24.4" (620 mm).

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales

The ARMPIVOT2USB3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

  • Device Supported : Monitor,Flat Panel Display
  • Number of Displays Supported : 1
  • Maximum Load Capacity : 17.64 lb (8000 g)
  • Minimum Screen Size Supported : 17"
  • Maximum Screen Size Supported : 34"
  • Height Adjustable : Yes
  • Features : Articulating,Ergonomic,Rotate,Swivel,Tilt,Pan,USB Port,Grommet,Full Motion,Heavy Duty,Cable Management,Space Saving Design
  • Product Color : Black
  • Product Material : Aluminum
  • Mounting Pattern : 75 x 75,100 x 100

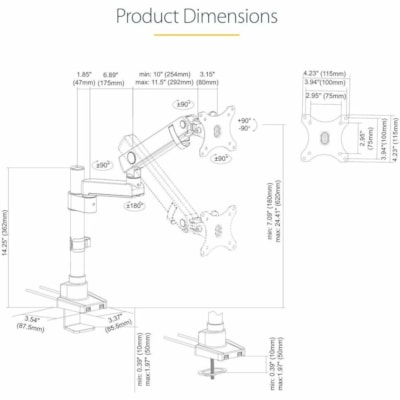

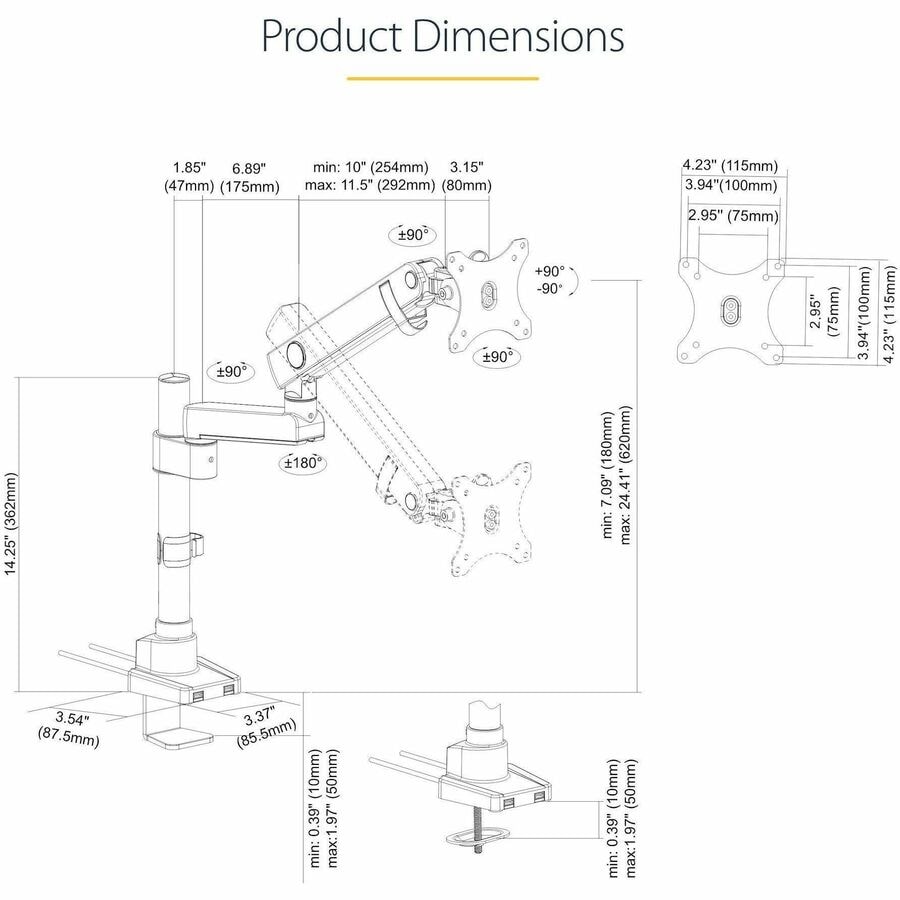

  • Height : 24.40" (619.76 mm)
  • Width : 1.40" (35.56 mm)
  • Length : 23.40" (594.36 mm)
  • Weight (Approximate) : 7.20 lb (3265.87 g)
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • HEAVY DUTY MONITOR MOUNT: VESA 75x75/100x100mm compatible articulating single monitor mount supports 1 display up to 32" (16:9) or an ultrawide display up to 34" (21:9) up to 17.6lb/8kg; Full motion articulation; 2 USB 3.0 passthrough ports

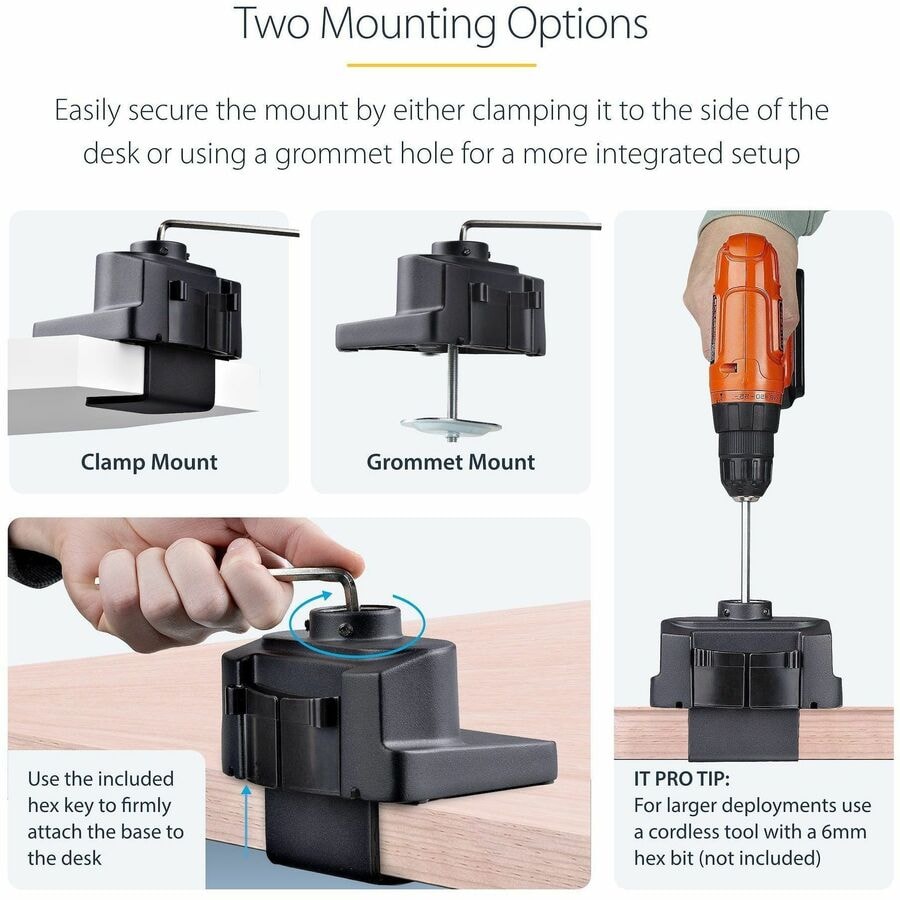

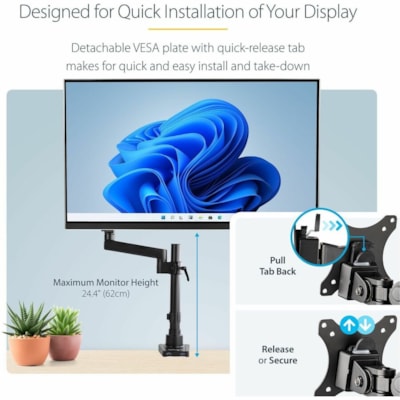

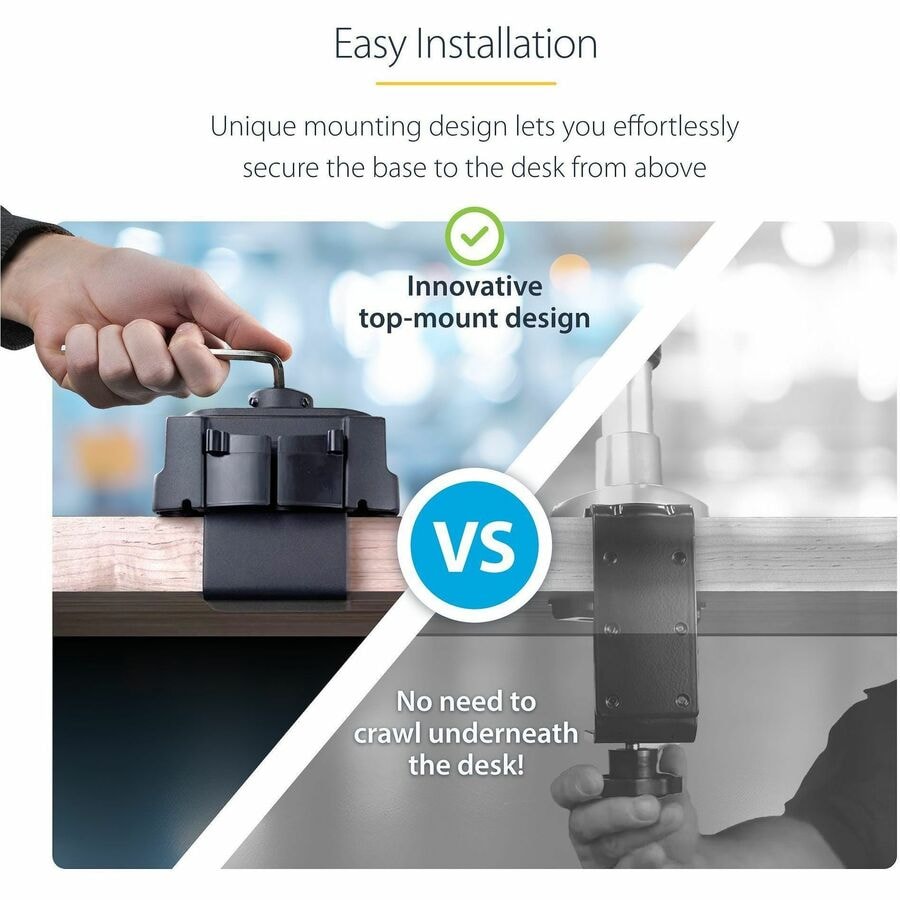

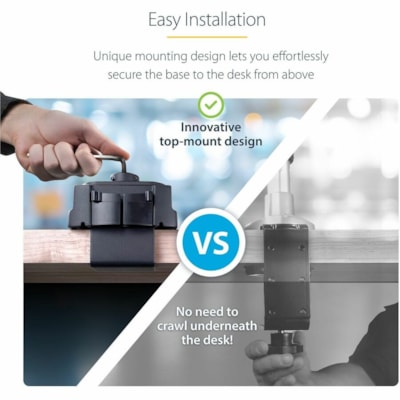

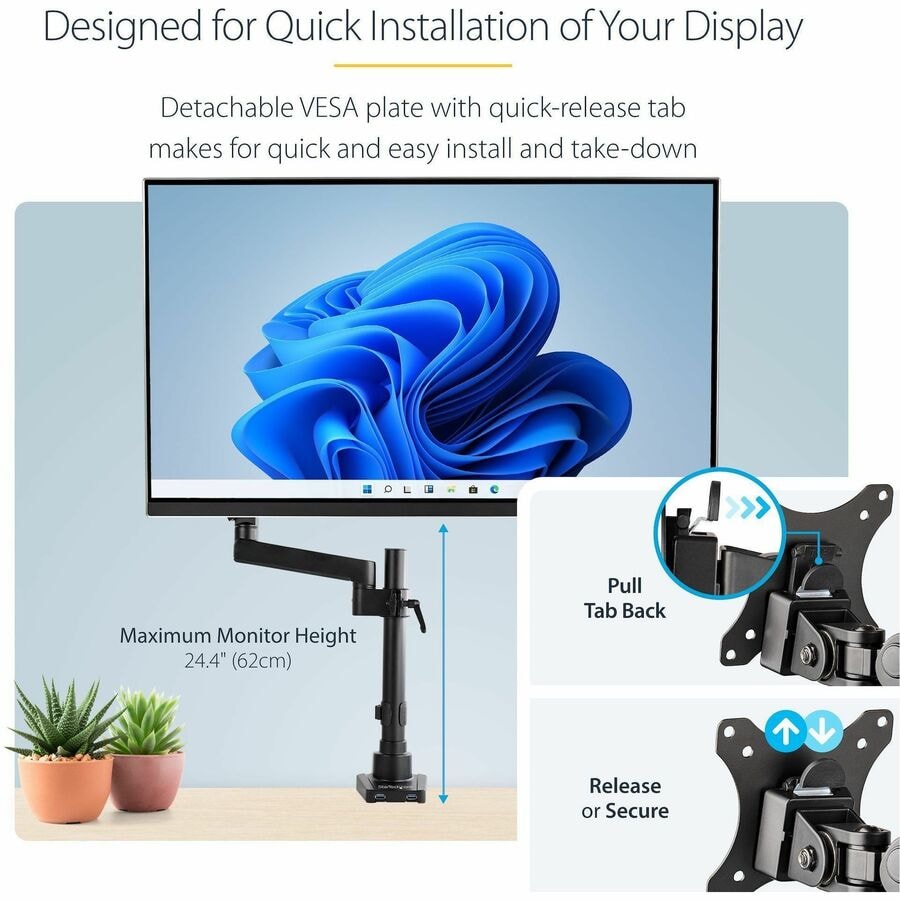

  • EASY INSTALLATION: Tighten c-clamp from top w/ incl. tool or grommet mount to secure to desktop (10mm-50mm); Easily mount display w/ detachable VESA plate; tools incl. to adjust articulation tension
  • WIDE RANGE OF MOTION: Ergonomic monitor arm increases comfort & productivity w/ +/-90° tilt, +/-90° swivel, 90° rotating screen (landscape/portrait) & toolless adjustable height along 11.8"/300mm pole
  • ONE-TOUCH ADJUSTMENT: Pole & arm design allows a max height of 24.4" from the desk, with the full motion arm offering toolless 10" height adjustability and outward extension up to 18.4"

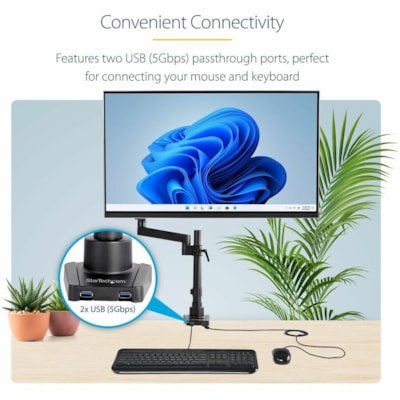

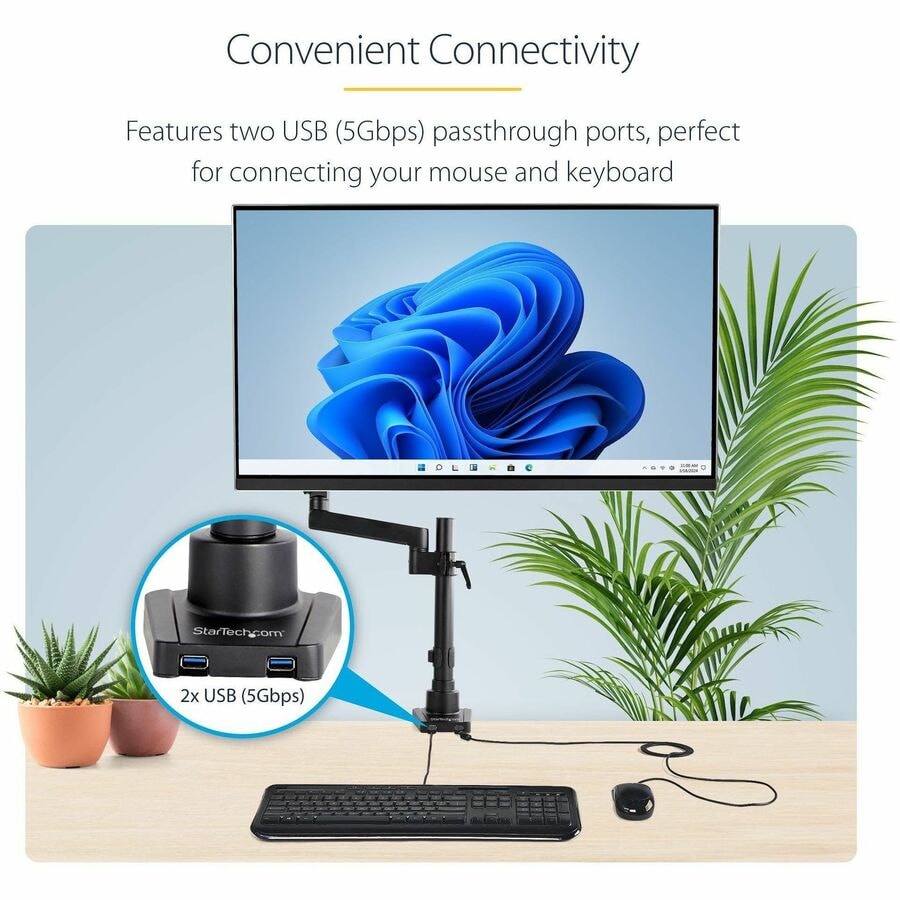

  • CONVENIENT CONNECTIVITY: This desk mount monitor arm includes 2 USB 3.1 Gen 1 5Gbps passthrough ports that extend your PC/laptop/computer/dock ports for connecting devices & built-in cable management

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number ARMPIVOT2USB3
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Model ARMPIVOT2USB3
Product Name ARMPIVOT2USB3 Mounting Arm
Product Type Mounting Arm
Device Supported Flat Panel Display
Device Supported Monitor
Number of Displays Supported 1
Maximum Load Capacity 17.64 lb (8000 g)
Minimum Screen Size Supported 17"
Maximum Screen Size Supported 34"
Features Ergonomic
Features Space Saving Design
Features Cable Management
Features Heavy Duty
Features Full Motion
Features Grommet
Features USB Port
Features Pan
Features Tilt
Features Swivel
Features Rotate
Features Articulating
Height Adjustable Yes
Product Color Black
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Product Material Aluminum
Height 24.40" (619.76 mm)
Width 1.40" (35.56 mm)
Length 23.40" (594.36 mm)
Weight (Approximate) 7.20 lb (3265.87 g)
Package Contents
  • Base Assembly
  • Lower Arm
  • Upper Arm
  • Pole
  • VESA Plate
  • Arm Shoulder
  • Tool Holder
  • Cable Management Clip
  • Grommet Plate
  • Grommet Screw
  • 3mm Hex Key
  • 6mm Hex Key
  • M4 x 12mm Screws
  • M5 x 12mm Screws
  • Washer
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
