MARKETING INFORMATION

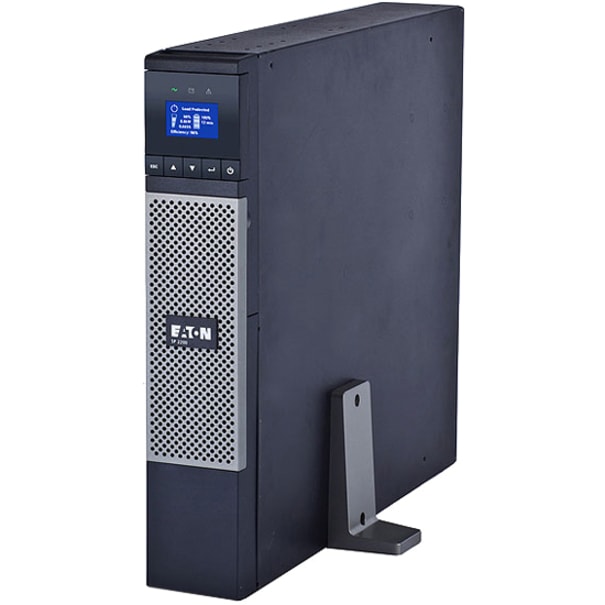

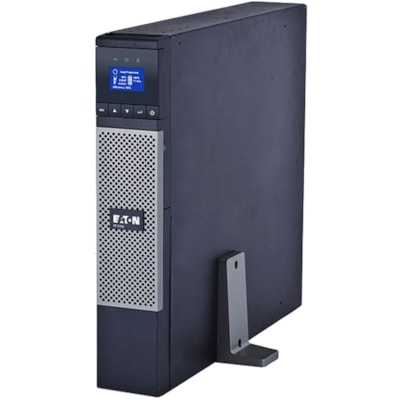

1.44kVA/1.44kW/120V Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500RT protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-15R Outlets Protect Your Connected Components

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

LCD Interface Keeps You Informed at a Glance

The five-button graphical LCD provides useful information about the UPS itself, load status,

events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

DETAILS

• Plug/Connector Type : NEMA 5-15P
• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 8 x NEMA 5-15R
• Transfer Time : 4 ms
• Load Capacity (VA) : 1.44 kVA
• Load Capacity (Watt) : 1.44 kW
• Input Voltage : 110 V AC
• Output Voltage : 132 V AC
• Serial Port : Yes
• USB : Yes
• Battery Characteristics : Maintenance-free
• Battery Chemistry : Lead Acid
• Backup/Run Time (Full Load) : 3 Minute
• Backup/Run Time (Half Load) : 11 Minute
• Hot Swappable : Yes
• Height : 3.39" (86 mm)
• Width : 17.36" (441 mm)
• Depth : 20.55" (522 mm)
• Rack Height : 2U
• Form Factor : Rack/Tower
• Weight (Approximate) : 65 lb (29483.50 g)
• Software Included : Eaton Intelligent Power Software Suite
• Country of Origin : Philippines
• Limited Warranty : 3 Year

• Keeps equipment running during outages to allow time for file saves and safe shutdown
• Provides 20% more wattage compared to traditional UPS systems to protect devices
• Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
• 5-button graphical LCD offers critical UPS data and load status at a glance
• Optional NETWORK-M2 Gigabit network card enables full remote access and control
