Tripp Lite series DWM1327SE Wall Mount for Flat Panel Display, Monitor - Black - 1 Display(s) Supported - 13" to 27" Screen Support - 33 lb (14968.55 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Metal, Steel - 1
DWM1327SE
Also known as IM38561W,DHDWM1327SECA,SY5272421
MARKETING INFORMATION

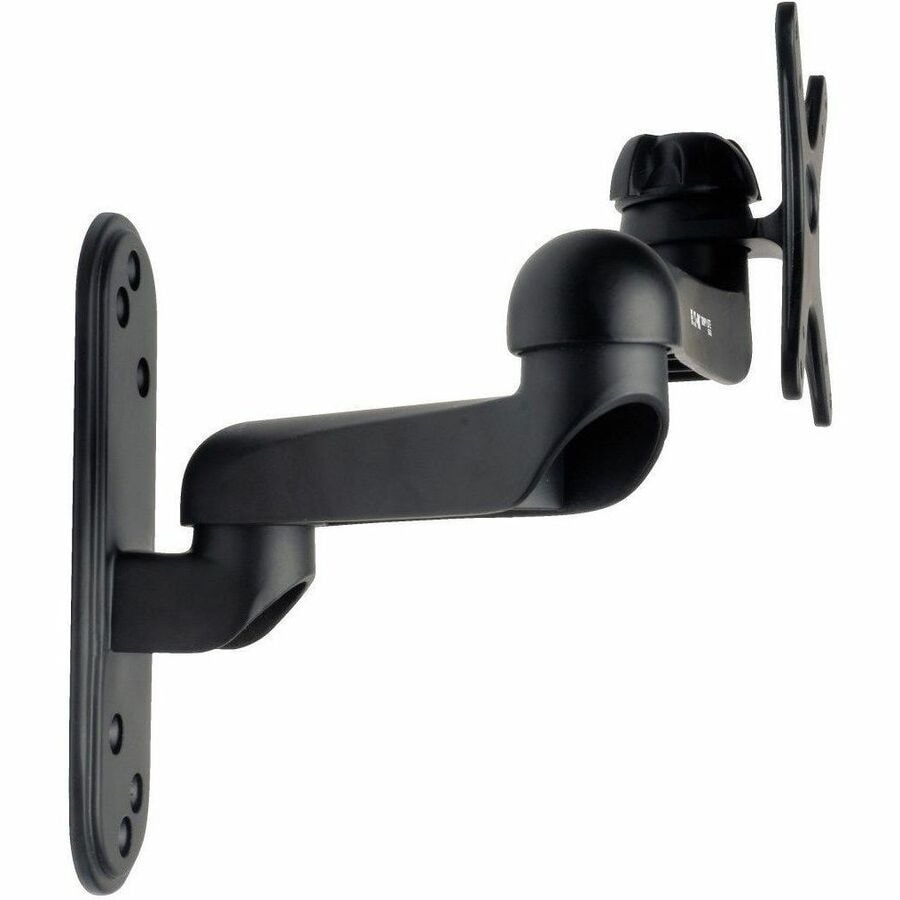

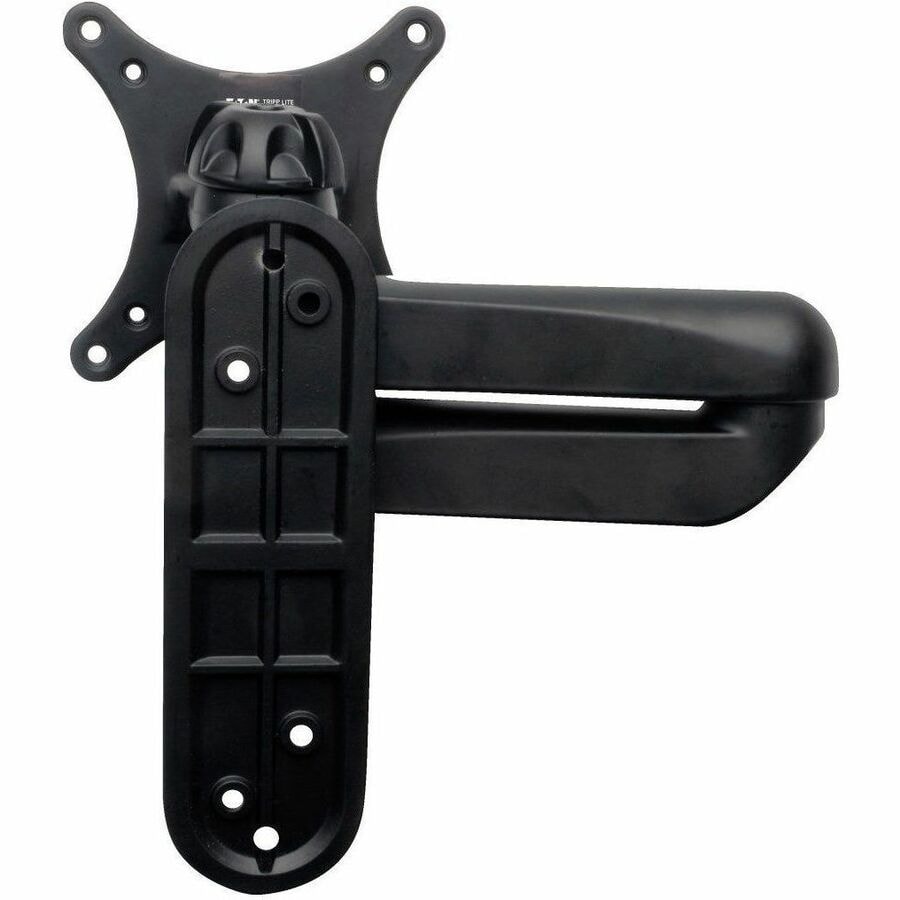

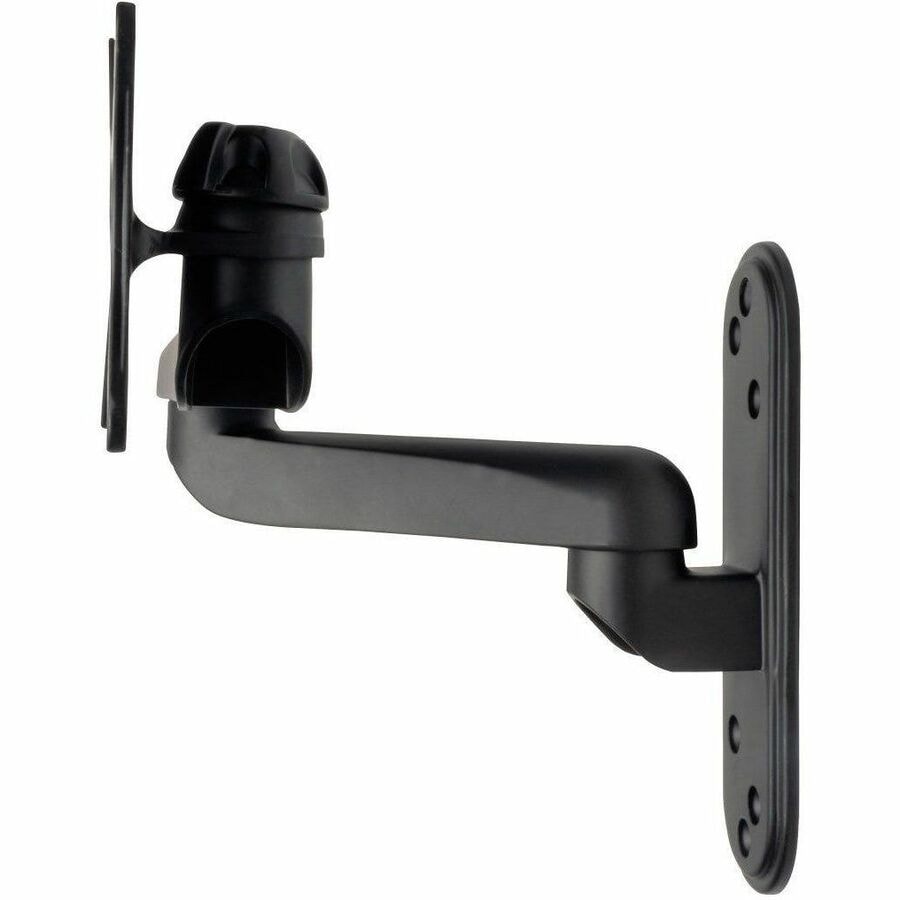

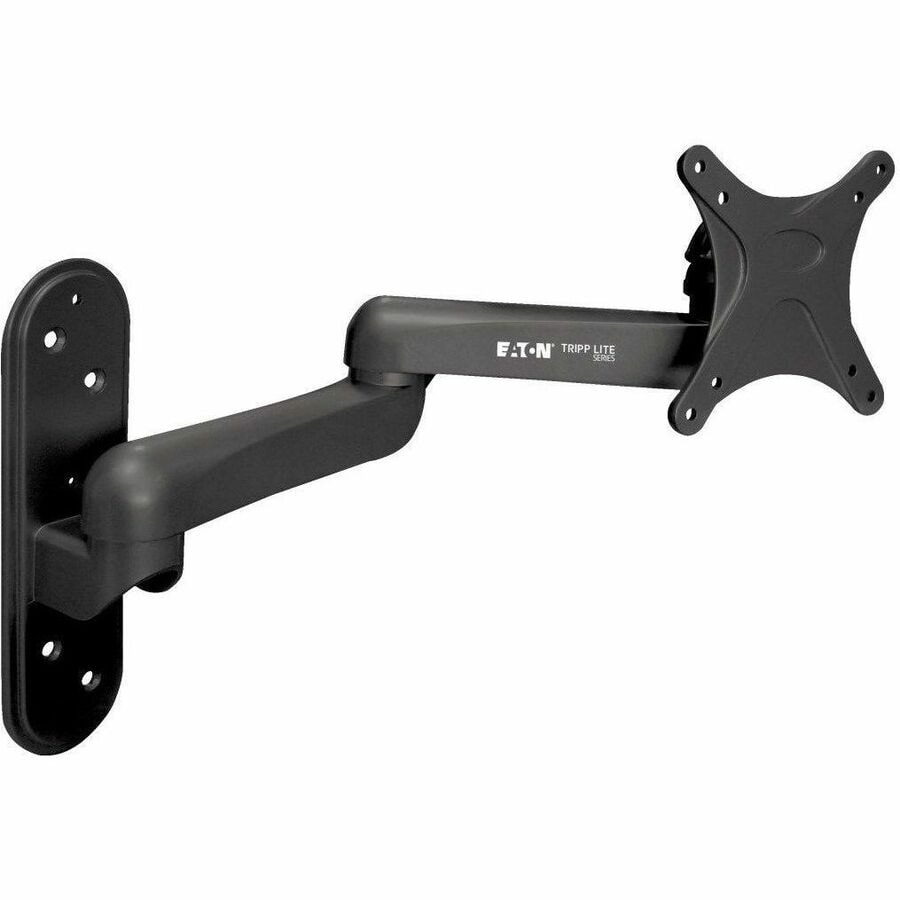

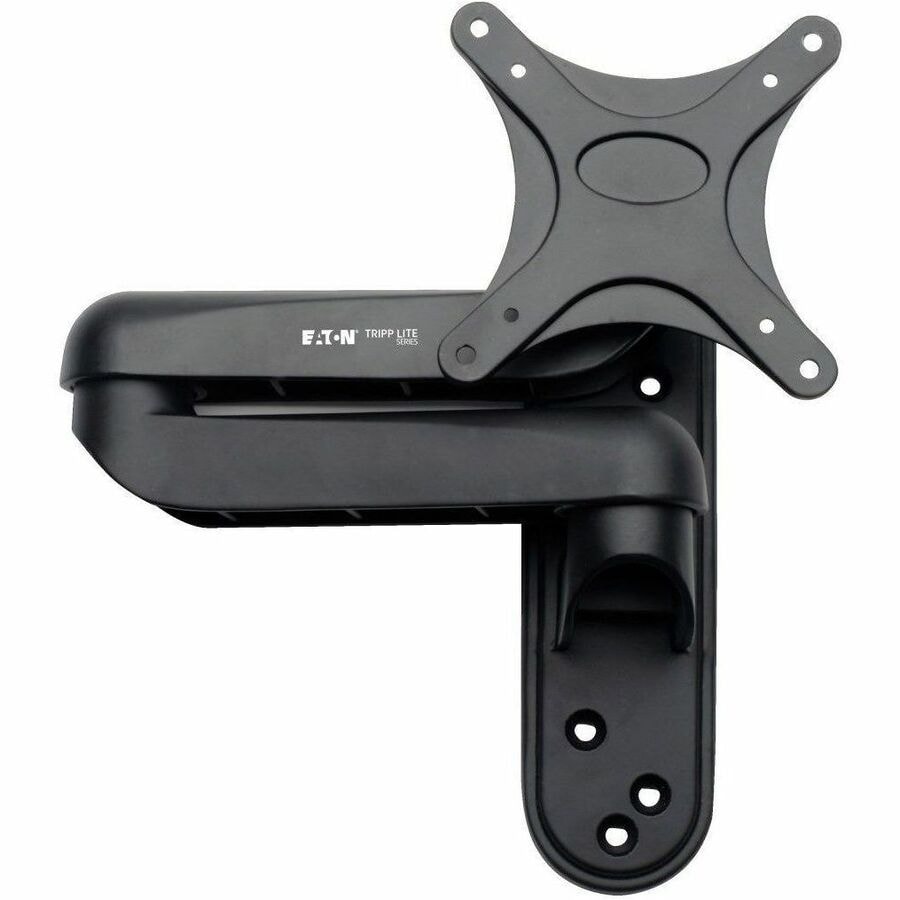

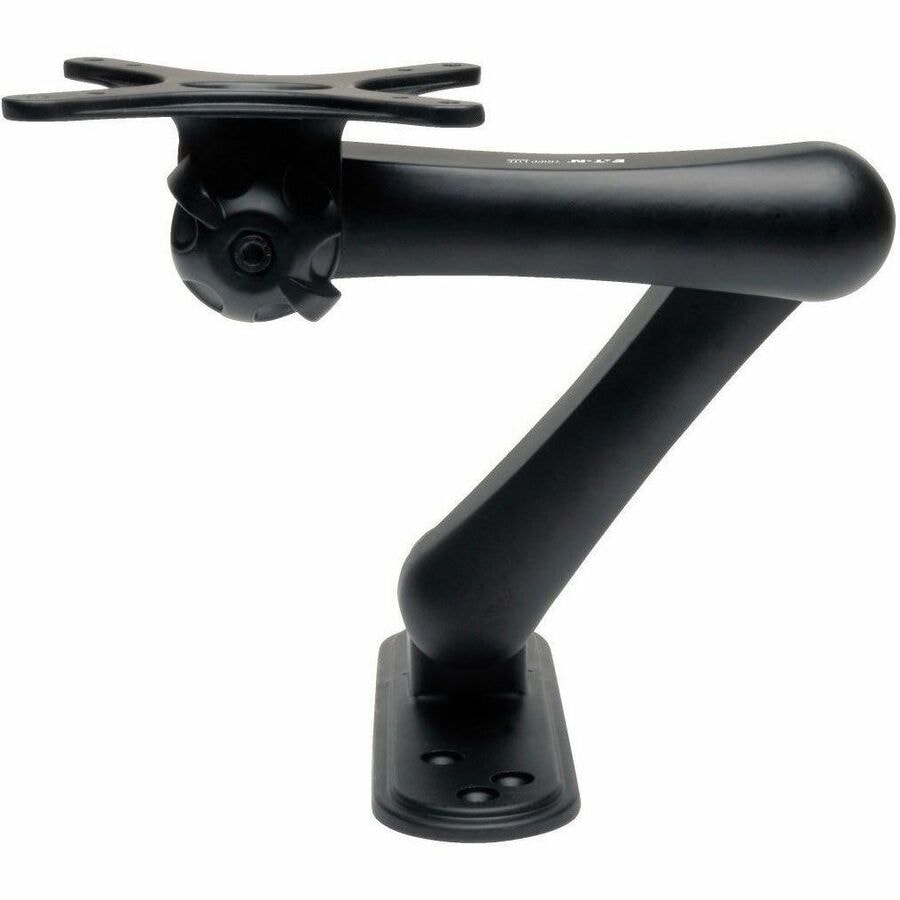

Tripp Lite's VESA-compliant DWM1327SE Tilt Flat-Screen Wall Mount offers full-motion articulation and can free up valuable space in your workstation by allowing you to effortlessly re-position your display at any time, even after installation. Its sleek design features convenient one-touch swivel display adjustment with tilt capabilities and fits most 13- to 27-inch flat-panel displays. Its durable, all-metal frame with scratch-resistant, powder-coat finish withstands the stress of repeated use and blends easily into any décor. It comes with all necessary mounting hardware and supports weights of up to 33 lb. For peace of mind, the DWM1327SE comes backed by a 5-year warranty and green, RoHS-compliant design.DETAILS
- Device Supported : Flat Panel Display,Monitor
- Number of Displays Supported : 1
- Maximum Load Capacity : 33 lb (14968.55 g)
- Minimum Screen Size Supported : 13"
- Maximum Screen Size Supported : 27"
- Features : Articulating,Tilt,Swivel,Adjustable Arm,Durable,180° Swivel
- Durability : Scratch Resistant
- Color Family : Black
- Product Color : Black
- Product Material : Metal,Steel
- VESA Mount Compatible : Yes
- Mounting Pattern : 75 x 75,100 x 100
- Height : 8.27" (210 mm)
- Width : 15.94" (404.90 mm)
- Depth : 4.61" (117 mm)
- Weight (Approximate) : 2.66 lb (1206.56 g)

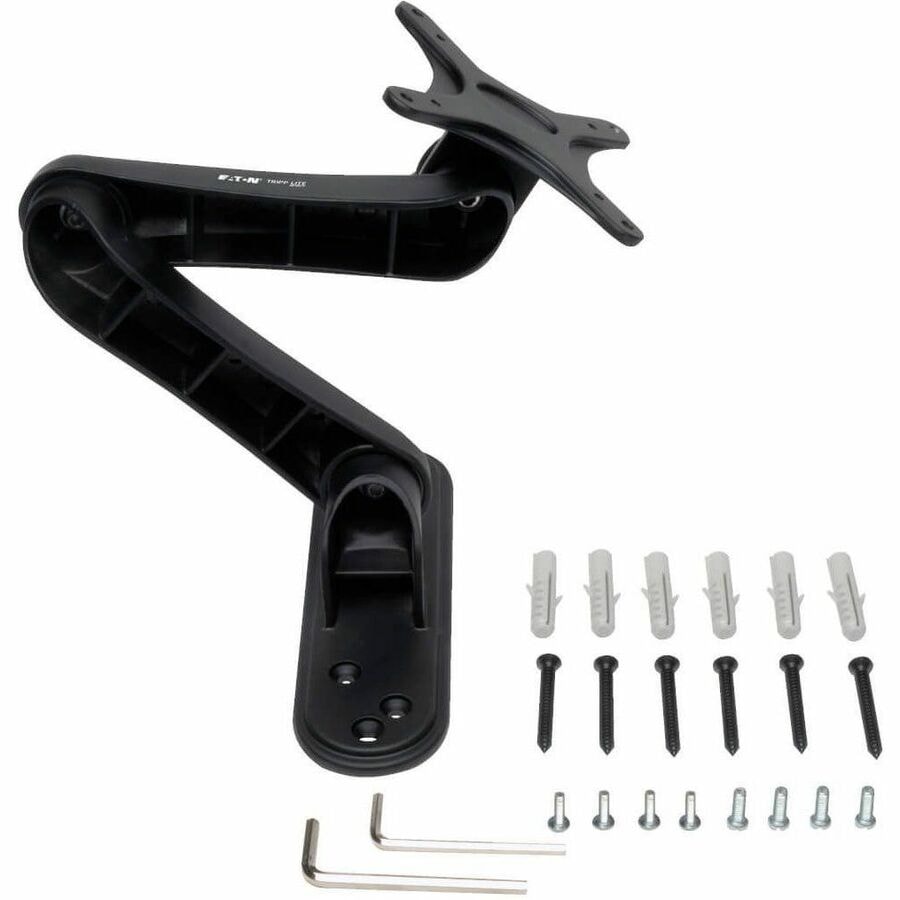

- Package Contents :
- Full-Motion Wall Mount for 13" to 27" Flat-Screen Displays
- Mounting Hardware
- Owner's Manual
- Application/Usage : Wall
- Country of Origin : China
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 3
- Limited Warranty : 5 Year
- Fits most flat-panel displays from 13 to 27 in.
- One-touch adjustment for comfortable viewing
- 180° swivel and -15° to +15° tilt for wide range of motion
- 5-year warranty
- Supports up to 33 lb.
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DWM1327SE |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | DWM1327SE |
| Product Name | Full-Motion Wall Mount for 13" to 27" Flat-Screen Displays |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Device Supported | Monitor |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 33 lb (14968.55 g) |
| Minimum Screen Size Supported | 13" |
| Maximum Screen Size Supported | 27" |
| Features | Tilt |
| Features | Swivel |
| Features | Articulating |
| Features | 180° Swivel |
| Features | Durable |
| Features | Adjustable Arm |
| Durability | Scratch Resistant |
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75 |
| Mounting Pattern | 100 x 100 |
| Product Material | Steel |
| Product Material | Metal |
| Height | 8.27" (210 mm) |
| Width | 15.94" (404.90 mm) |
| Depth | 4.61" (117 mm) |
| Weight (Approximate) | 2.66 lb (1206.56 g) |
| Package Contents |
|
| Application/Usage | Wall |
| Additional Information | Min/max arm extension (in.) 4.14 min to 15.95 max |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 5 Year |
